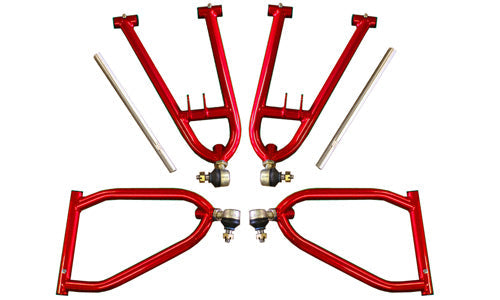

Yamaha Raptor 125/250 DC-4 A-Arm Kit
Description
The Lone Star Racing DC-4 A-Arm Kit is a serious suspension upgrade built specifically for the Yamaha Raptor 125 and Raptor 250. Constructed from 4130 chromoly steel, these A-arms deliver the strength and rigidity needed to handle aggressive riding without adding unnecessary weight. Available in two width configurations, the DC-4 kit gives riders the ability to dial in their stance and forward placement to match their riding style and track demands.
Featuring quick camber and quick caster adjustment, setting up your geometry is fast and precise - no guesswork, no hassle. The DC-4 kit is designed to use the factory inner pivot tubes at the mounting points, making installation clean and straightforward. Backed by a Lone Star Racing Lifetime Warranty (excluding wear items), this kit is a long-term investment in your quad's performance.
Key Features
- 4130 Chromoly Steel Construction: Engineered for superior strength and durability under demanding riding conditions.
- Two Size Options: Choose between +2" width with +0.5" forward placement or +3" width with +1" forward placement per side.
- Quick Camber Adjustment: Fast, precise camber tuning to optimize tire contact and handling.
- Quick Caster Adjustment: Easy caster changes to fine-tune steering feel and stability.
- Long Travel Shock Compatible: DC-4 kit requires long travel shocks - designed to work with compatible aftermarket shock setups.
- Shock Specs - 15.875" Extended Length: Matches the required long travel shock dimensions for proper fitment.
- 9.58" Shaft Travel: Provides the full range of suspension movement the DC-4 geometry demands.
- Factory Inner Pivot Tubes: Uses your existing factory inner pivot tubes at the mounting points for a cleaner, more integrated installation.
- Fits Raptor 125 and Raptor 250: Compatible with both Yamaha Raptor 125 and Raptor 250 models.
- Lifetime Warranty: Backed by Lone Star Racing's Lifetime Warranty (excluding wear items) for lasting peace of mind.
Size Options & Which to Choose
- +2" Width / +0.5" Forward: A moderate width increase paired with a subtle forward placement shift. This option gives you improved stability and a wider stance while keeping geometry changes conservative - ideal for riders who want a meaningful suspension upgrade without dramatically altering their quad's handling characteristics.
- +3" Width / +1" Forward: The maximum width and forward placement option, providing the most aggressive stance and the greatest improvement in cornering stability and traction. Best suited for racers and performance-focused riders who want to push the Raptor 125/250 to its limits on the track or trail.
What's Included
- Lone Star Racing DC-4 A-Arm Kit (upper and lower A-arms)
Why You'll Love It
Lone Star Racing has been a trusted name in ATV performance suspension for years, and the DC-4 A-Arm Kit is a prime example of why riders keep coming back. Built from 4130 chromoly steel and designed with real-world racing in mind, these arms are tough enough to handle everything from casual trail riding to full-send track sessions. The quick camber and caster adjustments make it easy to dial in your setup at the track without specialized tools, saving you time and letting you focus on riding.
The two available size configurations mean you're not locked into a one-size-fits-all solution - you can choose the geometry that matches your goals. Whether you're building a weekend trail machine or a competitive Raptor race quad, the DC-4 kit delivers the stability, strength, and adjustability that serious riders demand. And with a Lifetime Warranty behind every kit, you can ride confidently knowing Lone Star Racing stands behind their work.
Product Specifications
View Product Specs
| Brand | Lone Star Racing ATV & UTV |
|---|---|
| Material | 4130 Chromoly Steel |
| Compatible Models | Yamaha Raptor 125, Yamaha Raptor 250 |
| Width Options | +2" width / +0.5" forward or +3" width / +1" forward (per side) |
| Shock Extended Length | 15.875" |
| Shock Shaft Travel | 9.58" |
| Shock Requirement | Long travel shocks required (not included) |
| Inner Pivot Tubes | Uses factory inner pivot tubes at mounting points |
| Warranty | Lifetime Warranty (excluding wear items) |
| Finish Options | No Finish, Gloss Black, Flat Black, Candy Red, Candy Blue, Gloss White, Silver Metallic, Custom Color |
FAQ
Do long travel shocks come included with the DC-4 A-Arm Kit?
No, long travel shocks are not included. The DC-4 kit requires long travel shocks to function properly. The required shock specs are 15.875" extended length and 9.58" shaft travel. You will need to source compatible long travel shocks separately before installing this kit.
Will this kit fit both the Raptor 125 and Raptor 250?
Yes - the Lone Star Racing DC-4 A-Arm Kit is designed to fit both the Yamaha Raptor 125 and the Yamaha Raptor 250. It uses the factory inner pivot tubes at the mounting points on both models for a clean, integrated fit.
What is the difference between the +2" and +3" width options?
The +2" width / +0.5" forward option offers a moderate stance widening for improved stability while keeping geometry changes conservative. The +3" width / +1" forward option provides a more aggressive stance with greater forward placement, delivering maximum cornering stability and traction - best suited for competitive or performance-focused riders.
What does the Lifetime Warranty cover?
Lone Star Racing's Lifetime Warranty covers the DC-4 A-Arms against defects in materials and workmanship. Wear items are excluded from the warranty. Contact Lone Star Racing directly for specific warranty claim details and procedures.
Can I choose a custom color for the A-arms?
Yes - in addition to standard finish options like Gloss Black, Flat Black, Candy Red, Candy Blue, Gloss White, Silver Metallic, and No Finish, Lone Star Racing offers a custom color option. Simply specify your desired color in the order notes at checkout.
