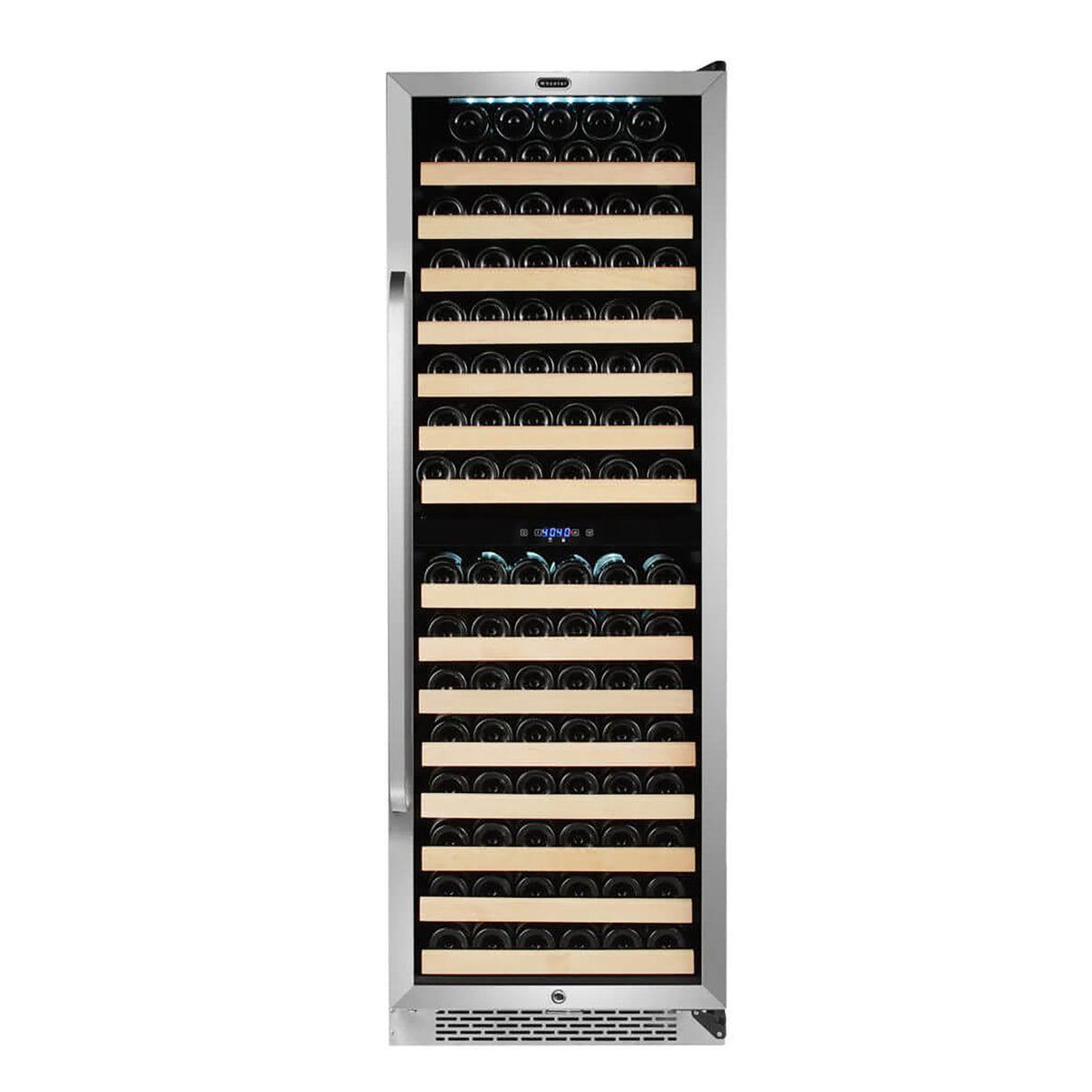

Whynter BWR-1642DZ 164-Bottle Dual Zone Built-In Wine Refrigerator - Front View
$1,995.00 USD
FREE Shipping!
Guaranteed Lowest Price Online! - Find a lower price and we'll beat it!
Satisfaction Guaranteed | Need Help? Call (888)-884-2234

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Whynter 24" 164-Bottle Built-In Dual Zone Wine Refrigerator with Display Rack


Description

The Whynter BWR-1642DZ is a premium large-capacity built-in wine refrigerator designed for serious collectors who refuse to compromise on storage or style. Holding up to 164 standard 750ml bottles across two independently controlled temperature zones, this unit gives you the flexibility to store both reds and whites at their ideal serving temperatures simultaneously. The stainless steel exterior and luxurious curved handlebar make it as visually striking as it is functional, while double-pane glass doors provide superior UV protection and energy efficiency.

With 15 removable wooden flat slide-out shelves and an elegant incline display shelf for showcasing open or featured bottles, this refrigerator transforms your wine storage into a curated display. Built for seamless integration into cabinetry or use as a freestanding unit, the BWR-1642DZ is the complete solution for home wine bars, dining rooms, or entertainment spaces where presentation and preservation matter equally.


Key Features

  • 164-Bottle Capacity: Holds up to 164 standard 750ml wine bottles - 86 in the upper zone and 78 in the lower zone.
  • Dual Zone Cooling: Two independently controlled temperature zones let you store red and white wines at optimal temperatures at the same time.
  • Temperature Range (40F-65F): Adjustable thermostat for both zones covers the full spectrum of wine storage temperatures in Fahrenheit or Celsius.
  • 15 Removable Wooden Shelves: Flat slide-out wooden shelves accommodate up to 11 bottles per shelf, with a dedicated display shelf for angled bottle presentation.
  • Double-Pane Glass Door: Superior UV isolation and energy efficiency protect your collection from light damage and temperature fluctuation.
  • Ultra-Quiet Compressor: Operates at less than 39 dB - quiet enough for open-plan living areas and home wine bars.
  • Interior LED Lighting: 9 energy-efficient soft white LED bulbs illuminate your collection without generating heat.
  • Freestanding or Built-In Installation: Flexible installation options make this unit compatible with cabinetry cutouts or standalone placement.
  • Reversible Door Swing: Door can be configured to open left or right to suit your space layout.
  • Security Lock and Key: Cylinder lock with two keys keeps your collection secure.
  • Eco-Friendly Refrigerant: Uses R600a refrigerant for reduced environmental impact and efficient performance.
  • ETL Listed: Certified to North American safety standards for peace of mind.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.


What's Included

  • Whynter BWR-1642DZ 164-Bottle Dual Zone Wine Refrigerator
  • 15 removable wooden flat slide-out shelves
  • Display shelf (incline shelf for showcasing bottles)
  • Cylinder lock and two keys
  • Activated carbon filter

Why You'll Love It

The Whynter BWR-1642DZ is built for collectors who take their wine seriously - and it shows in every detail. From the stainless steel trim and curved handlebar to the precision dual-zone compressor cooling, this refrigerator is engineered for long-term, reliable performance in real homes. The fan-forced interior circulation ensures every bottle in the 15.1 cubic foot cabinet is stored at a consistent, even temperature, so you never have to worry about hot spots or fluctuation.

Whether you're building out a dedicated home wine bar or simply need a high-capacity solution that fits under a counter, the BWR-1642DZ delivers the capacity, style, and control that serious enthusiasts demand. Trusted by wine lovers nationwide, this is a refrigerator you'll rely on for years - and one that will make your collection look as good as it tastes.


Product Specifications

View Product Specs
Installation Type Freestanding / Built-In
Bottle Capacity 164 standard 750ml wine bottles
Upper Zone Capacity 86 bottles (72 with display shelf)
Lower Zone Capacity 78 bottles
Cabinet Storage Capacity 15.1 cu. ft.
Zone Type Dual Zone
Cooling System Type Compressor
Temperature Range 40F-65F / 5C-18C
Celsius Option Yes
Shelf Type 15 removable wooden flat slide-out shelves
Reversible Door Yes
Door Lock Security cylinder lock and key
Seamless Door No
Humidity Tray No
Refrigerant R600a
Voltage 115V / 60Hz
Maximum Power Consumption 140 Watts / 2.0 Amps
Noise Level Less than 39 dB
Unit Dimensions 69.75" H x 23.5" W x 26.5" D (28.5" D with handle)
Package Dimensions 78" H x 26.25" W x 30.25" D
Net Weight 278 lbs
Gross Weight 298 lbs
Certification ETL Listed
Warranty 1 Year Limited Warranty
Assembly Required Minimal - shelves slide in; door reversibility requires basic tools
Shipping Method Ships freight on a pallet due to size and weight; white glove delivery may be available through your retailer

Manuals & Guides


FAQ

Can this wine refrigerator be installed as a built-in under a counter?

Yes - the BWR-1642DZ supports both built-in and freestanding installation. When installed as a built-in, ensure adequate ventilation clearance around the unit as specified in the user manual. The unit is 23.5 inches wide and 69.75 inches tall, so verify your cabinetry dimensions before installation.

How do the two temperature zones work?

The dual zone system allows you to set and maintain two completely independent temperatures within the same unit. The upper zone holds 86 bottles and the lower zone holds 78 bottles. You can store red wines in one zone and white or sparkling wines in another, each at their ideal serving temperature - all within a single refrigerator.

How long should I wait before plugging in the unit after delivery?

Before connecting to power, allow the unit to stand upright for approximately 4 hours. This allows the refrigerant and compressor oil to settle after transportation and reduces the risk of a malfunction in the cooling system.

Where can I get a replacement carbon filter?

The replacement filter model number is BWR-CHCLFLTR-56. You can contact Whynter's Customer Support Team Monday through Friday, 8:30 AM - 4:30 PM PST at 1-866-WHYNTER (1-866-949-6837) or at support@whynter.com for parts and accessories.

Can I plug two units into the same wall outlet?

Each unit draws a maximum of 2.0 Amps, so the power draw of two units combined is well within the capacity of a standard 15-amp circuit. However, Whynter recommends plugging each unit into a dedicated outlet. Consult an electrician if you are unsure about your circuit capacity or local electrical code requirements.

Do the shelves have a roller mechanism?

No - the BWR-1642DZ uses flat slide-out wooden shelves rather than a roller-style mechanism. The shelves are fully removable and adjustable to suit your storage preferences.


Product specifications table
Specification name Specification Value
Color pattern Silver, Black
Door material Glass
Door type Hinged
Material Stainless steel, Wood, Glass
Mounting type Built-in, Free-standing
Power source AC-powered
Shelf material Wood
Translation missing: en.metafields.shopify.temperature-zones Dual zone
