Voyager HD 7" LCD Observation System with Two Cameras


Description

The Voyager HD 7" LCD Observation System is a complete, ready-to-install backup camera solution designed for RVs, commercial vehicles, buses, and any large vehicle that demands reliable rear visibility. Everything you need arrives in one box - no hunting for compatible components or extra cables. At the heart of the system is a fully weatherproof 7" widescreen LCD monitor paired with two heavy-duty HD color cameras built to handle demanding environments day and night.

Whether you're navigating tight campground spots or maneuvering a work vehicle in low-light conditions, this system delivers crisp, clear imaging with LED-enhanced low-light performance. Built with stainless steel hardware, locking water-resistant connectors, and non-corrosive mounting brackets, the Voyager HD system is engineered to perform reliably season after season.


Key Features

  • 7" Widescreen LCD Monitor (VOM719WP): Fully weatherproof color flat panel display in a slim-line 16:9 widescreen format - ideal for vehicle cab mounting.
  • Two HD Color Cameras (VCAHD25B): Heavy-duty rear cameras with LED-enhanced low-light performance and image orientation selector switch for flexible positioning.
  • Built-In Microphone: Cameras include an integrated microphone for audio monitoring alongside the video feed.
  • Built-In Speaker: Monitor features a built-in speaker to support audio from the camera microphones.
  • 12V/24V Compatible: Monitor operates on either 12 volt or 24 volt electrical systems - compatible with a wide range of RVs, trucks, and commercial vehicles.
  • Three 25' Camera Cables (CEC25): Three extension cables included - use as 25' segments individually or daisy-chain two for a 50' run, with locking 4-pin round Voyager CEC-Type connectors.
  • Camera Dimensions: 2-11/16" W x 1-5/8" H x 2-1/2" D: Compact camera profile with non-corrosive mounting bracket and stainless steel hardware for long-term durability.
  • Panavise Monitor Mount (#72704): Included 4" LCD monitor mount with thumbscrew using Standard Panavise AMP-Flange Mounting for flexible cab installation.
  • NTSC/PAL Compatible: Supports both NTSC and PAL video formats for broad compatibility.
  • Backlit Controls: Color, contrast, and brightness controls are backlit for easy adjustment in any lighting condition.
  • 1-Year Warranty + 30-Day Money-Back Guarantee: Backed by a full one-year warranty and a 30-day return policy for peace of mind.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.

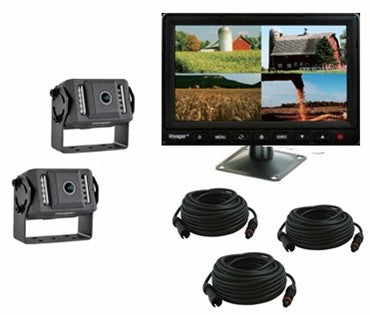

What's Included

  • 7" Weatherproof Color LCD Monitor (VOM719WP)
  • Two Heavy-Duty HD Rear Color Cameras (VCAHD25B)
  • Three 25' Camera Extension Cables (CEC25)
  • Panavise Monitor Mount (#72704)

Why You'll Love It

Voyager has been a trusted name in vehicle observation systems for decades, and the HD 7" Observation System represents the best of what they offer in a single, complete package. Everything is pre-matched and ready to install - no guessing at compatibility, no sourcing cables separately. The weatherproof monitor and heavy-duty cameras are built to endure the vibration, moisture, and temperature swings that come with daily vehicle use.

With flexible 12V/24V operation, this system works across a huge range of vehicles from recreational motorhomes to commercial trucks and buses. The daisy-chainable camera cables give you the reach you need for even the longest vehicle configurations. For RV owners, fleet managers, or anyone who needs dependable rear visibility, this Voyager system delivers professional-grade performance at a straightforward price.


Product Specifications

View Product Specs
Monitor Model VOM719WP
Monitor Screen Size 7" color flat panel LCD
Monitor Format 16:9 Widescreen
Monitor Weatherproofing Fully weatherproof
Monitor Voltage 12V or 24V
Video Compatibility NTSC/PAL
Monitor Triggers 12V triggers
Camera Model VCAHD25B (qty: 2)
Camera Dimensions 2-11/16" W x 1-5/8" H x 2-1/2" D
Camera Features Built-in microphone, LED enhanced low-light, image orientation selector switch
Camera Connector Locking, water-resistant 4-pin CEC-Type round plug
Camera Hardware Stainless steel, non-corrosive mounting bracket
Cable Model CEC25 (qty: 3)
Cable Length 25' each (daisy-chainable to 50')
Monitor Mount Panavise #72704 - 4" mount, AMP-Flange Mounting
Shipping Weight 9.00 lbs
Warranty 1-Year Warranty + 30-Day Money-Back Guarantee

FAQ

Is this system compatible with my RV or truck?

Yes - the monitor operates on both 12 volt and 24 volt electrical systems, making it compatible with most RVs, motorhomes, commercial trucks, buses, and other large vehicles. If you're unsure about your vehicle's electrical system, check your owner's manual or contact us before purchasing.

How long of a cable run can I achieve with the included cables?

Three 25' CEC25 extension cables are included. You can use each as a standalone 25' run, or daisy-chain two of them together to reach 50 feet. This covers most RV and commercial vehicle configurations without needing to purchase additional cables.

Are the cameras and monitor weatherproof?

Yes. The 7" LCD monitor is fully weatherproof, and the cameras feature locking water-resistant cable connectors, non-corrosive mounting brackets, and stainless steel hardware - all designed to withstand outdoor and all-weather vehicle use.

Can I add more cameras to this system?

This system comes with two cameras and a monitor that supports multiple inputs. For expanded recording capabilities, Voyager also offers add-on accessories such as a 2-Channel Digital Recorder with GPS (sold separately) to record footage from your cameras. Contact us for compatibility questions.

Does this system require professional installation?

The system is designed to be a complete, ready-to-go package with all necessary cables and mounting hardware included. Many users with basic wiring knowledge can install it themselves. However, for commercial or fleet vehicles, professional installation is recommended to ensure proper integration with the vehicle's electrical system.

What is the return and warranty policy?

All Voyager systems include a one-year manufacturer's warranty and a 30-day money-back guarantee. If you experience any issues within the first 30 days, you can return the product for a full refund. For warranty claims after 30 days, contact us at service@omahasportsandgames.com and we'll help coordinate the process.

Product specifications table
Specification name Specification Value
Color pattern Black
Item condition New
Manufacturer type Genuine
Parking camera features Wide angle
Power source DC-powered
Translation missing: en.metafields.shopify.video-signal-standard NTSC, PAL
