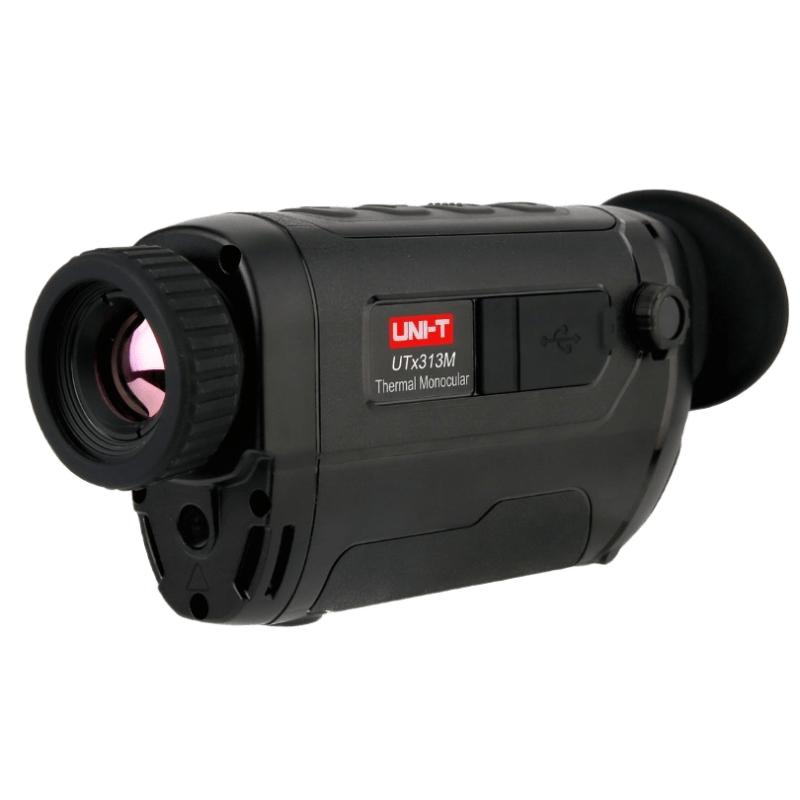

UTx313M Infrared Wide-Angle Thermal Monocular
Pairs well with
UTx313M Infrared Wide-Angle Thermal Monocular
Description
The UTx313M Infrared Wide-Angle Thermal Monocular is designed for professionals and outdoor enthusiasts who need exceptional situational awareness in a compact thermal imaging device. Featuring a 400 × 300 thermal sensor, a 13 mm manual-focus lens, and a wide 20° × 15° field of view, it is ideal for search and rescue, wildlife observation, security patrols, and outdoor surveillance.
Engineered for dependable field performance, the UTx313M combines advanced thermal sensitivity, onboard photo and video recording, Wi-Fi live streaming, and a rugged IP67-rated housing. With built-in 16GB storage, a detachable rechargeable battery, and Thermal Xplorer app compatibility, it delivers reliable thermal imaging in a lightweight package built for demanding environments.
Key Features
- 400 × 300 Thermal Sensor: Produces detailed thermal imagery for dependable wide-area detection.
- 13 mm Manual Focus Lens: Optimized for wide-angle thermal observation.
- Wide 20° × 15° Field of View: Covers more terrain with every scan.
- 687 m Detection Range: Detects standard-sized heat signatures at extended distances.
- Thermal Sensitivity ≤25mK: Detects subtle temperature differences for enhanced image clarity.
- Stadiametric Range Finder: Estimates target distance directly through the monocular.
- 0.39-Inch OLED Display: Crisp 1024 × 768 display provides bright, detailed thermal viewing.
- Wi-Fi Live Streaming: Connects to the Thermal Xplorer app for live viewing and wireless file transfer.
- Photo & Video Recording: Save PNG images and MP4 videos directly to built-in storage.
- IP67 Waterproof Housing: Built for harsh outdoor environments and tested for drops up to 2 meters.
Shipping
Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- UTx313M Infrared Wide-Angle Thermal Monocular
- Carrying case
- USB Type-C charging cable
- Lens cloth
- User manual
Why You'll Love It
The UTx313M is built for users who need to scan large areas quickly while maintaining excellent thermal image quality. Its wide-angle field of view helps locate heat signatures efficiently, while the stadiametric range finder provides practical distance estimation in the field. Built-in Wi-Fi, onboard recording, and internal storage make documenting observations simple and convenient. The rugged IP67-rated housing and detachable rechargeable battery are designed to withstand demanding outdoor conditions. Whether you're monitoring wildlife, conducting security patrols, or supporting search and rescue operations, the UTx313M delivers dependable thermal performance in a lightweight, field-ready design.
Product Specifications
View Spec Chart
| Thermal Resolution | 400 × 300 |
|---|---|
| NETD | ≤25mK |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Lens Focal Length | 13 mm |
| Field of View | 20° × 15° |
| Focus | Manual Focus |
| Refresh Rate | 50 Hz |
| Detection Range | 687 m |
| Range Finding | Stadiametric |
| Digital Zoom | 2x, 4x, 8x / 1.0x-8.0x continuous |
| Image Mode | Thermal |
| Image Format | PNG |
| Video Recording | Yes |
| Video Format | MP4 |
| Wi-Fi | Yes |
| Mobile App | Thermal Xplorer (Android & iOS) |
| Storage | Built-in 16GB |
| Display Type | OLED |
| Display Size | 0.39 in |
| Display Resolution | 1024 × 768 |
| Battery | 3200mAh detachable Li-ion battery (UT-M20) |
| Battery Life | ≥4 hours (Wi-Fi off) |
| Interface | USB Type-C |
| Weight | 357 g |
| Dimensions | 160 × 71.5 × 38.5 mm |
| IP Rating | IP67 |
| Drop Rating | 2 m |
| Certifications | CE |
| Country of Origin | China |
| Warranty | 1 Year |
FAQ
What is the maximum detection range of the UTx313M?
The UTx313M has a maximum detection range of 687 meters for a standard-sized target. Actual identification distance depends on environmental conditions and target size.
Does the UTx313M include a laser rangefinder?
No. The UTx313M features a built-in stadiametric range finder that provides practical distance estimation without a laser.
Can the UTx313M record photos and videos?
Yes. The monocular records PNG images and MP4 videos directly to its built-in 16GB internal storage.
Does it support Wi-Fi connectivity?
Yes. Built-in Wi-Fi connects to the Thermal Xplorer mobile app for live viewing and wireless transfer of photos and videos.
Is the UTx313M suitable for harsh outdoor environments?
Yes. The UTx313M features an IP67-rated housing for water and dust resistance and has been tested to withstand drops of up to 2 meters.
