UANVB Injection Molded Katana
Description

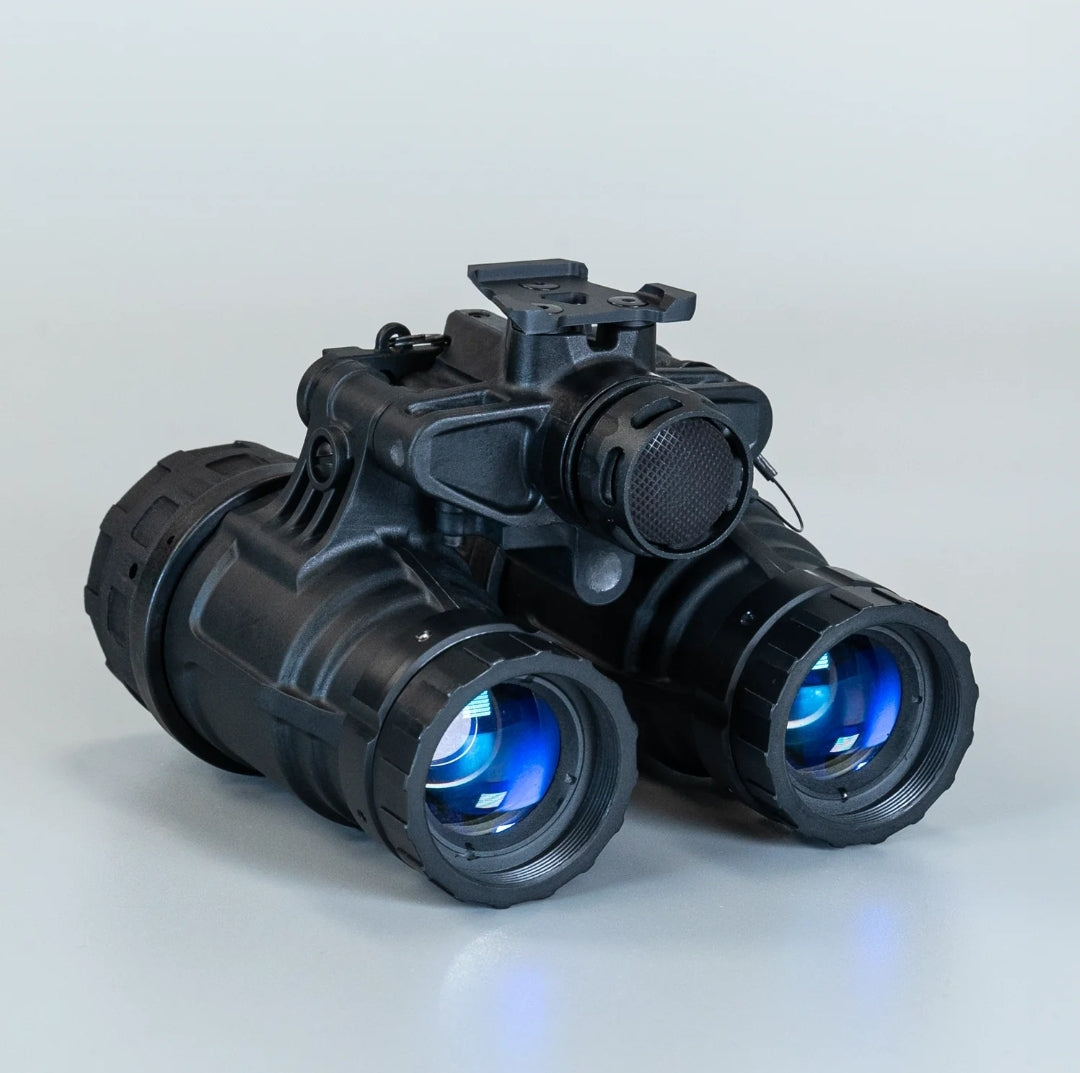

The Nocturn Industries UANVB Injection Molded Katana is a premium ultralight articulating night vision binocular designed for operators who demand the best in low-profile, high-performance night vision. Weighing in at just 17.76oz in its standard configuration, the Katana's articulating design allows one or both eyes to be used independently, making it compatible with thermal optics and other non-passive aiming systems. Its injection-molded polymer housing keeps weight to an absolute minimum while meeting and exceeding MIL-STD-810G ruggedness standards and passing NATO 1.5-meter drop testing.
Built entirely by hand in New Hampshire, USA, the Katana is engineered for professionals operating in vehicles, confined spaces, and dynamic environments where stowing a full binocular isn't an option. The friction lock interpupillary adjustment, recessed push-button controls, and individual pod auto-shutoff past 90 degrees of horizontal rotation all reflect a thoughtful, minimalist design philosophy that eliminates snag hazards and keeps operators focused on the mission. Available with a range of image intensifier options from Milspec to L3Harris Aviation-grade tubes, the Katana is fully configurable to your exact operational requirements.
Key Features
- Ultralight Design: Weighs as little as 15.12oz (no battery, RPO lenses) - one of the lightest articulating NVB platforms available.
- Articulating Binocular: Enables monocular or binocular use alongside thermal optics or other non-passive aiming systems without fully stowing the unit.
- MIL-STD-810G Rated: Exceeds military ruggedness standards and is drop-tested to the NATO 1.5-meter standard for field-ready durability.
- IP68 Ingress Rating: Fully sealed against dust and water intrusion for reliable performance in harsh environments.
- Friction Lock Interpupillary Adjustment: Quickly set and reset your IP stop distance with a simple friction lock - included standard on all units at no extra charge.
- Individual Pod Auto-Shutoff: Each pod powers off automatically when rotated past 90 degrees horizontally, eliminating snag hazards in confined spaces.
- Onboard CR123a Power: Built-in battery compartment with an optional LEMO Power Port for auxiliary head-worn battery packs.
- Dovetail Mount Style: Compatible with standard dovetail helmet mounts for easy integration into existing head-worn systems.
- 18mm Tube Compatibility: Accepts MX-10160 style or MX11769 style tubes (with EGAC pigtail removed) for broad intensifier compatibility.
- Lifetime Housing Warranty: Nocturn Industries offers lifetime repair of all housing components, no questions asked.
- Made in the USA: Designed and hand-built in New Hampshire by Nocturn Industries.
Image Intensifier Options & Which to Choose
- Milspec Optics / NNVT White Phosphor: Entry-level Milspec configuration using NNVT white phosphor tubes. Delivers reliable night vision performance at the most accessible price point - ideal for operators entering the white phosphor market or on a tighter budget.
- Milspec Optics / Elbit (Commercial Grade) White Phosphor: Pairs Milspec optics with Elbit commercial-grade white phosphor image intensifiers. A strong mid-tier choice for users who want proven Elbit tube quality with white phosphor clarity at a reasonable step up in price.
- Milspec Optics / L3Harris Unfilmed (Ground Spot Spec) White Phosphor: Features premium L3Harris unfilmed white phosphor tubes to Ground Spot specification. Excellent for ground-based tactical operations where top-tier resolution and low-light sensitivity are critical.
- Milspec Optics / L3Harris Unfilmed (Aviation Spot Spec) White Phosphor: The flagship configuration, featuring L3Harris unfilmed white phosphor tubes to Aviation Spot specification - the highest standard available. Best suited for the most demanding professional and aviation-adjacent applications where only the best image quality will do.
Shipping
Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- UANVB Injection Molded Katana housing (Cerakote finish in selected color)
- Selected image intensifier tubes (per configuration chosen)
- Onboard CR123a battery compartment
Why You'll Love It
The Katana represents the cutting edge of American-made night vision binocular design, trusted by military personnel, law enforcement, and serious tactical operators who refuse to compromise on weight, durability, or performance. Every unit is hand-built in New Hampshire by Nocturn Industries - a team with a reputation for precision craftsmanship and uncompromising quality in the night vision community. The lifetime housing warranty is a direct reflection of the confidence Nocturn puts into every unit that leaves their shop.
Whether you're running close-quarters operations, navigating confined vehicle environments, or working in open terrain at night, the Katana's articulating design and auto-shutoff pod system keep you adaptable and snag-free at all times. With the ability to choose your image intensifier from NNVT to top-spec L3Harris Aviation tubes, you're getting a platform built to grow with your mission requirements - not limit them. For operators who demand the absolute best in ultralight night vision, the UANVB Katana is the benchmark.
Product Specifications
View Product Specs
| Material | Polymer (Injection Molded) |
|---|---|
| Weight (Battery + Standard PVS-14 Lenses & Intensifiers) | 17.76oz / 1.11lbs / 503.5g |
| Weight (No Battery + RPO PVS-14 Lenses & Intensifiers) | 15.12oz / 0.94lbs / 428.6g |
| Tube Type | 18mm MX-10160 style or MX11769 style (EGAC pigtail removed) |
| Onboard Power | CR123a |
| Outboard Power | Optional LEMO Power Port |
| IR Illuminator | N/A |
| Pod Auto-Shutoff | Yes - individually, when rotated past 90 degrees horizontal |
| Ingress Rating | IP68 |
| Mount Style | Dovetail |
| Color Options | Matte Black (Cerakote), Matte Coyote (Cerakote), Matte OD (Cerakote) |
| Ruggedness Standard | Exceeds MIL-STD-810G; NATO 1.5-meter drop tested |
| Warranty | Lifetime repair of all housing components (does not cover intensifier tubes or optics assemblies) |
| Origin | Designed and hand-built in New Hampshire, USA |
FAQ
What is the difference between Ground Spot Spec and Aviation Spot Spec L3Harris tubes?
Both are premium unfilmed L3Harris white phosphor image intensifiers, but Aviation Spot Spec tubes are held to a higher standard for resolution, signal-to-noise ratio, and low-light performance - reflecting the stricter requirements of aviation applications. Ground Spot Spec tubes are excellent for ground-based tactical use, while Aviation Spot Spec represents the absolute top of the performance envelope and comes at a higher price accordingly.
Can I use onboard battery power and an external LEMO battery pack at the same time?
No - you should never use the onboard CR123a battery and the optional LEMO outboard power port simultaneously. When a remote battery pack is connected via the LEMO port, it takes over as the main power source. Using both at the same time could damage the unit or the intensifier tubes.
What does the Lifetime Warranty cover?
Nocturn Industries offers a lifetime repair warranty on all housing components - no questions asked. However, this warranty does not extend to the image intensifier tubes or optics assemblies, as those are third-party components subject to their own manufacturer warranties. For tube or optics issues, contact us and we'll help direct you to the appropriate support channel.
Is the UANVB Katana compatible with standard helmet mounts?
Yes. The Katana uses a dovetail mount style, which is compatible with a wide range of standard helmet-mounted night vision interfaces. If you have questions about compatibility with a specific mount or shroud system, reach out to us before ordering and we'll confirm fitment.
Can I order this unit with a specific Cerakote color?
Yes. The UANVB Katana is available in Matte Black, Matte Coyote, and Matte OD Cerakote finishes. Select your preferred color at the time of order. All finishes are durable, low-sheen Cerakote applied to the injection-molded polymer housing.
Is this a restricted or export-controlled item?
Night vision devices, particularly those containing Gen 2 or Gen 3 image intensifier tubes, are subject to U.S. International Traffic in Arms Regulations (ITAR) and Export Administration Regulations (EAR). These products are intended for sale to U.S. persons only and may not be exported without proper authorization. Please contact us if you have questions about eligibility or compliance requirements.
