UANVB-FCR Manticore-R (Ruggedized) Night Vision Binoculars
Pairs well with
Need Help? Chat With Our Experts
We live and breathe the games we sell

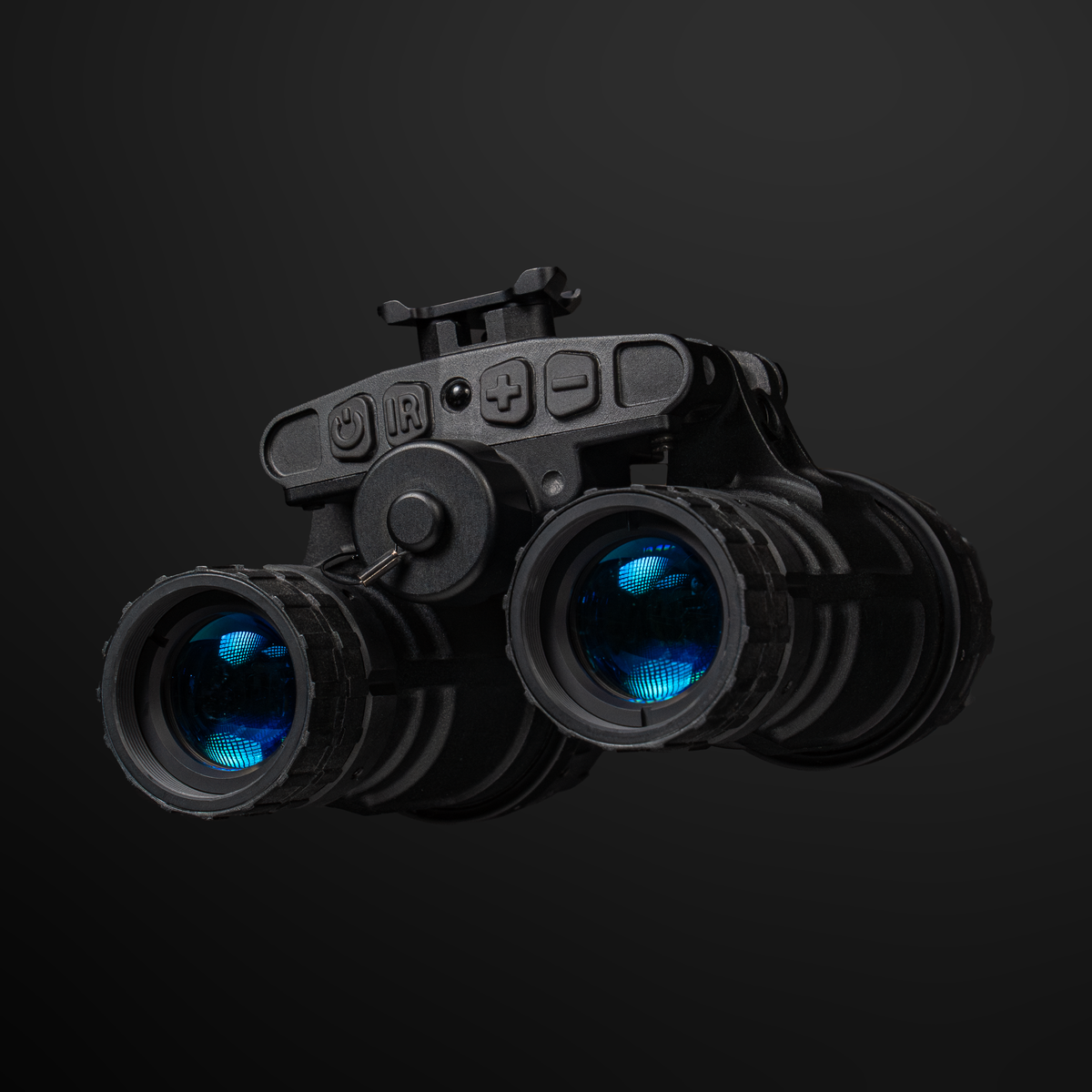

UANVB-FCR Manticore-R (Ruggedized)
Description
The Nocturn Industries UANVB-FCR Manticore-R is a premium ruggedized articulating binocular night vision housing built for serious operators who demand the best in durability, versatility, and field performance. Machined from high-strength 7075-T6 aluminum and assembled in the USA, this housing is engineered to survive the harshest environments while keeping weight to an absolute minimum - only 561g fully loaded with Milspec PVS-14 optics. The articulating design gives users the flexibility to operate with one or both eyes open, allowing simultaneous use of a thermal optic or other non-passive aiming systems without compromising situational awareness.
On-board digital controls put power, gain, and IR illumination at your fingertips without the bulk or hassle of external battery packs - a single CR123A delivers approximately 25 hours of continuous runtime. The Manticore-R exceeds MIL-STD-810G and NATO 1.5m drop test standards and is rated dust-proof and water-proof to 1.5m, making it one of the strongest, most full-featured, and lightest articulating binocular housings in its class.
Key Features
- 7075-T6 Aluminum Housing: High-strength aerospace-grade aluminum construction - rugged, lightweight, and machined for precision fit.
- Total Weight (561g): Fully loaded with Milspec PVS-14 optics - one of the lightest ruggedized binocular housings available.
- Articulating Binocular Design: Roll pods up or down independently to use one or both eyes, enabling simultaneous use of thermal optics or other non-passive aiming systems.
- Individual Pod Auto-Off: Each pod automatically powers off when swiveled up - preserving battery life and tube hours without any extra steps.
- On-Board Digital Controls: Push-button power, manual gain (brightness) control, and integrated IR illuminator with indicator light - all without offboard battery packs.
- Single CR123A Battery / ~25-Hour Runtime: Self-contained power with no external pack required - reliable and simple in the field.
- MIL-STD-810G & NATO 1.5m Drop Certified: Exceeds military drop test standards for dependable performance in demanding conditions.
- Dust-Proof & Water-Proof to 1.5m: Sealed housing stands up to submersion and harsh environments.
- Tool-Less IPD Adjustment: Quick Inter-Pupillary Distance adjustment with IPD stops and user-adjustable pod tension - no tools needed.
- Built-In Dovetail Mount: Integrated mounting system for secure, direct helmet attachment.
- Lifetime Warranty on Housing: Nocturn Industries backs the Manticore-R housing with a full lifetime warranty.
- Assembled in the USA: Housing assembly proudly carried out domestically with U.S. Mil-spec optics included.
Image Intensifier Options & Which to Choose
- Elbit (Commercial Grade) White Phosphor: A capable white phosphor tube offering excellent contrast and natural-looking imagery. Ideal for buyers entering the high-performance NVG market or those seeking a strong value at a lower price point - a great all-around choice for trained shooters and serious enthusiasts.
- L3Harris Unfilmed (Ground Spot Spec): An unfilmed L3Harris tube spec'd for ground use, delivering outstanding resolution, low-light sensitivity, and signal-to-noise ratio. Best suited for tactical operators, law enforcement, and military professionals who require top-tier performance in ground-based environments.
- L3Harris Unfilmed (Aviation Spot Spec): The highest-specification option, tuned to aviation spot spec for maximum resolution and performance at altitude. Designed for pilots and aircrews or any operator requiring the absolute best tube performance available in this housing.
Shipping
Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- UANVB-FCR Manticore-R ruggedized binocular housing (assembled in the USA)
- U.S. Mil-spec PVS-14 optics (Milspec Optics configuration)
- Selected image intensifier tube (per chosen variant)
Why You'll Love It
The Manticore-R is the kind of kit that serious operators trust when performance and reliability are non-negotiable. Built to exceed MIL-STD-810G standards, assembled in the USA, and backed by a lifetime warranty on the housing, this is a device engineered not just for today's mission but for years of demanding use. The articulating design is a genuine tactical advantage - whether you're driving a vehicle, engaging targets, or running a thermal alongside your NVGs, the Manticore-R adapts to your workflow instead of getting in the way.
At just 561g fully loaded, you get a housing that outperforms heavier competitors without the fatigue penalty on long operations. The self-contained single CR123A power system keeps your kit clean and simple, while on-board digital controls mean every critical function is right at your fingertips. If you're looking for one of the strongest, most feature-complete, and lightest ruggedized binocular night vision solutions on the market, the Nocturn Industries Manticore-R delivers without compromise.
Product Specifications
View Product Specs
| Brand | Nocturn Industries |
|---|---|
| Model | UANVB-FCR Manticore-R (Ruggedized) |
| Housing Material | 7075-T6 Aluminum |
| Total Weight (Fully Loaded) | 561g (with Milspec PVS-14 optics) |
| Battery | Single CR123A |
| Continuous Runtime | ~25 hours |
| Water/Dust Protection | Dust-proof and water-proof to 1.5m |
| Drop Test Standard | Exceeds MIL-STD-810G and NATO 1.5m drop test |
| Mount | Built-in dovetail mount |
| Assembly | Assembled in the USA |
| Warranty | Lifetime warranty on housing |
| Available Image Intensifiers | Elbit Commercial Grade White Phosphor; L3Harris Unfilmed Ground Spot Spec; L3Harris Unfilmed Aviation Spot Spec |
| Available Optics | Milspec Optics |
FAQ
What is the difference between the Ground Spot Spec and Aviation Spot Spec L3Harris tubes?
Both are unfilmed L3Harris image intensifier tubes, which means they offer exceptional resolution and light sensitivity. The Ground Spot Spec tube is optimized for ground-based tactical use - a top-tier choice for operators, law enforcement, and military users on foot or in vehicles. The Aviation Spot Spec tube meets a more demanding specification historically associated with aviation applications, delivering the highest measurable performance and is suited for pilots or any operator who requires the absolute best tube available regardless of mission profile.
Does the Manticore-R require an external battery pack?
No. The Manticore-R runs entirely on a single CR123A battery housed on-board the unit, providing approximately 25 hours of continuous runtime. There is no need for offboard battery packs, keeping your helmet setup clean and reducing overall kit weight.
What does "individual pod auto-off" mean and why does it matter?
When you swivel a pod up out of the field of view, the Manticore-R automatically cuts power to that pod. This preserves both battery life and valuable image intensifier tube hours - tube life is finite and can be expensive to replace, so auto-off is a meaningful feature for long-term ownership and operational readiness.
Can I use a thermal optic at the same time as the Manticore-R?
Yes. The articulating design allows you to roll one pod up, freeing one eye to use a thermal weapon sight or other non-passive aiming system simultaneously. This is one of the primary advantages of an articulating binocular housing over fixed designs.
Is this suitable for use in a vehicle?
Absolutely. The articulating pods fold down rather than requiring the entire unit to be stowed upright or tucked against the helmet, which means operators can use the Manticore-R in vehicle environments without banging their head or limiting headspace. It is purpose-built with vehicle operations in mind.
What does the lifetime warranty cover?
Nocturn Industries offers a lifetime warranty on the Manticore-R housing itself. For specific warranty terms and any questions about coverage of the image intensifier tubes or optics, please contact us at service@omahasportsandgames.com and we will get you the details you need.
