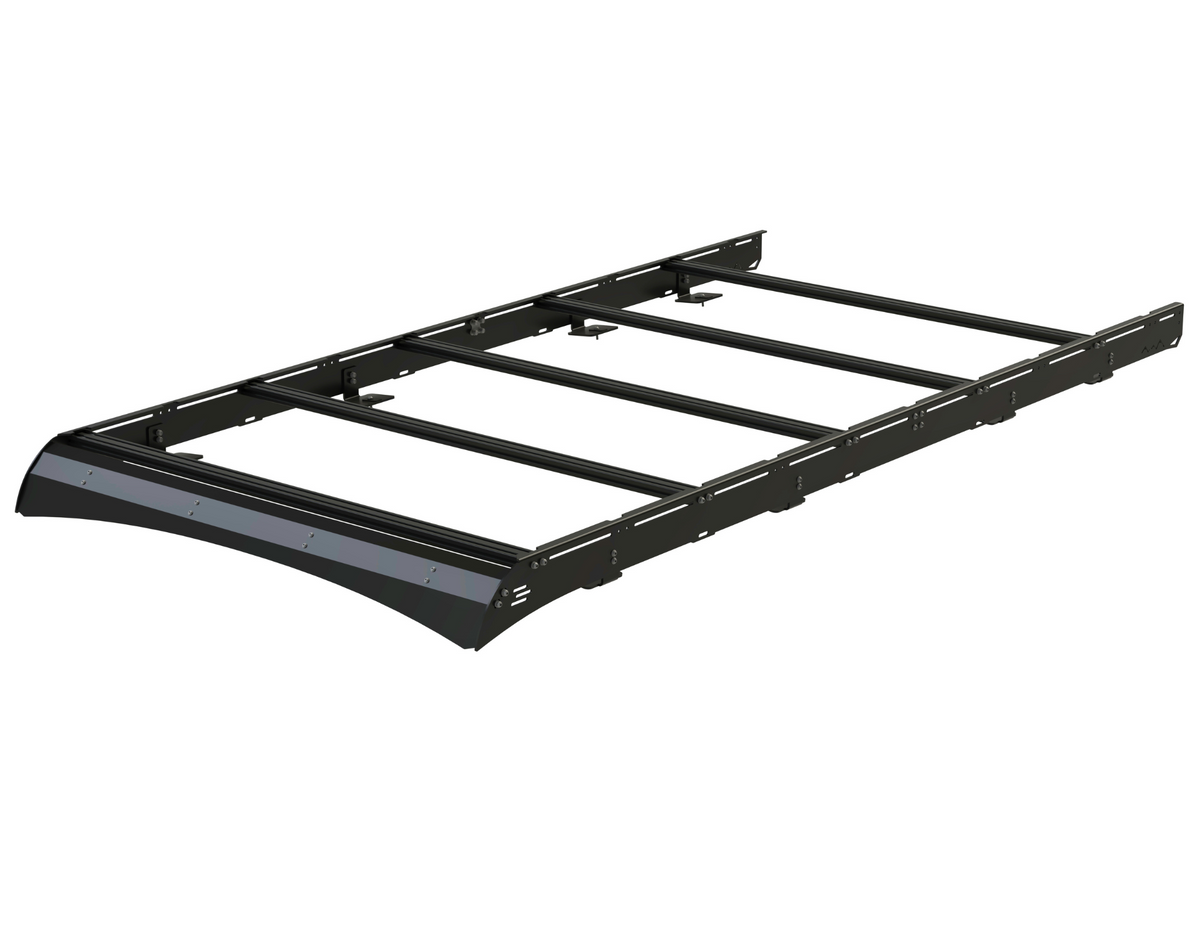

TRANSIT VAN 148" HIGH ROOF STRATA ROOF RACK
Description
The White Top Adventures Strata Roof Rack is the ultimate rooftop platform for Ford Transit 148" High Roof Extended van owners who demand serious capacity without sacrificing style. Engineered with double-sided rail mounts and six adjustable 10-series anodized aluminum crossbars, this rack delivers a robust, fully customizable foundation for solar panels, rooftop tents, gear boxes, kayaks, and more. Weighing in at just 62 lbs, the all-aluminum construction keeps weight low while the integrated rigidity bend adds structural strength and doubles as a safe grab bar when climbing up.
A built-in aluminum wind fairing reduces drag and comes pre-cut for LED light bars, so your setup stays clean and aerodynamic on the highway. Weather-sealed landing pads keep rain and snow out of your roof, while an 80/20-compatible crossbar system means you can bolt on virtually any rooftop accessory with ease. Whether you're building out a full-time van life rig or gearing up for weekend overlanding, the Strata Roof Rack is built to handle the demands of life on the road.
Key Features
- Static Load - 660 lbs / Dynamic Load - 220 lbs: Industry-leading load ratings handle everything from solar arrays to rooftop tents and gear boxes.
- 62 lbs Total Weight: Lightweight all-aluminum construction keeps your van's overall weight in check without compromising strength.
- Six 10-Series Anodized Aluminum Crossbars: Fully compatible with 80/20 mounting systems - slide, lock, and attach virtually any rooftop gear.
- Double-Sided Rail Mounts: Maximum strength and durability engineered specifically for the Ford Transit roofline.
- Integrated Rigidity Bend: Boosts structural integrity across the rack and doubles as a comfortable, safe grab bar when accessing the roof.
- Weather-Sealed Landing Pads: Form-fitted double-pad design blocks rain and snow from penetrating the roof - no leaks, no worries.
- Aluminum Wind Fairing: Reduces aerodynamic drag and includes pre-cut slots for fast, frustration-free mounting of 40"-50" LED light bars.
- Fiamma F45S Awning Compatible: Works with the Fiamma F45S wall-mount awning using the same brackets as Sprinter racks (lower holes per install guide).
- 80/20 Compatible Crossbars - 60.5" Length: Bolt on solar panels, recovery boards, rooftop tents, MaxxFans, and custom brackets with total freedom.
- Strata Deck and Side Ladder Compatible: Pairs directly with White Top Adventures Strata Deck Panels for a full walkable rooftop and the Transit Van Side Ladder for safe roof access.
- Ships Free - Install-Ready: Arrives via UPS/FedEx Ground with all mounting hardware included - no freight required, no hidden fees.
What's Included
- Strata Roof Rack side rails
- Six adjustable anodized aluminum crossbars
- Aluminum wind fairing
- Weather-sealed landing pads
- Double-sided rail mounts
- All mounting hardware (stainless steel)
Why You'll Love It
The Strata Roof Rack has earned the trust of tens of thousands of van builders and overlanders worldwide - and it's easy to see why. It ships free, arrives install-ready, and goes on in a matter of hours with no special tools or fabrication required. The 80/20-compatible crossbar system means your rack grows with your build, whether you're adding solar panels today or a rooftop tent next season. The integrated wind fairing and weather-sealed pads show a level of real-world engineering refinement that cheaper competitors simply skip. Built from aircraft-grade aluminum with stainless steel hardware throughout, this rack is engineered for years of dependable use in rain, snow, wind, and sun. If you're serious about your Transit build, the Strata is the rack to start with.
Product Specifications
View Product Specs
| Compatibility | 2015+ Ford Transit 148" High Roof Extended |
|---|---|
| Static Load Capacity | 660 lbs |
| Dynamic Load Capacity | 220 lbs |
| Total Rack Weight | 62 lbs |
| Crossbar Length | 60.5 inches |
| Inside Rail Width | 53.2 inches |
| Number of Crossbars | 6 (adjustable) |
| Crossbar Standard | 10-series 80/20 compatible |
| Material | Anodized aluminum rails and crossbars, stainless steel hardware |
| Forward Mounting Hole to First Crossbar | 517 mm (20.3") |
| Awning Compatibility | Fiamma F45S (not compatible with F80S) |
| Shipping Method | UPS/FedEx Ground - no freight required, ships in multiple boxes |
| Assembly Required | Yes - bolts directly to factory roof rails; all hardware included; install video available |
FAQ
Will this rack fit my Ford Transit 148" High Roof Extended?
Yes - this rack is designed specifically for all Ford Transit 148" High Roof Extended wheelbase vans, confirmed compatible across all years (2015 and newer). If you have a different configuration - such as a standard 148" non-extended, 130" wheelbase, or mid-roof Transit - separate SKUs are available. Always confirm your exact wheelbase and roof height before ordering to make sure you get the right rack.
How does the rack ship, and how long does delivery take?
The Strata Roof Rack ships free via UPS/FedEx Ground from the Tustin, CA warehouse - no freight carrier required. You can expect delivery in 3-7 business days once your order has shipped. The rack arrives in multiple boxes, so don't be alarmed if packages arrive on different days. If any box appears to be missing, contact the support team with your order number right away.
Can I mount solar panels on the Strata Roof Rack?
Absolutely. The six 80/20-compatible crossbars are designed to accept solar panel mounting brackets, and the inside rail width is 53.2". For 200W panels, confirm the short-axis dimension is under 53.2" - if your panel is wider, it will need to be oriented lengthwise along the rack. The rack is also walkable solar panel compatible, so you can keep your rooftop usable while still generating power. Solar Panel Mounting Brackets are available separately.
Does the rack work with a Fiamma awning?
Yes - the Strata Roof Rack is compatible with the Fiamma F45S wall-mount awning using the same F45S awning brackets used on Sprinter racks. Use the lower bracket holes per the installation video. Note that this rack is NOT compatible with the Fiamma F80S roof-mount awning. Awning brackets are available separately through White Top Adventures.
Can I add a side ladder and roof deck to this rack?
Yes - the Strata Roof Rack is designed to pair directly with the White Top Adventures Transit Van Side Ladder (High Roof), which mounts to the factory roof rails independently without conflicting with the rack. You can also add Strata Rack Top Deck Panels to create a fully walkable rooftop platform - perfect for stargazing, solar access, or working from the roof of your van.
Is this rack compatible with MaxxFan or roof AC units?
Yes - the adjustable crossbars can be positioned to accommodate MaxxFan ventilators, rooftop air conditioning units, and other rooftop accessories. Because the crossbars slide and lock into custom positions, you can create the exact layout your build requires. For detailed dimension planning, the front mounting hole to first crossbar distance is 517 mm (20.3"), and full CAD drawings are available by request from the White Top Adventures team.
