The Legend 4CH Waterproof Mirror Dash Cam, 1080P 4-Cam
Description
The Legend 4CH Mirror Dash Cam by Acumen Camera is a premium rearview mirror camera system engineered to deliver complete, all-angle visibility for cars, trucks, SUVs, and UTVs. Powered by a dual high-performance image processor, it captures true quad-FHD footage simultaneously from four cameras - front, rear, and both sides - dramatically reducing blind spots and elevating driver awareness. The front camera features a starlight-grade CMOS sensor paired with a 6-layer glass wide-angle lens for sharp 1080p video at 30fps, while rear and side cameras leverage WDR and 170° ultra-wide-angle lenses with a field of view 1.5x wider than conventional mirrors.
Built to withstand the harshest conditions, the Legend 4CH carries an IP67 rating - making it waterproof, dustproof, and shockproof - with an integrated vibration-absorbing buffer layer and oversized heat sink for reliable operation from -22°F to 176°F. A stunning 12-inch IPS HD touchscreen with 2.5D curved glass serves as the command center, while built-in 5.8G WiFi and a high-sensitivity GPS module with external antenna enable real-time video sharing, one-touch downloads, and precise route tracking through a dedicated app. Whether you're navigating city streets or tackling off-road terrain, the Legend 4CH is a powerful, all-weather safety upgrade.
Key Features
- Quad-FHD Recording with Dual-Chip Processor: Dual high-performance image processors enable simultaneous 1080p recording from all four cameras for comprehensive coverage.
- Starlight-Grade CMOS Front Camera: Front camera uses a starlight CMOS sensor and 6-layer glass wide-angle lens for crisp 1080p video at 30fps, even in low light.
- IP67 Waterproof, Dustproof, and Shockproof: The only IP67-rated mirror dash cam - resists high-pressure water jets, dust ingress, and physical shock for true all-weather durability.
- Blind Spot Monitoring Synced to Turn Signals: Side camera views automatically activate with turn signals, giving real-time wide-angle footage exactly when lane changes and turns demand it most.
- 12-Inch IPS HD Touchscreen (2.5D Curved Glass): U.S. patented 12" display with anti-glare curved glass replaces traditional mirror and physical controls with an intuitive touch interface.
- Built-in 5.8G WiFi for Instant Video Access: High-speed WiFi connects to a dedicated app for real-time preview, one-touch downloads, and easy video sharing on the go.
- High-Sensitivity GPS with External Antenna: Embeds precise location data and real-time speed into every video segment - reviewable via app for route tracking and family safety monitoring.
- Super Capacitor - No Lithium Battery: Supercapacitor delivers twice the lifespan of lithium-ion batteries with reliable cold-weather startup down to -22°F and stable operation up to 176°F.
- Up to 256GB Storage + Free 64GB Card Included: Supports up to 256GB microSD cards and ships with a 64GB card, supporting up to 6 hours of continuous recording and 24-hour parking monitoring.
- 24-Month Warranty + U.S.-Based Support: Backed by a 2-year factory warranty, 30-day return or full refund policy, and U.S.-based customer support with responses within 24 hours.

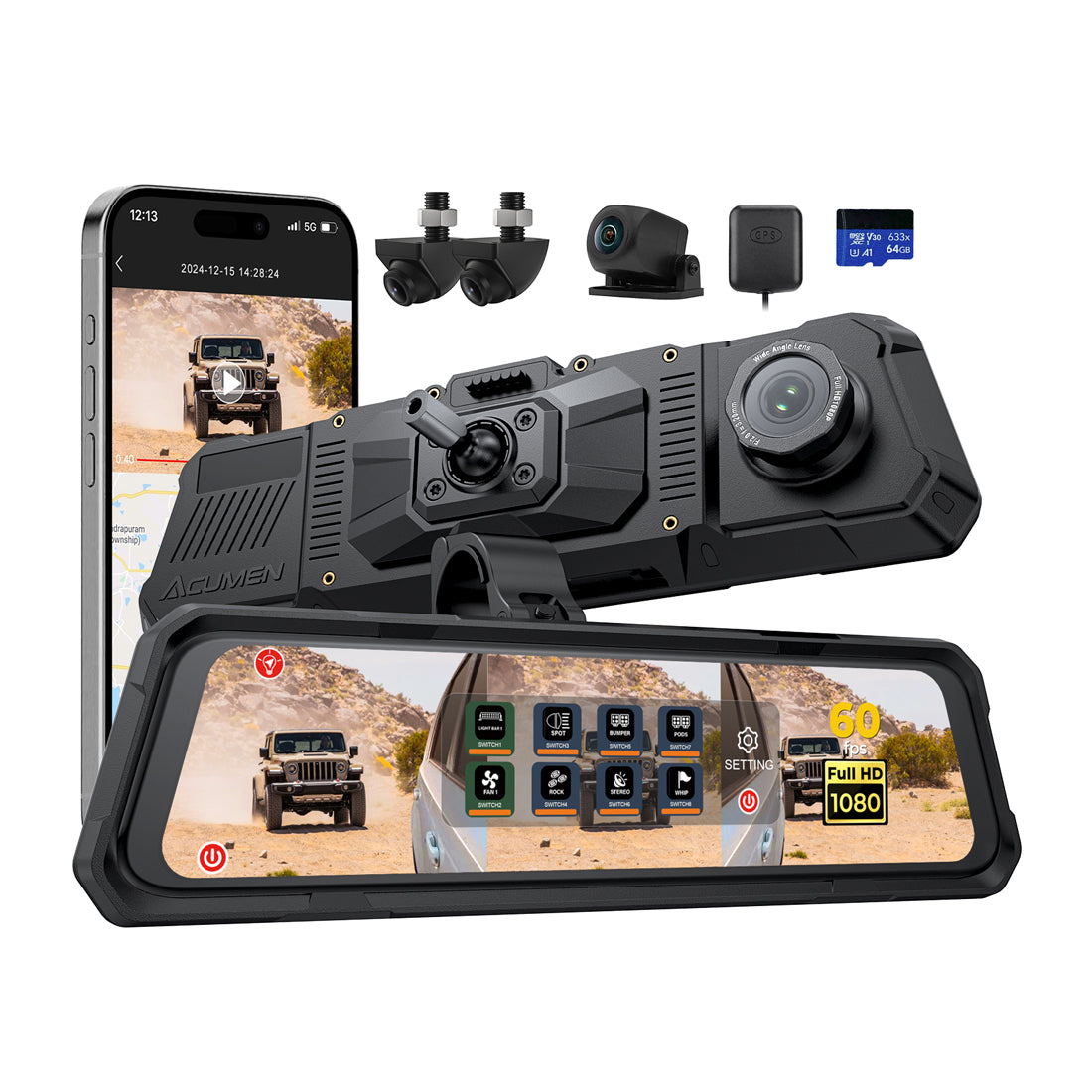

What's Included
- The Legend Mirror (12" IPS Touchscreen Dash Cam)
- #1 Universal Bracket
- Bracket Connector
- 32 Ft Camera Cable
- 18 Ft Camera Cable x2
- Hardwire Kit
- GPS Antenna
- Clamp
- Sony 307 WDR Rear Camera
- 200Ai WDR Side Camera x2
- Card Reader
- User Manual
- 64GB Micro SD Card
Why You'll Love It
The Legend 4CH Mirror Dash Cam gives drivers the kind of total situational awareness that was once reserved for commercial fleets and law enforcement vehicles - now packaged into a sleek, mirror-style form factor that fits right into your existing setup. With IP67 protection, a supercapacitor power system, and an operating range from -22°F to 176°F, this camera is built to handle everything from scorching desert runs to icy winter commutes without skipping a beat. The turn-signal-synced blind spot display is a genuine game-changer for lane changes and tight parking maneuvers, while the 12-inch anti-glare touchscreen keeps all controls intuitive and within reach. Built-in GPS and 5.8G WiFi make it easy to review footage, share clips, and keep tabs on young or monitored drivers through the app. Backed by a 24-month factory warranty, a 30-day no-hassle return policy, and responsive U.S.-based support, the Legend 4CH is an investment in confidence every time you hit the road.
Product Specifications
View Product Specs
| Screen Size | 12" IPS Touch Screen |
|---|---|
| Dimensions | L 12.3" x W 3.3" x H 1.6" |
| Material | Aluminum and ABS |
| Weight | 1 lb |
| Number of Cameras | 4 |
| Front Camera Resolution | 3840 x 2160P |
| Rear Camera Resolution | 1920 x 1080P |
| Recording Resolution | 1080P Front + 1080P Rear x3 |
| Footage Format | .MP4 |
| Picture Format | .JPG |
| Front Camera Angle of View | FOV 148° |
| Rear Camera Angle of View | FOV 170° |
| Camera Lens | Front: 6-Glass, Rear: 6-Glass |
| Night Vision | Super WDR |
| Wi-Fi App Control | Yes (5.8G) |
| Bluetooth App Control | No |
| GPS Logger | Yes (External Antenna) |
| G-Sensor (Impact Sensor) | Yes |
| Loop Recording | Yes |
| SD Card Included / Max Supported | 64GB included / Up to 256GB |
| Continuous Recording Time | Up to 6 hours |
| Parking Monitoring | Time Lapse, up to 24 hours |
| Extension Camera Cable | 5-Pin 18/32 Ft XLR |
| Microphone | Built-in |
| Speaker | Built-in |
| Built-in Battery | Super Capacitor (no lithium battery) |
| Waterproof and Dustproof Rating | IP67 |
| Operating Temperature | -22°F to 176°F (-30°C to +80°C) |
| Power Voltage | 5V |
| AMP Rating | 3A |
| Input Voltage Range | 9V-30V (step-down to 5V) |
| Programmable Switch Control | Built-in |
| Warranty | 24 months (dash cam); 12 months (accessories) |
| Assembly / Installation | Installation required - hardwire kit and camera cables included; professional installation recommended |
| Shipping | Ships standard (free on orders over $100); arrives within 5-7 business days |
FAQ
Does The Legend 4CH replace my existing rearview mirror?
Yes - The Legend 4CH Mirror is designed to mount over or in place of your existing rearview mirror using the included universal bracket or a vehicle-specific bracket. The 12-inch IPS display functions as both your mirror and your camera control center, so it replaces your standard mirror entirely while adding quad-camera recording capability.
Is professional installation required?
While the Legend 4CH includes all necessary hardware - including a hardwire kit, camera cables, GPS antenna, and clamp - the installation involves routing cables to all four camera positions and wiring into your vehicle's power system. Professional installation is strongly recommended to ensure a clean, safe, and reliable setup, especially for trucks, SUVs, and UTVs where cable runs can be lengthy.
What vehicles is this compatible with?
The Legend 4CH is compatible with a wide range of vehicles including cars, trucks, SUVs, and UTVs. The included #1 Universal Bracket fits most vehicles, and optional vehicle-specific brackets are available for Jeep, Toyota, and Mercedes-Benz Sprinter models, among others. The 9V-30V input voltage range ensures compatibility across virtually all 12V and 24V vehicle electrical systems.
Can I access my footage remotely through an app?
Yes - the built-in 5.8G WiFi module connects to a dedicated Acumen app on your smartphone. Through the app you can view real-time video previews from all four cameras, download clips with one touch, review GPS route data and speed logs, and share footage easily. The app is available for both iOS and Android devices.
How does the IP67 rating hold up for off-road or outdoor use?
IP67 is a rigorous international standard - it means the unit is fully dust-tight and can withstand immersion in water up to 1 meter deep for 30 minutes. For practical purposes, this means the mirror camera system handles rain, car washes, mud splashes, and dusty trail conditions with ease. Combined with the vibration-absorbing buffer layer and oversized heat sink, the Legend 4CH is genuinely built for off-road and demanding outdoor environments.
What happens to recordings if the vehicle loses power suddenly?
The Legend 4CH uses a supercapacitor rather than a traditional lithium-ion battery. This means that in the event of a sudden power loss - such as in an accident - the system has enough reserve energy to safely save and close the current video file, protecting your most recent footage. The supercapacitor also outperforms lithium batteries in extreme temperatures, functioning reliably from -22°F to 176°F.
