The Legend 3CH Waterproof Mirror Dash Cam, 1080P/60fps, 3-Cam
Description
The Legend 3CH Mirror is a high-performance rearview mirror dash cam system built for drivers who demand total coverage - whether on rugged off-road trails or daily city commutes. Powered by a high-performance ISP processor, it delivers synchronized three-channel Full HD recording from a front starlight CMOS camera at silky-smooth 60fps, plus two rear-facing cameras with Wide Dynamic Range (WDR) and 170° ultra-wide lenses that eliminate blind spots and low-light uncertainty.
The rugged IP67-rated construction resists high-pressure water, dust, and shock, while a vibration-absorbing buffer layer and oversized heat sink keep the system running reliably from -22°F to 176°F. A 12-inch IPS HD touchscreen with 2.5D curved glass puts full system control at your fingertips, while built-in 5.8G WiFi and high-sensitivity GPS enable real-time video sharing, route tracking, and speed logging via a dedicated mobile app. Compatible with cars, trucks, SUVs, and UTVs, the Legend 3CH is a complete, professional-grade mirror dash cam solution.
Key Features
- Three-Channel FHD Synchronized Recording: Front camera shoots at 1080P/60fps with a starlight CMOS sensor; rear and adjustable third cameras record at 1080P with WDR and 170° ultra-wide-angle lenses for blind-spot-free coverage.
- IP67 Waterproof, Dustproof & Shockproof: The only mirror dash cam with a full IP67 rating - resists high-pressure water jets, fine dust, and vibration in demanding conditions.
- 12-Inch IPS HD Touchscreen: U.S. patented 12" IPS display with 2.5D curved glass reduces glare and enables intuitive touch control of power, settings, and system functions - no switch panels needed.
- 5.8G WiFi App Connectivity: Built-in high-speed 5.8G WiFi connects to the Acumen mobile app for real-time previews, one-touch video downloads, and easy sharing.
- Precise GPS Route & Speed Logging: High-sensitivity GPS module with external antenna embeds location and speed data directly into footage, reviewable through the app.
- Super Capacitor Power Design: Replaces traditional lithium-ion batteries with a supercapacitor rated for twice the lifespan, supported by a wide 9V-30V input range for stable operation across vehicles.
- Up to 256GB Storage & Loop Recording: Supports microSD cards up to 256GB with seamless loop recording and up to 24 hours of parking monitoring via time-lapse mode.
- One-Touch High/Low Beam Switch: Integrated beam control for improved visibility in darkness or adverse weather conditions (requires Acumen Box connection).
- Extreme Temperature Tolerance: Engineered to operate from -22°F to 176°F with an oversized heat sink and vibration-absorbing buffer layer for year-round reliability.
- Free 64GB Card & 24-Month Warranty: Comes ready to record out of the box with a 64GB microSD card included and backed by a 2-year manufacturer warranty plus 30-day return guarantee.
What's Included

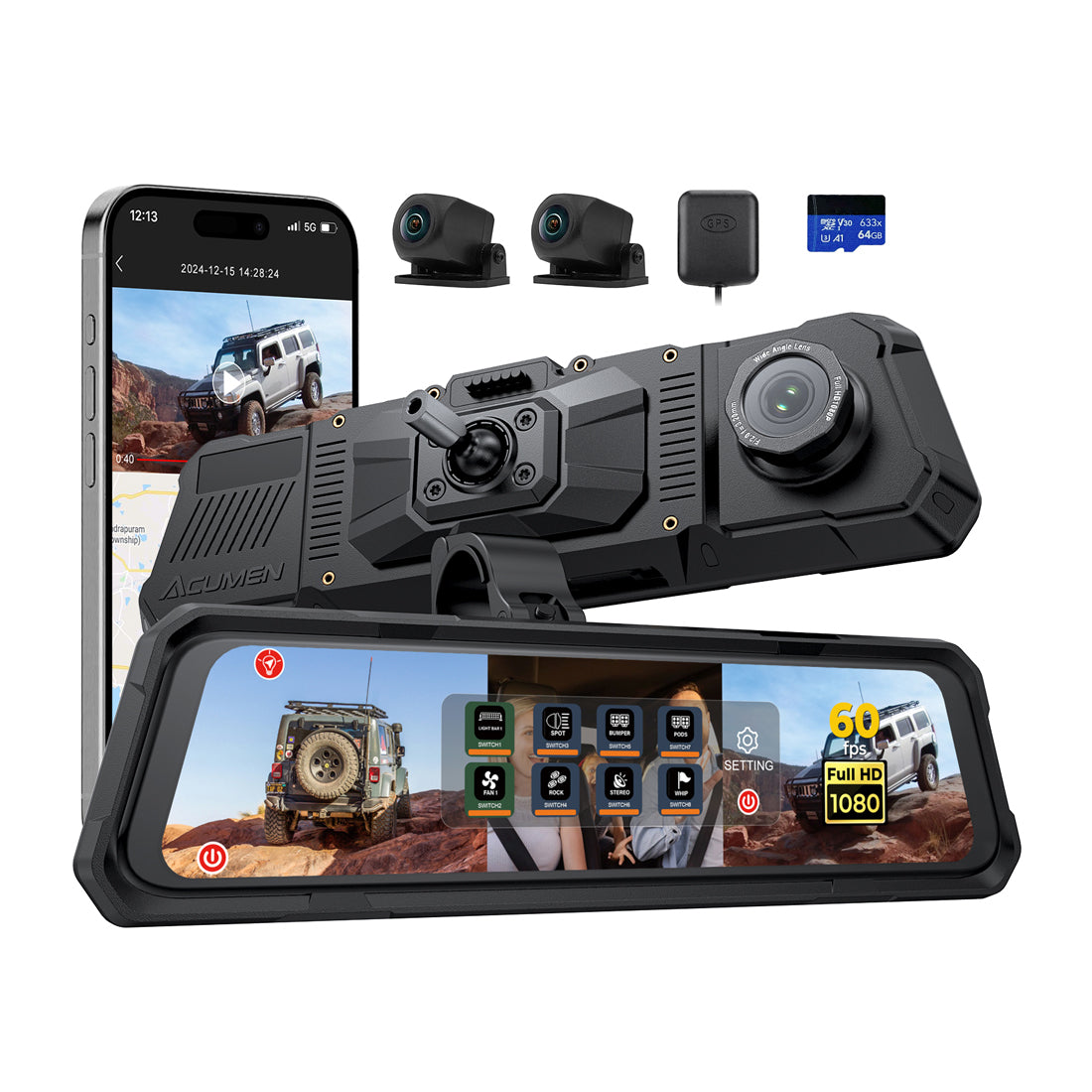

- The Legend Mirror (12" IPS Touchscreen Mirror Dash Cam)
- #1 Universal Bracket
- Bracket Connector
- 32 Ft Camera Cable
- 18 Ft Camera Cable
- Hardwire Kit
- GPS Antenna
- Clamp
- Sony 307 WDR Rear Camera
- 200Ai WDR Camera
- Card Reader
- User Manual
- 64GB Micro SD Card
Why You'll Love It
The Legend 3CH Mirror is trusted by off-road enthusiasts, fleet operators, and everyday drivers who refuse to compromise on safety or image quality. With professional-grade IP67 protection, a military-style supercapacitor, and a camera trio that covers every angle, this system delivers the kind of dependable, set-it-and-forget-it performance that holds up season after season. The 12-inch touchscreen is a genuine upgrade over clunky switch panels, and the 5.8G WiFi app connection makes reviewing and sharing footage effortless. Whether you're navigating city traffic, hauling a trailer, or pushing through backcountry terrain in a UTV, the Legend 3CH keeps you covered. Backed by a U.S.-based support team that responds within 24 hours, a 24-month warranty, and a 30-day return guarantee, this is a purchase you can make with total confidence.
Product Specifications
View Product Specs
| Screen Size | 12" IPS Touch Screen |
|---|---|
| Dimensions | L12.3" x W3.3" x H1.6" |
| Material | Aluminum & ABS |
| Weight | 1 lb |
| Number of Cameras | 3 |
| Front Camera Resolution | 3840 x 2160P |
| Rear Camera Resolution | 1920 x 1080P |
| Recording Resolution | 1080P Front + 1080P Rear x2 |
| Front Frame Rate | 60fps |
| Footage Format | .MP4 |
| Photo Format | .JPG |
| Camera Angle of View | Front: FOV 148°, Rear: FOV 170° |
| Camera Lens | Front: 6-Glass, Rear: 6-Glass |
| Night Vision | Super WDR |
| Wi-Fi App Control | Yes (5.8G) |
| Bluetooth App Control | No |
| GPS Logger | Yes (External Antenna) |
| G-Sensor (Impact Sensor) | Yes |
| Loop Recording | Yes |
| SD Card Included / Max | 64GB included / Up to 256GB |
| Continuous Recording Time | 6 hours |
| Parking Monitoring | Time Lapse, up to 24 hours |
| Camera Cable | 5-Pin 18 Ft & 32 Ft XLR |
| Microphone | Built-in |
| Speaker | Built-in |
| Battery Type | Super Capacitor |
| Waterproof & Dustproof Rating | IP67 |
| Operating Temperature | -22°F to 176°F (-30°C to +80°C) |
| Power Voltage | 5V (9V-30V input via step-down) |
| AMP Rating | 3A |
| Programmable Switch Control | Built-in |
| Warranty | 24 months (dash cam); accessories 12 months |
| Assembly / Installation | Hardware kit and cables included; professional installation recommended for hardwiring |
| Shipping | Standard parcel shipping; free on orders over $100 within the United States |
FAQ
Is the Legend 3CH compatible with my vehicle?
The Legend 3CH Mirror is designed to fit a wide range of vehicles including cars, trucks, SUVs, and UTVs. It comes with a #1 Universal Bracket, and vehicle-specific mounting brackets (for Jeep, Toyota, Mercedes Sprinter, Polaris RZR, and more) are available separately to ensure a secure, precise fit for your specific make and model.
Do I need professional installation?
The Legend 3CH includes a hardwire kit, camera cables, clamps, and a user manual to guide installation. While many experienced DIYers complete the install themselves, professional installation is recommended for the hardwiring step to ensure safe, reliable power integration - especially in UTVs or commercial vehicles.
What is the difference between the front camera resolution listed (3840x2160P) and the recording resolution (1080P)?
The front camera sensor is capable of capturing at a higher native resolution (3840x2160P), but the system records footage at 1080P/60fps for optimal file size, storage efficiency, and smooth playback across all three channels simultaneously. This ensures you get the best balance of image clarity and continuous recording performance.
Does the WiFi work while driving, or only when parked?
The built-in 5.8G WiFi connects your smartphone to the Legend 3CH via the Acumen app whether you are parked or stopped. It supports real-time previews, video downloads, and clip sharing. For safety, video downloads and app browsing are best performed when the vehicle is stationary.
What happens to footage if the vehicle loses power suddenly?
The Legend 3CH uses a supercapacitor instead of a traditional lithium-ion battery. This allows the system to safely save and close any active recording files in the event of a sudden power loss - protecting your footage from corruption. The supercapacitor is also rated for a significantly longer lifespan than standard batteries.
How does parking monitoring work?
When connected via the hardwire kit, the Legend 3CH can remain active while your vehicle is parked. It uses time-lapse parking monitoring mode to record up to 24 hours of footage, capturing any movement or incidents around your vehicle without rapidly filling your memory card.
