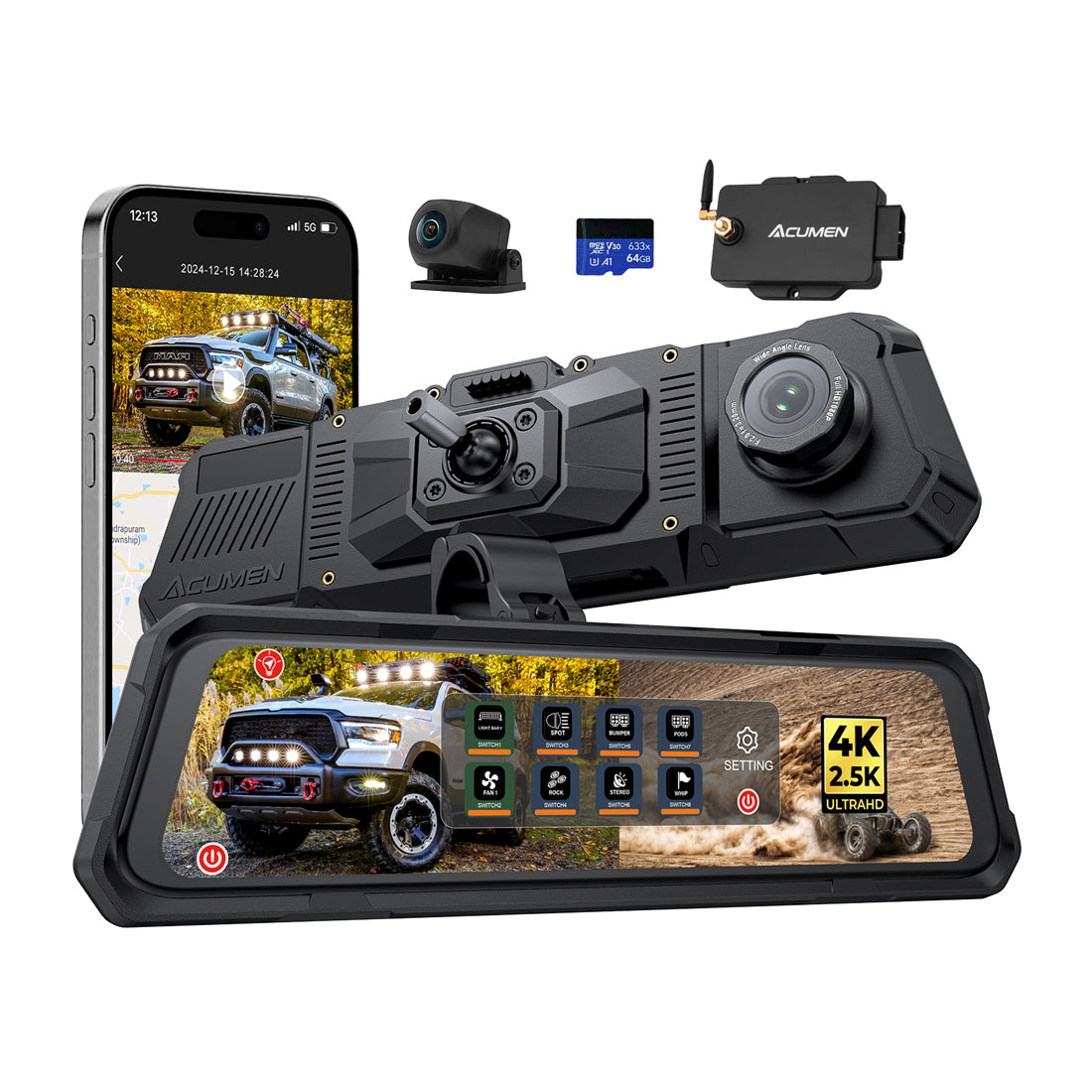

The Legend 2CH Waterproof Mirror DVR w/ 8-Gang Switch Box
Description
The Legend 2CH Waterproof Mirror DVR is a premium dual-channel rearview mirror dash cam system built for drivers who demand serious performance in serious conditions. Designed by Acumen Camera, this bundle replaces your factory mirror with a 12-inch IPS HD touchscreen that simultaneously displays camera feeds, controls power switches, and manages your vehicle's accessories - all from a single, sleek unit. Whether you're navigating remote off-road trails in a UTV, hauling in a truck, or simply commuting daily, the Legend 2CH delivers unmatched visibility and recording clarity.
The front camera captures stunning 4K (3840x2160) video using a starlight-grade CMOS sensor, while the rear camera records in 2.5K (2560x1440) with Wide Dynamic Range and a 170-degree ultra-wide-angle lens that dramatically reduces blind spots. Built to an IP67 waterproof, dustproof, and shockproof standard - the only mirror DVR to earn this rating - and rated for operating temperatures from -22°F to 176°F, this system is engineered to keep up no matter where the road takes you.
Key Features
- 12-Inch IPS HD Touchscreen: U.S. patented 2.5D curved glass display reduces glare and provides intuitive touch control for camera feeds and the 8-gang power switch box.
- IP67 Waterproof, Dustproof & Shockproof: The only mirror DVR with an IP67 rating - resists high-pressure water, dust, and vibration with a built-in vibration-absorbing buffer layer and oversized heat sink.
- 4K Front Camera: Starlight-grade CMOS sensor with a 6-layer all-glass, 148-degree FOV wide-angle lens captures ultra-clear 4K (3840x2160P@30fps) footage day and night.
- 2.5K Rear Camera with WDR: Sony 307 WDR rear camera records in 2560x1440P with a 170-degree FOV lens and Super WDR night vision, covering 1.5x more area with enhanced low-light clarity.
- 8-Gang Programmable Switch Box (Acumen Box): Replaces traditional switch panels with a fully programmable, app-controlled power management system - including one-touch high/low beam switching.
- Built-In WiFi & GPS: High-speed WiFi connects to the Acumen mobile app for real-time previews, video downloads, and sharing. High-sensitivity GPS logs location and speed data directly into footage.
- Supercapacitor Power System: Replaces lithium-ion batteries with a supercapacitor rated for twice the lifespan, paired with a 9V-30V to 5V step-down line for stable, wide-voltage operation.
- Up to 256GB Storage & Loop Recording: Supports microSD cards up to 256GB, with loop recording and parking monitoring (time-lapse, up to 24 hours) for comprehensive coverage.
- Operating Temperature -22°F to 176°F: Industrial-grade thermal design ensures reliable performance in extreme heat and cold - ideal for UTVs, trucks, and off-road rigs.
- 24-Month Warranty & U.S.-Based Support: Backed by a 24-month factory warranty and a dedicated U.S. support team that responds within 24 hours for installation, setup, or product questions.
What's Included
- The Legend Mirror (12" IPS Touchscreen DVR)
- #1 Universal Bracket
- Legend Connector
- 32 Ft Camera Cable (5-Pin XLR)
- Hardwire Kit
- GPS Antenna
- Clamp
- Sony 307 WDR Rear Camera
- Card Reader
- User Manual
- 64GB Micro SD Card
- Acumen Box (8-Gang Programmable Switch Box)
- Box Extension Cable
- Box OBD Cable
- Box Power Cable
Why You'll Love It
The Legend 2CH is trusted by off-road enthusiasts, fleet operators, and everyday drivers who refuse to compromise on safety or durability. It's engineered to replace multiple vehicle accessories - your rearview mirror, dash cam, and switch panel - with a single, clean, fully integrated system. The IP67 rating and extreme temperature tolerance mean it performs just as confidently on a dusty desert trail or a snowy mountain road as it does in city traffic. The supercapacitor design and wide-voltage compatibility make it a long-term investment built to outlast conventional dash cam setups. With free shipping, a free 64GB card, a 30-day return guarantee, and 24-month warranty coverage, buying with confidence has never been easier. This is the all-in-one mirror DVR solution for drivers who take their vehicles - and their safety - seriously.
Product Specifications
View Product Specs
| Screen Size | 12" IPS Touch Screen |
|---|---|
| Dimensions | L12.3" x W3.3" x H1.6" |
| Material | Aluminum & ABS |
| Weight | 1.7 lbs |
| Number of Cameras | 2 |
| Front Camera Resolution | 3840x2160P (4K @ 30fps) |
| Rear Camera Resolution | 2560x1440P (2.5K) |
| Front Camera FOV | 148° |
| Rear Camera FOV | 170° |
| Camera Lens | 6-Layer All-Glass (Front & Rear) |
| Night Vision | Super WDR |
| Footage Format | .MP4 |
| Photo Format | .JPG |
| SD Card Included | 64GB (Supports Up to 256GB) |
| Continuous Recording Time | 6 Hours |
| Parking Monitoring | Time-Lapse, Up to 24 Hours |
| Extension Camera Cable | 5-Pin 32 Ft XLR |
| Microphone | Built-In |
| Speaker | Built-In |
| Battery Type | Supercapacitor |
| Wi-Fi App Control | Yes |
| Bluetooth App Control | Yes |
| GPS Logger | Yes (External Antenna) |
| G-Sensor (Impact Sensor) | Yes |
| Loop Recording | Yes |
| Waterproof & Dustproof Rating | IP67 |
| Operating Temperature | -22°F to 176°F (-30°C to +80°C) |
| Power Voltage | 9V-30V Input / 12V Nominal |
| AMP Rating | 125A |
| Programmable Switch Control | 8-Gang (Acumen Box) |
| Warranty | 24 Months (Dash Cam & Acumen Box); 12 Months (Accessories) |
| Compatible Vehicles | Cars, Trucks, SUVs, UTVs |
| Assembly Required | Yes - bracket mounting and hardwiring required |
| Shipping Method | Standard parcel shipping; free on orders over $100 |
FAQ
What does the 8-Gang Switch Box (Acumen Box) do?
The Acumen Box is a programmable power management hub that replaces traditional rocker switch panels in your vehicle. It controls up to 8 independent accessory circuits - such as lights, winches, air compressors, and more - directly from the touchscreen mirror or via the mobile app. It also enables the one-touch high/low beam switching feature built into the Legend mirror.
Is this compatible with my vehicle?
The Legend 2CH is compatible with a wide range of vehicles including cars, trucks, SUVs, and UTVs. It comes with a #1 Universal Bracket for most vehicles, and vehicle-specific mounting brackets (Jeep, Toyota, Mercedes Sprinter, Polaris RZR, and more) are available as optional add-ons at checkout.
Does it record when the vehicle is parked and off?
Yes. The Legend 2CH includes a parking monitoring mode that uses time-lapse recording for up to 24 hours while your vehicle is parked. The supercapacitor design and hardwire kit allow it to draw low-level power from your vehicle's battery to maintain this function without draining it.
What is the maximum SD card size supported?
The Legend 2CH supports microSD cards up to 256GB. A free 64GB card is included in the box to get you started. Loop recording automatically overwrites the oldest footage when the card is full, so you never have to manually manage storage.
How do I download or view my footage?
You have two easy options. You can use the included card reader to view footage directly on a computer, or you can connect to the mirror's built-in WiFi and use the Acumen mobile app for real-time previews, one-touch video downloads, and easy sharing - no cables required.
Is installation difficult? Do I need a professional?
Installation involves mounting the bracket, running the 32-foot camera cable to the rear camera, and hardwiring the unit to your vehicle's power. Many confident DIYers complete this installation at home using the included user manual and Acumen's online tutorials and firmware guides. If you have questions, Acumen's U.S.-based support team responds within 24 hours to walk you through the process.
