Superwinch SX12 12,000 lb 12V Electric Winch with Steel Wire Rope

Regular price $808.99 USD

Pairs well with

FREE Shipping!

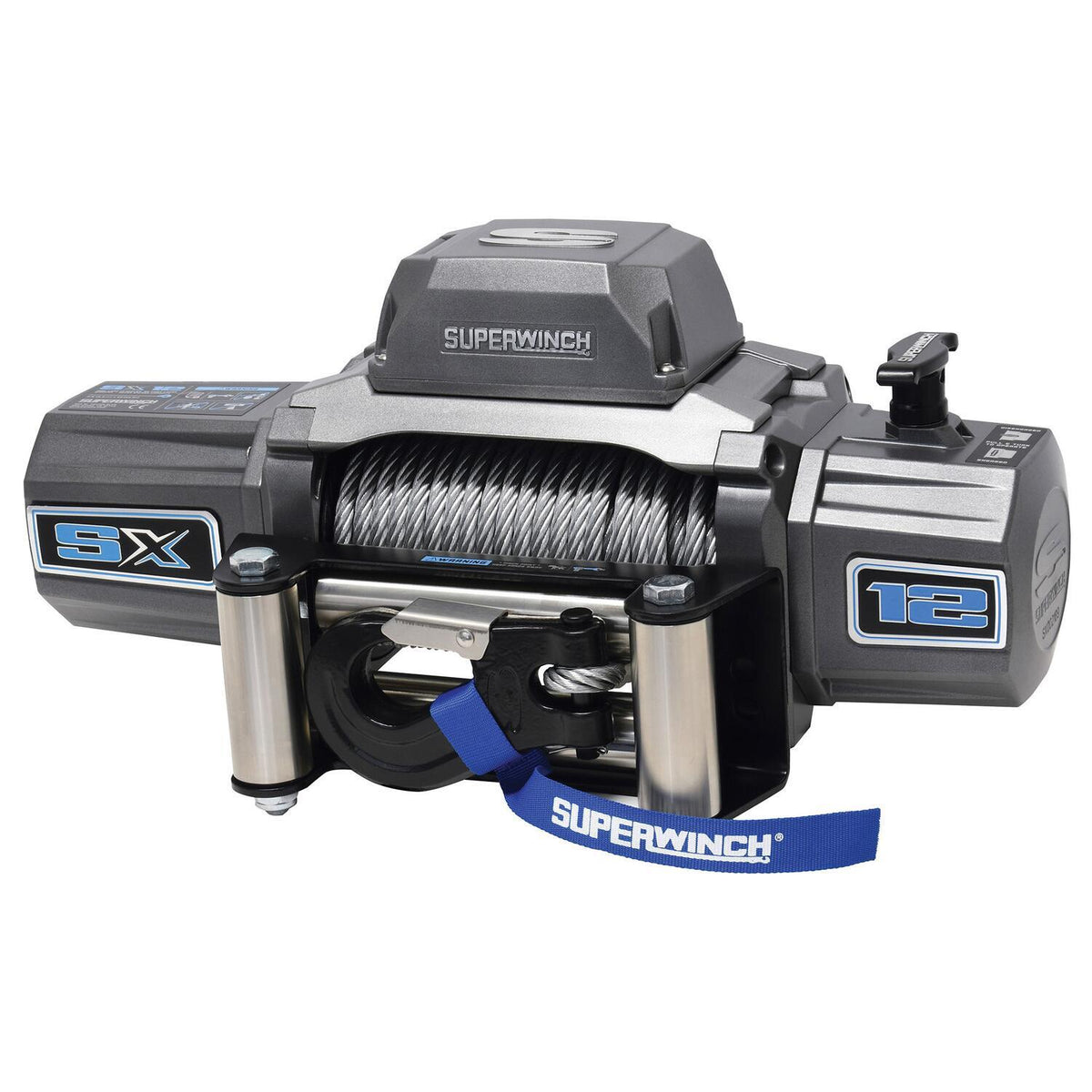

Superwinch SX12 12000 lb 12V electric winch with steel wire rope in graphite finish - three quarter front view
$808.99 USD
Top Quality Google Rating
Top Quality Google RatingExceptional Merchant Status
30-Day Easy Returns
30-Day Easy ReturnsSatisfaction Guaranteed
Authorized Dealer
Authorized DealerVerified Manufacturer Partner
Lowest Price Guarantee
Lowest Price GuaranteeWe'll Beat Any Competitor
Our experts

Questions? Ask our Experts

Our product specialists are here for you, just leave us a message!

Superwinch SX12 12,000 lb 12V Electric Winch with Steel Wire Rope


Description

The Superwinch SX12 delivers the ideal combination of raw power, speed, and innovation for off-road enthusiasts and recovery professionals who demand the best. Built around a 6.0 HP sealed motor and 3-stage planetary gearing, this winch pushes 12,000 lbs of pulling force while maintaining reliable operation from -40 to 125 degrees F. The SX12 features a patented drum light that illuminates the fairlead and rope layers during operation, making low-light recoveries safer and more controlled than ever before.

Finished in a durable metallic graphite powder coat and rated IP68 for complete dustproof and waterproof protection, the SX12 is engineered to handle everything the trail throws at it. The relocatable die-cast aluminum control box gives you mounting flexibility to fit virtually any bumper setup, and the included 12-foot lighted wired remote with integrated LED flashlight adds a premium touch that sets this winch apart from the competition. A rugged fully welded steel drum - not aluminum - ensures the SX12 won't crack or shatter under high-tension loads.


Key Features

  • 12,000 lb Rated Line Pull: Every Superwinch meets or exceeds its rated pulling power - you can trust this winch to pull the full load.
  • 6.0 HP Sealed Motor: Powerful 12V DC motor delivers consistent performance in extreme temperatures from -40 to 125 degrees F.
  • 3-Stage Planetary Gearing (231:1 Ratio): Smooth, efficient power transfer with outstanding mechanical advantage for heavy-duty recoveries.
  • IP68 Waterproof and Dustproof Rating: Fully sealed drum, gearbox, and contactor protect all internal components from the elements.
  • Patented Drum Light: Integrated illumination at the drum and fairlead keeps rope alignment visible during nighttime or dusty recoveries.
  • 85 ft x 3/8 in Steel Wire Rope: UV, heat, and abrasion-resistant steel rope for demanding trail and recovery use.
  • Stainless Steel 4-Way Roller Fairlead: Smooth rope entry from any angle, built to last in harsh conditions.
  • Relocatable Die-Cast Aluminum Control Box: Easily repositioned to fit your bumper or mounting configuration without hassle.
  • 12 ft Lighted Wired Remote with LED Flashlight: Integrated rechargeable lithium-ion flashlight in the remote handle for hands-free lighting during recoveries.
  • Ergonomic Pull-and-Turn Clutch Handle: No-bind design is easy to operate with gloves on and won't stick like lower-quality clutch mechanisms.
  • 100% Full-Load Holding Automatic Mechanical Brake: Holds your load securely without relying on the motor, providing true fail-safe holding power.
  • Limited Lifetime Mechanical / 7-Year Electrical Warranty: Industry-leading warranty coverage backs every SX12 winch.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.


What's Included

  • SX12 12,000 lb 12V DC electric winch (graphite finish)
  • 85 ft x 3/8 in steel wire rope pre-spooled on drum
  • Stainless steel 4-way roller fairlead
  • 12 ft lighted wired remote with integrated rechargeable LED flashlight
  • Heavy-duty clevis hook with latched clevis pin
  • Relocatable die-cast aluminum control box

Why You'll Love It

Superwinch has built a worldwide reputation for producing winches that are reliable, powerful, and tested to the extreme - and the SX12 is their most feature-packed steel rope model yet. Trusted by off-road enthusiasts, overlanders, and recovery professionals who won't settle for second best, the SX12 brings class-leading innovations like the patented drum light and wireless-ready design to a price point that outperforms far more expensive competitors. The fully welded steel drum sets this winch in a different category from the aluminum-drum alternatives that can crack under high stress. Whether you're building out a Bronco, Gladiator, Tacoma, or dedicated trail rig, the SX12 is engineered to perform confidently in the worst conditions you can find. With an industry-leading limited lifetime mechanical warranty and a build quality that reviewers consistently put above pricier name-brand alternatives, the SX12 is one of the smartest investments you can make in your recovery setup.


Product Specifications

View Product Specs
MPN 1712200
Winch Type Electric
Rated Line Pull 12,000 lbs (7,500 - 12,500 lbs range)
Voltage 12V DC
Motor 6.0 HP, 12V DC Sealed
Gear System 3-Stage Planetary
Gear Ratio 231:1
Clutch Pull and turn clutch handle
Brake System 100% Full-load holding automatic mechanical brake
Rope Material Steel Wire
Rope Length 3/8 in x 85 ft (9.5mm x 26m)
Fairlead Stainless Steel 4-Way Roller
Remote Type Wired (12 ft lighted remote with integrated LED flashlight)
IP Rating IP68 Waterproof and Dustproof
Mounting Bolt Pattern 10 in x 4.5 in (254mm x 114.3mm)
Color / Finish Graphite Metallic Powder Coat
Control Box Relocatable Die-Cast Aluminum
Task Lighting Patented drum light
Drum Durable fully welded steel, 2.5 in diameter
Winch Hook Heavy-duty clevis pinned latched
Line Speed / Amp Draw 23.4 FPM (7.13 MPM) / 68 Amps motor draw
Operating Temperature Range -40 to 125 degrees F
Weight 90 lbs
Dimensions (W x H) 13 in x 12 in
Warranty Limited Lifetime Mechanical / Limited 7-Year Electrical

FAQ

What is the difference between steel wire rope and synthetic rope?

Steel wire rope offers superior resistance to UV, heat, and abrasion, making it the preferred choice for rocky terrain and environments where the rope may contact rough surfaces. It holds up well under sustained heavy use. Synthetic rope is lighter, safer to handle under tension (it doesn't store energy the way steel does), and easier to respool by hand. The SX12 with steel rope (this model) is a great choice for users who prioritize durability and resistance to harsh environmental conditions.

Does the SX12 come with a wireless remote?

This model (1712200) comes standard with a 12-foot lighted wired remote that includes an integrated rechargeable lithium-ion LED flashlight. The product page also indicates an included wireless handheld remote, giving you the option to operate the winch from a safe distance with a clear line of sight to the recovery. Please confirm included accessories with us before purchase if this is a deciding factor.

What vehicles is the SX12 compatible with?

The SX12 uses a standard 10 in x 4.5 in (254mm x 114.3mm) mounting bolt pattern, which is compatible with a very wide range of aftermarket bumpers and winch mounting plates designed for trucks, SUVs, and off-road vehicles such as the Ford Bronco, Jeep Gladiator, Toyota Tacoma, and many others. Always verify your bumper or mounting plate's bolt pattern before ordering.

Is the SX12 truly waterproof?

Yes. The SX12 carries an IP68 rating, which is the highest standard for dust and water ingress protection. The drum, gearbox, and contactor (solenoid) are all fully sealed. This means the winch can handle water crossings, rain, and dusty trail conditions without compromising performance or reliability.

What warranty does the Superwinch SX12 carry?

The SX12 is backed by a Limited Lifetime Mechanical warranty and a Limited 7-Year Electrical warranty - one of the most comprehensive coverage packages in the winch category. This reflects Superwinch's confidence in the durability and engineering of the SX series.

Will assembly or professional installation be required?

The SX12 winch requires mounting to a compatible bumper or winch plate and electrical connection to your vehicle's battery. Most experienced off-road enthusiasts can handle the installation themselves using the included installation guide. Professional installation is recommended if you are unfamiliar with winch wiring or vehicle electrical systems. Installation hardware is included with the winch.
