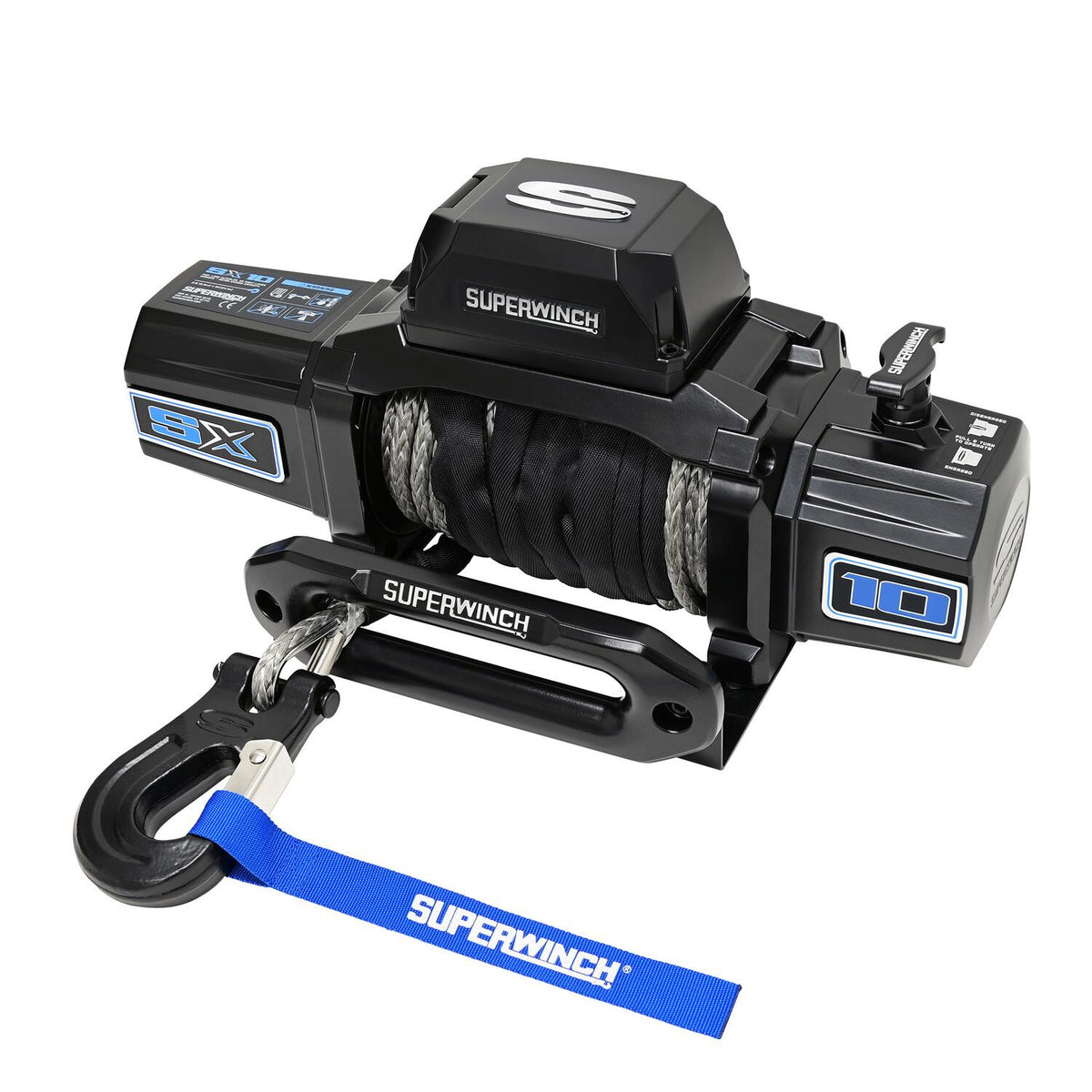

Superwinch SX10SR 10,000 lb 12V Electric Winch with Synthetic Rope
Description
The Superwinch SX10SR delivers 10,000 lbs of raw pulling power in a sleek, modern package engineered for today's most demanding off-road vehicles. Built around a 5.5 HP sealed motor and 3-stage planetary gearing, this winch is designed to perform when it counts - whether you're pulling out of a deep mud pit or navigating a technical trail recovery. The 3/8" UV-coated synthetic rope is 80 feet long and offers key advantages over steel wire: it's lighter, safer to handle, and easier to spool. With an IP68 rating for full dustproof and waterproof protection, the SX10SR is built to withstand extreme conditions from -40 to 125 degrees F without breaking a sweat.
Innovative features set the SX10SR apart from competing winches at this price point. A patented integrated drum light illuminates the fairlead and rope layers during low-light recoveries, while the included wireless handheld remote and 12-foot lighted wired remote give you full control from a safe distance. The relocatable die-cast aluminum control box means you can fit this winch into virtually any bumper configuration, and the ergonomic pull-and-turn clutch operates smoothly even with gloves on.
Key Features
- 10,000 lb Rated Line Pull: Meets or exceeds rated pulling power - every Superwinch is tested to confirm it delivers on its spec.
- 5.5 HP Sealed Motor: 12V DC motor delivers reliable power across a wide temperature range, fully sealed for element protection.
- 3/8 in x 80 ft UV-Coated Synthetic Rope: Lighter and safer than steel wire, with UV protection for extended outdoor life.
- IP68 Waterproof and Dustproof: Fully sealed drum, gearbox, and contactor rated IP68 - handles deep water crossings and heavy dust without issue.
- Patented Drum Light: Integrated task lighting illuminates the rope and drum for safer, more controlled nighttime and low-visibility recoveries.
- Wireless + Wired Remote Included: 12-foot lighted wired remote with integrated rechargeable LED flashlight, plus a wireless handheld remote for hands-free distance control.
- Relocatable Die-Cast Aluminum Control Box: Easily repositioned to fit your specific bumper or mounting configuration.
- 3-Stage Planetary Gearing, 218:1 Ratio: Efficient power transfer with strong mechanical advantage for heavy pulls.
- Ergonomic Pull-and-Turn Clutch: No-bind design works smoothly with gloves on; won't stick like lower-quality mechanisms.
- Rugged Steel Winch Drum: Fully welded steel construction - won't crack or shatter under load like aluminum drums.
- 100% Full-Load Holding Automatic Mechanical Brake: Holds the load safely without relying on motor back-pressure.
- Limited Lifetime Mechanical / 7-Year Electrical Warranty: Industry-leading coverage that backs Superwinch's confidence in this product.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- SX10SR 10,000 lb 12V DC electric winch with synthetic rope
- 3/8 in x 80 ft UV-coated synthetic rope (pre-spooled)
- Aluminum hawse fairlead
- Heavy-duty clevis pinned latched winch hook
- 12-foot lighted wired remote with integrated rechargeable lithium-ion LED flashlight
- Wireless handheld remote
- Mounting hardware
Why You'll Love It
Superwinch has built a global reputation on one principle: if you can't trust a winch to pull the rated weight, it's not worth having. Every SX10SR is tested to confirm it delivers its full 10,000 lb rated pull - no overstating, no guesswork. The combination of a steel drum, IP68 sealing, and a sealed motor means this winch is engineered to handle years of hard use in the harshest environments, from muddy trails to dusty desert runs. The included wireless remote and patented drum light are thoughtful features that go beyond what competitors offer at this price point, making solo recoveries safer and more manageable. Whether you're outfitting a Bronco, Gladiator, truck, or Jeep, the SX10SR offers a compact footprint and a versatile relocatable control box that fits where others won't. For drivers who take recovery seriously, this is the winch that delivers both performance and long-term peace of mind.
Product Specifications
View Product Specs
| MPN | 1710204 |
|---|---|
| Winch Type | Electric |
| Mounting Type | Bolt-On |
| Rated Line Pull | 7,500 - 12,500 lbs |
| Voltage | 12V DC |
| Motor | 5.5 HP, 12V DC |
| Gear System | 3-Stage Planetary |
| Gear Ratio | 218:1 |
| Clutch | Pull and turn clutch handle |
| Brake System | 100% Full-load holding automatic mechanical brake |
| Rope Material | Synthetic |
| Rope Length | 3/8 in x 80 ft (9.5mm x 24.3m) |
| Fairlead | Aluminum hawse |
| Remote Type | Wired and Wireless |
| IP Rating | IP68 Waterproof and Dustproof |
| Mounting Bolt Pattern | 10 in x 4.5 in (254mm x 114.3mm) |
| Mounting Hardware Included | Yes |
| Color | Black |
| Control Box | Relocatable Die-Cast Aluminum |
| Task Lighting | Patented drum light |
| Drum | Durable fully welded steel drum |
| Drum Diameter | 2.5 in |
| Winch Hook | Heavy-duty clevis pinned latched |
| Line Speed (no load) | 27.3 FPM at 85 Amps |
| Line Speed (full load) | 4.5 FPM at 363 Amps |
| Operating Temperature | -40 to 125 degrees F |
| Weight | 61 lbs |
| Width | 13 in |
| Height | 12 in |
| Warranty | Limited Lifetime Mechanical / Limited 7-Year Electrical |
FAQ
Is synthetic rope better than steel wire rope for a winch?
For most off-road recovery use, synthetic rope offers meaningful advantages over steel wire. It's significantly lighter, easier to handle and re-spool by hand, and far safer if it breaks under tension - synthetic rope falls to the ground rather than snapping back with dangerous force. The UV-coated synthetic on the SX10SR also floats in water, making it easier to manage during river crossings. Steel wire has the edge in extreme heat and abrasion resistance, but synthetic is the preferred choice for the vast majority of trail and overland applications.
What vehicles is the SX10SR compatible with?
The SX10SR uses a standard 10 in x 4.5 in bolt-on mounting pattern, which is compatible with a wide range of aftermarket and OEM bumpers designed for trucks, Jeeps, Broncos, Gladiators, and other off-road vehicles. The relocatable control box adds additional flexibility for tight or unconventional bumper configurations. Always confirm your bumper's winch mounting pattern and weight capacity before installing.
What does the IP68 rating mean for a winch?
IP68 is the highest standard ingress protection rating for dust and water. It means the winch drum, gearbox, and contactor are fully sealed against dust ingress and are rated for continuous submersion in water beyond 1 meter. In practical terms, this means you can drive through water crossings, operate in heavy rain, and not worry about mud or sand getting into the winch's critical components during a recovery.
Does the wireless remote have a limited range?
Superwinch does not publish a specific range figure for the wireless remote, but it is designed for use at a safe distance with clear line-of-sight to the recovery. The wireless remote is ideal for solo recoveries where you need to monitor rope alignment and vehicle movement from outside the cab. The included 12-foot wired remote is also available for situations where wireless isn't preferred.
Does this winch require professional installation?
The SX10SR is a bolt-on winch designed for DIY installation by mechanically inclined users. It comes with mounting hardware and installation instructions. The key steps involve bolting the winch to a compatible bumper plate, connecting two power leads to your battery, and routing the remote cable into the cab. If you're not comfortable with electrical wiring or your bumper requires custom fabrication, professional installation is recommended.
