Superwinch SX 10K 10,000 lb 12V Winch with Synthetic Rope & Wireless Remote

Regular price $916.99 USD

Pairs well with

FREE Shipping!

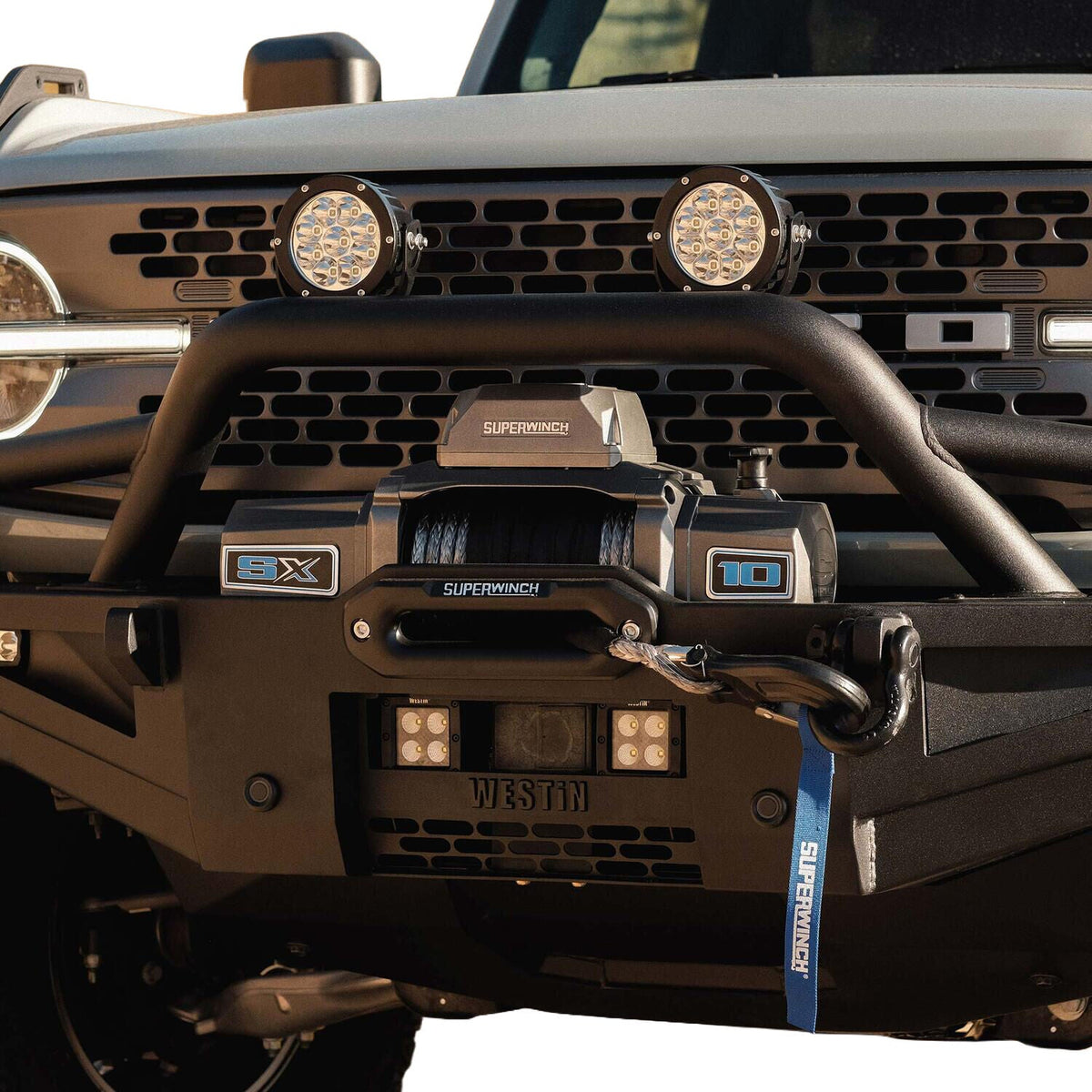

Superwinch SX10SR 10,000 lb 12V Winch with Synthetic Rope in Graphite - front view
$916.99 USD
Top Quality Google Rating
Top Quality Google RatingExceptional Merchant Status
30-Day Easy Returns
30-Day Easy ReturnsSatisfaction Guaranteed
Authorized Dealer
Authorized DealerVerified Manufacturer Partner
Lowest Price Guarantee
Lowest Price GuaranteeWe'll Beat Any Competitor
Our experts

Questions? Ask our Experts

Our product specialists are here for you, just leave us a message!

Superwinch SX 10K 10,000 lb 12V Winch with Synthetic Rope & Wireless Remote


Description

The Superwinch SX10SR delivers the ideal combination of power, speed, and innovation for serious off-road recovery. Engineered to handle 10,000 lbs of raw pulling force, this 12V electric winch is purpose-built for today's modern trucks, Jeeps, Broncos, and overlanding rigs. A rugged fully welded steel drum, IP68 waterproof and dustproof rating, and a durable metallic graphite powder-coat finish make this winch as tough as the trails you tackle.

What sets the SX10SR apart are the class-leading features packed into every unit - from the patented drum light for low-light recoveries, to the included wireless handheld remote that gives you safe, tether-free control. The 80-foot UV-coated synthetic rope is lightweight, safer to handle than steel, and pairs perfectly with the aluminum hawse fairlead for smooth line management. If you demand a winch that performs from -40 to 125 degrees F and backs it up with a Limited Lifetime Mechanical warranty, this is it.


Key Features

  • 10,000 lb Rated Line Pull: Delivers true pulling power - every Superwinch is tested to meet or exceed its rated capacity.
  • 5.5 HP Sealed Motor: 12V DC sealed motor provides reliable performance and is protected from water and debris intrusion.
  • 80 ft x 3/8" Synthetic Rope: UV-coated synthetic rope is lighter and safer than steel wire - won't snap back dangerously if it breaks.
  • Patented Drum Light: Integrated into the winch housing, illuminates the fairlead, rope layers, and spool during operation for safer night or low-visibility recoveries.
  • Wireless & Wired Remote Included: Comes standard with both a wireless handheld remote and a 12-foot lighted wired remote with an integrated lithium-ion rechargeable LED flashlight.
  • IP68 Waterproof & Dustproof: Fully sealed drum, gearbox, and contactor for complete protection from the elements.
  • 3-Stage Planetary Gearing (218:1 Ratio): Clockable gearbox and high gear ratio deliver strong, consistent pulling performance across load conditions.
  • Relocatable Die-Cast Aluminum Control Box: Easily repositioned to fit your specific bumper, hitch, or mounting setup.
  • Ergonomic No-Bind Clutch Handle: Pull-and-turn clutch is easy to operate with gloves on and won't stick like lower-quality mechanisms.
  • Rugged Steel Drum: Fully welded steel drum - more durable than aluminum, won't crack or shatter under heavy loads.
  • Aluminum Hawse Fairlead: Smooth rope guide optimized for synthetic rope use.
  • Limited Lifetime Mechanical / 7-Year Electrical Warranty: Industry-leading warranty coverage backed by Superwinch's proven reliability.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.


What's Included

  • Superwinch SX10SR 10,000 lb 12V Winch (Graphite finish)
  • 80 ft x 3/8" UV-coated synthetic rope (pre-spooled)
  • Wireless handheld remote
  • 12-foot lighted wired remote with integrated lithium-ion rechargeable LED flashlight
  • Aluminum hawse fairlead
  • Heavy-duty clevis winch hook
  • Mounting hardware

Why You'll Love It

Superwinch has built a global reputation for producing winches that are reliable, powerful, and tested to the extreme - and the SX10SR is no exception. Whether you're crawling solo through remote backcountry or running trails with a group, the included wireless remote means you can operate the winch from a safe distance with a clear line of sight to the recovery. The patented drum light is a genuine game-changer for low-light situations, giving you visibility right where it counts when conditions are at their worst.

Customers who've switched from premium brands like Warn's EVO line consistently report the SX10SR matches or exceeds the fit and finish at a more compelling price point. With a Limited Lifetime Mechanical warranty and an electrical warranty of 7 years, you're investing in a winch that's built to go the distance. From the Jeep Gladiator to the Ford Bronco and everything in between, the SX Series is a trusted choice for off-road enthusiasts who refuse to compromise on performance.


Product Specifications

View Product Specs
MPN 1710201
Winch Type Electric
Mounting Type Bolt-On
Rated Line Pull 7,500 - 12,500 lbs
Voltage 12V DC
Motor 5.5 HP, 12V DC Sealed
Gear System 3-Stage Planetary
Gear Ratio 218:1
Clutch Pull-and-turn clutch handle
Brake System 100% Full-load holding automatic mechanical brake
Rope Material Synthetic (UV-coated)
Rope Length 3/8 in x 80 ft (9.5mm x 24.3m)
Fairlead Aluminum Hawse
Remote Type Wired (12 ft with LED flashlight) and Wireless
IP Rating IP68 Waterproof and Dustproof
Mounting Bolt Pattern 10 in x 4.5 in (254mm x 114.3mm)
Mounting Hardware Included Yes
Color / Finish Metallic Graphite Powder Coat
Control Box Relocatable Die-Cast Aluminum
Task Lighting Patented Drum Light
Drum Durable Fully Welded Steel - 2.5" diameter
Winch Hook Heavy-Duty Clevis Pinned Latched
Line Speed (Max Load) 4.5 FPM (1.37 MPM) at 363 Amps Motor Draw
Operating Temperature Range -40 to 125 degrees F
Weight 61 lbs
Width 13 in
Height 12 in
Warranty Limited Lifetime Mechanical / Limited 7-Year Electrical
Assembly Required Mounting required; hardware included
Shipping Method Ships standard parcel (not freight)

FAQ

Is synthetic rope better than steel cable for a winch?

Synthetic rope is generally preferred for most off-road recovery use. It is lighter, easier to handle, and much safer if it breaks - synthetic rope does not store kinetic energy the way steel cable does, so it drops harmlessly rather than snapping back. Steel cable offers better resistance to UV, heat, and abrasion in extreme industrial environments, but for typical trail and overlanding use, synthetic rope is the safer and more user-friendly choice. The SX10SR's UV-coated rope is designed to hold up well in outdoor conditions.

Does this winch work with my truck or Jeep bumper?

The SX10SR uses a standard 10 in x 4.5 in bolt pattern, which is compatible with the vast majority of aftermarket and OEM winch-compatible bumpers on the market. It can also be mounted on a hitch-mounted winch plate for front-to-rear versatility. The relocatable control box helps fit the unit into tight or custom bumper setups. If you're unsure about fitment, feel free to email us at service@omahasportsandgames.com and we'll help confirm compatibility.

How waterproof is the SX10SR?

The SX10SR carries an IP68 rating, which is the highest standard level of waterproof and dustproof protection. This means the drum, gearbox, and contactor (solenoid) are all fully sealed against dust ingress and can withstand continuous submersion in water. You can winch through mud, stream crossings, and heavy rain with confidence.

What is the range of the wireless remote?

The wireless remote is designed for reliable operation at a safe distance with clear line-of-sight to the winch and recovery. Superwinch does not publish a specific range figure for the wireless remote, but it is intended to keep you positioned safely away from the vehicle and rope during recovery operations. The 12-foot wired remote is also included as a backup.

What warranty does this winch come with?

The SX10SR is backed by a Limited Lifetime Mechanical warranty and a Limited 7-Year Electrical warranty from Superwinch. This is one of the strongest warranties in the category and reflects Superwinch's confidence in the build quality of the SX Series. Warranty coverage is provided by Superwinch and applies to the original purchaser.

Does this winch require professional installation?

The SX10SR is a DIY-friendly install for anyone with basic mechanical ability and access to common hand tools. Mounting hardware is included, and an installation guide is available for download. You'll need a winch-compatible bumper or hitch mount, and you'll connect the winch to your vehicle's battery. Many customers complete the installation in a few hours. If you're not comfortable with electrical connections, a professional installer is recommended.
