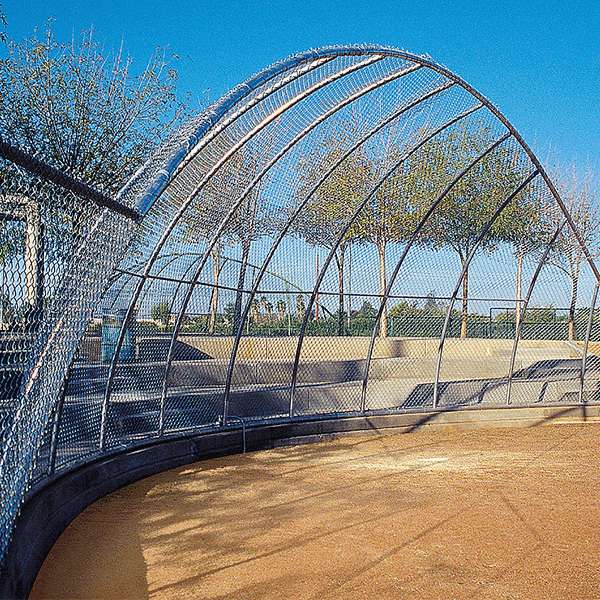

The PW Athletic Layback Arch Backstop is nationally recognized as the most effective design for controlling foul balls on baseball fields. Engineered with precision and built to last, this backstop represents the perfect combination of structural design, rigorous testing, and expert craftsmanship. The signature layback arch profile deflects balls safely back into the field of play, reducing hazards for players and spectators alike. Available in three size configurations and multiple frame and mesh combinations, it can be tailored to fit the exact needs of your facility.
Whether you're outfitting a youth recreation complex, a high school diamond, or a collegiate or municipal facility, the PW Athletic Layback Arch delivers institutional-grade durability and performance. Every backstop is backed by a full ten-year warranty on the frame, giving facilities managers and coaches the confidence that this investment will stand up for years to come.
Key Features
Nationally Recognized Design: The perpendicular layback arch is the most effective backstop style for foul ball control, trusted by facilities across the country.
Heavy-Duty Steel Construction: Frame built from 2-7/8" O.D. galvanized steel uprights, 2-3/8" O.D. ribs, and 1-1/16" O.D. horizontal stiffeners for maximum rigidity.
Three Size Options: Available in 14'6" H x 50' W x 14'6" D, 15'6" H x 40' W x 15'6" D, and 20' H x 62' W x 20' D to fit a range of diamond layouts.
Frame Finish Options: Choose galvanized finish for long-term corrosion resistance, or powder coated (Black or Dark Green) for a polished, color-matched appearance.
Mesh Options: Order as frame only, galvanized mesh, or vinyl coated mesh (black or green) depending on your netting preference and budget.
10-Year Frame Warranty: Full replacement coverage on all well-maintained backstop frames used for their intended purpose - one of the strongest warranties in the industry.
Baseball-Specific Engineering: Designed specifically for baseball fields, the arch geometry and layback angle are optimized to redirect foul balls safely.
Professional Craftsmanship: Each unit is manufactured by experienced craftsmen, ensuring consistent quality and fit across every model.
Model Options & Which to Choose
15'6" H x 40' W x 15'6" D (Models 1213): The most compact of the three configurations, ideal for smaller fields, youth leagues, or facilities with tighter space constraints. Weighs approximately 1,700 lbs. A great fit for recreational parks and community diamonds.
14'6" H x 50' W x 14'6" D (Models 1217): A mid-width option with a slightly lower profile, offering excellent foul ball coverage across a wider span. Weighs approximately 1,750 lbs. Well-suited for travel ball complexes, high school fields, and multi-use athletic facilities.
20' H x 62' W x 20' D (Models 1215): The largest and tallest configuration, providing maximum coverage for full-size fields. Weighs approximately 2,250 lbs. Designed for collegiate programs, municipal stadiums, and premier athletic facilities that demand elite performance.
Galvanized Frame Only (FG): The base frame with no mesh included - best for facilities sourcing their own netting or replacing an existing mesh. Raw galvanized finish for maximum corrosion resistance.
Powder Coated Frame Only (FP): Same frame as above but finished in powder coat (Black or Dark Green) for a clean, professional look. Ideal when aesthetics matter.
Galvanized Frame & Galvanized Mesh (G): Complete turnkey package with galvanized steel mesh included. Maximum durability and minimal maintenance - great for high-use public facilities.
Galvanized Frame & Vinyl Coated Mesh (GV): Galvanized frame paired with vinyl coated mesh for a refined appearance and added weather resistance on the netting.
Powder Coated Frame & Galvanized Mesh (PG): Color-finished frame with galvanized mesh - balances aesthetics with a proven, durable netting option.
Powder Coated Frame & Vinyl Coated Mesh (PV): The premium combination - powder coated frame and vinyl coated mesh for a fully finished, color-coordinated backstop. Ideal for showcase facilities and new construction projects.
Shipping
This product requires additional shipping. If you'd like a quote before you purchase, fill out the form on this page or email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
Layback Arch Backstop frame (galvanized or powder coated, depending on selected model)
Mesh netting (galvanized or vinyl coated, for applicable models - frame-only models do not include mesh)
Why You'll Love It
The PW Athletic Layback Arch Backstop is trusted by parks departments, school districts, and athletic organizations nationwide for a reason - it simply performs. The arch-and-layback geometry is the gold standard in backstop design, engineered to redirect foul balls safely without compromising visibility or player safety. Built from commercial-grade galvanized steel by skilled craftsmen, this backstop is engineered for decades of dependable use with minimal upkeep. The 10-year full replacement warranty is a direct reflection of how confident PW Athletic is in the quality of their work. Whether you're building a new facility from the ground up or upgrading an aging backstop, this is the structure coaches, athletic directors, and facilities managers turn to when they need it done right.
Product Specifications
View Product Specs
Available Sizes
15'6" H x 40' W x 15'6" D; 14'6" H x 50' W x 14'6" D; 20' H x 62' W x 20' D
What is the difference between galvanized and powder coated frames?
Galvanized frames are coated in a zinc finish that provides excellent long-term corrosion resistance with minimal maintenance - ideal for outdoor facilities in wet or humid climates. Powder coated frames are finished in a durable color coat (Black or Dark Green) that provides a clean, professional look and good weather resistance. Both are built on the same steel structure; the choice comes down to aesthetics versus raw weather protection.
Can I order the frame now and add mesh later?
Yes. The frame-only models (FG and FP) are designed for facilities that want to source their own netting, already have existing mesh, or plan to add mesh in a future phase. Contact us at service@omahasportsandgames.com if you need help selecting compatible mesh or planning a phased installation.
How does the layback arch design control foul balls better than a standard backstop?
The perpendicular layback arch geometry angles the top of the backstop back toward the field, which deflects foul balls downward and back into the playing area rather than allowing them to clear the structure or ricochet unpredictably. This design is nationally recognized as the most effective foul ball control solution and is engineered specifically for baseball diamonds.
What does the 10-year warranty cover?
PW Athletic's 10-year warranty covers full replacement of any backstop frame that fails under normal use when properly maintained. This applies to products used for their intended purpose. It is one of the strongest warranties in the industry and reflects the manufacturer's confidence in their steel construction and craftsmanship.
How is this product shipped, and is professional installation required?
Due to the size and weight of these backstops (up to 2,250 lbs), they ship via freight on a pallet and require commercial delivery. Professional installation is strongly recommended. Installation guides are available for models 1215 and 1217 - see the PDF downloads on this page. Contact us before purchasing for a shipping quote and delivery timeline.
