Premier HD Aluminum Flagpole Internal

Sale price $2,669.55 USD Regular price $4,107.00 USD
Save $1,437.45
Height: 20'
Base and Wall: 5" x 0.156"
Finish: Satin

Pairs well with

Premier HD Aluminum Flagpole Internal
$2,669.55 USD
20' / 5" x 0.156"...
Guaranteed Lowest Price Online! - Find a lower price and we'll beat it!
Satisfaction Guaranteed | Need Help? Call (888)-884-2234

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Premier HD Aluminum Flagpole Internal


Description

The Premier HD Aluminum Flagpole with Internal Winch System is a bold, rugged flagpole built for virtually any setting - homes, offices, schools, town squares, and beyond. Engineered by Concord, it shares the same tough construction as the Genesis series for poles under 40 feet, delivering dependable performance with a slightly lighter wall profile. The internal winch system keeps operation clean and simple, protecting the raising mechanism from the elements while giving the pole a sleek, uncluttered appearance.

Poles 30 feet and taller are shipped in 2-3 sections with an internal sleeve joint for solid, reinforced connections at every seam. A foundation tube is included to help dissipate lightning strikes, protecting both the pole and your concrete foundation. Every pole ships with a brushed satin finish that is completely maintenance free, so it looks sharp year after year without extra upkeep.


Key Features

  • Internal Winch System: A stainless steel winch assembly with a removable hand crank keeps flag raising and lowering smooth, secure, and protected from weather.
  • Heights Available - 20', 25', 30', 35', 40': Five height options make this pole a fit for residential, commercial, and institutional installations of all scales.
  • Wall Thickness Options - 0.156" and 0.188": Choose from multiple base and wall configurations to match your wind load and structural requirements.
  • Internal Sleeve Joint: Poles 30 feet and up ship in 2-3 sections joined by an internal sleeve for dependable reinforcement and a seamless look.
  • Lightning Dissipation Foundation Tube: Included foundation tube helps redirect lightning energy safely away from the pole and concrete base.

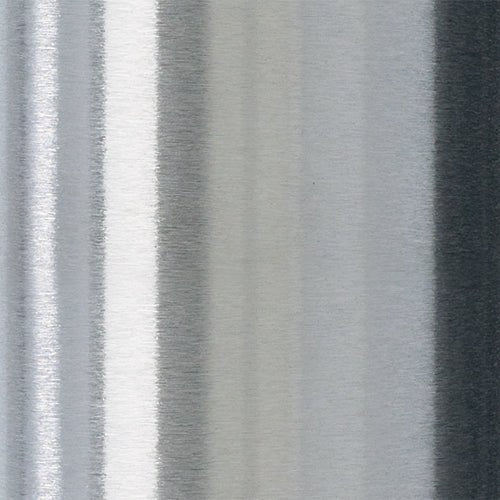

  • Maintenance-Free Brushed Satin Finish: The standard finish resists corrosion and fading without any special care or recoating required.
  • Cast Aluminum Ball-Bearing Revolving Truck: Features two self-lubricated pulley wheels for smooth, long-lasting flag movement.
  • 1/8" Stainless Steel Aircraft Cable: Heavy-duty cable rated for reliable, long-term outdoor use in all weather conditions.
  • Complete Hardware Package: Comes with an anodized aluminum gold ball, two bronze swivel snaps, a galvanized corrugated steel ground socket, and a spun aluminum flash collar.
  • Multiple Finish Options: Available in Satin, Anodized Black, Anodized Bronze, and Anodized Clear to match any architectural aesthetic.

Height & Size Options - Which to Choose

  • 20' (5" x 0.156"): A great choice for residential front yards, small business entrances, or any location where a clean, proportionate display is needed without an imposing height.
  • 25' (5" x 0.156"): Ideal for larger residential properties, small parks, or commercial storefronts that want a more prominent flag display while keeping installation manageable.
  • 30' (5" x 0.156"): A versatile mid-range option well suited for schools, churches, and mid-sized commercial properties. Ships in sections with internal sleeve joint reinforcement.
  • 35' (6" x 0.156"): Steps up in diameter to handle the additional stress of greater height - best for government buildings, car dealerships, and large commercial campuses.
  • 40' (7" x 0.156"): The tallest and widest option in this series, designed for maximum visual impact at large facilities, municipal sites, and institutional settings where the flag needs to be seen from a distance.

What's Included

  • Premier HD Aluminum Flagpole (in 1-3 sections depending on height)
  • Anodized aluminum gold ball (topper)
  • Cast aluminum ball-bearing revolving truck with two self-lubricated pulley wheels
  • 1/8" stainless steel aircraft cable
  • Two bronze swivel snaps
  • Galvanized corrugated steel ground socket
  • Stainless steel winch assembly with removable hand crank
  • Spun aluminum flash collar
  • Foundation tube
  • Installation instructions

Why You'll Love It

The Premier HD Aluminum Flagpole Internal is a proven performer trusted for homes, schools, government sites, and commercial properties that demand a clean, lasting installation. The internal winch system sets it apart from external halyard poles - there's no exposed rope to weather, fray, or tangle, giving you a polished look and a more secure raising mechanism. The brushed satin finish means zero maintenance over the life of the pole, and the included lightning-dissipating foundation tube provides genuine peace of mind in storm-prone areas. With five height options and four finish choices, this pole is easy to specify for any project. Whether you're outfitting a single property or managing a multi-site installation, the Premier HD delivers rugged Concord construction at a scale that fits.


Product Specifications

View Product Specs
Brand Concord
Available Heights 20', 25', 30', 35', 40'
Base Diameter & Wall Options 5" x 0.156", 6" x 0.156", 7" x 0.156", 6" x 0.188"
Halyard System Internal winch with removable hand crank
Cable 1/8" stainless steel aircraft cable
Finish Options Satin, Anodized Black, Anodized Bronze, Anodized Clear
Sections (30' and up) 2-3 sections with internal sleeve joint
Ground Socket Galvanized corrugated steel
Topper Anodized aluminum gold ball
Assembly Required Yes - poles 30' and up ship in 2-3 sections; installation instructions included
Shipping Method Ships freight; large sectioned poles delivered on pallet

FAQ

What is the difference between an internal and external halyard flagpole?

An internal halyard flagpole, like this Premier HD model, routes the raising cable inside the pole shaft rather than on the outside. This protects the cable and winch mechanism from wind, rain, and UV exposure, extending the life of the hardware. It also gives the pole a cleaner, more professional appearance with no visible rope on the outside. External halyard poles use a rope cleat on the outside of the shaft, which is simpler but exposes the halyard to the elements and potential vandalism.

How deep does the foundation need to be for installation?

Foundation depth varies by pole height and local soil conditions. As a general guideline, the ground socket should be set in concrete at a depth of approximately 10% of the pole's total height. For example, a 30-foot pole typically requires a foundation about 3 feet deep. Always consult the included installation instructions and check local building codes, as wind load requirements differ by region.

Do poles 30 feet and taller require special installation?

Poles 30 feet and up ship in 2-3 sections and are joined using an internal sleeve joint for a strong, reinforced connection. Assembly is straightforward and detailed installation instructions are included. For very tall poles or installations on commercial or municipal sites, professional installation is recommended to ensure proper alignment and foundation depth.

Which height is right for my property?

A common guideline is to choose a flagpole height that is proportional to your building or property. For most residential homes, a 20-25 foot pole is ideal. Schools, churches, and mid-sized commercial buildings typically use 25-35 foot poles. Large commercial facilities, government buildings, and municipal sites often choose 35-40 foot poles for maximum visibility. Consider the surrounding landscape and any local ordinances that may restrict flagpole height.

Is the finish durable enough for coastal or high-humidity environments?

The brushed satin finish on this aluminum flagpole is maintenance free and designed to resist corrosion over time. For coastal environments with heavy salt air exposure, an anodized finish option (Black, Bronze, or Clear) may offer added protection and longevity. Aluminum naturally resists rust, making this pole a solid choice for humid and coastal regions.

Can I fly a flag in all weather conditions with this pole?

The Premier HD Aluminum Flagpole is built for year-round outdoor display. However, it is generally recommended to lower flags during severe storms, high winds, or hurricanes to prevent damage to both the flag and the pole hardware. The internal winch system makes lowering and raising the flag quick and easy, so you can respond to changing weather without hassle.

Product specifications table
Specification name Specification Value
Color pattern Silver, Black, Bronze
Finish Satin, Matte
Material Aluminum
Translation missing: en.metafields.shopify.pole-construction-type Sectional
