Polaris RZR XL Linkable Roof Light Kit | Pro XP & Turbo R

$1,801.95 USD
Model: XL Sport Linkable

Pairs well with

Polaris RZR XL Linkable Roof Light Kit | Pro XP & Turbo R
$1,801.95 USD
XL Sport Linkable
Top Quality Google Rating
Top Quality Google RatingExceptional Merchant Status
30-Day Easy Returns
30-Day Easy ReturnsSatisfaction Guaranteed
Authorized Dealer
Authorized DealerVerified Manufacturer Partner
Lowest Price Guarantee
Lowest Price GuaranteeWe'll Beat Any Competitor
Our experts

Questions? Ask our Experts

Our product specialists are here for you, just leave us a message!

(888)-884-2234 Send Us a Message
View details

Polaris RZR XL Linkable Roof Light Kit | Pro XP & Turbo R

Description

The Baja Designs XL Linkable Roof Mount Light Kit is a purpose-built LED lighting system designed specifically for the 2020-2024 Polaris RZR Pro XP and 2022-2024 RZR Turbo R. This kit puts six XL Sport LED pods into a fully linkable array that can be configured in an arc or straight bar layout, giving you complete control over your lighting profile. With a combined output of 18,972 lumens at 156W, this system delivers serious forward distance lighting and wide peripheral coverage for fast-moving off-road riding in any conditions.

Every pod features 45° vertical pitch adjustment and independent horizontal aiming so you can dial in exactly where the light goes, no matter what terrain you're attacking. Built with hard anodized and powder-coated cast aluminum housings, billet-machined aluminum bezels, and hardcoated polycarbonate lenses, this kit is engineered to survive the rigors of high-speed desert running, rock crawling, and everything in between. Installation is straightforward thanks to a complete plug-and-play wiring harness, vehicle-specific brackets, and a pre-load support bracket for stability at speed.

Key Features

  • Fitment: Custom-built for 2020-2024 Polaris RZR Pro XP and 2022-2024 RZR Turbo R.
  • 6 XL Sport LED Pods: Linkable array configurable in arc or straight bar layout for versatile mounting options.
  • 18,972 Lumens / 156W / 12A: Massive light output with low amperage draw for demanding off-road use.
  • Multi-Pattern Beam Setup: Combines forward distance reach with wide peripheral coverage for all-terrain visibility.
  • 45° Vertical Pitch + Full Horizontal Adjustment: Independent aiming on each pod for precision light placement.
  • Hard Anodized + Powder-Coated Cast Aluminum Housings: Rugged construction built to handle vibration, dust, and impact.
  • Billet-Machined Aluminum Bezels & Hardcoated Polycarbonate Lenses: Premium materials for long-lasting clarity and durability.
  • MoistureBlock® (IP69K Rated): Fully waterproof and submersible - built for the worst conditions you can find.
  • ClearView® & CopperDrive® Technology: Focused beam optics and full 100% LED power drive for maximum efficiency.
  • uService® Replaceable Lenses & Optics: Field-serviceable design means you can replace lenses and optics without replacing the entire unit.
  • 5000K Daylight Color Temperature: Natural white light reduces eye strain during long night runs.
  • Limited Lifetime Warranty: Backed by Baja Designs' industry-leading warranty and a 30-day satisfaction guarantee.

Model Options & Which to Choose

  • XL Sport Linkable: Features XL Sport series LED pods in the linkable roof bar configuration. The Sport optic delivers a wide, high-output beam pattern optimized for fast all-terrain riding where broad coverage is the priority. Ideal for riders who want maximum light spread across a wide field of view.
  • XL Pro Linkable: Steps up to XL Pro series LED pods in the same linkable roof bar configuration. The Pro optic adds a more refined, longer-reaching beam for riders who push farther at higher speeds and demand greater forward distance illumination alongside wide coverage.

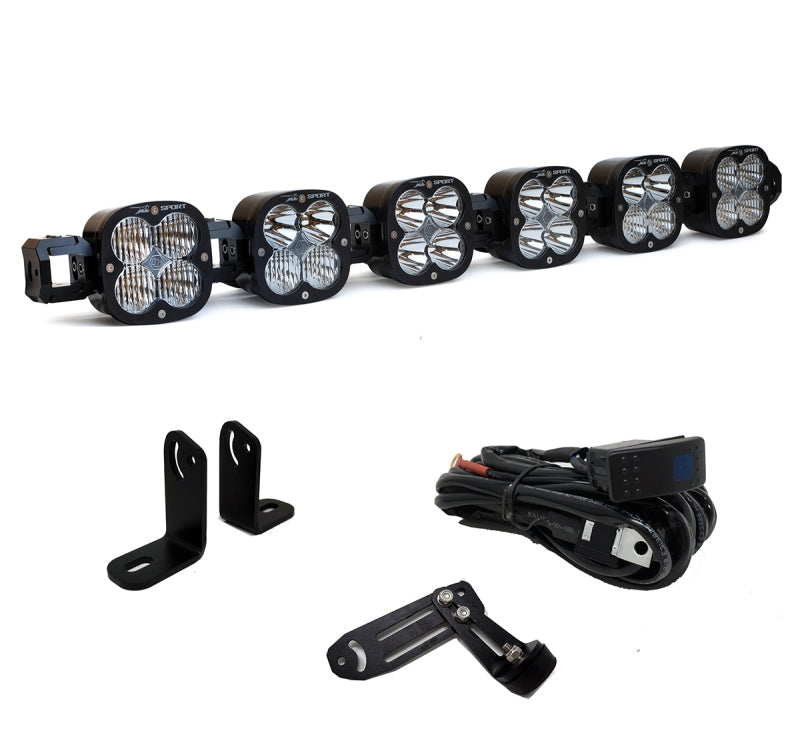

What's Included

  • 6 XL Sport LED pods (linkable configuration)
  • Pre-load support bracket
  • Vehicle-specific mounting brackets
  • Rock guards
  • Complete wiring harness
  • Links and mounting hardware

Why You'll Love It

Baja Designs is one of the most trusted names in off-road lighting, and the XL Linkable Roof Kit is a showcase of everything that's made them the go-to choice for serious UTV riders and race teams worldwide. The plug-and-play installation means you're not wrestling with custom wiring - everything you need is in the box, designed specifically for your Pro XP or Turbo R. With IP69K waterproof certification, replaceable optics through uService®, and a limited lifetime warranty, this is a lighting investment built to last as long as your machine does. Whether you're running the dunes at night, chasing desert trails, or navigating tight technical terrain after dark, 18,972 lumens of adjustable, multi-pattern light means you'll never be caught underprepared. This is the kind of kit that serious RZR owners buy once and never look back.

Product Specifications

View Product Specs
Fitment Polaris RZR Pro XP (2020-2024), Polaris RZR Turbo R (2022-2024)
Number of LED Pods 6 XL Sport LED pods
Total Lumens 18,972 lumens
Power Draw 156W
Amperage 12A
Color Temperature 5000K (Daylight)
Vertical Adjustment 45° pitch adjustment per pod
Bar Configuration Arc or straight (linkable)
Housing Material Hard anodized + powder-coated cast aluminum
Bezel Material Billet-machined aluminum
Lens Material Hardcoated polycarbonate
Waterproof Rating IP69K (waterproof and submersible)
Warranty Limited Lifetime Warranty + 30-Day Satisfaction Guarantee
Brand Technology uService®, ClearView®, MoistureBlock®, CopperDrive®

FAQ

Will this kit fit my Polaris RZR Pro XP or Turbo R?

Yes - this kit is purpose-built for the Polaris RZR Pro XP (2020-2024) and the Polaris RZR Turbo R (2022-2024). It includes vehicle-specific mounting brackets designed for a precise, rattle-free fit on these exact models. If you have a different RZR model, Baja Designs offers other roof light kits designed for additional fitments.

What is the difference between the XL Sport Linkable and XL Pro Linkable models?

The two models differ in the XL pod series included in the kit. The XL Sport Linkable uses XL Sport pods, which deliver a wide, high-output beam pattern great for broad terrain coverage. The XL Pro Linkable steps up to XL Pro pods, which add increased forward distance reach - ideal for riders who travel at higher speeds and need light further down the trail. Both use the same linkable bar mounting system and include the same hardware.

Is this a plug-and-play installation or does it require custom wiring?

This kit is designed as a plug-and-play system. It includes a complete vehicle-specific wiring harness, mounting brackets, links, rock guards, and all necessary hardware. No custom wiring or fabrication is required. Most experienced UTV owners can complete the installation at home with basic hand tools.

Can the light pods be aimed individually?

Yes. Each pod in the linkable array features 45° of vertical pitch adjustment and independent horizontal aiming. This lets you customize exactly where each light is pointing, so you can fine-tune your beam pattern for the specific terrain or trail you're riding.

What does the IP69K waterproof rating mean?

IP69K is the highest level of waterproof protection available. It means the lights are sealed against high-pressure, high-temperature water jets and are fully submersible - so creek crossings, mud, rain, and pressure washing won't affect them. Baja Designs' MoistureBlock® technology is the system that delivers this level of protection.

What does uService® mean, and why does it matter?

uService® is Baja Designs' proprietary design feature that makes lenses and optics field-replaceable. Instead of replacing an entire light pod after damage or wear, you can swap out just the lens or optic - saving money and reducing waste. It's a big advantage for riders who use their lights hard in demanding off-road environments.
