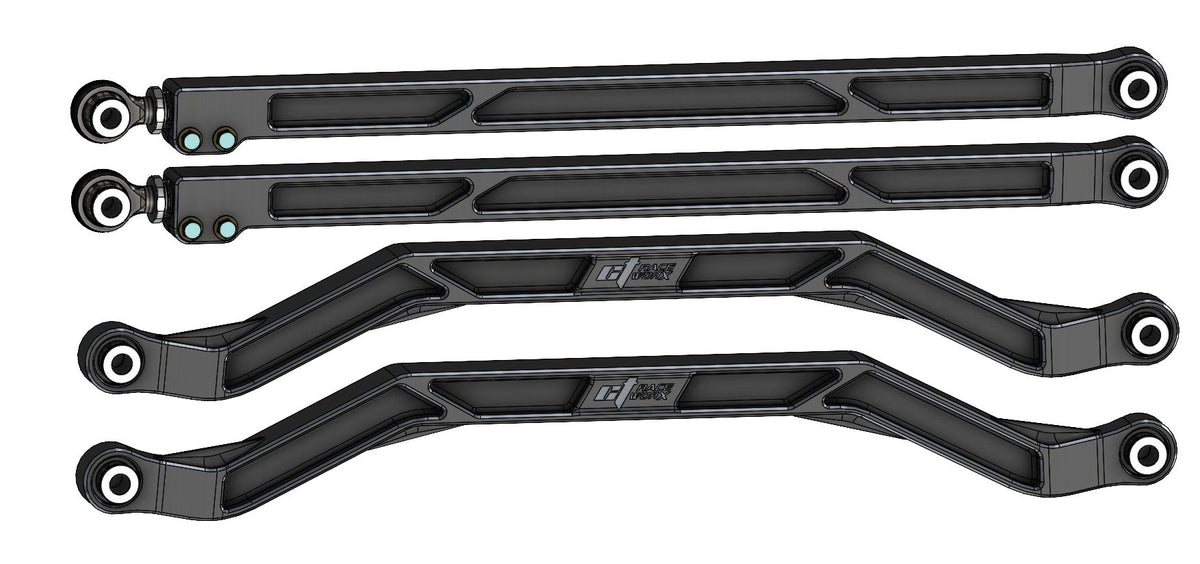

Polaris Pro R/Turbo R Billet Radius Rods

Description

The CT Race Worx Billet Radius Rods for the Polaris RZR Pro R and Turbo R are precision-engineered suspension components built for riders who demand the absolute best from their machine. Machined from American-made 7075 aluminum - twice as strong as the commonly used 6061 - these rods are designed to withstand the brutal forces generated during high-speed off-road racing, rock crawling, and aggressive trail riding. The lower rods deliver up to 1" of additional ground clearance at peak and over 2" in key areas, while a 3/4" tall 45-degree ramped front face helps you clear obstacles cleanly without hanging up.

Integrated gussets prevent deflection under extreme bottom-outs, and FK WSSX12T wide-series uniballs provide proven, race-grade durability at the most critical connection points. The upper rods feature CT Race Worx's exclusive single-point quick adjuster with a heat-treated 17-4 stainless steel collar, letting you dial in camber adjustments on the ground without jam nuts or complicated tooling. Handbuilt in the USA and backed by a lifetime warranty, these radius rods represent the pinnacle of off-road suspension craftsmanship.

Key Features

• American-Made 7075 Aluminum: Twice as strong as 6061 aluminum - the same material used in aircraft wing structures and trophy truck control arms - for maximum strength at critical thread and uniball areas.
• Up to 2"+ Ground Clearance Gain: Lower rods provide 1" of clearance at peak and over 2" in other key areas, keeping you moving over obstacles that would stop stock rods cold.
• 3/4" Tall 45-Degree Ramped Front Face: Engineered to smoothly deflect rocks and terrain features so the lower rods glide over obstacles rather than catching or hanging up.
• FK WSSX12T Wide-Series Uniballs: Race-proven wide-series uniballs chosen for superior durability and the robust material mass surrounding the joint - the most critical stress point on the rod.
• Integrated Gussets: Reinforce the lower rods against deflection during extreme bottom-outs and unusual impacts, maintaining geometry under the hardest hits.
• Exclusive Single-Point Quick Adjuster (Upper Rods): Heat-treated 17-4 stainless steel adjuster collar with 1" OD right-hand thread and 3/4" ID left-hand thread - no jam nuts needed for camber adjustments.
• 3/4" LH JMX12T Rod End: Chosen over 7/8" for superior strength relative to surrounding material, ensuring the uniball seat is as strong as possible.
• Fully Symmetrical Upper and Lower Rods: No left/right-specific rods means racers only need to carry one spare for either side - simpler logistics at the race.
• Unique Frame-Side Spacers and O-Rings: Prevents unnecessary movement while still allowing slight deflection when needed, protecting the frame mount and hardware.
• Black Anodized Finish + Lifetime Warranty: Every set ships anodized in black, and all CT Race Worx parts are backed by a lifetime warranty with replacement wearable items readily available.

What's Included

• Billet 7075 aluminum upper radius rods (set)
• Billet 7075 aluminum lower radius rods (set)
• FK WSSX12T wide-series uniballs
• 3/4" LH JMX12T rod end (upper adjuster)
• Heat-treated 17-4 stainless steel adjuster collar
• Frame-side spacers and o-rings
• Mounting hardware

Why You'll Love It

CT Race Worx has built a reputation among racers, rockcrawlers, and serious off-road enthusiasts for producing parts that genuinely outperform the competition - and these radius rods are no exception. Handbuilt in Monroe, NC using only American-made materials, every set is a testament to the kind of craftsmanship that holds up through race seasons, not just weekend rides. The 7075 aluminum construction gives you the same material confidence used in aircraft wings and championship-winning trophy trucks, so you can push your Pro R or Turbo R harder knowing your suspension links won't be the weak link. The single-point quick adjuster on the upper rods means you can make precise camber changes at the track or trailhead without wrenching for an hour - a genuine advantage when conditions change fast. Whether you're racing competitively or building the ultimate trail rig, these rods are engineered for years of demanding, high-performance use. Backed by a lifetime warranty, this is a suspension upgrade you make once.
