Polaris Pro R Boxed Trailing Arms
Description

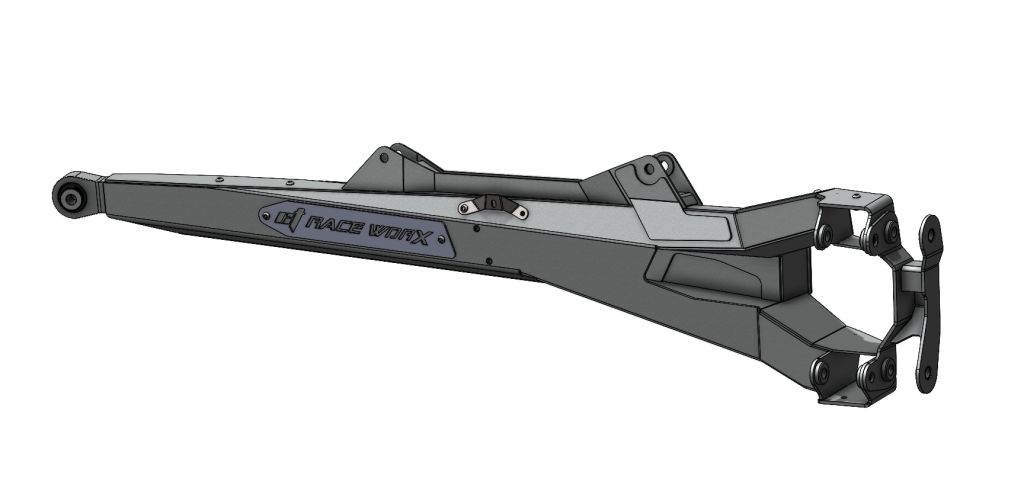

The CT Race Worx Polaris Pro R Boxed Trailing Arms are purpose-built for riders who demand more from their RZR Pro R on the trail and on the race course. Handbuilt in the USA, these trailing arms are engineered with a reinforced boxed design using a combination of Grade 50 steel thicknesses, delivering a level of rigidity and durability that stock arms simply can't match. The layered lower construction adds nearly 3" of ground clearance, letting you push harder through rocks, ruts, and rough terrain without sacrificing structural integrity.
Precision-engineered suspension geometry means improved traction and control in the most aggressive off-road conditions. From the sealed brake line bungs to the gusseted shock and sway bar mount, every detail is designed for long-term reliability and field-proven performance. Backed by a no-nonsense lifetime warranty and made in the USA, these trailing arms are a serious upgrade for serious off-road enthusiasts.
Key Features
- Boxed Design with Grade 50 Steel: Built using a combination of .115" and .1875" Grade 50 steel for a robust, rigid arm capable of handling the toughest terrain.
- 5/16" Layered Lower Section: The lower portion features layered material totaling 5/16" thickness, raising the bottom of the arm by nearly 3" for added ground clearance.
- Optimized Suspension Geometry: Precision-engineered to enhance traction, control, and suspension performance during aggressive off-road driving.
- Gusseted Shock and Sway Bar Mount: The shock and sway bar mount doubles as a large gusset, distributing force and load across the arm for maximum strength.
- Sealed Brake Line Bungs and 6mm Hardware: Keeps brake lines secure and protected, ensuring reliable performance in harsh conditions.
- Fits RZR Pro R Toe Links: Compatible with both CT Race Worx toe links and the factory toe link - accepts a maximum diameter of 1.25".
- Stock Mud Flap Bracket Compatible: Includes stock mud flap brackets so you can mount your OEM flaps directly to the new arms.
- Removable Back Strap: Aids in installation, making the fitment process simpler and more straightforward.
- Corrosion-Resistant Finish Options: Available in Bare, Semi Gloss Black, or Indy Red - the bare option is ideal for custom powder coating.
- Lifetime Warranty - Made in the USA: Backed by CT Race Worx's no-nonsense lifetime warranty, handbuilt in Monroe, NC.
Finish Options & Which to Choose
- Bare: Raw steel finish, ideal for riders who want to apply a custom powder coat. Note: avoid sandblasting or powder coating the bore of either uniball pocket, as it may affect uniball fitment and is not covered under warranty.
- Semi Gloss Black: A clean, aggressive finish that resists corrosion and pairs well with most RZR builds. Great for riders who want a ready-to-install, professional look right out of the box.
- Indy Red: A bold Polaris-matched red finish for riders who want their suspension upgrades to stand out. Perfect for builds that carry the factory color scheme or simply want a striking appearance.
What's Included
- CT Race Worx Polaris Pro R Boxed Trailing Arms (pair)
- Stock mud flap brackets
- Removable back strap for installation
Why You'll Love It
When you're pushing your Polaris RZR Pro R hard - whether on race day or a demanding trail run - you need suspension components that won't let you down. CT Race Worx trailing arms are race proven and handbuilt in America, trusted by off-road enthusiasts and competitive racers who know the difference quality fabrication makes. The nearly 3" gain in ground clearance alone is a game-changer for rock crawlers and desert runners alike, giving you the confidence to tackle terrain you'd otherwise have to work around. The lifetime warranty isn't a marketing promise - it's a reflection of the craftsmanship and Grade 50 steel construction that goes into every arm. Compatible with factory and aftermarket toe links, and thoughtfully designed to retain OEM mud flap mounting, these arms integrate seamlessly into your build without forcing unnecessary compromises. If you're serious about your Pro R, CT Race Worx Boxed Trailing Arms are the upgrade that delivers where it counts.
Product Specifications
View Product Specs
| Brand | CT Race Worx |
|---|---|
| SKU | CT-POL-2050-0 |
| Compatible Vehicles | 2022-2026 Polaris RZR Pro R |
| Steel Grade | Grade 50 |
| Steel Thickness (combination) | .115" and .1875" |
| Lower Section Material Thickness | 5/16" (layered) |
| Ground Clearance Gain | Nearly 3" |
| Max Toe Link Diameter | 1.25" |
| Optional Skid Plate Material | 3/8" UHMW |
| Finish Options | Bare, Semi Gloss Black, Indy Red |
| Warranty | Lifetime |
| Origin | Made in the USA (Monroe, NC) |
| Lead Time | 3-4 weeks |
| Assembly Required | Yes - bolt-on installation; removable back strap included to assist |
| Shipping Method | Ships standard ground; verify with retailer for freight options on large orders |
FAQ
What years and models do these trailing arms fit?
These trailing arms are designed to fit 2022-2026 Polaris RZR Pro R models. If you're unsure about fitment for your specific year or submodel, use the vehicle fitment tool or contact us before ordering.
Can I use my factory toe link with these arms?
Yes. These arms are compatible with both the CT Race Worx toe link and the factory Polaris toe link, as long as the toe link has a maximum diameter of 1.25".
I want to powder coat the bare finish - are there any precautions?
Yes - important note if you're ordering bare for powder coating: do not sandblast or powder coat the bore of either uniball pocket. Doing so can affect the fitment of the uniballs and will void the warranty on those components.
Are skid plates included, or are they sold separately?
Skid plates are available as an optional add-on and are not included with the trailing arms by default. They feature 3/8" UHMW construction for serious underside protection.
How long will it take to receive my order?
Current lead time for these trailing arms is approximately 3-4 weeks, as they are handbuilt to order in the USA. Plan accordingly if you have a race or event on your calendar.
What does the lifetime warranty cover?
CT Race Worx backs these trailing arms with a no-nonsense lifetime warranty against manufacturing defects. Note that modifications such as powder coating the uniball pocket bores are not covered. Contact CT Race Worx directly for specific warranty claim procedures.
