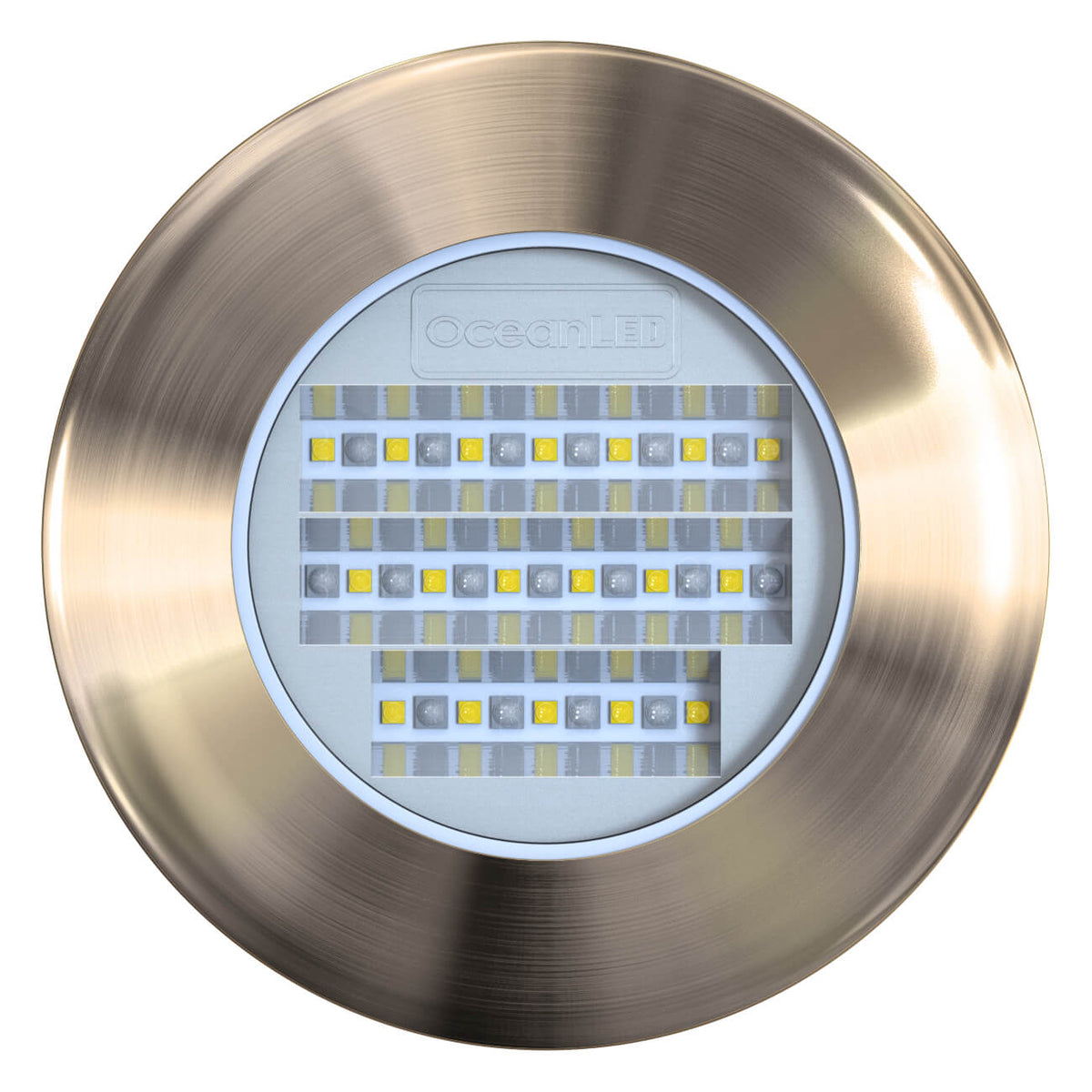

OceanLED Explore E6 XFM Underwater Light


Description

The OceanLED Explore E6 XFM is a professional-grade underwater light engineered for vessels 12 meters and larger, delivering up to 11,000 fixture lumens of stunning, customizable light beneath the waterline. Built on the same technology platform as OceanLED's superyacht range, the E6 brings class-leading performance to a broader range of boats without compromise. Available in Ultra White, Midnight Blue, Dual Colour White/Blue, and Full Colour RGBW, it offers the flexibility to match any mood or vessel aesthetic.

The Explore E6 XFM features IP69K water ingress protection certification - one of the highest ratings available - along with a premium AB2 Aluminium Bronze body built to withstand harsh marine environments. Replaceable light cartridges and easy upgrade options mean the E6 is a long-term investment that adapts as your lighting needs evolve.


Key Features

  • Up to 11,000 Fixture Lumens: Delivers brilliant, far-reaching underwater illumination - dominating its class in output.
  • IP69K Certified: Highest-grade water ingress protection, ensuring reliable performance at depth and in demanding conditions.
  • Superyacht-Derived Technology: Born of the same engineering used in OceanLED's premium superyacht range for uncompromising quality.
  • AB2 Aluminium Bronze Body: Corrosion-resistant marine-grade alloy construction built to last in saltwater environments.
  • Replaceable Light Cartridges: Easy to service and upgrade over time, protecting your investment without full fixture replacement.
  • Broad Voltage Compatibility: Operates on 10-32V DC or 100-240V AC, compatible with virtually any vessel's electrical system.
  • Full RGBW Color Scroll Option: Full Colour RGBW variant offers dynamic, vibrant color effects and infinite customization via DMX control.
  • Dual Colour White/Blue Option: Switch seamlessly between white and blue for versatile, crowd-pleasing underwater effects.
  • Compact, Low-Profile Design: 80mm body diameter and 97mm length fit neatly into most transom and hull installations with a standard 83mm hole cut-out.
  • Recommended for Boats 12m+: Optimized for larger vessels with a recommended transom/hull spacing of 0.5-1.2m and installation depth of 25-30cm below the waterline.

Light Color Options & Which to Choose

  • Ultra White: A single-color fixture producing the full 11,000-lumen white output - ideal for maximum visibility, fish attraction, and a clean, crisp look at anchor or dock. Best for boaters who want powerful, no-fuss illumination.
  • Midnight Blue: A deep, rich blue single-color output that creates a dramatic and elegant underwater glow. Perfect for those who want a signature color without added complexity.
  • Dual Colour White/Blue: Offers the ability to switch between white and blue at will, giving you two great looks in one fixture. A popular choice for owners who want versatility without the full RGBW system.
  • Full Colour RGBW: The ultimate option - full red, green, blue, and white control via DMX for dynamic color scrolling, scene-setting, and full customization. Best for entertainment-focused boaters and those integrating into a whole-vessel lighting system.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.


What's Included

  • OceanLED Explore E6 XFM Underwater Light (chosen color variant)

Why You'll Love It

The OceanLED Explore E6 XFM is trusted by serious boaters and yacht owners worldwide who refuse to settle for ordinary underwater lighting. Its superyacht-grade engineering means you're getting the same performance standards used on multi-million dollar vessels, at a fraction of the footprint. The IP69K certification and AB2 Aluminium Bronze construction give you total confidence that this fixture will perform year after year in even the harshest saltwater conditions. The replaceable cartridge system is a genuine long-term value play - your fixture evolves with your needs rather than heading to the scrap heap. Whether you're entertaining guests at anchor, attracting fish on a night dive, or simply setting the scene at a marina, the E6 XFM delivers breathtaking results every time. For boaters who take their vessel seriously, this is the underwater light to own.


Product Specifications

View Product Specs
Fixture Lumens Up to 11,000
IP Rating IP69K Certified
Min-Max Operating Voltage (DC) 10-32V DC
Dual Colour Current / Amp Draw (12V DC / 24V DC) 7.8A / 4.7A
Colours DMX Current / Amp Draw (12V DC / 24V DC) 6.8A / 3.2A
Min-Max Operating Voltage (AC) 100V - 240V AC
Dual Colour Current / Amp Draw (110V AC / 230V AC) 1,190mA / 570mA
Colours DMX Current / Amp Draw (110V AC / 230V AC) 830mA / 400mA
Total Weight 1.25kg (2.76 lbs)
Total Diameter (Including Flange) 105mm (4.13")
Diameter of Body 80mm (3.15")
Length 97mm (3.8")
Clearance Required Behind the Light 100mm (3.93")
Hole Cut-Out 83mm (3.25")
Material AB2 Aluminium Bronze
Recommended Boat Size 12m+
Transom / Hull Spacing 0.5 - 1.2m (2-4')
Installation Depth Below Waterline 25 - 30cm (10-12")

FAQ

What is the difference between the Dual Colour and Full Colour RGBW versions?

The Dual Colour White/Blue version allows you to switch between white and blue outputs - two great looks with a simple toggle. The Full Colour RGBW version uses red, green, blue, and white LEDs to produce virtually any color, dynamic color scrolling, and full DMX scene programming. The RGBW option is ideal for those wanting maximum creative control or integrating into a vessel-wide lighting system.

Does this light require professional installation?

While the Explore E6 XFM is designed with straightforward installation in mind - requiring a standard 83mm hole cut-out - it is a through-hull fitting that involves working below the waterline. OceanLED recommends installation by a qualified marine electrician or boatyard professional, particularly to ensure watertight integrity and correct wiring to your vessel's electrical system.

What accessories do I need to run the Explore E6 XFM?

Depending on your setup, you may need a DC or AC Power Kit (sold separately), Control Link Cables in your preferred length (3m to 20m options available), and for RGBW or Dual Colour models, a DMX Terminator or Control Cable and Terminator Kit. An OceanBridge Multizone Lighting Controller is also compatible for full system integration. Check the compatible accessories list for specific part numbers.

Is the Explore E6 XFM compatible with DMX control systems?

Yes - the Full Colour RGBW and Dual Colour variants are DMX-compatible, allowing integration with onboard lighting controllers. The OceanBridge Multizone Lighting Controller is a recommended companion accessory and supports Bluetooth, WiFi, touch screen, remote, NMEA 2000, and Ethernet control options.

What does the IP69K rating mean for underwater use?

IP69K is one of the highest possible ingress protection ratings, certifying the fixture against high-pressure, high-temperature water jets as well as full submersion. For a marine underwater light, this means you can trust the E6 XFM to handle continuous submersion, wash-downs, and the full rigors of life below the waterline without compromising its electronics or seals.

Product specifications table
Specification name Specification Value
Item condition New
Item material Aluminum
Light type Underwater
Lighting features LED lighting, Waterproof
Power source DC-powered
Watercraft type Boat
