OceanLED Explore E6 Thru-Hull Underwater Light - Full RGBW DMX


Description

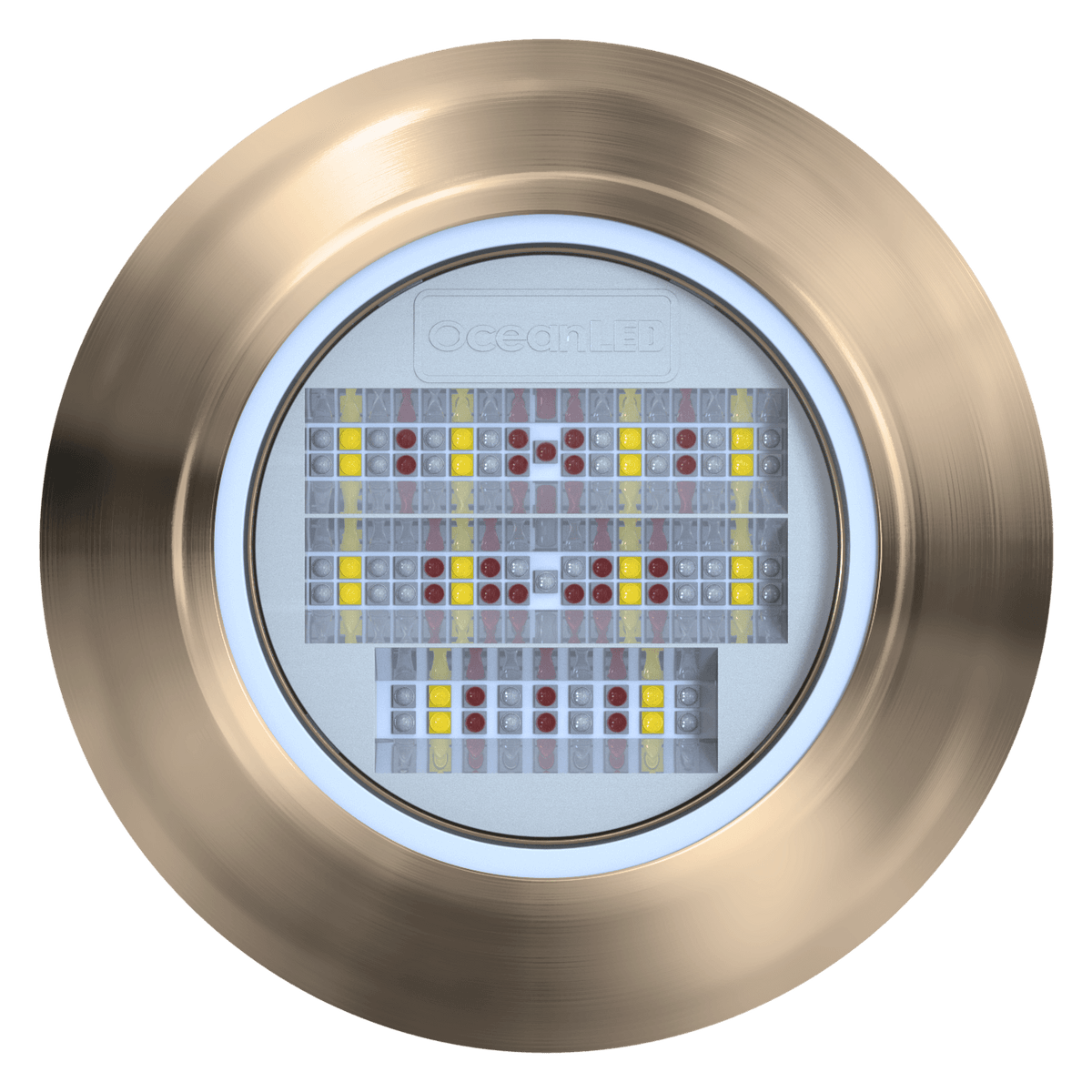

The OceanLED Explore E6 Thru-Hull is a high-performance underwater light engineered for boaters who want maximum illumination with minimal hull penetration. Designed specifically for vessels 12 meters and up, this fixture delivers up to 11,000 lumens while requiring only a slim 26mm (1") hole cut-out - far less invasive than traditional installations. Utilizing the same advanced XFM optic technology found in OceanLED's superyacht range, the E6 TH achieves far superior light penetration and stunning underwater color effects.

Built from AB2 aluminium bronze and rated IP69k certified, this light is constructed to withstand the harshest saltwater environments without compromise. Available in multiple color configurations - including Full Colour RGBW with DMX control - the Explore E6 TH gives you full command over your vessel's underwater lighting atmosphere with precision and reliability.


Key Features

  • Up to 11,000 Fixture Lumens: Delivers powerful, wide-reaching underwater illumination comparable to much larger fixtures.
  • Slim 26mm (1") Hole Cut-Out: Minimizes hull penetration for easier installation and greater peace of mind.
  • XFM Superyacht Optic Technology: The same advanced optics used in OceanLED's superyacht range for superior light penetration and spread.
  • IP69k Certified: Fully rated against high-pressure, high-temperature water jets - built for demanding marine environments.
  • AB2 Aluminium Bronze Construction: Highly corrosion-resistant marine-grade material designed for long-term saltwater use.
  • Full RGBW DMX Color Control: The Full Colour variant supports DMX control for dynamic, programmable lighting effects with millions of color combinations.
  • Wide Voltage Compatibility: Operates on 10-32V DC or 100-240V AC, making it compatible with virtually any vessel's electrical system.
  • Low Current Draw: Full Colour DMX draws only 6.8A at 12V DC or 3.2A at 24V DC, keeping power consumption efficient.
  • Recommended for Boats 12m+: Optimized mounting depth of 25-30cm below waterline with transom/hull spacing of 0.5-1.2m.
  • 2-3 Year Manufacturer's Warranty: Backed by OceanLED's comprehensive warranty against defects in materials and workmanship.

Light Color Options & Which to Choose

  • Ultra White: Produces a brilliant, crisp white output ideal for maximizing underwater visibility and creating a clean, classic look around your hull. Best for boaters who want pure, high-intensity illumination.
  • Midnight Blue: Delivers a deep, striking blue hue that enhances the natural underwater environment and creates an elegant nighttime ambiance. Perfect for those who want a bold, stylish underwater glow.
  • Dual Colour White/Blue: Combines both white and blue in a single fixture, giving you the flexibility to switch between or blend both tones. Great for boaters who want versatility without multiple light installations.
  • Full Colour RGBW (DMX): The most advanced option - supports the full RGBW color spectrum with DMX control for dynamic, programmable, and fully customizable lighting effects. Ideal for those who want full creative control and integration with a lighting controller system.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.


What's Included

  • OceanLED Explore E6 Thru-Hull underwater light fixture

Why You'll Love It

The OceanLED Explore E6 Thru-Hull brings superyacht-grade underwater lighting technology to a wide range of vessels - without requiring a large hull cut-out or complex installation. Its IP69k rating and AB2 aluminium bronze body mean it's engineered to last in saltwater conditions season after season. The Full Colour RGBW DMX variant in particular gives captains and owners the kind of dynamic lighting control previously reserved for high-end custom builds. Whether you're illuminating the water for safety, aesthetics, or entertaining guests at anchor, the E6 TH delivers breathtaking results. Trusted by boaters and marine professionals worldwide, OceanLED is the name behind some of the most impressive underwater lighting installations on the water today. With broad voltage compatibility and a range of color options, this fixture adapts to your vessel and your vision.


Product Specifications

View Product Specs
Fixture Lumens Up to 11,000
IP Rating IP69k Certified
Operating Voltage (DC) 10-32V DC
Operating Voltage (AC) 100-240V AC
Full Colour DMX Current Draw (12V DC / 24V DC) 6.8A / 3.2A
Dual Colour Current Draw (12V DC / 24V DC) 7.8A / 4.7A
Full Colour DMX Current Draw (110V AC / 230V AC) 830mA / 400mA
Dual Colour Current Draw (110V AC / 230V AC) 1,190mA / 570mA
Footprint Diameter 110mm (4.33")
Stem Diameter 25mm (0.94")
Overall Length 152mm (5.98")
Hole Cut-Out 26mm (1")
Total Weight 1.06kg (2.34lbs)
Material AB2 Aluminium Bronze
Recommended Boat Size 12m+
Transom / Hull Spacing 0.5-1.2m (2-4')
Installation Depth Below Waterline 25-30cm (10-12")
Warranty 2-3 Years Manufacturer's Warranty
Assembly Required Professional installation recommended; requires 26mm hull cut-out

FAQ

What is the difference between the E6 and E7 Thru-Hull?

Both the E6 and E7 are part of the Explore Thru-Hull series and share the same slim 26mm cut-out requirement and XFM optic technology. The E7 is a larger format fixture that may offer higher lumen output or a broader beam spread. If you're outfitting a larger vessel or want the maximum possible light output, the E7 may be the better fit. Contact us and we can help you choose the right model for your specific application.

Does the Full Colour RGBW version require a DMX controller?

The Full Colour RGBW variant is designed to work with a DMX control system for full dynamic color programming. OceanLED offers compatible control accessories including the OceanBridge Multizone Lighting Controller, which supports Bluetooth, WiFi, remote, and touchscreen operation. Compatible power and control cable kits are also available separately to complete your installation.

Can this light be used on both AC and DC electrical systems?

Yes. The Explore E6 Thru-Hull is compatible with both DC systems (10-32V DC) and AC systems (100-240V AC), making it suitable for a wide range of vessel types and electrical setups. Be sure to select the appropriate power kit (DC or AC) as a compatible accessory when ordering.

How difficult is the installation?

The E6 TH requires a 26mm (1") hole cut-out through the hull - significantly smaller than traditional underwater light installations. Professional installation by a qualified marine electrician is recommended to ensure a watertight seal and proper electrical connection. The slim stem design keeps the process straightforward compared to larger thru-hull fixtures.

Is this light suitable for saltwater use?

Absolutely. The Explore E6 TH is constructed from AB2 Aluminium Bronze, a highly corrosion-resistant alloy specifically chosen for marine saltwater environments. Combined with its IP69k certification, this fixture is built to withstand prolonged saltwater submersion and high-pressure wash-down conditions.

Product specifications table
Specification name Specification Value
Item condition New
Item material Aluminum
Light type Underwater
Lighting features LED lighting, Waterproof
Power source DC-powered, AC-powered
Watercraft type Boat
