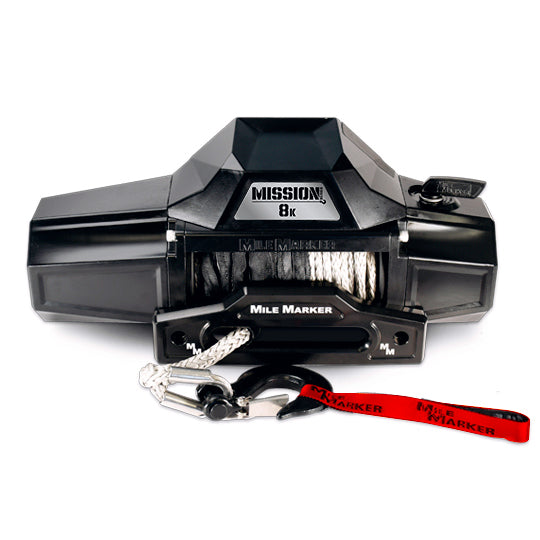

The Mile Marker Mission 8K Winch with Synthetic Rope in Covert Black delivers dependable recovery power for trucks, SUVs, Jeeps, and Broncos. Built on technology trusted by the U.S. military, this heavy-duty electric winch provides 8,000 lbs. of rated pulling capacity for demanding off-road recovery situations. Its powerful 4.7 HP series-wound motor and three-stage planetary gear system provide reliable pulling performance when traction becomes a challenge. The 92-foot synthetic rope offers a lightweight alternative to traditional steel cable, while the aluminum hawse fairlead supports smooth rope operation. Designed with a fully submersible construction, automatic load-holding brake, and corrosion-resistant stainless steel accents, the Mission 8K is equipped for challenging environments. The Covert Black finish delivers a clean, rugged appearance that complements a wide range of off-road vehicles. With straightforward controls and a standard four-bolt mounting configuration, this winch combines professional-grade capability with practical everyday usability.
Key Features
• 8,000 lb. Pulling Capacity: Provides dependable recovery power for trucks, SUVs, Jeeps, and Broncos.
• 4.7 HP Electric Motor: Powerful 12-volt series-wound motor delivers consistent pulling performance.
• Synthetic Recovery Rope: Includes 92 feet of 5/16-inch synthetic rope with a rated breaking strength of 13,228 lbs.
• Three-Stage Planetary Gear System: Engineered for controlled, reliable operation under demanding recovery conditions.
• Fully Submersible Construction: Designed to operate in wet environments and withstand complete water submersion.
• Automatic Load-Holding Brake: Low-friction braking system helps maintain control during recovery operations.
• Heavy-Duty Construction: Features a military-grade drum, rugged solenoid, and corrosion-resistant stainless steel accents.
• Plug-and-Play Remote Control: Includes a wired remote with a 12-foot cable for convenient power-in and power-out operation.
• Aluminum Hawse Fairlead: Provides a smooth guide for synthetic rope during winching operations.
• Covert Black Finish: Durable exterior finish offers a rugged, understated appearance for off-road vehicles.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
Customized configurations may require an additional 4–6 weeks before shipment.
What's Included
• (1) Mile Marker Mission 8K Electric Winch, Covert Black
• (1) 92-Foot Synthetic Recovery Rope
• (1) Recovery Hook
• (1) Aluminum Hawse Fairlead
• (1) Plug-and-Play Wired Remote Control with 12-Foot Cable
Why You'll Love It
The Mile Marker Mission 8K Winch brings military-proven recovery technology to recreational and utility vehicles without sacrificing ease of use. Its combination of an 8,000 lb. pulling capacity, synthetic rope, and durable internal components makes it a dependable choice for off-road enthusiasts. The fully submersible design and corrosion-resistant accents help the winch withstand demanding conditions and repeated outdoor use. An automatic load-holding brake and convenient wired remote provide additional control when tackling difficult recovery situations. The Covert Black finish complements your vehicle while maintaining the rugged construction expected from Mile Marker equipment. Whether navigating challenging trails or preparing for unexpected recovery needs, the Mission 8K delivers lasting value and reliable performance.
Product Specifications
• Brand: Mile Marker
• Product Series: Mission Series
• Product Code: 78-53141-CB-TO-TO-TO
• Product Type: Electric Recovery Winch
• Rated Line Pull: 8,000 lbs. (3,632 kg)
• Motor: Series-Wound Electric Motor
• Motor Power: 4.7 HP (3.5 kW)
• Operating Voltage: 12V DC
• Gear Train: Three-Stage Planetary
• Rope Type: Synthetic
• Rope Diameter: 5/16 in. (7.9 mm)
• Rope Length: 92 ft. (28 m)
• Rope Breaking Strength: 13,228 lbs.
• Winch Dimensions (L x W x H): 21.1 x 6.34 x 10.1 in. (535 x 161 x 255 mm)
• Net Weight: 57.3 lbs. (25.9 kg)
• Drum Diameter: 2.48 in. (63 mm)
• Drum Length: 8.35 in. (212 mm)
• Drum Construction: Hardened, Military-Grade
• Mounting Configuration: Four-Bolt Pattern
• Mounting Bolt Pattern: 10 x 4.5 in. (254 x 114.3 mm)
• Brake System: Automatic Load-Holding, Low-Friction
• Remote Control: Wired, Power In/Power Out
• Remote Cable Length: 12 ft. (3.7 m)
• Fairlead Type: Aluminum Hawse
• Water Resistance: Fully Submersible
• Exterior Finish: Covert Black
• Corrosion Protection: Stainless Steel Accents
