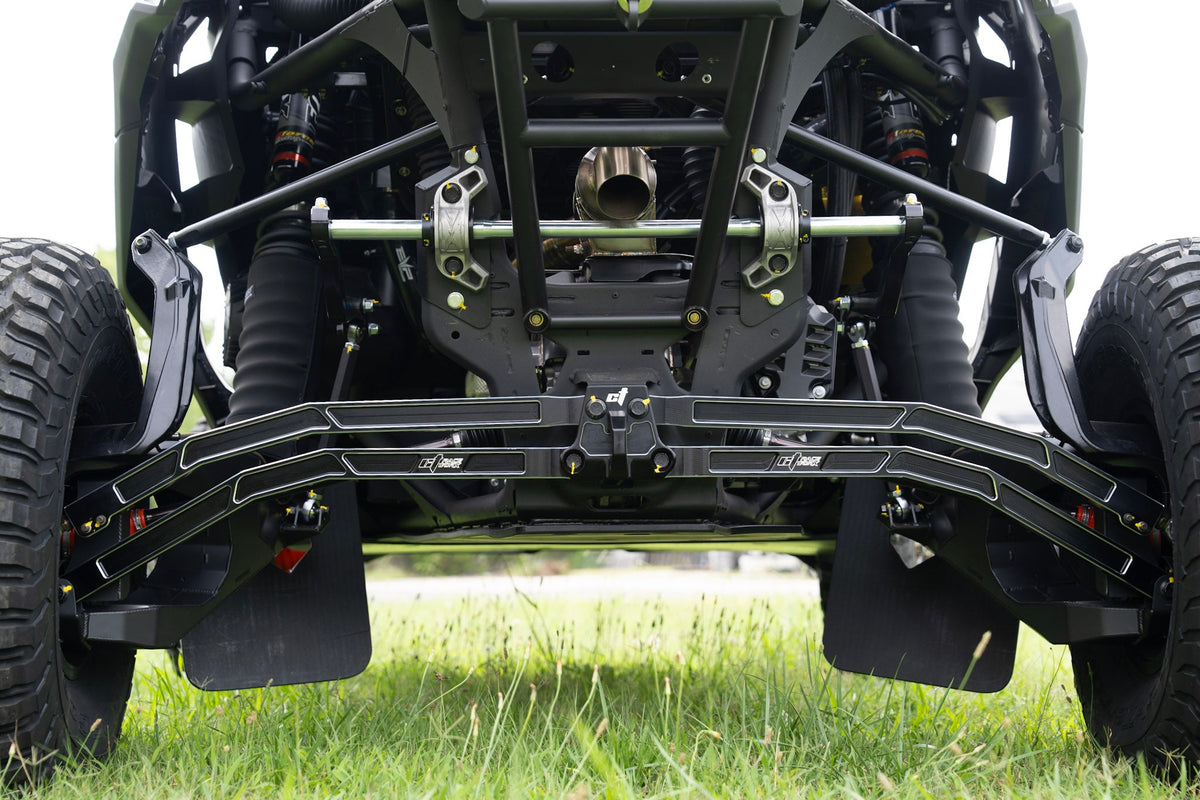

Maverick R Pro Rock High Clearance Billet Radius Rod Kit for use with Double E Rear Sway Bar

Description

The CT Race Worx Maverick R Pro Rock High Clearance Billet Radius Rod Kit is engineered for Can-Am Maverick R owners who demand maximum ground clearance and uncompromising strength on the trail. Designed specifically for use with the Double E Rear Sway Bar, this kit delivers a massive 3-1/8" of additional clearance - matching the front A-arms and bringing the rods nearly level with the axle shaft through the suspension arc. Every rod in this kit is handbuilt in the USA from aircraft-grade 7075-T6 aluminum, the same material used in aircraft wings and trophy truck control arms for its extraordinary strength-to-weight ratio and impact memory.

This kit tackles the challenge of high clearance by starting with a bolt-on sway bar relocation bracket that moves the rear sway bar up on the chassis while maintaining full rigidity and positive location. The lower and middle rods are cut from 1.5" thick American-made 7075-T6 plate and paired with 3/4" FK WSSX uniballs and 303 stainless spacers, while the middle rods feature CT Race Worx's proven single-point toe adjuster for fast, jam-nut-free setup. This is race-proven, handbuilt American performance built to handle real abuse.

Key Features

• 3-1/8" Ground Clearance Gain: Massive clearance improvement matches the front A-arms and brings rods nearly even with the axle shaft through the suspension arc.
• 7075-T6 Aircraft-Grade Aluminum: Twice the tensile strength of 6061 (83,000 PSI vs. 45,000 PSI), with up to 10% deflection and full shape memory on direct impact.
• Lower & Middle Rods - 1.5" Thick Billet Plate: Produced from American-made 7075-T6 aluminum plate for maximum strength where stress is highest.
• Upper Rods - 1.25" Solid Round 7075: Strong, easily adjustable upper rods using 3/4" FK JMX joints and 303 stainless spacers.
• 3/4" FK WSSX Uniballs: Heavy-duty uniballs with 303 stainless spacers on lower and middle rods for reliable articulation under load.
• Single-Point Toe Adjuster: Middle rods feature CT Race Worx's proven single-point adjuster with a 3/4" FK JMX joint - no jam nuts, just spin to adjust and tighten two pinch clamp bolts.
• Patent-Pending Double Shear Spindle Bracket: Billet double shear bracket with 14mm hardware replaces the factory tapered stud for fast, easy install and removal.
• Lower Rod Chamfer: Large chamfer on the front lower face of the rod helps slide over rocks and obstacles on contact.
• Bolt-On Sway Bar Relocation Brackets: Rigid, positively locating brackets move the rear sway bar up on the chassis - compatible with both stock and Double E sway bar kits.
• Black Anodized Finish: All rods ship standard in a durable black anodized finish. Handbuilt in the USA with a Lifetime Warranty.

What's Included

• High clearance billet lower radius rods (pair)
• High clearance billet middle radius rods with single-point toe adjuster (pair)
• Upper radius rods (pair)
• Bolt-on rear sway bar relocation brackets
• 3/4" FK WSSX uniballs and 303 stainless spacers (lower and middle rods)
• 3/4" FK JMX joints and 303 stainless spacers (middle and upper rods)
• Patent-pending billet double shear spindle bracket with 14mm hardware

Why You'll Love It

CT Race Worx has built a reputation for race-proven, handbuilt American-made suspension components that hold up where factory parts fall short - and this radius rod kit is one of their most ambitious builds yet. The same single-point toe adjuster design has been running reliably on the Pro R and X3 for years, so you're getting a field-tested system, not an experiment. The use of 7075-T6 aluminum throughout means you're not trading strength for clearance - you're getting both, in a package that can take the kind of abuse that rock crawling and hard trail riding demands. The patent-pending double shear spindle bracket is a genuine quality-of-life upgrade, making future maintenance fast and frustration-free. Backed by a Lifetime Warranty and proudly made in the USA, this kit is a long-term investment in your Maverick R's capability. If you're serious about rock terrain and running a Double E Rear Sway Bar, this is the kit built for you.
