Maverick R Pro Desert Chromoly Lower A Arms

Description

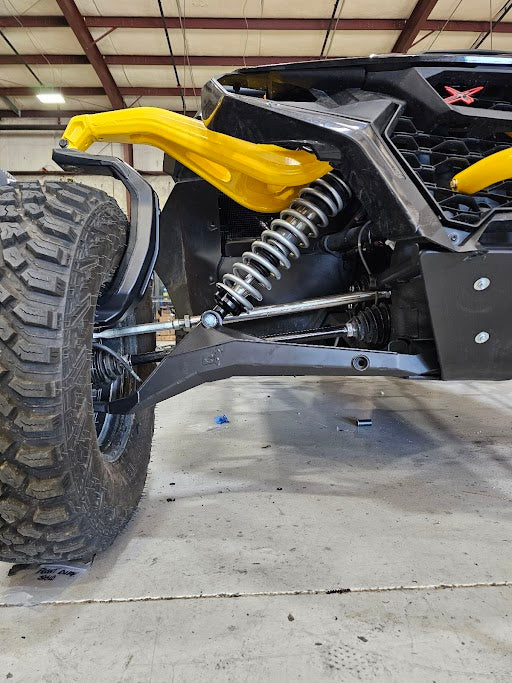

The CT Race Worx Maverick R Pro Desert Chromoly Lower A Arms are among the two strongest lower A arms available for the Can-Am Maverick R - purpose-built for desert racing, dune runs, and short course competition. Handbuilt in the USA from 100% 4130 chromoly and 100% TIG welded, these arms bring over a decade of racing knowledge to your build, drawing from CT Race Worx's experience producing high-clearance A arms since 2013.

Compared to the Pro Rock A arms, the Pro Desert arms are 8 lbs lighter per piece and engineered to maximize strength between the spindle and shock mount - the highest-stress zone of the arm. With a patent pending double shear spindle mount, upgraded hardware, and a host of race-proven details, these arms are built to conquer the toughest terrain on the planet. If you're serious about desert performance, these are the arms to have under your Maverick R.

Key Features

• Patent Pending Double Shear Spindle Mount: Bolt-on double shear design mounts to stock spindles with 7/8" FK uniballs for unmatched spindle connection strength.
• Upgraded 14mm Mounting Hardware: 14mm hardware at the spindle replaces the stock 12mm stud for a significantly stronger attachment point.
• 1.5" Clearance Increase Over Stock: Provides clearance for larger aftermarket axles while maintaining a race-optimized profile for desert and dune use.
• 100% 4130 Chromoly Construction: Fully TIG welded chromoly throughout for a strong, lightweight, race-ready build.
• 8 lbs Lighter Per Piece Than Pro Rock Arms: Reduced weight without sacrificing strength - ideal where unsprung weight reduction matters most.
• O-Ring Sealed A Arm Bushings: Ultra-durable bushing material with 17-4 heat treated stainless steel pins and caps for unrestricted movement and long-term durability.
• Chromoly-Wrapped Bushing Barrels: An additional layer of chromoly plate wraps the bushing barrels for extra strength at the frame mount.
• Ramped, Double Layered Front Bash Face: Helps the arm slide over obstacles rather than catching - critical for desert and rock-strewn terrain.
• Rerouted Brake Lines: Brake lines are repositioned and protected to minimize exposure and risk of damage during hard use.
• Recessed Front Sway Bar Mount: Protects hardware with a recessed double shear bracket design; 1.412" mounting width matches X3 radius rod width. Sway bar links not included.
• Lifetime Warranty, Made in the USA: Backed by CT Race Worx's lifetime warranty and handbuilt in Monroe, NC.

Finish Options & Which to Choose

• Bare (uncoated) - $3,650.00: Ships bare metal, ready to be coated with your preferred product such as Steel-It. In stock and ready to ship. Ideal for racers and builders who want to choose their own coating or prioritize the fastest turnaround.
• Black (powder coated) - $3,750.00: Finished in black powder coat for added corrosion resistance and a clean, show-ready look right out of the box. Contact CT Race Worx directly to arrange powder coating if needed. Best for builders who want a finished, ready-to-install arm.

What's Included

• CT Race Worx Pro Desert Chromoly Lower A Arms (pair)

Note: Sway bar links are NOT included.

Why You'll Love It

CT Race Worx has been at the forefront of Can-Am suspension development since 2013, and the Pro Desert Lower A Arms represent the culmination of over a decade of real-world racing, trail riding, and hard-won innovation. These arms are handbuilt one at a time in Monroe, NC, by the same team that has been winning races and tackling the most abusive terrain on the planet. Every detail - from the patent pending spindle mount to the rerouted brake lines - exists because someone tested it in the field and demanded better.

Backed by a lifetime warranty and made entirely in the USA, these arms are an investment in confidence. Whether you're lining up for a desert race, blasting dunes, or pushing your Maverick R to its absolute limit on a short course, these arms give you the strength and reliability to do it without compromise. When only the best will do, the Pro Desert A Arms deliver.

Product Specifications

FAQ
