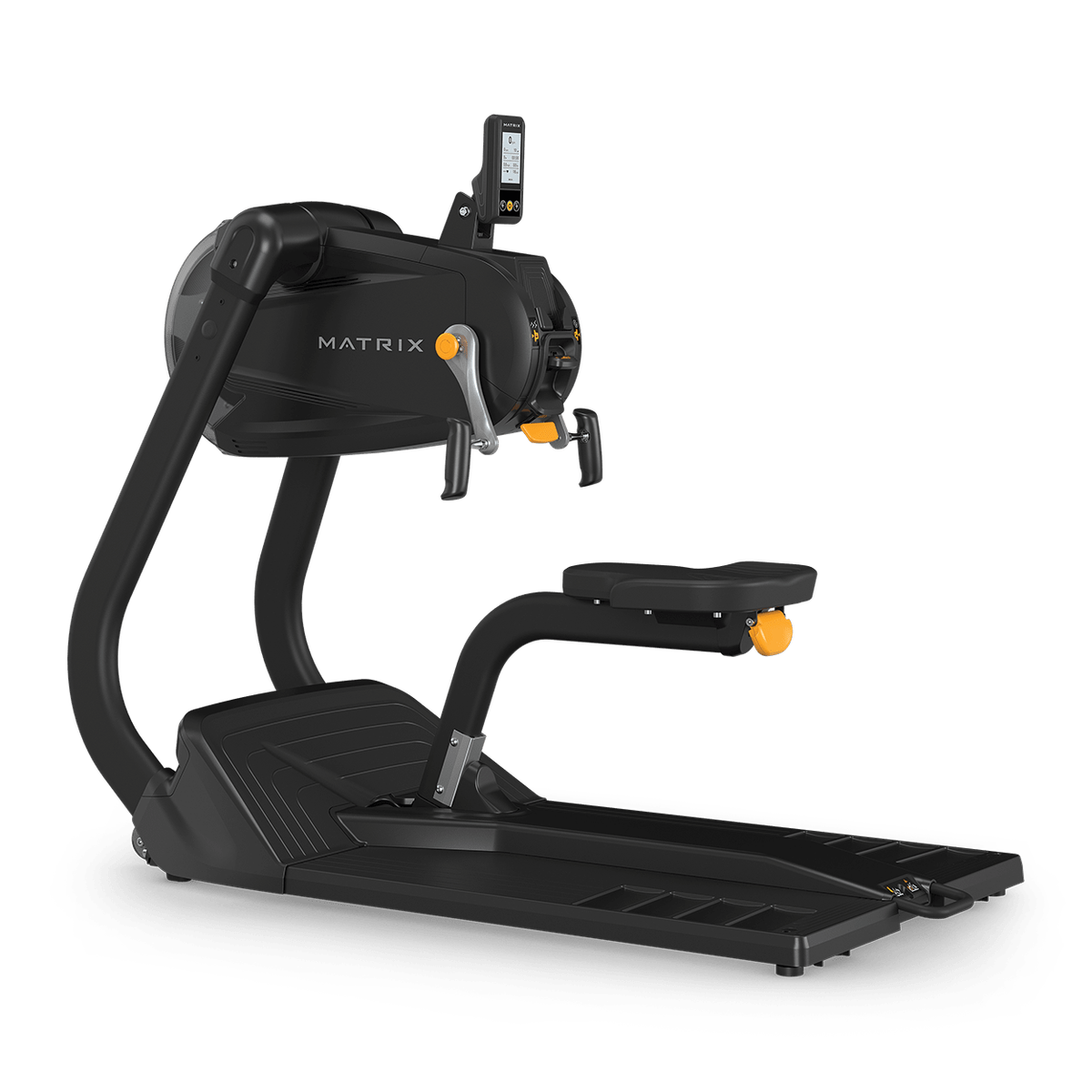

Matrix Upper Body Cycle with UBCM Console
Description
The Matrix Upper Body Cycle (UBC-M) is a self-powered, portable cardio machine designed to bring inclusive, upper-body-focused exercise to any fitness facility, group training environment, or rehabilitation setting. Its unique design supports synchronous, asynchronous, and independent arm rotation, making it suitable for users of virtually any age or ability level - including wheelchair users and those with limited mobility. The UBCM console features a backlit LCD display that delivers real-time workout feedback, while manual magnetic resistance keeps setup simple and maintenance minimal.
Built for commercial facilities that prioritize both performance and accessibility, the Upper Body Cycle offers a genuinely different cardio experience. With one-touch height adjustment, a flip-out seat, and an integrated transport handle with wheels, this machine adapts quickly between users and moves effortlessly around your floor.
Key Features
- Inclusive Cardio Design: Supports synchronous, asynchronous, and independent arm rotation - accessible for users of all ability levels, including wheelchair users.
- Manual Magnetic Resistance: Simple, reliable resistance system with quick-release lever adjustment - no power cord required.
- Generator-Powered: Completely self-powered unit requires no external electrical connection, ideal for flexible floor placement.
- One-Touch Height Adjustment: Adjustable from 50.1" to 63.5" in height to fit any user quickly and enable smooth transitions between participants.
- Crank Lock System: Crank locks allow rapid rotation mode changes between fixed and free movement to match individual goals and ability levels.
- Backlit LCD Console (UBCM): Provides complete workout feedback including custom intervals; compatible with ANT+ and BLE heart rate monitoring.
- 450 lb. Max User Weight: Heavy-duty steel frame and perimeter-weighted cast iron flywheel built to handle demanding commercial use.
- Portable with Transport Wheels: Integrated transport handle and two wheels make it easy to reposition between circuits or training zones.
- Flip-Out Seat Storage: The sculpted PU seat folds out of the way for standing or wheelchair-accessible workouts and stores on the unit.
- Fastener-Free Shroud: Tool-free top shroud removal provides quick access to electronics for simplified maintenance.
- Ergo Form Neutral Grip Handles: Ergonomically designed handles reduce wrist fatigue during extended upper body cardio sessions.
- Optional Accessibility Kit: Available with a hardware-free ramp platform, length-adjustable crank arms, and a lumbar-supporting seat back.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- Matrix Upper Body Cycle (UBC-M) frame unit
- UBCM backlit LCD console
- Sculpted PU seat with on-unit storage
- Integrated transport handle and wheels
- Water bottle holder
- Smart device holder
Why You'll Love It
The Matrix Upper Body Cycle is trusted by fitness facilities, rehabilitation centers, and group training studios that need a truly accessible cardio solution without compromising on commercial-grade durability. Its self-powered design and integrated transport wheels mean you can drop it anywhere on the floor and move it wherever the program demands - no electrician, no dedicated outlet. The forged steel crank arms, cast iron flywheel, and steel frame are engineered for years of dependable daily use in high-traffic environments.
Whether you're outfitting a group fitness studio, a hospital wellness center, or a community recreation facility, the UBC-M gives every member - regardless of mobility level - a meaningful upper body workout. Backed by Matrix's commitment to commercial fitness excellence, this machine is as easy to maintain as it is to love. It's a smart investment that expands who can participate in your fitness programming and keeps your facility relevant, inclusive, and ahead of the curve.
Product Specifications
View Product Specs
| Resistance System | Manual magnetic |
|---|---|
| Power Requirement | Generator-powered (self-powered, no outlet required) |
| Max User Weight | 204 kg / 450 lbs. |
| Product Weight | 105.1 kg / 231.7 lbs. |
| Overall Dimensions (L x W) | 159.6 cm x 78.4 cm / 62.8" x 30.9" |
| Overall Dimensions (H) | 127.5-161.3 cm / 50.1"-63.5" |
| Drivetrain | Roller chain and poly V belt |
| Flywheel | Perimeter weighted cast iron |
| Crank Design | Forged steel, 17 cm / 6.7" |
| Q-Factor | 37.5 cm / 14.7" |
| Frame Material | Steel |
| Seat Design | Sculpted self-skinning PU seat |
| Handle Design | Ergo Form neutral grip |
| Adjustment Type | Quick release lever |
| Transport Wheels | Yes - 2 wheels |
| Leveling Feet | 2 front fixed, 2 rear top-down levelers |
| Display | Backlit LCD |
| Workouts | Custom intervals |
| ANT+ / BLE | Yes |
| Telemetric HR | Yes |
| WiFi | No |
| Asset Management Compatible | No |
| Water Bottle Holder | Yes |
| On-Product Seat Storage | Yes |
| Assembly Required | Minimal assembly; confirm with dealer for details |
| Shipping Method | Large commercial fitness equipment - likely ships freight on a pallet |
Manuals & Guides
FAQ
Is the Matrix Upper Body Cycle suitable for wheelchair users?
Yes - the UBC-M is specifically designed with wheelchair accessibility in mind. The contoured seat flips out of the way and stores on the unit, allowing wheelchair users to pull directly up to the machine. The optional Accessibility Kit adds a hardware-free ramp platform, length-adjustable crank arms, and a lumbar-supporting seat back for even greater adaptability.
Does the Upper Body Cycle require a power outlet?
No. The UBC-M is generator-powered, meaning it is completely self-powered by the user's movement. This makes it ideal for flexible placement anywhere on a fitness floor without needing to run power cables or locate an outlet nearby.
What resistance levels does the UBC-M offer?
The Upper Body Cycle uses a manual magnetic resistance system adjusted via a quick-release lever. Users can also use the crank locks to switch between fixed and free rotation modes, giving additional control over workout intensity and movement type.
Can multiple users share the machine throughout the day?
Absolutely. The one-touch height adjustment accommodates users of different sizes quickly, and the machine moves easily between locations with its integrated transport handle and two wheels. It's engineered for high-traffic commercial environments with a 450 lb. max user weight rating.
Does the UBCM console track heart rate?
Yes - the UBCM console supports telemetric heart rate monitoring and is compatible with both ANT+ and Bluetooth Low Energy (BLE) heart rate devices, so users can monitor their effort in real time during workouts.
How does this ship and will assembly be required?
As a large commercial fitness machine weighing over 230 lbs., the Matrix Upper Body Cycle typically ships via freight on a pallet. Please contact us at service@omahasportsandgames.com for a delivery ETA, freight details, and any assembly questions before placing your order.
