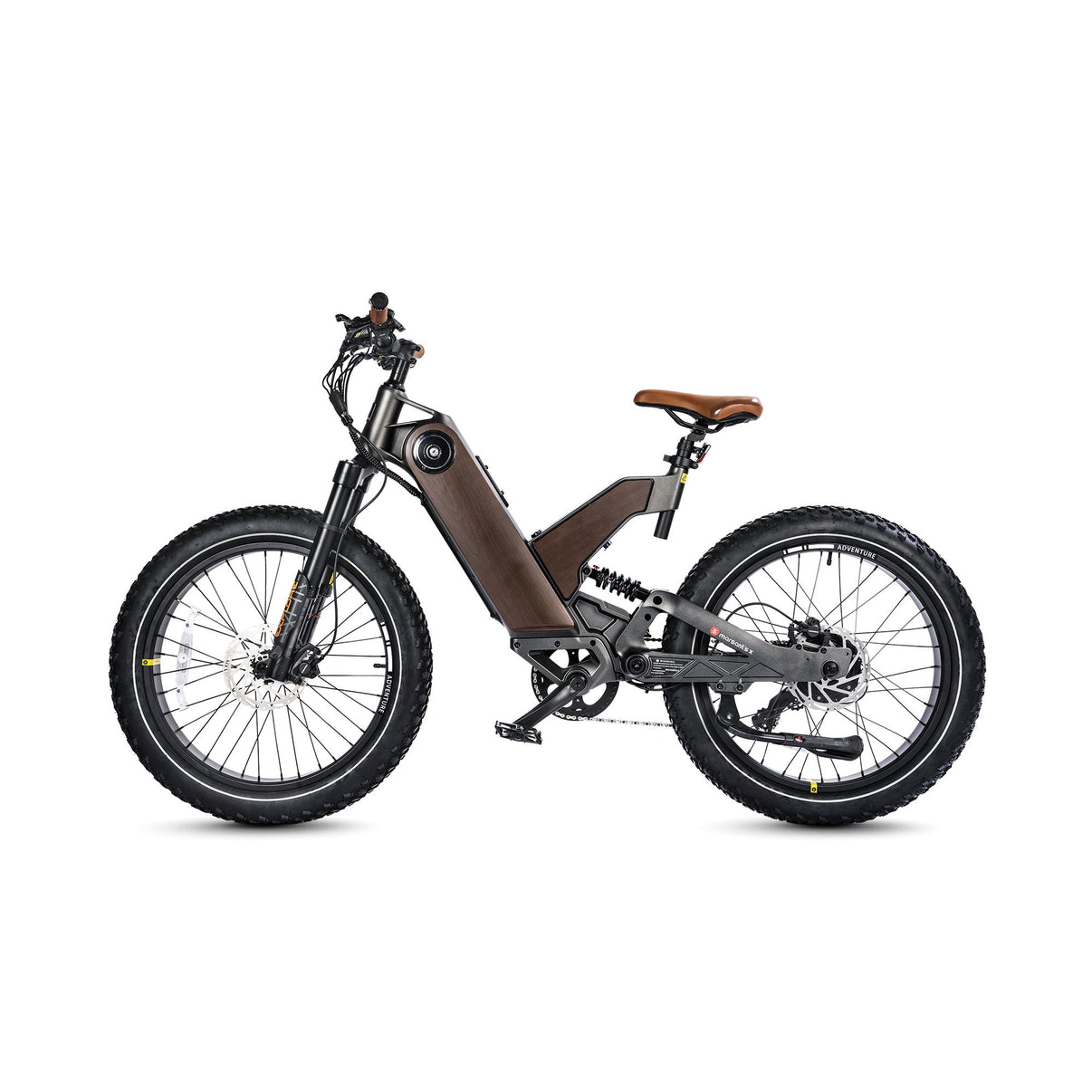

Marsant's X ANT5 All Terrain Fat Tire Electric Mountain Bike
Description
The Marsant's X ANT5 is a powerful all-terrain fat tire electric hybrid mountain bike built for riders who demand performance across every type of surface. Engineered around a one-piece magnesium alloy frame - no welding required - it delivers exceptional rigidity and safety while keeping weight impressively low for its class. Dual 24" x 4.0" fat tires roll confidently over sand, gravel, mud, snow, and rocky trails, giving you the traction and stability needed for serious off-road adventures. A 750W hub motor paired with a 48V 20Ah Samsung lithium battery provides 80+ miles of range, making it equally capable as a long-haul commuter or a weekend trail bike. With a 400 lb payload capacity, an upgraded color display with app connectivity, and five levels of intelligent pedal assist, the ANT5 is designed for riders who want more from their electric bike. Whether you're tackling mountain paths or cruising city streets, this is a machine built to go the distance.
Key Features
- 750W Hub Motor / 1000W Peak: Delivers strong, responsive power across all terrain types - smooth roads, gravel, mud, and mountain trails.
- 48V 20Ah Samsung Lithium Battery (960Wh, UL2271 Compliant): Industry-standard safety certification with exceptional capacity for 80+ miles of range per charge.
- 24" x 4.0" Fat Tires: Wide, grippy tires built for all-terrain confidence - sand, snow, dirt, and pavement all handled with ease.
- Magnesium Alloy One-Piece Frame: No welds means no weak points - this cast frame is stronger, lighter, and more durable than traditional welded aluminum frames.
- 400 lb Payload Capacity: One of the highest in its class, accommodating a wide range of riders and cargo loads.
- 28 MPH Top Speed: Thumb throttle and 5-level intelligent pedal assist let you dial in exactly how much motor help you want.
- Shimano 7-Speed Drivetrain with HENTACH Shifter: Smooth, reliable gear changes with a 14-28T range - KMC E8S chain included.
- Front Suspension Fork with Lockout: Alloy front suspension with adjustment and lockout for tuning your ride to the terrain.
- Oil Disc Brakes (Front & Rear): Aluminum alloy brake levers with integrated motor cutoff switch for safe, responsive stopping in any condition.
- Upgraded Color Display with App Connectivity: Monitor speed, battery, pedal assist level, and ride data directly from your phone or the handlebar display.
- Recommended Rider Height 5'4" to 6'2": Adjustable seat post (35.4" to 40.6" seat height) fits a wide range of riders comfortably.
- 2-Year Manufacturer's Warranty: Full coverage for the original owner against all manufacturing defects.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- Marsant's X ANT5 Electric Fat Tire Mountain Bike (90% pre-assembled)
- 54.6V 4.5A Battery Charger
- 48V LED Front Light
- Thumb Throttle
- Alloy Pedals with Reflectors
- Heavy Duty Aluminum Kickstand
- SR Saddle
- User Manual with Assembly Steps
Why You'll Love It
The ANT5 has earned strong praise from riders across the country for its build quality, power delivery, and real-world versatility. Its cast magnesium alloy frame is a genuine innovation - stress-tested in the factory and built to outlast traditional welded frames through years of rugged use. Riders consistently highlight the impressive torque, the comfortable suspension system, and how much fun the fat tires make of surfaces that would stop other bikes cold. At 28 MPH and 80+ miles of range, you're not making compromises on either speed or endurance. Backed by a 2-year manufacturer's warranty and ships within one business day from a California warehouse, the ANT5 delivers serious value for serious riders who want a dependable, high-performance electric bike without the luxury-brand price tag.
Product Specifications
| Total Length | 72.4" |
|---|---|
| Handlebar Height | 42.9" |
| Wheelbase | 46.5" |
| Minimum Seat Height | 35.4" |
| Maximum Seat Height | 40.6" |
| Chain Stay Length | 20.7" |
| Standover Height | 29.1" |
| Top Tube Length | 23.6" |
| Wheel Diameter | 27.2" |
| Head Tube Length | 5.9" |
| Handlebar Length | 27.6" |
| Battery | 48V 20Ah Samsung Lithium (960Wh, UL2271 Compliant) |
| Charger | 54.6V 4.5A |
| Range | 80+ miles |
| Controller | 48V 25A |
| Motor | 750W Hub Motor (1000W Peak) |
| Display | Upgraded color display with app connectivity |
| Payload Capacity | 400 lbs |
| Bike Weight | 88.2 lbs |
| Recommended Rider Height | 5'4" to 6'2" |
| Pedal Assist | Intelligent 0-5 level pedal assist |
| Tires | 24" x 4.0" |
| Front Fork | Alloy suspension fork with lockout and adjustment |
| Brake Lever | Aluminum alloy comfort grip with motor cutoff switch |
| Throttle | Thumb throttle |
| Pedals | Alloy with reflectors |
| Freewheel / Speeds | 7-speed |
| Frame Material | Magnesium alloy (one-piece cast) |
| Brakes | Oil disc brakes (front and rear) |
| Front Light | 48V LED |
| Chain | KMC E8S |
| Saddle | SR Saddle |
| Stem | Zoom 31.8 x 40 x 28.6mm |
| Seat Post | 220mm x 31.6mm |
| Crank | 170mm forged alloy |
| Kickstand | Heavy duty aluminum |
| Gearing | Shimano 14-28T |
| Spokes | 13 Gauge |
| Max Speed | 28 MPH |
| Assembly Required | Yes - bike ships 90% pre-assembled |
| Shipping Method | Ships via carrier from California warehouse; large box delivery |
| Warranty | 2 years (original owner, manufacturing defects) |
FAQ
What is the recommended rider height for the ANT5?
The ANT5 is recommended for riders between 5'4" and 6'2". The seat post is adjustable from a minimum height of 35.4" to a maximum of 40.6", giving you flexibility to dial in a comfortable fit within that range.
How much assembly is required when the bike arrives?
The ANT5 arrives 90% pre-assembled. You'll need to complete a few final steps such as attaching the handlebars, pedals, and front wheel. A detailed assembly video and step-by-step user manual are included to walk you through the process - most riders complete it in under an hour.
How long does it take to charge the battery?
A full charge takes approximately 5-7 hours using the included 54.6V 4.5A charger. The bike also supports two charging methods - you can charge the battery directly after removing it, or charge it while it remains mounted on the bike frame.
Can I ride the ANT5 without using the motor?
Yes. The ANT5 can be ridden as a traditional pedal bike with the motor off, or with any of the five levels of pedal assist engaged. This makes it easy to get exercise while still having the option to let the motor help on hills or long distances.
Is the ANT5 waterproof? Can I ride it in the rain?
While the ANT5 is built for all-terrain use and light weather exposure, it is not rated for full submersion. Riding in light rain is generally fine, but we recommend avoiding deep puddles or power-washing the electrical components directly. Always store the bike in a dry location when not in use.
Does the ANT5 qualify for any e-bike tax credits or incentives?
Federal and state e-bike tax credits and incentives vary by location and change frequently. We recommend consulting a tax professional or checking the current IRS guidelines and your state's incentive programs to see if the ANT5 qualifies for any available credits at the time of purchase.
Where does the ANT5 ship from and how long does delivery take?
The ANT5 ships from a warehouse in California and typically ships within 1 business day of your order. Free shipping is available to all 48 contiguous US states. Shipping to PO Boxes or APO addresses is not available. Email us at service@omahasportsandgames.com for a delivery ETA.
