Madtrace® GEN2 FORMULA LINE Racing Steering Wheel System For HONDA TYPE R/ACURA TYPE S
Description

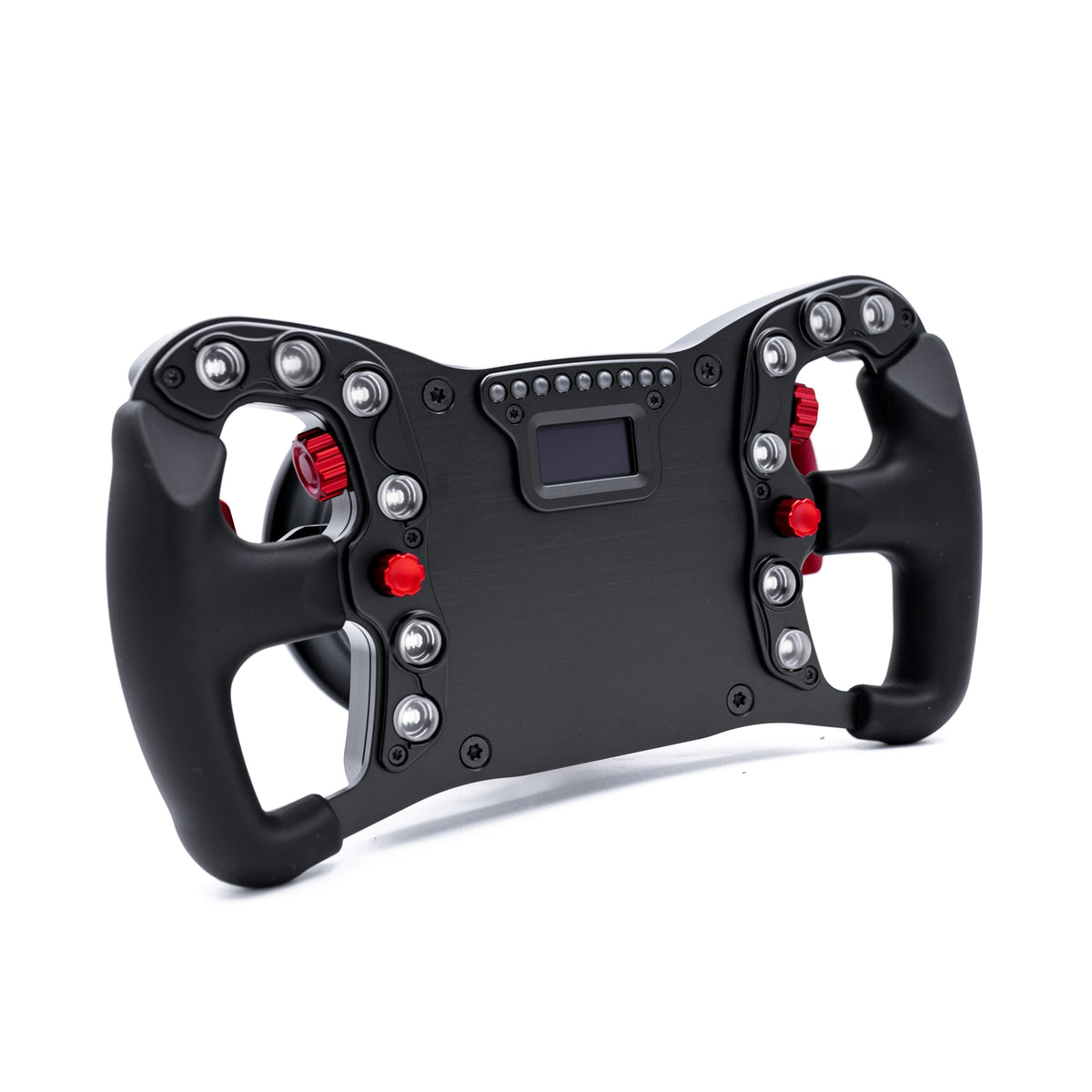

The JQ Werks Madtrace® GEN2 FORMULA Line Racing Steering Wheel System brings authentic GT3/GT4 endurance motorsport ergonomics directly to your Honda Civic Type R (FK8/FL5) or Acura Type S. Built around a 290 mm precision machined 6061-T6 billet aluminum housing with smooth high-grip rubber, this system is engineered for drivers who demand a true race car feel without sacrificing control or functionality. It is the industry's first steering wheel system to integrate both CAN bus and LIN bus within a single hub, communicating flawlessly with your factory electronics - no splicing, no wiring headaches, completely plug and play.
The FORMULA Line goes far beyond a cosmetic upgrade. With over 20 programmable OEM CAN bus functions, GT3-style RevLED shift lights, an OLED Driver Information Display, and three fully customizable button layout profiles, this system puts every critical vehicle function right at your fingertips. Whether you're chasing lap times on track or dialing in your setup between sessions, the FORMULA Line is the ultimate all-in-one race control solution for Honda and Acura performance enthusiasts.
Key Features
- 290 mm Billet Aluminum Wheel: Precision machined from 6061-T6 aluminum with smooth, high-grip rubber - GT3/GT4 race car ergonomics built for serious drivers.
- Dual Bus Integration (CAN + LIN): Industry-first single-hub integration of both CAN bus and LIN bus for seamless, plug-and-play factory electronics compatibility - no splicing required.
- 20+ Programmable CAN Bus Functions: Control high beam flash, wipers, turn signals, TC adjustment, center console functions, drive modes, and much more - all from the wheel.
- RevLEDs GT3-Style CAN Bus Shift Lights: Zero-delay shift indicator lights that flash red at redline, delivering an authentic race car experience on every lap.
- OLED Driver Information Display (DID): Positioned beneath the RevLEDs, the DID shows real-time telemetry including speed, enables on-the-fly button layout mapping, profile switching, brightness adjustment, and RGB color customization.
- 3-Profile Memory System: Store up to three fully customizable button layout and LED profiles in the hub's internal memory for instant recall - perfect for multiple cars or track conditions.
- Profile Quick Switch Button: Swap between saved button maps and LED profiles instantly with a single press of the dedicated profile switch button.
- MadtraceLAB 1.0 Software: Fully configure and update the system via MadtraceLAB, with a discreet USB-C port for future-proof updates and feature expansions.
- Magnetic Paddle Shifters (Optional): Motorsport-grade 6061-T6 billet aluminum magnetic paddles, fully programmable for any function - not just shifting. Compatible with MT vehicles for additional function mapping.
- Black and Red Anodized Finish: Sleek anodized finish matches the adapter hub and quick release, all machined from 6061-T6 aluminum for exceptional strength and durability.
- ENP Finish Kit (Optional Add-On): Upgraded paddle shifters, QR ring, knobs, and hardware finished in Electroless Nickel Plated (ENP) for a premium look and feel.
Chassis Options & Which to Choose
- FK8 TYPE R (SKU: RSWGEN2FMLFK8): Designed specifically for the 10th-generation Honda Civic Type R FK8 chassis. Ideal for FK8 owners who want a factory-fit, plug-and-play racing wheel system with full CAN bus integration tailored to their car's electronics.
- FL5 TYPE R (SKU: RSWGEN2FMLFL5): Built for the 11th-generation Honda Civic Type R FL5 chassis. The right choice for FL5 owners seeking the most advanced FORMULA Line integration with their car's updated electronics architecture.
- DE5 TYPE R (SKU: RSWGEN2FMLFL5): Compatible with the Acura Integra Type S DE5 chassis using the FL5-spec hub. Perfect for Acura Type S drivers who want authentic racing ergonomics with full plug-and-play OEM function access.
What's Included
- 1x FORMULA Line Control Hub Unit
- 1x Quick Release Base with Integrated Chassis PCB
- 1x CAN Bus Integration Module
- 1x Harness Kit
- 1x Resistor
- 1x Adapter Hub
- 1x Adapter Hub Locking Wrench
- 1x Trim Removal Tool
- 1x Hardware Kit
- 1x Allen Key
- 1x Button Sticker Set
- 1x JQ Werks / Madtrace Sticker Set
Why You'll Love It
The Madtrace® GEN2 FORMULA Line is the product of genuine motorsport engineering, designed by drivers who understand what it takes to perform at the limit. It's trusted by performance enthusiasts and track-day regulars who refuse to compromise on feel, function, or reliability. The plug-and-play design means no cutting wires or voiding warranties - just bolt it on and get to work. With three storable profiles, you can seamlessly swap the system between vehicles or dial in separate setups for street events and full track days. The OLED DID and GT3-style RevLEDs mean you'll never miss a shift or a critical readout. Built from aerospace-grade billet aluminum and finished to the highest standard, this is a wheel system engineered to handle the demands of real motorsport - session after session, season after season.
Product Specifications
View Product Specs
| Wheel Diameter | 290 mm |
|---|---|
| Wheel Material | 6061-T6 Billet Aluminum with High-Grip Rubber |
| Adapter Hub Material | 6061-T6 Billet Aluminum |
| Quick Release Material | 6061-T6 Billet Aluminum |
| Finish | Black and Red Anodized |
| Bus Integration | CAN Bus + LIN Bus (Dual, Single Hub) |
| Programmable Functions | 20+ OEM CAN Bus Functions |
| Button Profiles | Up to 3 Stored Profiles |
| Front Facing Buttons | 8 Programmable Buttons + Dual Joystick Knobs |
| Shift Lights | RevLEDs CAN Bus GT3-Style (Redline Flash) |
| Display | OLED Driver Information Display (DID) |
| Software | MadtraceLAB 1.0 |
| Connectivity | USB-C Port (Updates and Feature Expansion) |
| Vehicle Fitment | Honda Civic Type R (FK8, FL5), Acura Integra Type S (DE5) |
| Intended Use | Off-Road, Track, Racing, and Competition Use Only |
| Installation | Plug and Play - No Splicing or Wiring Modification Required |
FAQ
Is the FORMULA Line legal for street use?
No. The JQ Werks Madtrace® Racing Steering Wheel System is designed exclusively for off-road, track, racing, and competition purposes. It is not intended for street use, and installation on any motor vehicle subject to state safety inspection is strictly prohibited. Because this system replaces the factory airbag-equipped steering wheel, it must only be used in conjunction with a 6-point racing harness and a racing roll-bar. Always consult local laws and legal professionals before installation.
Does the FORMULA Line work with both automatic and manual transmission Honda Type R models?
Yes. The FORMULA Line is compatible with both automatic and manual transmission vehicles. For manual transmission (MT) vehicles, the optional magnetic paddle shifters can be added and programmed to enable additional functions beyond traditional gear shifting, giving MT drivers the same level of control customization as AT drivers.
What is the difference between the Control Hub Unit Only and the Full Complete Kit options?
The Control Hub Unit Only option is designed for drivers who already own a Madtrace® Podium Line System and want to pair the FORMULA Line hub to their existing setup. The Full Complete Kit includes everything needed for a first-time installation - the hub, quick release, CAN bus module, adapter hub, harness, and all hardware. If this is your first Madtrace® system, choose the Full Complete Kit.
What is MadtraceLAB and do I need a computer to use it?
MadtraceLAB is JQ Werks' proprietary software platform used to configure button layouts, update firmware, and expand features on your FORMULA Line hub via the built-in USB-C port. However, the equipped OLED Driver Information Display (DID) also allows on-the-fly button layout mapping and profile switching directly from the wheel - so you can make adjustments at the track without needing a laptop.
What does the optional ENP Finish Kit include?
The optional Electroless Nickel Plated (ENP) Finish Kit upgrades your paddle shifters, QR ring, knobs, and hardware to a premium ENP finish. This is a cosmetic and tactile upgrade that gives the system a distinctive premium look while maintaining the same high-strength billet aluminum construction.
Can I use this wheel system on multiple different cars?
Yes - the FORMULA Line's multi-profile system is specifically designed with this in mind. You can store up to three separate button layout and LED color profiles in the hub's internal memory and switch between them instantly. The system can be swapped between compatible vehicles and your saved profiles recalled immediately, making it ideal for drivers who run more than one track car.
