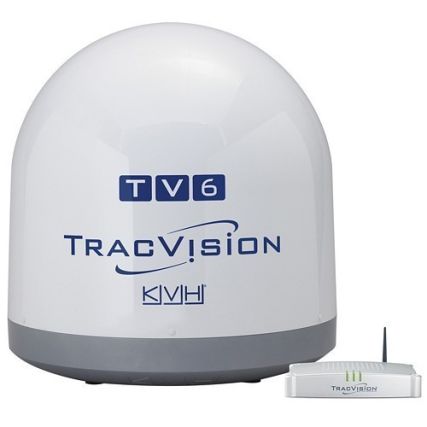

KVH TracVision TV6 Marine Satellite TV Antenna with Circular LNB
Pairs well with
FREE Shipping!
Questions? Ask our Experts
Our product specialists are here for you, just leave us a message!
KVH TracVision TV6 Marine Satellite TV Antenna with Circular LNB
Description
The KVH TracVision TV6 is a 60cm (24") marine satellite television antenna engineered to keep you connected to your favorite programming wherever your voyages take you. Built for boaters who demand reliable offshore entertainment, this system supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide. The IP-enabled TracVision TV-Hub puts full system control at your fingertips from any smartphone, tablet, or computer via built-in Wi-Fi.
KVH's proprietary RingFire antenna technology delivers signal strength comparable to larger competing antennas, giving you wider geographic coverage and better reception - even in heavy weather. With DVB-S2 compatibility, multiple receiver support, and a single-cable installation design, the TV6 is the definitive satellite TV solution for serious bluewater sailors and cruisers.
Key Features
- 60cm (24") RingFire Antenna: KVH's proprietary RingFire technology delivers stronger signals and wider geographic coverage than competing antennas of similar size.
- Worldwide Service Support: Compatible with DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide.
- IP-Enabled TracVision TV-Hub: Sleek below-decks unit with built-in Wi-Fi allows system monitoring and control from any smartphone, tablet, smart TV, or computer.
- Integrated SWM-8 Multiswitch: Built-in Single Wire Multiswitch supports up to 8 DIRECTV receivers simultaneously for whole-boat entertainment.
- Single Coaxial Cable Installation: One cable carries power, data, and video for fast, clean installations and easy retrofits.
- DVB-S2 Compatible: Supports the latest broadcast standard for improved signal efficiency and HD reception on Ku-band services.
- Advanced Inertial Stabilization: Fast satellite acquisition and high-performance tracking algorithms maintain a crystal-clear picture even in heavy seas.
- NMEA 0183/2000 Input: Accepts heading and GPS data for the fastest possible satellite acquisition after startup or signal loss.
- HDTV Compatible: Supports high-definition television on Ku-band services for a premium onboard viewing experience.
- Built-In Worldwide Satellite Library: Comprehensive onboard satellite database enables automatic switching between services as you travel.
- Dome Weight: 55 lbs - engineered for secure mast or arch mounting aboard offshore vessels.
Shipping
Ships free via truck freight to the lower 48 US states! This item must ship to a location accessible by large trucks, and someone must be available to sign for the shipment. Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- TracVision TV6 60cm dome antenna with Circular LNB (for North America)
- TracVision TV-Hub (IP-enabled below-decks control unit)
- Single coaxial interconnect cable
- Documentation and setup materials
Why You'll Love It
KVH has been the undisputed leader in marine satellite television for over 20 years, and the TracVision TV6 represents the very best of that expertise in a single, cohesive system. Whether you're day-sailing close to shore or crossing an ocean, the TV6's advanced inertial stabilization keeps your picture steady while the RingFire antenna pulls in signals that competing systems simply can't match. The IP-enabled TV-Hub means you're never wrestling with a clunky dedicated remote - manage everything from the device already in your pocket. With support for up to 8 DIRECTV receivers, every cabin and cockpit can have its own channel. Trusted by bluewater cruisers and professional mariners alike, the TracVision TV6 is built to deliver years of dependable, world-class entertainment on the water.
Product Specifications
View Product Specs
| Antenna Dish Diameter | 60cm (24") |
|---|---|
| Dome Weight | 55 lbs |
| Input Voltage | 10-30 VDC |
| LNB Type | Circular LNB (for North America) |
| Service Coverage | DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, worldwide Ku-band |
| Broadcast Standard | DVB-S2 compatible |
| HDTV Compatible | Yes (Ku-band services only) |
| Max Receiver Support | Up to 8 DIRECTV receivers (via integrated SWM-8) |
| Connectivity | Single coaxial cable (power, data, video); Ethernet; built-in Wi-Fi |
| Navigation Input | NMEA 0183 / NMEA 2000 |
| Shipping Method | Truck freight (pallet); signature required; must be accessible by large truck |
| Manufacturer Part Number | 01-0369-07 |
FAQ
What satellite services does the TracVision TV6 support?
The TracVision TV6 with Circular LNB supports DIRECTV U.S., DIRECTV Latin America, DISH Network, and Bell TV, as well as circular and linear Ku-band services worldwide. It is ideal for North American boaters who also cruise to the Caribbean or Latin America.
How many TVs or receivers can I connect to the TV6?
The built-in Single Wire Multiswitch (SWM-8) in the TracVision TV-Hub supports up to 8 DIRECTV receivers simultaneously. This means every cabin, salon, and cockpit can tune to a different channel at the same time with a single antenna system.
Is the TracVision TV6 hard to install?
KVH designed the TV6 for straightforward installation - a single coaxial cable carries power, data, and video between the dome and the TV-Hub below decks. This greatly simplifies wiring compared to older multi-cable systems and makes retrofitting an existing boat much easier.
Will the TV6 maintain a signal in rough seas?
Yes. The TracVision TV6 uses advanced inertial-based stabilized search and high-performance tracking algorithms to maintain satellite lock even in heavy seas. The RingFire antenna technology also provides a wider signal margin, which further helps in challenging conditions.
How do I control and monitor the system?
The IP-enabled TracVision TV-Hub connects to your onboard network via Ethernet and includes built-in Wi-Fi. You can check system status, adjust settings, and monitor signal information from any smartphone, tablet, smart TV, or laptop - no dedicated control panel required.
Does this item qualify for returns?
Because the TracVision TV6 ships via truck freight, it is classified as a special order item and is non-returnable. It is covered by the KVH manufacturer's warranty, and any warranty service or repairs must be handled directly through KVH. Please contact us before ordering if you have any questions about compatibility or fit for your vessel.
