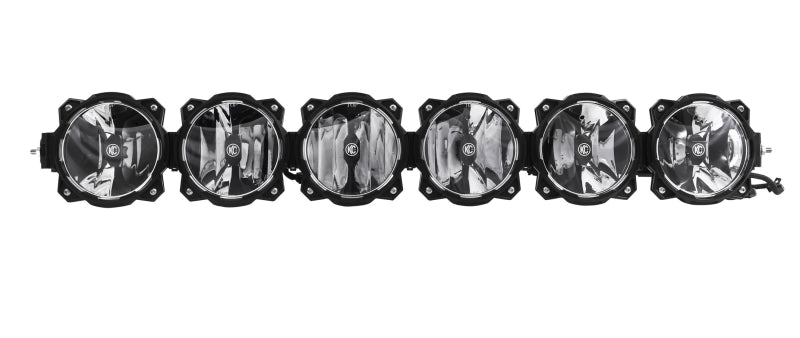

KC HiLiTES 39" Pro6 Gravity LED 6-Light Combo Beam Light Bar
Description
The KC HiLiTES 39" Pro6 Gravity LED Light Bar is a premium, race-proven lighting solution built for drivers who demand the best when the sun goes down. Powered by six Gravity LED G6 optical inserts, this 120W combo beam system delivers a staggering 13,800 raw lumens while drawing only 9.78 amps - making it one of the most efficient high-output light bars on the market. Whether you're blasting through sand dunes, crawling rocky trails, or running night stages in endurance competition, this bar is engineered to keep up.
What sets the Pro6 apart is its patented modular architecture. The patent-pending Infinity Ring system lets you convert between a straight and radius bar format in seconds, so you can dial in the exact beam angle your terrain demands. High-strength aluminum end mounts and a universal mounting interface make installation straightforward on Jeeps, trucks, UTVs, and more - no custom fabrication required.
Key Features
- Gravity LED G6 Optical Inserts: Six 20W optics available in Spot, Driving, and Wide-40 beam patterns for customizable light output tailored to your trail.
- Infinity Ring System (Patent-Pending): Converts the bar from straight to radius format in seconds, letting you adjust beam width and shape without tools.
- 13,800 Raw Lumens: Extreme brightness with a candela rating of 515,000 cd and a beam distance of 1,435 meters - illuminating terrain far ahead at speed.
- 120W, 9.78A Draw: High wattage output paired with a low amperage draw keeps your electrical system happy even during long night runs.
- 9-32V Voltage Range: Compatible with both 12V and 24V vehicle electrical systems, making it versatile across a wide range of rigs.
- KC Signature Modular Design: The Pro6 platform is expandable, allowing you to reconfigure or grow your lighting setup as your build evolves.
- Universal End Mount System: High-strength aluminum end mounts fit most standard LED bar mounting positions on Jeeps, trucks, UTVs, and side-by-sides.
- Race-Proven Durability: Tested by KC athletes in endurance racing environments to ensure the bar holds up under the most demanding off-road conditions.
- Dimensions - H: 6.06" x D: 3.33" x W: 39.125": A compact and purposeful profile that fits a wide range of roof, windshield, and bumper mounting positions.
- Plug-N-Play Wiring Harness Included: Comes with a deluxe 30A LED switch harness for a clean, simple installation right out of the box.
What's Included
- (1) KC HiLiTES 39" Pro6 Gravity LED Light Bar
- (6) Light Covers - Black with Yellow KC Logo
- Deluxe Plug-N-Play Wiring Harness with 30A LED Switch
Why You'll Love It
KC HiLiTES has been a trusted name in off-road lighting for decades, and the Pro6 Gravity LED Light Bar represents the pinnacle of that legacy. This bar isn't just bright - it's intelligently designed, with a modular system that grows with your build and an Infinity Ring that adapts to your terrain at a moment's notice. The race-proven construction means it has been put through the wringer by professional endurance racers before it ever reached your hands. For Jeep owners, UTV pilots, and overland adventurers who refuse to compromise on visibility, the Pro6 delivers confidence mile after mile. The included Plug-N-Play harness means you spend less time in the garage and more time on the trail. When you're ready to own the night, this is the light bar that gets the job done.
Product Specifications
View Product Specs
| Wattage | 120W |
|---|---|
| Amp Draw | 9.78A |
| Voltage | 9-32V |
| Raw Lumens | 13,800 lm |
| Lux @ 10 Meters | 5,150 lx |
| Candela | 515,000 cd |
| Beam Distance | 1,435 meters |
| Dimensions | H: 6.06" x D: 3.33" x W: 39.125" |
| Number of Lights | 6 |
| Beam Type | Combo (Spot, Driving, Wide-40 available) |
FAQ
What vehicles is the KC HiLiTES Pro6 Gravity LED Light Bar compatible with?
The Pro6 Gravity LED Light Bar uses a universal end mount system designed to fit most standard LED bar mounts. It is compatible with a wide range of vehicles including Jeeps, trucks, UTVs, side-by-sides, and more. Because no vehicle-specific mounting hardware is included, you may need to source a compatible mount bracket for your specific vehicle if one is not already in place.
What is the Infinity Ring system and how does it work?
The Infinity Ring is a patent-pending feature of the Pro6 platform that allows you to quickly convert the light bar between a straight bar format and a radius (curved) format. This gives you the flexibility to adjust the spread and angle of your beam pattern to suit different terrain types - wider radius for broader coverage or straight for a more focused, long-distance throw. The conversion takes only seconds and requires no special tools.
Can I choose which beam pattern the light bar uses?
The Pro6 Gravity LED Light Bar ships as a combo beam, which blends multiple beam patterns for versatile all-around performance. The Gravity LED G6 optical inserts are available in Spot, Driving, and Wide-40 configurations. Because of the modular design, individual inserts can be swapped out to tailor your beam pattern to your specific needs.
Is the wiring harness included, and is installation difficult?
Yes, the kit includes a deluxe Plug-N-Play wiring harness with a 30A LED switch, so you have everything you need for a complete electrical hookup. Installation is designed to be straightforward, but you will need a compatible mounting bracket for your vehicle. If you are comfortable with basic automotive electrical work, this is a manageable DIY install. For those less experienced, professional installation is always a good option.
Is the Pro6 Gravity compatible with 24V electrical systems?
Yes. The Pro6 Gravity LED Light Bar operates on a voltage range of 9-32V, making it compatible with both standard 12V automotive systems and 24V systems commonly found in larger trucks and some specialty off-road vehicles.
