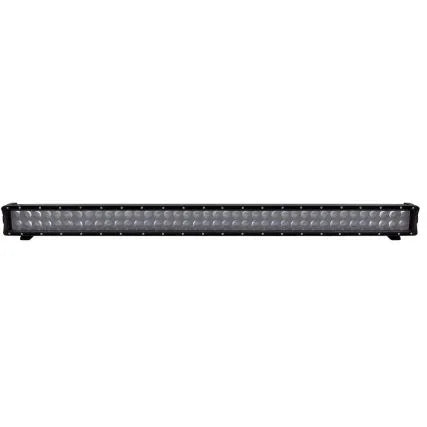

HEISE Infinite Series 40" RGB Backlite Dual Row LED Light Bar - 24 LED
Description
The HEISE Infinite Series 40" RGB Backlite Dual Row LED Light Bar delivers powerful, pure white illumination paired with 16 million selectable backlight colors - all controlled from your mobile device. Engineered for demanding marine, off-road, and outdoor environments, this 24-LED dual row bar pumps out 14,440 raw lumens through a tight 8-degree spot beam pattern, cutting through darkness at distance. The die-cast aluminum housing is built to military-grade standards, featuring a breather port that lets moisture escape while keeping the interior protected at an IP67 rating.
The virtually unbreakable polycarbonate lens and stainless 316 hardware ensure this bar can handle salt air, vibration, and temperature extremes from -40 degrees C to +60 degrees C. The backlit RGB system uses the same controller as HEISE's popular RGB accent lights, so you can synchronize the entire lighting setup across your vessel or vehicle through a single mobile app. Whether you're running night-time water routes or lighting up the trail, the Infinite Series delivers show-quality lighting without sacrificing rugged performance.
Key Features
- 24 LED Dual Row Design: Delivers 14,440 raw lumens of pure white output with a focused 8-degree spot beam - ideal for long-distance illumination.
- 16 Million RGB Backlight Colors: Selectable backlight via mobile app for custom lighting effects and synchronized accent lighting setups.
- Mobile App Controlled: Uses the same controller as HEISE RGB accent lights - synchronize and manage all lights from one app (HE-CBRGB controller sold separately).
- IP67 Waterproof Rating: Fully submersible and dustproof construction ready for marine, off-road, and extreme outdoor use.
- Military Breather Port: Allows internal moisture to escape while preventing water intrusion, prolonging the life of the electronics.
- Die-Cast Aluminum Housing: Black die-cast aluminum housing and mounting brackets provide superior heat dissipation and structural durability.
- Virtually Unbreakable PC Lens: Polycarbonate lens withstands impacts, vibration, and harsh conditions without cracking or yellowing.
- Wide Voltage Range: Operates on 10-30V DC (12V/24V compatible) at 114W, drawing 9.5 amps at 13.8 volts.
- Stainless 316 Hardware: All mounting hardware is marine-grade stainless steel for maximum corrosion resistance.
- Reverse Polarity Protection: Built-in protection against accidental wiring errors, safeguarding your investment.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- HEISE Infinite Series 40" RGB Backlite Dual Row LED Light Bar (24 LED)
- Die-cast aluminum mounting brackets
- Stainless 316 mounting hardware
Why You'll Love It
The HEISE Infinite Series is trusted by boaters, off-road enthusiasts, and outdoor professionals who refuse to compromise on lighting quality or durability. With military-spec construction and IP67 waterproofing, it's engineered to perform reliably through years of punishing use - rain, salt spray, mud, and more. The RGB backlighting system isn't just eye-catching; it's a fully integrated part of the HEISE ecosystem, letting you dial in the perfect look for your boat or rig right from your phone. The spot beam's impressive 1,780 LUX at 10 meters means you'll spot hazards, obstacles, and terrain well before they become a problem. For anyone who spends time on the water or off the beaten path after dark, the Infinite Series delivers the kind of confidence that comes from knowing your lights won't let you down.
Product Specifications
View Product Specs
| Input Voltage | 10-30V DC (12V/24V) |
|---|---|
| Wattage | 114W |
| Raw Lumens | 14,440 |
| LUX @ 10M | 1,780 |
| Color Temperature | 6000K |
| Beam Pattern | Spot (8 degrees) |
| Number of LEDs | 24 (Dual Row) |
| Housing Material | Die-cast Aluminum |
| Housing Color | Black |
| Lens Material | Polycarbonate (PC) |
| Mounting Bracket | Die-cast Aluminum |
| Bar Length | 40" |
| Bar Height | 4.8" |
| Bar Depth | 3.50" |
| Hole Dimensions (Brackets Inward) | 39.25" |
| Hole Dimensions (Brackets Outward) | 41.5" |
| Mounting Bolt Drill | 0.25" |
| Electronics | Integrated - Epoxy Encapsulated |
| Hardware | Stainless 316 |
| Operating Temperature | -40 degrees C to +60 degrees C |
| Current Consumption | 9.5A @ 13.8V |
| IP Rating | IP67 |
| Protection | Reverse Polarity |
FAQ
Is the RGB controller included with the light bar?
No - the HE-CBRGB controller is sold separately and is required for full RGB backlight functionality. The controller is what allows you to select from 16 million colors and synchronize the Infinite Series with other HEISE RGB accent lights through the mobile app.
Can this light bar be used on a boat?
Absolutely. The Infinite Series is built with marine environments in mind. Its IP67 waterproof rating, military breather port, stainless 316 hardware, and die-cast aluminum housing all make it highly resistant to salt air, water intrusion, and corrosion - ideal for mounting on boats, personal watercraft, and other marine vessels.
What vehicles or applications is this light bar compatible with?
The Infinite Series works with any 10-30V DC electrical system, making it compatible with a wide range of applications including boats, trucks, ATVs, UTVs, Jeeps, and other off-road vehicles. Its dual voltage support (12V and 24V) means it works across both standard automotive and heavy-duty systems.
What does the 8-degree spot beam pattern mean for real-world use?
An 8-degree spot beam is a very tight, focused throw of light designed for maximum distance. It concentrates all of the bar's 14,440 lumens into a narrow cone, giving you excellent range and visibility far ahead - ideal for high-speed night driving, navigating waterways, or lighting up distant objects. If you need wide area coverage close to the vehicle, a combo or flood beam may be more appropriate.
Does this light bar require professional installation?
While many experienced DIYers can install this light bar themselves, professional installation is recommended if you're not comfortable with 12V or 24V wiring. The bar requires proper wiring to your vehicle or vessel's electrical system, and incorrect installation could void the warranty or cause electrical issues. Always follow the included instructions and consult a professional if in doubt.
