Garmin Panoptix PS70 Thru-Hull Transducer - Live Sonar to 1,000'
Description
The Garmin Panoptix PS70 is a professional-grade stainless steel thru-hull transducer built for serious deep-sea anglers who demand real-time underwater visibility at extreme depths. Powered by Garmin RapidReturn sonar technology, it delivers live sonar views up to 1,000 feet below the surface - giving offshore fishermen a decisive edge when targeting deep water game fish. With a wide 120-degree beam angle, multiple sonar modes including LiveVu Down, RealVu 3D, and Triple-Beam Traditional, the PS70 covers more of the water column than any single-beam system can.
Designed for demanding offshore conditions, the PS70 features built-in image stabilization and 800 watts of transmit power to cut through rough seas and deep salt water. Its flush-mount or pocket-mount thru-hull installation is compatible with a wide range of Garmin GPSMAP chartplotters, making it the cornerstone of a fully integrated marine electronics setup.
Key Features
- Garmin RapidReturn Sonar: Sends multiple simultaneous pings through the water column for live sonar at depths up to 1,000' - far exceeding conventional sonar systems.
- LiveVu Down Sonar: Real-time live sonar imaging at up to 1,000' lets you see baitfish and target game fish as it happens, with a wide 120-degree beam angle.
- 10+ Frames Per Second Display Rate: Displays at a minimum of 10 fps - 6 to 8 times faster than competing systems - for smoother, more responsive sonar returns.
- Wide 120 x 8-Degree Beam: Covers massive areas of the water column simultaneously, helping you locate bait and fish faster.
- Triple-Beam Traditional Sonar: Three-way sonar split delivers returns from port, starboard, and directly below the boat in a classic, easy-to-read view with adjustable beam angles.

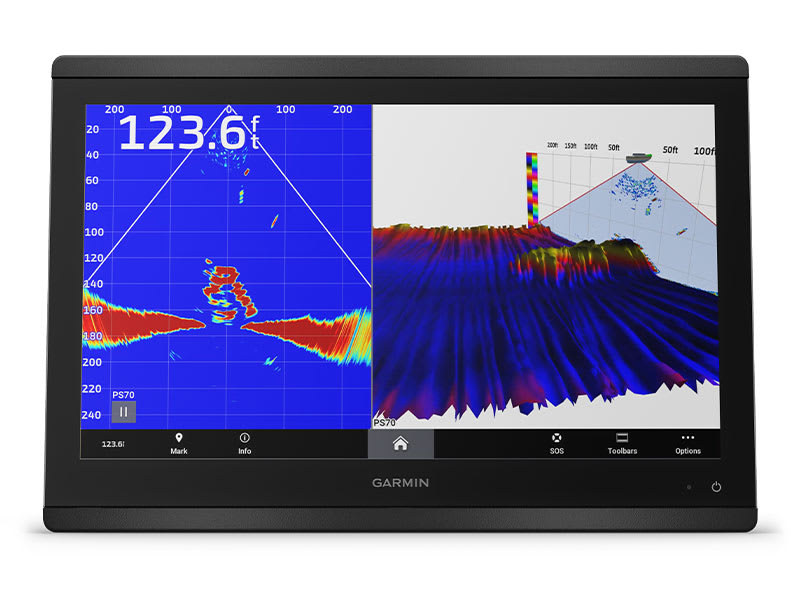

- RealVu 3D Historic Sonar: Builds a 3D map of the ocean floor and full water column as your boat moves, with True Motion 3D returns that follow your course over ground.
- QuickDraw Contours: Survey wide swaths of the ocean floor in high detail at depths up to 1,000' to build your own custom bottom maps.
- Image Stabilization: Internal sensor stabilizes sonar returns in rough water so you always get a clear, usable picture offshore.
- 800-Watt Power Output: High-power sonar penetrates deeper and performs better in noisy, high-salinity deep-sea environments.
- Stainless Steel Thru-Hull Design: Flush-mount or pocket-mount installation with fairing block compatibility for deadrise angles of 0 to 20 degrees - built to handle high speeds and harsh offshore conditions.
- IPX7 Water Rating: Rated for water immersion, ensuring reliable performance in the toughest marine environments.
Fairing Block Options & Which to Choose
- Without Fairing Block (Transducer Only): The PS70 transducer and all required mounting hardware are included. This option is ideal for boats with a deadrise angle under 5 degrees or greater than 20 degrees, or for installations where a fairing block is already on hand. Choose this if your hull geometry does not require additional angle correction.
- With Fairing Block (Transducer + Fairing Block): Includes the PS70 transducer plus the optional fairing block, which allows for deadrise angles of 0 to 20 degrees. The fairing block is engineered to survive high operating speeds and withstand harsh offshore conditions. Recommended for most offshore hulls with a deadrise angle between 5 and 20 degrees - gives you everything needed for a complete installation right out of the box.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- PS70 down-looking thru-hull transducer
- Stainless steel thru-hull mounting hardware
- Power cable
- Network cable 40 ft (12 meters) with network adapter
- Documentation
- Fairing block also included with the "With Fairing Block" variant
Why You'll Love It
The Panoptix PS70 represents the pinnacle of deep-water sonar technology from Garmin, a brand trusted by professional guides, tournament anglers, and serious offshore fishermen around the world. Whether you're chasing tuna in 600 feet of water or mapping canyon structure at the edge of the shelf, the PS70 gives you the real-time intelligence to fish smarter and more productively. Its RapidReturn sonar architecture is genuinely in a class of its own - delivering live underwater views at depths most transducers can't even reach. The rugged stainless steel thru-hull construction and fairing block system are engineered for high-speed offshore use, so you can trust it to perform every trip regardless of conditions. For the serious blue-water angler who demands the very best from their electronics, the Panoptix PS70 is the transducer that changes everything.
Product Specifications
| Transducer Beamwidth | 120 x 8 degrees |
|---|---|
| Transducer Cable Length | 8 ft + 40 ft extension |
| Dimensions | 8.50" x 4.49" x 9.61" (21.6 x 11.4 x 24.4 cm) |
| Weight | 10.12 lbs (4.6 kg) |
| Water Rating | IPX7 |
| Temperature Range | 0 C to 40 C |
| Power Input | 10-35 V |
| Power Usage | 35 W |
| Fuse | 7.5 A |
| Frequency | 190-210 kHz |
| Transmit Power | 800 W |
| Maximum Depth (Saltwater) | 1,000 ft (304.8 m) |
| Sonar Type | Multi-beam phased array |
| Garmin Marine Network Ports | 1 (small connector) |
| Sonar Modes | RealVu 3D Historic, 3-Beam Traditional, Traditional Sonar, LiveVu Down |
| Mounting Style | Thru-hull (flush mount or pocket mount) |
| Fairing Block Deadrise Range | 0 to 20 degrees |
FAQ
What is the difference between the "Transducer Only" and "With Fairing Block" versions?
The Transducer Only version includes the PS70 transducer and all standard stainless steel thru-hull mounting hardware. The With Fairing Block version adds the optional fairing block, which is recommended for hulls with a deadrise angle between 5 and 20 degrees. If your hull is relatively flat (under 5 degrees) or steep (over 20 degrees), the fairing block may not be needed. If you're unsure about your hull's deadrise angle, consult a marine installer before purchasing.
What Garmin chartplotters are compatible with the PS70?
The Panoptix PS70 is compatible with a wide range of Garmin GPSMAP chartplotters, including the GPSMAP 7-series, 8-series, 9-series, and many xsv models. It connects via Garmin's Marine Network port (small connector). For the full compatibility list, check the product page or contact our team - we're happy to help confirm your setup.
Does the PS70 require professional installation?
Thru-hull installation does require cutting a hole in your boat's hull, which is best performed by a qualified marine technician or boat yard. The PS70 supports both flush-mount and pocket-mount configurations. Because this involves permanent modification to your vessel, professional installation is strongly recommended to ensure a watertight, properly aligned fit.
How does RapidReturn sonar compare to traditional sonar?
Garmin RapidReturn sonar sends multiple simultaneous pings through the water column rather than a single sequential ping. This results in a live, continuously updating sonar view at depths up to 1,000 feet - with a display rate of at least 10 frames per second, which is 6 to 8 times faster than competing systems. Traditional sonar gives you historical fish arches and bottom reading; RapidReturn gives you real-time, moving images of fish and structure as it happens.
What is QuickDraw Contours and how does it work with the PS70?
QuickDraw Contours is a Garmin feature that lets you create your own custom bottom maps in real time as you fish. The PS70 enhancement allows surveying wide swaths of the ocean floor at depths up to 1,000 feet. Your chartplotter records depth data and automatically generates detailed contour maps that are saved and reusable - giving you a personalized map of your favorite fishing spots.
