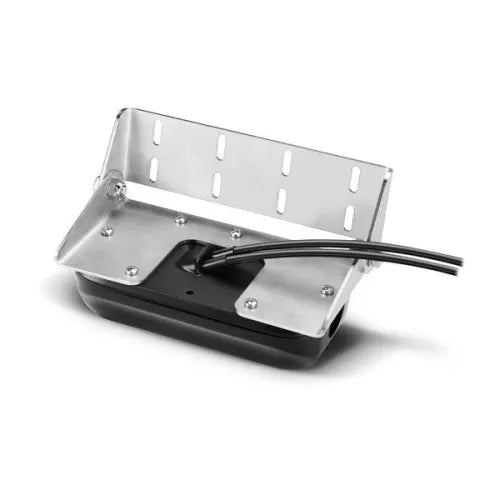

Garmin Panoptix PS30 Down Transducer - main product view
$1,599.99 USD
FREE Shipping!
Guaranteed Lowest Price Online! - Find a lower price and we'll beat it!
Satisfaction Guaranteed | Need Help? Call (888)-884-2234

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Garmin Panoptix PS30 Down Transducer


Description

The Garmin Panoptix PS30 is a revolutionary down-looking transducer that delivers live, real-time sonar imaging directly beneath your boat - even when you're completely stationary. Powered by Garmin's groundbreaking Panoptix all-seeing sonar technology, the PS30 gives anglers three powerful viewing modes: LiveVu Down, RealVu 3-D Down, and RealVu 3-D Historical.

Whether you're watching baitfish school below the hull, tracking a trophy fish as it chases your lure, or scanning the entire water column as you troll across a flat, the PS30 puts you in full control of what's happening under your boat. It's not just sonar - it's a live window into the underwater world, and it works seamlessly with a wide range of Garmin ECHOMAP and GPSMAP chartplotters.


Key Features

  • LiveVu Down: Real-time moving sonar shows fish swimming toward or away from your boat - you can even watch your lure as you reel it in.
  • RealVu 3-D Down: Full 3-D view of what's directly beneath the boat while stationary - perfect for hovering over a structure or drop-off.
  • RealVu 3-D Historical: Captures a complete 3-D picture of the entire water column you've passed over while moving, revealing fish locations from surface to bottom.
  • 120 x 60 Degree Beamwidth: Wide multi-beam phased array coverage gives you an expansive view of the water column directly below.
  • Maximum Depth: 300 feet - reaches deep enough for most freshwater and nearshore applications.
  • 417 kHz Frequency / 144 W Transmit Power: High-frequency phased array sonar delivers sharp, detailed imaging at depth.
  • Cables Included: Integrated 30 ft Ethernet network cable and 15 ft power cable - no add-on cables required for most installs.
  • Garmin Marine Network Port: Single large RJ45 port connects directly to compatible Garmin ECHOMAP and GPSMAP units.
  • Transom Mount Kit Included: Comes ready to install with a transom mounting kit and split ring RJ45 connector.
  • Wide Compatibility: Works with a large range of Garmin chartplotters including ECHOMAP Plus, UHD, Ultra, and GPSMAP 7-series through 9-series.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.


What's Included

  • PS30 down-looking transducer (integrated 30 ft network cable, 15 ft power cable)
  • Transom mount
  • Split ring RJ45 connector
  • Documentation

Why You'll Love It

Garmin was the first to bring Panoptix all-seeing sonar to recreational anglers, and the PS30 remains one of the most capable down transducers on the market. Whether you're a weekend bass fisherman or a tournament angler looking for every edge, the ability to actually see fish react to your presentation in real time is a game-changer. The PS30 is engineered to perform reliably season after season, built to Garmin's exacting standards and backed by their trusted marine electronics reputation. Installation is straightforward with all cables and mounting hardware included, and the wide compatibility list means it will likely work with the Garmin display you already own. Trusted by serious anglers and fishing guides nationwide, the Panoptix PS30 is the kind of tool that genuinely changes how you fish - putting you on more fish, more often, with confidence you can only get from seeing it with your own eyes.


Product Specifications
Transducer Beamwidth 120 x 60 degrees
Transducer Cable Length 15 ft (power), 30 ft (Ethernet)
Dimensions 3.6" x 1.7" x 6.7" (9.1 x 4.2 x 17 cm)
Weight 1.8 lbs (800 g)
Temperature Range 0 degrees C to 40 degrees C
Power Input 10-35 V
Power Usage 10 W
Fuse 4.0 A
Frequency 417 kHz
Transmit Power 144 W
Maximum Depth 300 ft
Sonar Type Multi-beam phased array
Network Ports 1 x large RJ45 (Garmin Marine Network)
Sonar Modes LiveVu Down, RealVu 3D Down, RealVu 3D Historic
Assembly / Installation Transom mount hardware included; no freight required - ships as a standard parcel

FAQ

What is the difference between LiveVu Down and RealVu 3-D Down?

LiveVu Down provides a real-time, moving sonar view directly beneath your boat - think of it like a live video feed of the water column. You can watch fish swim, track your lure, and see baitfish activity as it happens. RealVu 3-D Down, on the other hand, gives you a full three-dimensional picture of what is below the boat while stationary, showing you a single sweep of structure and fish in 3-D space. Both modes complement each other and are excellent for different fishing scenarios.

Does the PS30 work while the boat is stationary?

Yes - this is one of the standout features of the PS30. Both LiveVu Down and RealVu 3-D Down work while your boat is completely stationary, which is ideal for hovering over a known structure, fishing a dock, or waiting out fish on a drop-off. RealVu 3-D Historical is designed for use while the boat is moving and will build a complete 3-D picture of the water column you've passed over.

Which Garmin chartplotters are compatible with the PS30?

The PS30 is compatible with a wide range of Garmin ECHOMAP and GPSMAP chartplotters, including ECHOMAP Plus, ECHOMAP UHD, ECHOMAP Ultra, ECHOMAP Ultra 2, and GPSMAP 7xx, 8xx, 9xx, 10xx, and 12xx series units. Always verify compatibility with your specific model number using Garmin's official transducer selection guide before purchasing.

Does the PS30 require a separate cable to connect to my chartplotter?

No additional cables are required for most installations. The PS30 comes with an integrated 30 ft Ethernet network cable and a 15 ft power cable already attached to the transducer. A split ring RJ45 connector is also included to connect to the Garmin Marine Network port on your compatible chartplotter.

Can the PS30 be used for ice fishing?

The PS30 is primarily designed for transom mounting on a boat. Garmin does offer dedicated ice fishing bundles with Panoptix technology for through-ice use. The PS30's temperature rating of 0 to 40 degrees C covers cold conditions, but for dedicated ice fishing applications, the LiveScope Ice Fishing Bundle is the better-suited product.

Product specifications table
Specification name Specification Value
Best uses Fishing
Color pattern Silver, White
Connectivity technology Ethernet
Device interface Ethernet
Mounting type Built-in
Power source DC-powered
