Garmin Panoptix PS22-IF Ice Fishing Bundle with ECHOMAP UHD2 73sv

Regular price $1,999.99 USD

Pairs well with

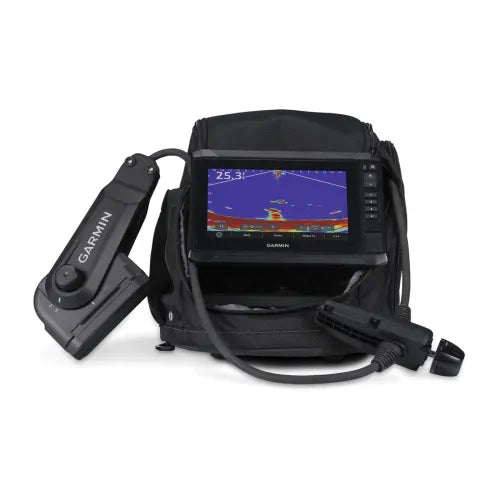

Garmin Panoptix PS22-IF Ice Fishing Bundle - front view with ECHOMAP UHD2 73sv chartplotter and carrying case
$1,999.99 USD
FREE Shipping!
Guaranteed Lowest Price Online! - Find a lower price and we'll beat it!
Satisfaction Guaranteed | Need Help? Call (888)-884-2234

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Garmin Panoptix PS22-IF Ice Fishing Bundle with ECHOMAP UHD2 73sv


Description

The Garmin Panoptix PS22-IF Ice Fishing Bundle is a complete, ultraportable live sonar solution designed for serious ice anglers who want to move fast and find fish faster. Built around the 7" ECHOMAP UHD2 73sv touchscreen chartplotter, this kit pairs powerful Panoptix live sonar technology with a pole mount-free transducer design that makes hole-hopping effortless. Two live sonar modes - LiveVu Forward and LiveVu Down - give you real-time, dynamic views of fish and jig movement so you always know what's happening beneath the ice.

With built-in Garmin Navionics+ inland mapping covering more than 23,000 U.S. lakes, a removable transducer lens for switching between wide and narrow beams, and a rugged glove-friendly carrying case, this bundle is engineered to perform in the harshest winter conditions. Whether you're a weekend ice fisherman or a tournament angler, the PS22-IF bundle delivers professional-grade technology in one portable, ready-to-fish package.


Key Features

  • 7" ECHOMAP UHD2 Touchscreen: WVGA TN display (800x480) with touchscreen and keyed assist - easy to operate even with gloves on.
  • Panoptix Live Sonar - Two Modes: LiveVu Forward and LiveVu Down modes let you see fish and jigs in real time, both in front of and beneath the transducer.
  • Pole Mount-Free Transducer Design: The PS22-IF transducer uses a bracket and rotator system - no pole required - for quick repositioning and faster movement between holes.
  • Garmin Navionics+ U.S. Inland Mapping: Includes a 1-year subscription covering 23,000+ U.S. lakes with daily map updates via the ActiveCaptain app.
  • Removable Transducer Lens: Swap between wide and narrow beam angles to zero in on specific areas of the water column.
  • Built-in CHIRP Sonar: Supports traditional dual-frequency/beam sonar (50/77/83/200 kHz), ClearVu, and SideVu alongside Panoptix live sonar.
  • IPX7 Water Rating: Rated IPX7 for water resistance, built to handle the wet, icy conditions of ice fishing.
  • Multi-Constellation GPS: Supports GPS, GLONASS, Galileo, and BeiDou with a 10 Hz receiver and WAAS for precise positioning.
  • Glove-Friendly Carrying Case: Rugged small bag with base and handle keeps your entire bundle organized and portable from hole to hole.
  • Custom Display Pages: Combine sonar and mapping views on one screen to maximize your situational awareness on the ice.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.


What's Included

  • ECHOMAP UHD2 73sv touchscreen with keyed assist chartplotter
  • Garmin Navionics+ U.S. Inland mapping (1-year subscription)
  • Panoptix PS22-IF transducer
  • Transducer rotator
  • Transducer bracket
  • PS22-IF removable lens
  • Rechargeable SLA 7Ah battery
  • Battery charger
  • Small bag, base and handle
  • Power cable
  • Foam float
  • Hardware
  • Documentation

Why You'll Love It

Garmin is trusted by ice anglers across the country for delivering dependable, tournament-ready technology season after season. The PS22-IF bundle eliminates the hassle of pole mounts entirely, so you spend less time rigging and more time on productive water. The combination of LiveVu Forward and LiveVu Down modes gives you a complete real-time picture of fish behavior that traditional sonar simply cannot match. The 7" ECHOMAP UHD2 display is bright, responsive, and designed to work with gloves on - a critical advantage when temperatures drop. Built around Garmin's industry-leading GPS and sonar platform, this bundle is engineered for years of dependable use on ice-covered lakes from Minnesota to Maine.


Product Specifications
Bundle Dimensions 10.5" x 9.5" x 10.5" (26.7 x 22.9 x 26.7 cm)
Bundle Weight 12.2 lbs (5.5 kg)
Water Rating IPX7
Display Type WVGA, TN
Display Size 6.1" x 3.4" diagonal (7.0" / 17.8 cm)
Display Resolution 800 x 480 pixels
Input Touchscreen with keyed assist
Included Transducer PS22-IF
Transducer Mount Pole-free transducer rotation system
Battery Type SLA, 7Ah (rechargeable, included)
Bag Size Small
Power Input 9 to 18 Vdc
Sonar Power Output 500 W
Traditional Sonar Single channel CHIRP, 50/77/83/200 kHz (L, M, H CHIRP)
ClearVu Sonar Built-in 260/455/800/1000/1200 kHz
SideVu Sonar Built-in 260/455/800/1000/1200 kHz
GPS Receiver 10 Hz, multi-band, multi-constellation (GPS, GLONASS, Galileo, BeiDou)
WAAS Yes
Data Card 1 microSD card slot, up to 32 GB
Waypoints 5,000
Track Points 50,000
Saved Tracks 50
Navigation Routes 100
NMEA 2000 Compatible
Garmin Marine Network Ports 1
12-Pin Transducer Port 1
Connectivity Bluetooth, ANT, Garmin Wi-Fi
ActiveCaptain Compatible Yes
Built-in Maps Garmin Navionics+ U.S. Inland (73sv) - 23,000+ lakes

FAQ

What is the difference between LiveVu Forward and LiveVu Down modes?

LiveVu Forward projects sonar in front of the transducer at an angle, letting you see fish approaching the hole before they're directly beneath you. LiveVu Down shows a live, real-time view of everything directly under the transducer - perfect for watching your jig and seeing how fish react to it. Having both modes in one unit gives you a complete picture of fish activity around your hole.

Does this bundle require a pole to mount the transducer?

No - that's one of the key advantages of this bundle. The PS22-IF transducer uses a bracket and rotator system that sits directly in the hole without needing a separate pole mount. This makes setup faster and movement between holes much easier, especially in cold conditions.

What does the Garmin Navionics+ subscription include?

The included subscription provides detailed mapping for more than 23,000 U.S. inland lakes with daily chart updates accessible through the ActiveCaptain app. The 73sv version in this bundle is specifically loaded with U.S. inland lake coverage. After the 1-year subscription period, it can be renewed separately.

Is the battery included, and how long does it last on a charge?

Yes, a rechargeable SLA 7Ah battery and charger are included in this mapping bundle. Battery life will vary depending on display brightness, sonar activity, and temperature, but the included battery is sized for a full day of ice fishing use. Cold temperatures can reduce battery capacity, so it's a good idea to keep the unit warm when not in use.

Can I add additional transducers or accessories to this setup?

Yes. The ECHOMAP UHD2 supports NMEA 2000 networking and has a 12-pin transducer port, allowing you to connect compatible Garmin transducers and accessories. Popular add-ons include the GT10HN-IF and GT8HW-IF transducers. Optional map cards and update cards are also available through Garmin's accessory lineup.

Is this unit usable on open water as well, or is it only for ice fishing?

While this bundle is optimized for ice fishing - with the pole-free transducer, carrying case, and battery - the ECHOMAP UHD2 73sv chartplotter is a full-featured unit usable in open-water fishing situations as well. It supports standard marine sonar modes (ClearVu, SideVu, traditional CHIRP) and can be paired with other transducers for open-water use.

Product specifications table
Specification name Specification Value
Battery technology Lithium
Color pattern Black
Connectivity technology GPS
Translation missing: en.metafields.shopify.ingress-protection-ip-rating IPX7
Marine navigator features Touchscreen, Waterproof, NMEA 2000
Mounting type Portable
Power source Rechargeable
Translation missing: en.metafields.shopify.satellite-navigation-systems-supported GPS, GLONASS, Galileo, BeiDou
Translation missing: en.metafields.shopify.sonar-imaging-modes Side Imaging, Down Imaging
