Garmin LiveScope Plus Ice Fishing System with LVS34-IF Transducer

Regular price $1,799.99 USD

Pairs well with

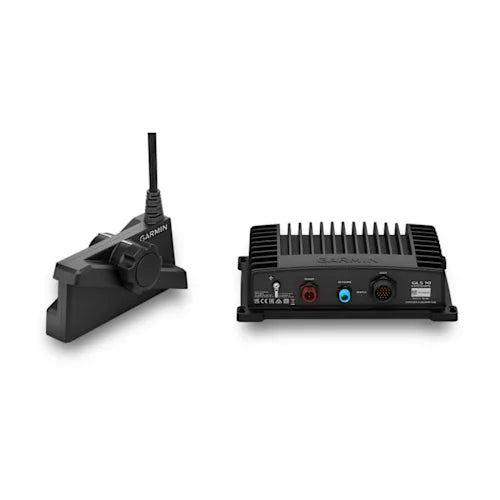

Garmin LiveScope Plus Ice Fishing System - Gallery View
$1,799.99 USD
FREE Shipping!
Guaranteed Lowest Price Online! - Find a lower price and we'll beat it!
Satisfaction Guaranteed | Need Help? Call (888)-884-2234

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Garmin LiveScope Plus Ice Fishing System


Description

The Garmin LiveScope Plus Ice Fishing System gives you a real-time, live-scanning sonar view of exactly what's happening beneath the ice — fish, structure, and your own jig moving in the water. Built around the LVS34-IF ice fishing transducer and GLS 10 sonar black box, this system pairs with your compatible Garmin chartplotter to deliver razor-sharp, low-noise imagery up to 200 feet in any direction. Whether you're scouting new holes or dropping your line on a known school, the dual Forward and Down modes give you the precision to fish smarter all season long.

Designed specifically for cold-weather ice fishing, the kit includes a flexible cold-weather transducer cable and an all-in-one lithium ion power cable, so you have everything you need to get on the ice fast. The system's 530-1,100 kHz frequency range and 500W transmit power deliver crisp target separation and vivid color palettes that make it easy to distinguish fish species and watch how they react to your presentation in real time.


Key Features

  • LiveScope Forward Mode: Scans up to 200 feet all around you so you can locate schools of fish and decide exactly where to drill your next hole.
  • LiveScope Down Mode: Focuses directly beneath the ice so you can watch how fish respond to your jig in real time.
  • 200' Maximum Depth Range: See fish and structure up to 200 feet in both Down and Forward modes - exceptional range for ice fishing scenarios.
  • 20° x 135° Transducer Beamwidth: Wide coverage angle delivers a broad, detailed view under the ice with minimal blind spots.
  • 530-1,100 kHz Frequency / 500W Transmit Power: High-frequency sonar provides sharper images, reduced noise, and fewer artifacts compared to traditional sonar.
  • Target Separation @ 100': 14" target separation at 100 feet lets you distinguish individual fish and fine details with impressive clarity.
  • IPX7 Water Rating: Transducer and system are rated for water immersion, built to handle the harsh, wet conditions of ice fishing.
  • Cold-Weather Ready: Includes a flexible cold-weather transducer cable engineered to stay pliable and functional in freezing temperatures.
  • Customizable View: Adjust range, gain, color limit, and color brightness directly on your chartplotter; choose from multiple vivid color palettes for maximum contrast.
  • GLS 10 Sonar Black Box Included: The dedicated sonar processing module connects to your chartplotter via Garmin Marine Network, keeping your display clean and your sonar performance top-tier.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.


What's Included

  • LiveScope Plus LVS34-IF ice fishing transducer
  • GLS 10 sonar black box module
  • 0-degree pole mount
  • Lithium ion four-in-one power cable
  • Hardware
  • Documentation

Why You'll Love It

Garmin is one of the most trusted names in marine and ice fishing electronics, and the LiveScope Plus system is the gold standard for anglers who want to see every fish before they drop their line. The LVS34-IF transducer was purpose-built for ice fishing, meaning every cable, connector, and component is engineered to perform when the temperature plummets. Anglers across the ice belt rely on LiveScope to find fish faster, cut down on wasted holes, and ultimately put more fish on the ice. The dual Forward and Down modes mean you're never fishing blind - whether you're scouting a new lake or zeroing in on a stubborn walleye. With a wide ecosystem of compatible Garmin ECHOMAP and ECHOMAP Ultra chartplotters, this system fits right into your existing Garmin setup. It's the kind of investment that pays for itself the first time you watch a trophy fish swim up to your jig in real time.


Product Specifications
Transducer Beamwidth 20° x 135°
Transducer Cable Length 20 ft
Transducer Number of Pins 21
GLS 10 Dimensions 9.7" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm)
LVS34-IF Transducer Dimensions 6.4" x 3.1" x 1.9" (16.2 x 7.8 x 4.8 cm)
GLS 10 Weight 4.3 lbs (2.0 kg)
LVS34-IF Transducer Weight 2.25 lbs (1.02 kg)
Water Rating IPX7
GLS 10 Operating Temperature -15° C to 70° C
LVS34-IF Operating Temperature 0° C to 40° C
Power Input 10-32 V
Power Usage 21 W typical, 58 W max
Fuse 10 A
Compass-Safe Distance 4" (0.1 m)
Sonar Frequency 530 - 1,100 kHz
Transmit Power 500 W
Maximum Depth (Down and Forward) 200' (61.0 m)
Sonar Type Live
Target Separation @ 100' 14"
Garmin Marine Network Ports 1 (small connector)

FAQ

Does this system include a chartplotter?

No, a chartplotter is sold separately. The LiveScope Plus Ice Fishing System includes the LVS34-IF transducer, GLS 10 sonar black box, pole mount, power cable, and documentation. You will need a compatible Garmin ECHOMAP UHD, ECHOMAP UHD2, ECHOMAP Ultra, or ECHOMAP Ultra 2 chartplotter to use this system. Check the compatible devices list to confirm your chartplotter is supported.

What is the difference between LiveScope Forward and LiveScope Down modes?

LiveScope Forward mode scans horizontally up to 200 feet all around you beneath the ice, making it ideal for locating schools of fish and scouting where to drill your next hole. LiveScope Down mode points directly below the transducer, letting you watch fish in real time as they approach your jig. Both modes use the same LVS34-IF transducer - you simply switch modes on your chartplotter depending on your situation.

Does this system require a separate battery?

Yes, you will need to supply your own battery. The included lithium ion four-in-one power cable connects the system to a 10-32V power source, but the battery itself is not included in the kit. A portable lithium battery pack is the most popular choice for ice fishing due to its performance in cold temperatures.

Is this system compatible with my existing Garmin chartplotter?

The LiveScope Plus Ice Fishing System is compatible with a wide range of Garmin chartplotters, including select ECHOMAP UHD, ECHOMAP UHD2, ECHOMAP Ultra, and ECHOMAP Ultra 2 models. It connects via the Garmin Marine Network. Please refer to the compatible devices section or check Garmin's website to confirm your specific model is supported before purchasing.

Can this transducer be used for open-water fishing as well?

The LVS34-IF is specifically designed as an ice fishing transducer with cold-weather cables and ice-specific mounting hardware. For open-water use, Garmin offers other LiveScope Plus transducer configurations better suited to boat mounting. This kit is optimized for ice fishing applications.

Product specifications table
Specification name Specification Value
Battery technology Lithium-ion (Li-ion)
Color pattern Black
Translation missing: en.metafields.shopify.ingress-protection-ip-rating IPX7
Marine navigator features Waterproof
Mounting type Floor
Power source Battery-powered
