Garmin ECHOMAP Ultra 2 Ice House System with LiveScope Plus - 16" Chartplotter

Regular price $6,299.99 USD

Pairs well with

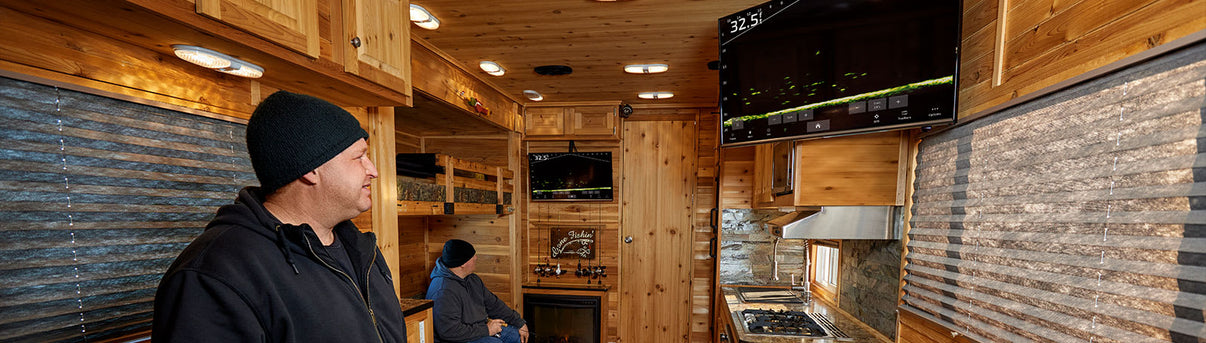

Garmin ECHOMAP Ultra 2 Ice House System with LiveScope Plus - full product view
$6,299.99 USD
FREE Shipping!
Guaranteed Lowest Price Online! - Find a lower price and we'll beat it!
Satisfaction Guaranteed | Need Help? Call (888)-884-2234

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Garmin ECHOMAP Ultra 2 Ice House System with LiveScope Plus


Description

The Garmin ECHOMAP Ultra 2 Ice House System is a complete, ready-to-fish setup built specifically for serious ice anglers who want the best possible view of what's happening beneath the ice. At the heart of the system is the ECHOMAP Ultra 2 166sv, a 16-inch full HD IPS touchscreen chartplotter loaded with Garmin Navionics+ mapping covering more than 25,000 inland and coastal lakes across the U.S. and Canada. The LiveScope Plus System with LVS34-IF transducer delivers real-time, live sonar imagery in both Forward and Down modes, letting you see fish and structure with stunning clarity no matter how you're fishing.

Whether you're running the transducer on a pole mount through the ice or watching sonar on a big-screen TV via the built-in HDMI output, this system is engineered to perform in the harshest cold-weather conditions. The LVS34-IF transducer features a cable that stays flexible even in freezing temps, and the included swivel pole mount and 0-degree shaft mount make it easy to switch between fishing modes on the fly. This is the ultimate all-in-one ice house sonar and chartplotter bundle for anglers who refuse to compromise.


Key Features

  • 16" Full HD IPS Touchscreen: Large, high-resolution 1920x1080 display with keyed-assist input for use with gloves or in cold conditions.
  • LiveScope Plus System Included: Features LiveScope Forward and LiveScope Down modes for real-time, live-action sonar views beneath the ice.
  • LVS34-IF Ice Fishing Transducer: Designed specifically for ice fishing with a cold-weather flexible cable that won't stiffen or crack in freezing temperatures.
  • HDMI Video Output: Share your sonar and mapping display to a TV or external monitor in your ice house for group viewing.
  • Garmin Navionics+ Preloaded Mapping: Coverage for 25,000+ inland and coastal lakes with detailed charts for the U.S. and Canada - no extra purchase required.
  • GLS 10 Sonar Black Box: Dedicated sonar processing module with swivel pole mount included for flexible transducer placement.
  • Built-in ClearVu & SideVu Sonar: Built-in scanning sonar at 260/455/800/1000/1200 kHz delivers detailed imagery below and to the sides of your transducer.
  • 600W Sonar Power Output: High-powered sonar for deep water penetration and crisp target separation.
  • IPX7 Water Rating: Protected against water immersion, built to handle ice, slush, and spray.
  • Custom Combo Pages: Create split-screen views combining sonar and maps to monitor fish activity and location simultaneously.
  • Multi-Constellation GPS: Supports GPS, GLONASS, Galileo, and WAAS with a 10 Hz receiver for fast, accurate positioning.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.


What's Included

  • ECHOMAP Ultra 2 166sv chartplotter with preloaded Garmin Navionics+ Inland, Coastal, and Offshore Mapping for U.S. or Canada
  • LiveScope Plus LVS34-IF ice fishing transducer
  • GLS 10 black box sonar module with power and network cables
  • Ice fishing pole mount with swivel
  • 0-degree shaft mount
  • Power and network cables
  • Hardware
  • Documentation

Why You'll Love It

Garmin has long been trusted by professional anglers and serious ice fishing enthusiasts alike, and the ECHOMAP Ultra 2 Ice House System represents the pinnacle of that legacy. The combination of a massive 16-inch full HD display, real-time LiveScope Plus sonar, and preloaded mapping gives you every tool you need to find and catch fish faster than ever before. The cold-weather engineering on the LVS34-IF transducer cable means you can count on this system to perform reliably whether temps are in the single digits or below zero. The HDMI output is a game-changer for ice house setups, letting you put sonar on the big screen so everyone in the shack can watch the action. With Garmin's ActiveCaptain compatibility, Wi-Fi, and Bluetooth connectivity, this system stays connected and up to date all season long. If you're serious about ice fishing, this is the system that will transform the way you fish.


Product Specifications
Dimensions 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
Weight 9.5 lbs (4.31 kg)
Water Rating IPX7
Display Type Full HD IPS Touchscreen with Keyed Assist
Display Size 13.6" x 7.7"; 15.6" diagonal (39.7 cm diagonal)
Display Resolution 1920 x 1080 pixels
Power Input 9 to 18 Vdc
Sonar Power Output 600 W
Traditional Sonar Built-in single channel CHIRP, 70/83/200 kHz, L/M/H CHIRP
ClearVu Sonar Built-in 260/455/800/1000/1200 kHz
SideVu Sonar Built-in 260/455/800/1000/1200 kHz
Included Transducer LiveScope Plus System with LVS34-IF
GPS Receiver 10 Hz, GPS/GLONASS/Galileo/WAAS/Multi-band
Waypoints 5,000
Track Points 50,000
Saved Tracks 50
Navigation Routes 100
Data Cards 2 x microSD
NMEA 2000 Ports 1
Video Output 1 x HDMI
Garmin Marine Network Ports 2
Connectivity Bluetooth, Wi-Fi, ANT, NMEA 2000
Preloaded Maps Garmin Navionics+ Inland and Coastal (25,000+ lakes, U.S. and Canada)
Transducer Mount Swivel pole mount (ice fishing)

FAQ

What is the difference between LiveScope Forward and LiveScope Down modes?

LiveScope Forward lets you see what's happening in front of your transducer in real time - great for watching fish approach your bait from a distance. LiveScope Down shows a live view directly beneath the transducer, perfect for watching fish react to your lure as you jig. The included 0-degree pole mount makes it easy to switch between both modes on the fly.

Can I connect this system to a TV in my ice house?

Yes! The ECHOMAP Ultra 2 166sv features a built-in HDMI output, so you can mirror your sonar and map display to any TV or external monitor in your ice house. This is perfect for group fishing setups where everyone wants to watch the live sonar action on a larger screen.

Does the LVS34-IF transducer cable stay flexible in extreme cold?

Yes - Garmin specifically engineered the LVS34-IF transducer cable to remain flexible even in freezing temperatures. This is a critical design feature for ice fishing, where standard cables can stiffen and become difficult to manage or even crack in very cold conditions.

Does this system come with maps already loaded, or do I need to purchase them separately?

This system comes preloaded with Garmin Navionics+ Inland, Coastal, and Offshore Mapping for the U.S. or Canada - covering more than 25,000 lakes. No additional map purchase is required out of the box, though you can expand coverage with optional BlueChart g3, LakeVu g3, and other Garmin chart cards.

Is this system compatible with other Garmin marine electronics?

Yes. The ECHOMAP Ultra 2 166sv supports NMEA 2000, has two Garmin Marine Network ports, Bluetooth, Wi-Fi, and ANT connectivity. It is also ActiveCaptain compatible, allowing you to sync with the Garmin ActiveCaptain app for chart updates, waypoints, and more.

What power source does this system require?

The ECHOMAP Ultra 2 166sv requires a DC power input between 9 and 18 volts. In an ice house setting, this typically means connecting to a marine-grade battery or a portable power station capable of supplying stable 12V DC power.

Product specifications table
Specification name Specification Value
Color pattern Black
Connectivity technology GPS
Device interface HDMI
Display resolution 1920 x 1080, Full HD
Translation missing: en.metafields.shopify.ingress-protection-ip-rating IPX7
Marine navigator features Touchscreen, NMEA 2000
Mounting type Wall
Translation missing: en.metafields.shopify.satellite-navigation-systems-supported GPS, GLONASS, Galileo, SBAS
