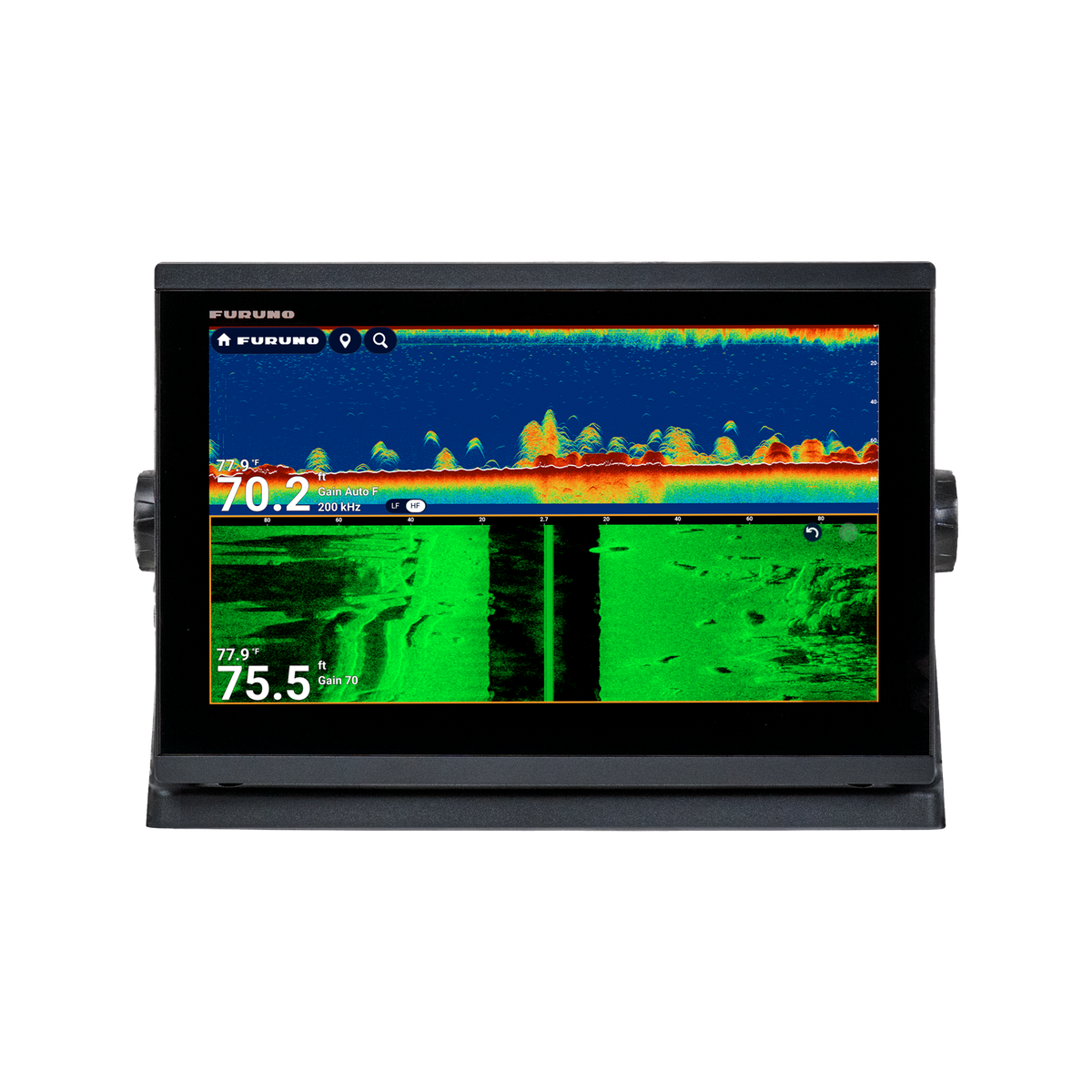

Furuno NavNet TZtouchE 13" Multi-Function Display (TZT13E)
Pairs well with
FREE Shipping!
Questions? Ask our Experts
Our product specialists are here for you, just leave us a message!
Furuno NavNet TZtouchE 13" Multi-Function Display
Description
The Furuno NavNet TZtouchE TZT13E is a fully networkable 13-inch multi-function display (MFD) built for serious mariners who demand performance, flexibility, and advanced integration at the helm. Powered by the intuitive TZtouchXL platform, this MFD features a crisp color multi-touch IPS display that brings charting, radar, and fish finding together in one clean, compact unit. Built-in TruEcho CHIRP Fish Finder, CHIRP Side-Scan, and TZ MAPS support come standard, giving you a powerful suite of tools ready from the moment it's powered on.
Whether you're navigating offshore waters, hunting structure with side-scan sonar, or managing radar targets in heavy traffic, the TZT13E scales to meet the demands of any vessel. Its edge-swipe interface and single-tap menus make it the most approachable full-featured MFD available - if you can swipe a phone, you can operate TZtouchE. Designed to integrate with Furuno's full ecosystem of radar sensors, autopilots, sonars, and weather services, this is an MFD that grows with your boat and your ambitions on the water.
Key Features
- 13" Color Multi-Touch IPS Display: Large, high-resolution touchscreen delivers crisp chart detail, radar imagery, and fish finder returns in any lighting condition.
- Built-In TruEcho CHIRP Fish Finder: Supports 300W, 600W, or 1kW output at CW 50-200 kHz and CHIRP 40-225 kHz frequencies for detailed fish detection at any depth.
- Built-In CHIRP Side-Scan: Scans port and starboard at 230 kHz or 455 kHz center frequencies, revealing fish and bottom structure in high definition with 8 color palette options including Tuna Hunter, Volcano, and Fury.
- TZ MAPS Integration: Download wide-area charts, satellite photos, and bathymetric data directly from the MFD. Includes AI Routing, Dynamic Mooring, and custom user objects with community sharing.
- BathyVision Bathymetric Data: Contour lines configurable down to 3-inch resolution - 3x finer than competing systems - for unmatched fishing chart detail.
- Full Radar Compatibility: Compatible with Furuno NXT Solid-State Doppler and X-Class magnetron radar sensors. Supports Target Analyzer, Fast Target Tracking, Bird Mode, Risk Visualizer, and AI Avoidance Route.
- TZ Cloud Sync: Automatically backs up and syncs waypoints, routes, boundaries, photos, and catch data. Plan routes at home via TZ Navigator, web browser, or TZ iBoat iOS app and download directly to the MFD.
- TZ Weather Service: Free global NOAA GFS weather downloads with premium subscription options for higher-resolution models (ICON, NAM CONUS, Arpege, AROME). Animated wind barbs, Meteograms, and customizable presets included.
- CSH10 Omni Sonar Compatible: Fully integrates with Furuno's CSH10 360-degree scanning sonar, with Sonar Overlay displaying real-time echoes directly on the navigation chart.
- Power Input: 12-24 VDC; fully networkable with TZtouchXL and other TZtouchE MFDs for a scalable multi-screen helm.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- Furuno NavNet TZtouchE 13" MFD Unit (TZT13E)
Why You'll Love It
Furuno has been the trusted name in marine electronics for decades, and the TZtouchE series represents the pinnacle of that heritage in a sleek, modern package. The TZT13E is trusted by serious anglers, offshore cruisers, and professional mariners who need reliable navigation and fish-finding performance day in and day out. Its deep integration with TZ MAPS, TZ Weather, and TZ Cloud means you're never without the most current charts, conditions, and data - whether you're at the dock planning or 50 miles offshore fishing. The scalable NavNet architecture means your investment grows with your vessel, letting you add radar, sonar, autopilot, and additional MFDs without replacing what you already own. For anyone building or upgrading a capable helm, the TZT13E delivers a level of integration and ease of use that simply sets a new benchmark in marine navigation.
Product Specifications
View Product Specs
| Model | TZT13E |
|---|---|
| Display Size | 13 inches |
| Display Type | Color Multi-Touch LCD (IPS) |
| Chart Types Supported | 3D Data, Bathymetric, CMOR, TZ MAPS, Raster, Vector, Satellite Photo |
| Fish Finder Frequency | CW 50-200 kHz and CHIRP 40-225 kHz |
| CHIRP Side-Scan Frequency | 230 kHz or 455 kHz |
| Power Input | 12-24 VDC |
| Fish Finder Power Output | 300W, 600W, or 1 kW |
FAQ
What radar sensors are compatible with the TZT13E?
The TZT13E is compatible with Furuno's full range of UHD Digital Radar sensors, including the NXT Solid-State Doppler series (DRS2DNXT through DRS25ANXT) and X-Class magnetron radars (DRS6AX through DRS25AX). Features like Target Analyzer, Fast Target Tracking, Bird Mode, Rain Mode, Risk Visualizer, and AI Avoidance Route are supported depending on the connected sensor.
Does the TZT13E require a separate chart subscription?
The TZT13E includes built-in support for TZ MAPS, which offers a free tier with global NOAA-based charts. Chart area purchases and the premium TZ Weather subscription are optional upgrades available directly from the MFD. Purchasing any TZ MAPS chart area also unlocks those charts in the free TZ iBoat app for mobile planning.
Can I network multiple TZtouchE or TZtouchXL displays together?
Yes - the TZT13E is fully networkable with other TZtouchE and TZtouchXL MFDs via LAN. All networked displays share access to connected sensors (radar, fish finder, side-scan, sonar) and can be controlled via the optional MCU006 or MCU006H controller units. This makes it ideal for multi-station helm builds on larger vessels.
What transducer options are available for the built-in fish finder and side-scan?
The TZT13E's built-in CHIRP Fish Finder supports a wide range of transducers operating from 40-225 kHz. For CHIRP Side-Scan at 230 kHz or 455 kHz, thru-hull, paired, and transom mount transducer options are available. Furuno offers a full range of compatible transducers including single-band CHIRP and bottom discrimination models.
Is the TZT13E suitable for freshwater use, or is it designed for saltwater?
The NavNet TZtouchE series is designed and built to marine-grade standards suitable for both saltwater and freshwater environments. Its rugged construction, waterproof connectors, and LAN cabling ecosystem make it well-suited for offshore, coastal, and inland water use alike.
What is TZ Cloud and is there a fee to use it?
TZ Cloud is Furuno's cloud synchronization service that automatically backs up and syncs your waypoints, routes, boundaries, photos, and catch data. A free TimeZero account is all that's required to use TZ Cloud backup and retrieval. Premium features and TZ MAPS chart purchases are separate optional purchases.
