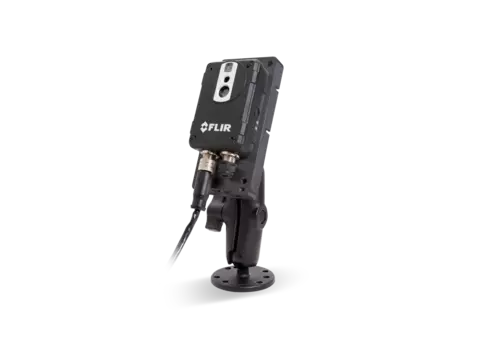

The FLIR MTMS Maritime Thermal Monitoring System provides continuous thermal monitoring of critical onboard equipment to help boat owners and operators identify potential mechanical problems before they lead to costly failures. Designed for recreational and commercial vessels, this compact marine thermal camera monitors engines, exhaust manifolds, shaft bearings, and other temperature-sensitive components. Its 80 x 60 thermal sensor measures equipment temperatures, while the integrated 640 x 480 visible camera provides additional visual detail. FLIR's Multi-Spectral Dynamic Imaging (MSX) technology combines thermal and visible imagery to make temperature readings easier to interpret. Programmable temperature thresholds trigger audible and visual alerts when monitored components exceed preset limits. Compatible with Garmin and Raymarine chartplotters and networked PCs, the MTMS allows operators to monitor equipment conditions through supported onboard displays. With its rugged IP67-rated housing, compact construction, and automated temperature monitoring capabilities, the FLIR MTMS offers a practical solution for protecting critical marine systems.
Key Features
• Continuous Thermal Monitoring: Monitors engines, exhaust manifolds, shaft bearings, and other critical onboard equipment to help identify abnormal operating temperatures.
• 80 x 60 Thermal Resolution: Uncooled microbolometer sensor provides accurate thermal measurements for monitoring mechanical and electrical components.
• 640 x 480 Visible Camera: Integrated digital camera captures detailed visual imagery to complement thermal monitoring.
• FLIR MSX Technology: Combines visible and thermal imaging to improve image clarity and make monitored components easier to identify.
• Programmable Temperature Alarms: Supports up to 5 configurable alarms with audible and visual notifications when temperatures exceed preset thresholds.
• Multiple Measurement Areas: Features 6 spotmeters and 6 measurement boxes with minimum, maximum, and average temperature readings.
• Marine Electronics Integration: Compatible with Garmin and Raymarine chartplotter displays and networked PCs for convenient monitoring.
• Wide Temperature Measurement Range: Measures object temperatures from 14°F to 302°F (-10°C to 150°C).
• IP67-Rated Protection: Rugged enclosure provides protection against dust and temporary water immersion for dependable marine use.
• Compact, Energy-Efficient Design: Small camera housing and 12/24V DC power compatibility support installation in confined equipment spaces.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
• (1) FLIR MTMS Maritime Thermal Monitoring Camera
• (1) Camera Cooling Bracket
• (1) DC Power over Ethernet (PoE) Injector
• (1) RayNet to RJ45 Cable
• (1) M12X to RJ45 Cable
Mounting Bracket Required: Choose either the One-Ball Joint Mounting Bracket (R70375) or Two-Ball Joint Mounting Bracket (261-2319-00) to complete installation. Mounting bracket selection is separate from the standard system contents.
Why You'll Love It
The FLIR MTMS Maritime Thermal Monitoring System helps protect your vessel by identifying unusual equipment temperatures before they develop into serious mechanical problems. Its combination of thermal imaging, visible-light imaging, and FLIR MSX technology makes it easier to understand equipment conditions at a glance. Programmable alarms provide an additional layer of protection by alerting operators when monitored components exceed established temperature limits. The compact, rugged design allows installation near critical machinery without requiring extensive space or complicated monitoring equipment. Integration with compatible Garmin and Raymarine chartplotters makes the system a practical addition to existing marine electronics. Whether managing a commercial vessel or maintaining a recreational boat, the FLIR MTMS provides dependable monitoring capabilities that support preventative maintenance, equipment reliability, and long-term operational value.
Product Specifications
• Brand: FLIR
• Product Series: MTMS
• Model: Maritime Thermal Monitoring System
• Manufacturer SKU: E70321
• Product Type: Marine Thermal Equipment Monitoring Camera
• Thermal Detector: Focal Plane Array (FPA), Uncooled Microbolometer
• Thermal Resolution: 80 x 60 Pixels
• Thermal Sensitivity (NETD): Less Than 0.10°C at 30°C (100 mK)
• Spectral Range: 7.5 to 13 µm
• Thermal Field of View: 48° x 37°
• Focus: Fixed
• Visible Camera Resolution: 640 x 480 Pixels
• Visible Camera Sensitivity: Minimum 10 Lux Without Illuminator
• Object Temperature Range: 14°F to 302°F (-10°C to 150°C)
• Temperature Measurement Accuracy: ±2°C (±3.6°F) or ±2% of Reading Under Specified Conditions
• Spotmeters: 6
• Measurement Areas: 6 Boxes with Minimum, Maximum, and Average Temperature Readings
• Maximum Configurable Alarms: 5
• Alarm Functions: Automatic Temperature Threshold Monitoring
• Alarm Outputs: Digital Output, Image Storage, FTP, Email (SMTP), and Notifications
• Image Modes: Thermal, Visible, and MSX
• Image Processing: FLIR Multi-Spectral Dynamic Imaging (MSX)
• Color Palettes: Black/White, Inverted Black/White, Iron, and Rain
• Image Streaming Formats: Motion JPEG, MPEG, H.264
• Image Streaming Resolution: 640 x 480 Pixels
• Image Storage: Built-In Memory
• Image File Format: JPEG+FFF
• Ethernet Speed: 100 Mbps
• Ethernet Standard: IEEE 802.3
• Ethernet Connector: M12 8-Pin X-Coded
• Power Delivery: Power over Ethernet (PoE), IEEE 802.3af Class 0
• External Power Requirements: 12/24V DC
• Operating Voltage Range: 9 to 36V DC
• Power Consumption: 2W Continuous, 3.1W Maximum
• Compatible Displays: Garmin and Raymarine Chartplotters, Networked PCs
• Web Interface: Supported
• Camera Dimensions Without Connectors (L x W x H): 2.1 x 1 x 3.1 in. (54 x 25 x 79 mm)
• Camera Dimensions With Connectors (L x W x H): 2.1 x 1 x 3.7 in. (54 x 25 x 95 mm)
• Water and Dust Protection: IP67 (IEC 60529)
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Storage Temperature: -40°F to 158°F (-40°C to 70°C)
• Humidity Resistance: IEC 60068-2-30, 95% Relative Humidity
• Shock Resistance: 25g (IEC 60068-2-29)
• Vibration Resistance: 2g (IEC 60068-2-6)
• Electromagnetic Compatibility: EN 61000-6-2, EN 61000-6-3, FCC Part 15 Class B, EN 60945
• Ignition Protection: EN 28845:1993
• Optional One-Ball Mounting Bracket: R70375
• Optional Two-Ball Mounting Bracket: 261-2319-00
