Flatline Van Co. Ford Transit 148" Mid Roof Low Pro Roof Rack with Light Bar Fairing
Pairs well with
FREE Shipping!
Need Help? Chat With Our Experts
We live and breathe the games we sell

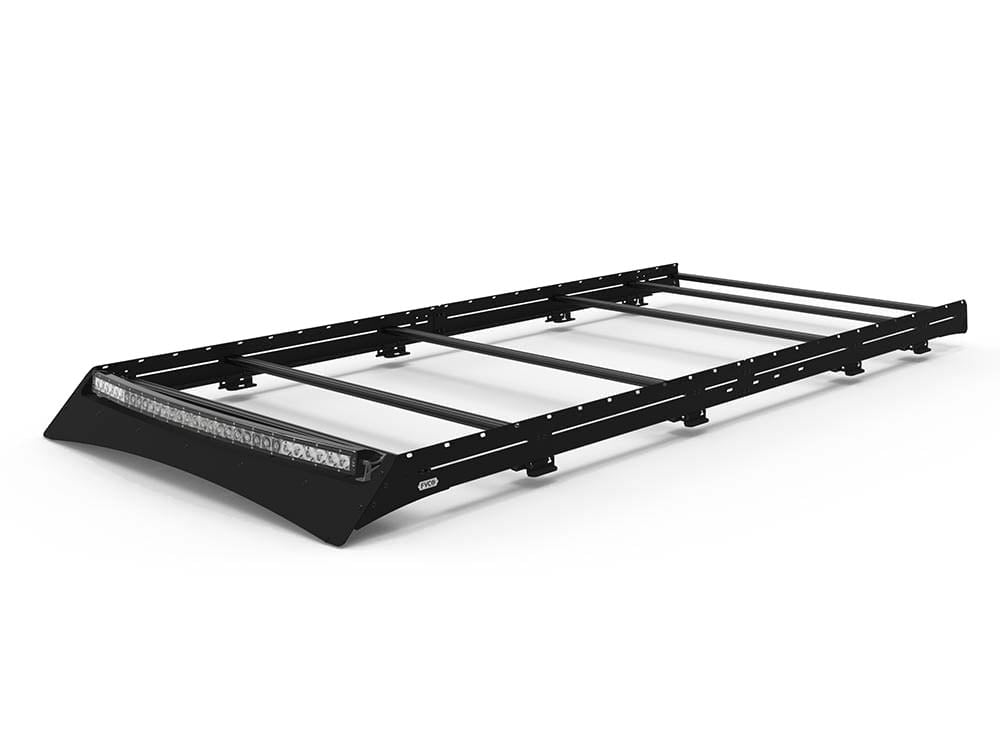

Flatline Van Co. Ford Transit 148" Mid Roof Low Pro Roof Rack with Light Bar Fairing
Description
The Flatline Van Co. Low Pro Roof Rack is purpose-built for the 2015-2025 Ford Transit 148" Mid Roof, delivering a sleek, aerodynamic platform that keeps your van capable without weighing it down. At just 65 pounds total, the all-aluminum side rails and crossbars strike the ideal balance between strength and weight savings - making it one of the lightest full-size van roof racks on the market. The Light Bar Fairing variant comes with pre-cut holes sized for most 50" LED light bars, including the Baja Designs ONX6 50" Arc, so you can add front lighting without any custom fabrication. Landing pads constructed from formed 12GA 304L stainless steel distribute load to the strongest points on the roof, keeping everything rock-solid on the highway and off-road.
Six adjustable 58" 10-series anodized aluminum crossbars run the full width of the rack and slide fore and aft to accommodate roof fans, AC units, solar panels, MaxTrax traction boards, and more. The 80/20-compatible drop-in hardware slots let you bolt up accessories without disassembling the entire rack. Rubber footer gaskets and sealing washers protect your roof from leaks, and the footers bolt directly into Ford's factory roof mounting holes - no drilling required. Whether you're a weekend overlander or a full-time van dweller, this rack is engineered to grow with your build.
Key Features
- Light Bar Fairing: Pre-cut holes designed to fit most 50" LED light bars - compatible with Baja Designs ONX6 50" Arc and other off-road lights. Light bar not included.
- Total Rack Weight - 65 lbs: Lightweight all-aluminum side rails and crossbars keep handling and fuel efficiency better than heavier steel racks.
- 6x Adjustable 58" Crossbars: 10-series anodized aluminum crossbars adjust forwards and backwards to accommodate fans, AC units, solar panels, and other rooftop accessories.
- 80/20 Compatible Drop-In Slots: Standard 10-series extrusion crossbars accept drop-in T-nut hardware for tool-free accessory mounting without disassembly.
- 12GA 304L Stainless Steel Landing Pads: Formed with dual flanges and a central mounting point to distribute weight to the strongest points on the roof.
- Watertight Installation: Rubber footer gaskets and rubber sealing washers prevent leaks at every mounting point.
- Bolts to Factory Ford Holes: Footers align directly with factory Ford Transit roof mounting locations - no drilling, no cutting, DIY-friendly install with basic hand tools.
- Fiamma F45S 300 Compatible: The awning bolts directly to the rack with no modification - no gap between the van roof and awning bottom to let in wind or rain.
- FVC Side Ladder Compatible: The Flatline Van Co. Transit Side Ladder bolts directly into the Low Pro Roof Rack for a fully integrated look.
- Powder-Coated Black Finish: Side rails and crossbars are powder-coated black; stainless steel footers and hardware are included.
- Fitment: 2015-2025 Ford Transit 150/250/350 and 2023-2024 Transit Trail - 148" wheelbase, Mid Roof only.
Fairing Options & Which to Choose
- Normal Fairing: A clean aluminum front wind fairing that reduces drag and improves aerodynamics without any light bar cutout. Best for builders focused purely on fuel efficiency and a streamlined appearance who don't plan to run a front-mounted light bar.
- Fairing with 50" Light Bar Cutout (this listing): Includes pre-cut holes sized to accept most 50" LED light bars - including the Baja Designs ONX6 50" Arc. Ideal for overlanders, off-road adventurers, or anyone who wants powerful front lighting integrated cleanly into the rack. Light bar is sold separately.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- Low Pro Roof Rack side rails (aluminum, powder-coated black)
- 6x 58" 10-series anodized aluminum crossbars
- Aluminum front wind fairing with 50" light bar cutout
- 12GA 304L stainless steel landing pads/footers
- Stainless steel hardware
- Rubber footer gaskets and rubber sealing washers
Why You'll Love It
Flatline Van Co. has built a reputation among serious van builders for racks that look factory-clean, install without drama, and hold up on the road for years. The Low Pro is their most aerodynamic rack - designed from the ground up to minimize wind noise on the highway while still giving you a full-size mounting platform for all your gear. Customers consistently call out how solid and silent it rides, with one reviewer describing it as "bomb proof" after a Fiamma awning install. The light bar fairing takes that further, giving you a professional-grade front lighting setup that integrates seamlessly into the rack's lines rather than looking like an afterthought. With 80/20 crossbars, Fiamma awning compatibility, and direct FVC Side Ladder integration, this rack is a true foundation for a complete build - not just a starting point. If you're investing in your van for the long haul, this is the rack that grows with you.
Product Specifications
View Product Specs
| Fitment | 2015-2025 Ford Transit 150/250/350 | 148" Wheelbase | Mid Roof; 2023-2024 Transit Trail | 148" | Mid Roof |
|---|---|
| Total Rack Weight | 65 lbs |
| Crossbars | 6x 58" 10-series anodized aluminum (80/20 compatible) |
| Landing Pad Material | Formed 12GA 304L stainless steel with dual flanges |
| Side Rails & Crossbar Finish | Powder-coated black aluminum |
| Hardware | Stainless steel included |
| Fairing Style | Aluminum front wind fairing with 50" light bar cutout |
| Light Bar Compatibility | Fits most 50" LED light bars (Baja Designs ONX6 50" Arc and similar) |
| Awning Compatibility | Fiamma F45S 300 (no modification required) |
| Ladder Compatibility | FVC Transit Side Ladder (direct bolt-on) |
| Installation | Bolts to factory Ford Transit roof holes; no drilling required. Assembly required. Ships via standard freight. |
Manuals & Guides
- Low Pro Rack w/Normal Fairing Installation Guide
- Low Pro Rack w/Light Bar Fairing Installation Guide
FAQ
Does this rack require drilling into my Transit's roof?
No drilling required. The landing pads and footers are designed to bolt directly into Ford's factory roof mounting holes on the 148" Mid Roof Transit. Rubber gaskets and sealing washers are included to keep the installation watertight.
Does the light bar come included with the Light Bar Fairing version?
No, the light bar is not included. The fairing comes pre-cut with holes sized for most 50" LED light bars. The Baja Designs ONX6 50" Arc LED Light Bar is a confirmed fit, but other 50" off-road light bars are also compatible.
Can I add a Fiamma F45S awning to this rack?
Yes. The Fiamma F45S 300 is directly compatible and bolts on with no modification required. Flatline Van Co. specifically designed the rack geometry so there is no gap between the bottom of the awning and the top of the van, which prevents wind and rain from getting in.
Are the crossbars adjustable?
Yes. All six 58" crossbars can be adjusted forwards and backwards along the side rails to accommodate different rooftop accessories such as fans, AC units, solar panels, and gear boxes. The crossbars are 10-series 80/20 compatible extrusions with drop-in hardware slots, so you can mount accessories without disassembling the rack.
Will this rack fit my 2024 Ford Transit Trail?
Yes. The 2023-2024 Ford Transit Trail with a 148" wheelbase and Mid Roof configuration is a confirmed fitment for this rack.
Is a side ladder included with this rack?
No, the side ladder is sold separately. However, the FVC Transit Van Side Ladder is designed to bolt directly into this Low Pro Roof Rack without any modification, making it a seamless add-on for your build.
