Flatline Van Co. Ford Transit 148" High Roof Extended Low Pro Roof Rack with Light Bar Fairing
Description

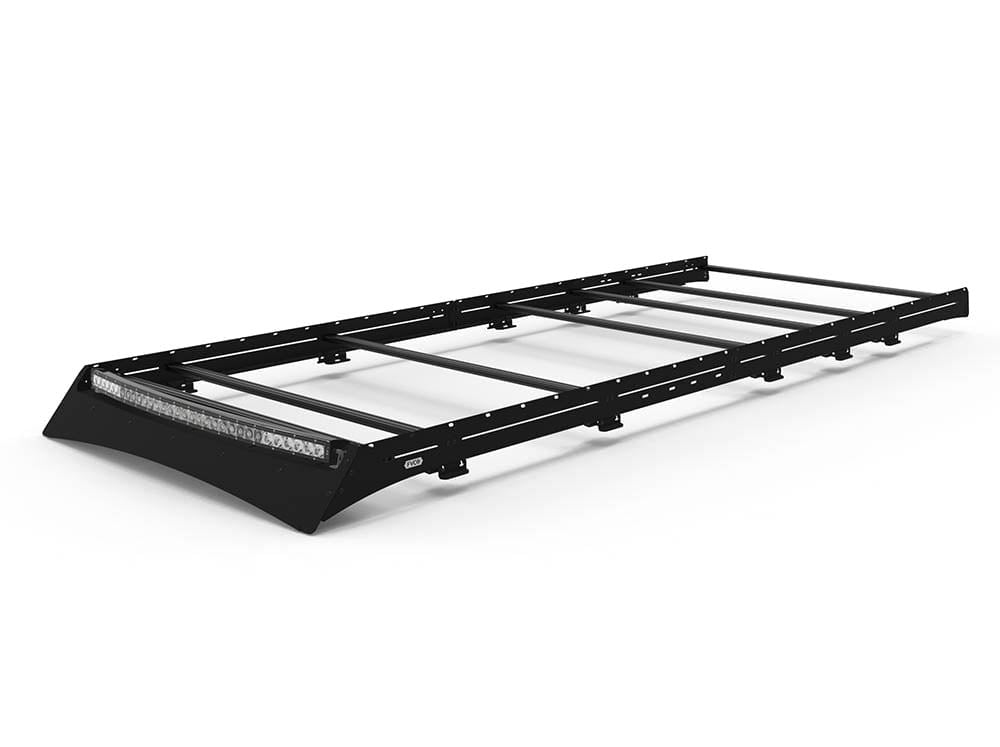

The Flatline Van Co. Low Pro Roof Rack is purpose-built for the 2015-2025 Ford Transit 148" High Roof Extended van - delivering a sleek, aerodynamic profile without sacrificing carrying capacity or versatility. Designed for van lifers, tradespeople, and adventure-seekers who demand quality gear they can rely on, this rack combines lightweight aluminum construction with heavy-duty stainless steel landing pads for a rock-solid, watertight fit. The Light Bar Fairing variant features multiple mounting locations to accommodate most 50" LED light bars or off-road lights, giving you powerful illumination for night driving or worksites.
Seven adjustable 10-series, 80/20-compatible crossbars let you position your load exactly where you need it - shifting forward or backward to clear rooftop fans, AC units, or solar panels. Rubber footer gaskets and sealing washers protect your roof from leaks, and the footers bolt directly to factory Transit roof holes so no drilling or cutting is required. At just 79 pounds total, this rack keeps your handling sharp and your fuel costs down.
Key Features
- Light Bar Fairing: Multiple mounting locations accommodate most 50" LED light bars or off-road lights - light bar not included. Baja Designs ONX6 50" Arc LED Light Bar recommended.
- Total Weight - 79 lbs: All-aluminum side rails and crossbars keep the rack lightweight, improving handling and fuel efficiency versus heavier steel alternatives.
- 12GA 304L Stainless Steel Landing Pads: Formed with dual flanges and a central mounting point to distribute weight to the strongest points on the Transit roof.
- 7x 10-Series 80/20 Compatible Crossbars: Anodized aluminum, fully adjustable forward and backward - ideal for solar panels, fans, AC units, MaxTrax, light bars, and storage boxes.
- Drop-In Hardware Slots: Standard 10-series extrusion crossbars accept drop-in T-nut hardware for fast, tool-free accessory mounting.
- Aluminum Front Wind Fairing: Integrated aerodynamic fairing deflects wind to reduce drag and noise at highway speeds.
- Watertight Installation: Rubber footer gaskets and rubber sealing washers seal all penetrations, keeping your van roof dry.
- Fiamma F45S 350 Awning Compatible: Awning bolts directly to the rack with no modification, drilling, or cutting required - no gap between van and awning.
- FVC Side Ladder Compatible: FVC Transit Side Ladder bolts directly into the pill slots on the side of the Low Pro Roof Rack.
- Fitment: 2015-2025 Ford Transit 150/250/350 | 148" EXT | High Roof; 2023-2024 Transit Trail | 148" EXT | High Roof.
Fairing Options & Which to Choose
- Normal Fairing: The standard aluminum wind fairing provides a clean, aerodynamic front profile to reduce drag and wind noise. Best for builds focused on solar, cargo, or general overland use where rooftop lighting is not a priority. (SKU: TR0102B)
- Fairing with 50" Light Bar Cutout (this listing): Adds multiple mounting locations on the fairing to accept most 50" LED light bars or off-road lights. Ideal for overlanders, off-road adventurers, and tradespeople who need serious forward lighting on the road or on a worksite. Light bar not included. (SKU: TR0119B)
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- Aluminum side rails (pair)
- 7x 10-series anodized aluminum crossbars
- Formed 12GA 304L stainless steel landing pad footers
- Aluminum front wind fairing with 50" light bar cutout
- Stainless steel hardware
- Rubber footer gaskets
- Rubber sealing washers
Why You'll Love It
Flatline Van Co. has earned a reputation among serious van builders and conversion professionals for designing racks that actually make sense in the real world - and the Low Pro is their flagship. At just 79 pounds, it's one of the lightest full-length racks available for the Transit 148" Extended, and the 80/20 crossbar system means you're not locked into a single configuration as your build evolves. The stainless steel footers bolt to factory holes - no drilling, no voided warranties, no leaks - so even first-time DIYers can get a professional result with basic hand tools in a few hours. Backed by 87 customer reviews averaging 4.89 out of 5 stars, this rack has been proven by van lifers, overlanders, and tradespeople across the country. Whether you're mounting solar panels for off-grid power, a Fiamma awning for camp comfort, or an LED light bar for night work, the Low Pro is engineered to grow with your build for the life of your van.
Product Specifications
View Product Specs
| Fitment | 2015-2025 Ford Transit 150/250/350 | 148" EXT | High Roof; 2023-2024 Transit Trail | 148" EXT | High Roof |
|---|---|
| Total Rack Weight | 79 lbs |
| Side Rail & Crossbar Material | Lightweight aluminum, powder-coated black |
| Crossbar Type | 10-series anodized aluminum, 80/20 compatible |
| Number of Crossbars | 7 |
| Landing Pad Material | Formed 12GA 304L stainless steel with dual flanges |
| Hardware Material | Stainless steel |
| Fairing Style | Aluminum front wind fairing with 50" light bar cutout |
| Light Bar Compatibility | Most 50" LED light bars or off-road lights |
| Awning Compatibility | Fiamma F45S 350 (no modification required) |
| Ladder Compatibility | FVC Transit Side Ladder |
| SKU | TR0119B |
Manuals & Guides
- Low Pro Rack with Normal Fairing Installation Guide
- Low Pro Rack with Light Bar Fairing Installation Guide
FAQ
Does this rack fit my 2023 or 2024 Ford Transit Trail?
Yes! The Low Pro Roof Rack is confirmed to fit the 2023-2024 Ford Transit Trail in the 148" Extended High Roof configuration, in addition to the standard 2015-2025 Transit 150/250/350 148" EXT High Roof models.
Does the light bar fairing come with a light bar?
No, the light bar is not included. The fairing is designed to accommodate most 50" LED light bars or off-road lights. Flatline Van Co. recommends the Baja Designs ONX6 50" Arc LED Light Bar as a compatible option.
Will installing this rack void my van's warranty or require drilling new holes?
No drilling is required. The stainless steel footers bolt directly to the factory pre-drilled roof holes on the Ford Transit, so there is no modification to the van's body structure. The rubber footer gaskets and sealing washers maintain a watertight seal.
Can I install this rack by myself?
Yes. The Low Pro Roof Rack is designed with DIY installers in mind and can be installed with basic hand tools in a few hours. A full installation guide PDF is included with this listing, and video instructions are available on the Flatline Van Co. YouTube channel.
Are the crossbars adjustable, and can I add more?
Yes - the seven crossbars can be moved forward or backward along the side rails to accommodate rooftop fans, AC units, solar panels, and other accessories. Additional crossbars are sold separately as a 2-pack if you need more mounting positions.
Is this rack compatible with the Fiamma F45S awning?
Yes. The Fiamma F45S 350 awning bolts directly to the Low Pro Roof Rack with no drilling, cutting, or modification required. The rack was designed with the awning in mind, ensuring there is no gap between the van roof and the bottom of the awning.
What is the difference between the 2015-2025 and 2026+ model year versions?
Ford updated the Transit body for the 2026 model year, which changed the roof mounting geometry. Flatline Van Co. offers separate landing pad kits engineered for each generation. Be sure to select the correct model year range - 2015-2025 or 2026+ - when ordering to ensure a proper fit.
