EQ Smart-Level Hydraulic Leveling System Mercedes Sprinter Chassis 2019-2022
Description
The EQ Smart-Level Hydraulic Leveling System is a complete, automatic hydraulic leveling solution engineered specifically for Class B+ and Class C motorhomes built on the Mercedes Sprinter 3500 cutaway chassis from 2019 to 2022. This patented system (Pat. 12,319,247) installs without any modifications to the frame rail - no cutting, no drilling, and no welding required - making it one of the most installation-friendly leveling kits on the market. Clamp-on and box-bolt brackets are included so you can mount the jack legs and hydraulic pump with confidence and precision.
Backed by the same technology trusted by leading RV manufacturers, the EQ Smart-Level delivers level accuracy to within 1/2 degree through a sequential leveling process that keeps the coach as low to the ground as possible. Bluetooth connectivity lets you level your coach from your smartphone, and one-touch operation means you spend less time setting up and more time enjoying your destination. Whether you're a weekend camper or a full-time traveler, this system sets the standard for on-the-road leveling performance.
Key Features
- Patented No-Modification Install: Pat. 12,319,247 - installs on the Sprinter 3500 cutaway chassis with no cutting, drilling, or welding to the frame rail.
- 13-Inch Stroke Jacks: Front and rear jacks with a 13-inch stroke for reliable, stable leveling on varied terrain.
- Bluetooth Smartphone Control: Level your coach directly from your phone - compatible with both iPhone and Android via the EQ Systems app.
- One-Touch Push Button Operation: Fully automatic leveling at the press of a button - simple, fast, and stress-free.
- Level Accuracy to 1/2 Degree: Field-adjustable null point lets you set the exact level position you want, with precision within 1/2 degree.
- Single Pump Powers All Legs: One complete hydraulic pump operates all jack legs and can be mounted virtually anywhere on the coach.
- Audible and Visual Alerts: Prompts notify you when leveling is in progress and when it's complete, plus drive-off warnings to protect the system.
- Auto All Retract: Quickly stows all legs with a single command before hitting the road.
- Manual Override Options: Multiple manual override methods available for added peace of mind in any situation.
- 12-Volt System: Runs on standard 12V power; requires a minimum of 150 amperes at 10.5 VDC for proper operation.

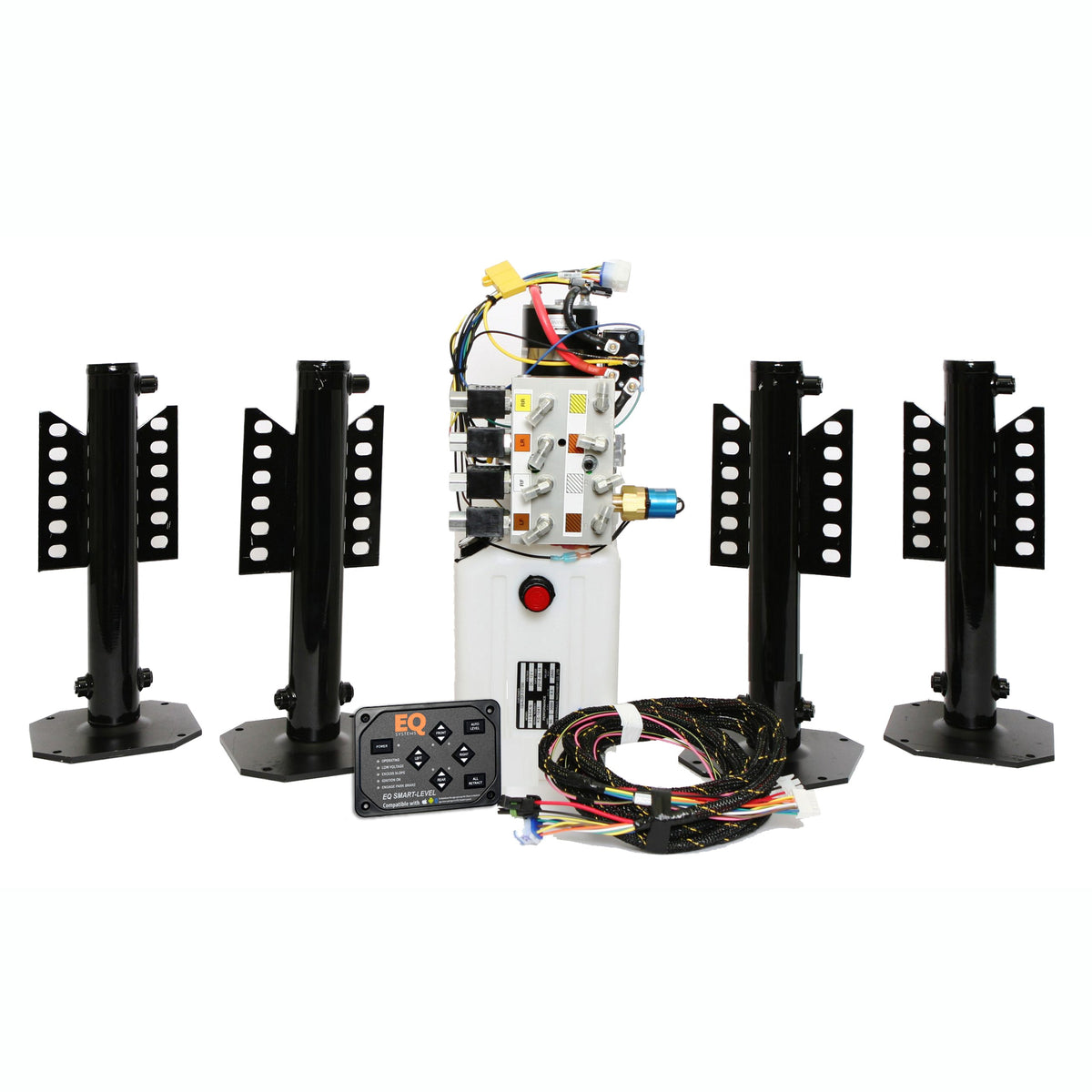

What's Included
- 13-inch stroke front and rear hydraulic jack legs
- Complete hydraulic pump with manual override
- EQ Smart-Level control panel
- All required wire harnesses and hydraulic hoses
- All necessary mounting brackets and hardware (clamp-on and box-bolt brackets for jack legs, pump mounting bracket)
Why You'll Love It
The EQ Smart-Level is the same system relied upon by leading RV manufacturers, so you're getting factory-grade quality in a kit designed for real-world installation. The patented no-drill, no-cut, no-weld mounting system means a cleaner install with no risk of voiding chassis warranties or compromising frame integrity. Bluetooth operation and one-touch automation make leveling faster and easier than ever, eliminating the guesswork and manual effort that used to come with setting up camp. The sequential leveling process keeps your coach lower to the ground for better stability, and the precise null-point adjustment ensures you get the exact level position every time. With audible drive-off alerts and Auto All Retract, the system actively protects your investment from costly mistakes. For RV owners and custom coach builders who demand reliability and precision, the EQ Smart-Level is a clear choice.
Product Specifications
View Product Specs
| Compatible Chassis | Mercedes Sprinter 3500 Cutaway |
|---|---|
| Compatible Years | 2019-2022 |
| Compatible Coach Types | Class B+ and Class C Motorhomes |
| Jack Stroke | 13 inches (front and rear) |
| System Voltage | 12 Volt DC |
| Minimum Battery Requirement | 150 amperes at 10.5 VDC for at least 30 seconds |
| Minimum Operating Voltage | 11 volts at control panel; Auto-Level stops at 10.5 volts |
| Leveling Accuracy | Within 1/2 degree of set null point |
| Connectivity | Bluetooth (iPhone and Android compatible) |
| Hydraulic Fluid | Dexron III ATF |
| Hose Lengths | Available from 4 to 40 feet in 2-foot increments |
| Patent | Pat. 12,319,247 |
| SKU | 8757UPSA |
| Frame Modification Required | None - no cutting, drilling, or welding |
FAQ
Will this system fit my Sprinter-based motorhome?
This system is designed for Class B+ and Class C motorhomes built on the Mercedes Sprinter 3500 cutaway chassis from 2019 to 2022. EQ Systems strongly recommends confirming fitment before ordering - you can email getlevel@eqsystems.us or call 800-846-9659 to verify compatibility with your specific build.
Do I need to drill or modify my chassis to install this system?
No. The EQ Smart-Level Sprinter system is patented specifically because it requires no alterations to the frame rail. It uses clamp-on and box-bolt brackets for the jack legs and a dedicated bracket for the hydraulic pump, so installation is clean and non-destructive.
What kind of battery do I need to run this system?
EQ Systems requires a battery capable of delivering a minimum of 150 amperes at 10.5 VDC for at least 30 seconds. Voltage at the control panel must not drop below 11 volts during operation. Note that some lithium batteries cannot deliver the running amperage these pumps require, so it is important to load-test your battery before installation.
Can I control the leveling system from my smartphone?
Yes. The EQ Smart-Level includes Bluetooth capability and is compatible with the EQ Systems app on both iPhone and Android devices. This lets you monitor and control the leveling process from outside the coach. Note that the previous EQ Systems app is no longer supported - be sure to download the new EQ Systems app.
What hydraulic fluid does the system use?
The system uses Dexron III ATF (automatic transmission fluid). After installation, fill the reservoir to about one inch below the top with the jacks fully retracted, keeping in mind that the fluid level will rise as the jacks retract. Replace the shipping plug with the included vented breather cap before operating the system.
Can the hose lengths be customized for my coach layout?
Yes. The kit ships with hose lengths based on EQ Systems' fitment guide for this chassis. If your pump or jack placement differs from the standard layout, you can specify the lengths you need in the order notes or call EQ Systems at 800-846-9659 before placing your order. Hoses are available from 4 to 40 feet in 2-foot increments.
