EQ Smart-Level Hydraulic Leveling System Mercedes Sprinter Chassis 2018 & Older

Description

The EQ Smart-Level Hydraulic Leveling System is a complete, automatic hydraulic leveling solution purpose-built for Class B+ and Class C motorhomes on the Mercedes Sprinter 3500 cutaway chassis from 2018 and older. Engineered by EQ Systems - a trusted name in RV leveling technology - this kit delivers the same precision performance used by leading RV manufacturers, now packaged as an installer-friendly kit. The patented Sprinter-specific design (Pat. 12,319,247) is a standout: no cutting, no drilling, and no welding to the frame rail is required, thanks to included clamp-on and box-bolt brackets.

Bluetooth connectivity allows you to level your coach from your smartphone, while one-touch push-button operation keeps the process simple and fast for any driver. With level accuracy to within 1/2 degree and sequential leveling logic that keeps the vehicle as low to the ground as possible, this system is built for serious RV owners who demand reliability on every trip.

Key Features

• Patented No-Drill Installation: Clamp-on and box-bolt bracket system requires no cutting, drilling, or welding to the Sprinter frame rail - Pat. 12,319,247.
• 13-Inch Stroke Jacks: Front and rear jacks with a 13-inch stroke provide substantial lift range for a wide variety of terrain.
• Bluetooth Capability: Level your coach wirelessly from your phone - compatible with both iPhone and Android via the EQ Systems app.
• One-Touch Push Button Operation: Fully automatic leveling at the press of a button - no manual adjustments needed.
• Level Accuracy to 1/2 Degree: Field-adjustable null point lets you set the exact level position you want, with the system maintaining it to within 1/2 degree.
• Single Pump Design: One pump operates all legs and can be mounted virtually anywhere on the coach for flexible installation.
• Audible & Visual Prompts: Alerts notify you when leveling is in progress and when it is complete, plus drive-off warnings help prevent accidental departure with jacks deployed.
• Auto All Retract: Quickly stows all legs simultaneously for fast departure.
• Manual Override Options: Multiple manual override methods ensure you are never stranded if electronic controls are unavailable.
• 12-Volt System: Runs on the coach's 12V DC electrical system - requires a battery capable of delivering a minimum of 150 amperes at 10.5 VDC for at least 30 seconds.

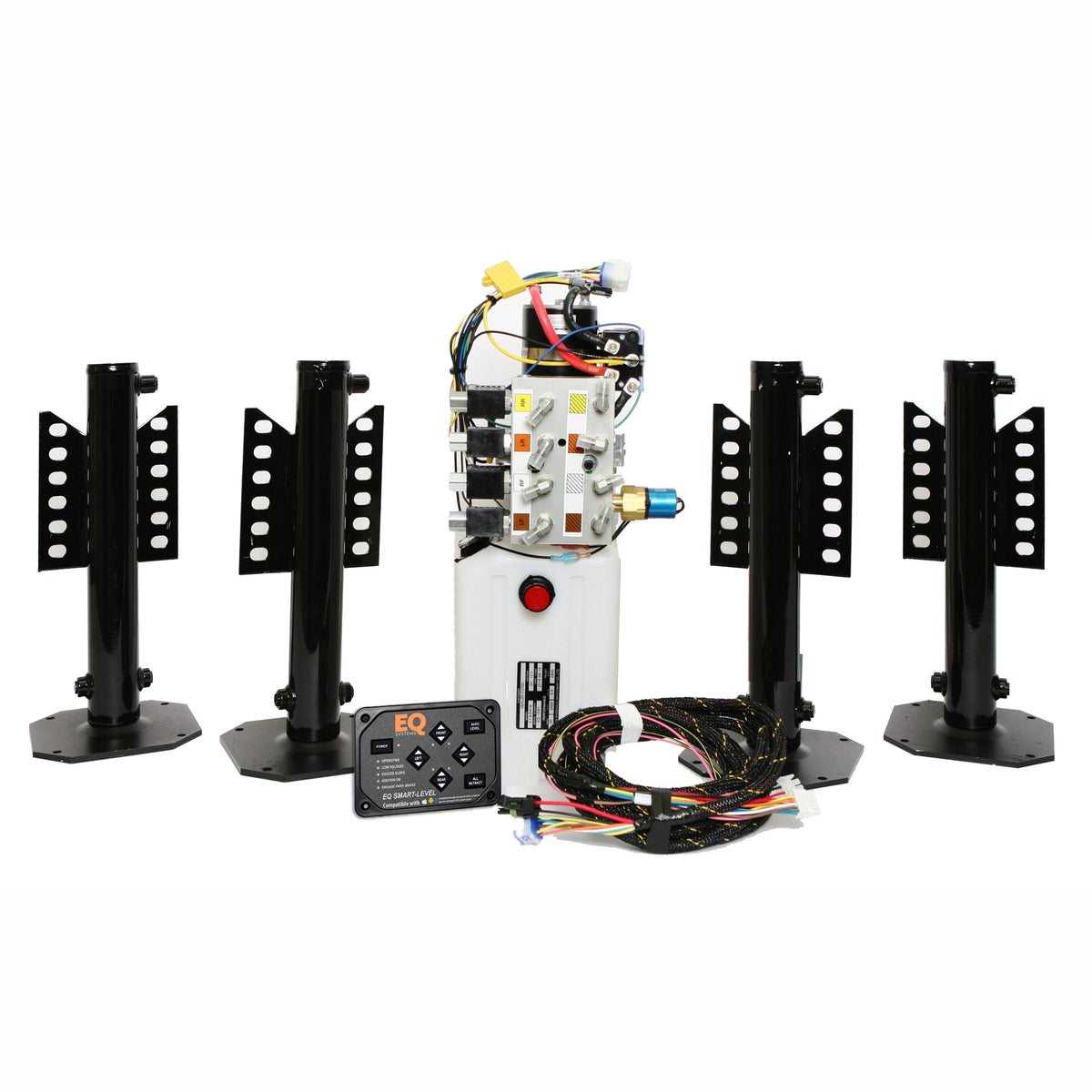

What's Included

• 13-inch stroke front and rear hydraulic jack legs
• Complete hydraulic pump with manual override
• EQ Smart-Level control system
• All required wiring harnesses and hydraulic hoses
• All necessary mounting brackets and hardware (clamp-on and box-bolt jack brackets, hydraulic pump bracket)

Why You'll Love It

EQ Systems has been a go-to supplier for professional RV manufacturers for years, and this kit brings that same factory-grade leveling technology directly to dealers and installers. The no-drill, clamp-on bracket system makes installation straightforward and preserves the integrity of your Sprinter chassis - a detail that matters for both resale value and long-term durability. Bluetooth leveling via the EQ Systems app means your customers can manage the entire process from their phone, making campsite setup faster and more enjoyable than ever. Sequential leveling logic keeps the coach stable and low, reducing stress on the jacks and the vehicle frame over years of use. With audible and visual drive-off warnings built in, the system adds a meaningful layer of safety that RVers will appreciate on every trip. Whether you are outfitting a new build or upgrading an existing Sprinter-based motorhome, this system is engineered for years of dependable, precise performance.
