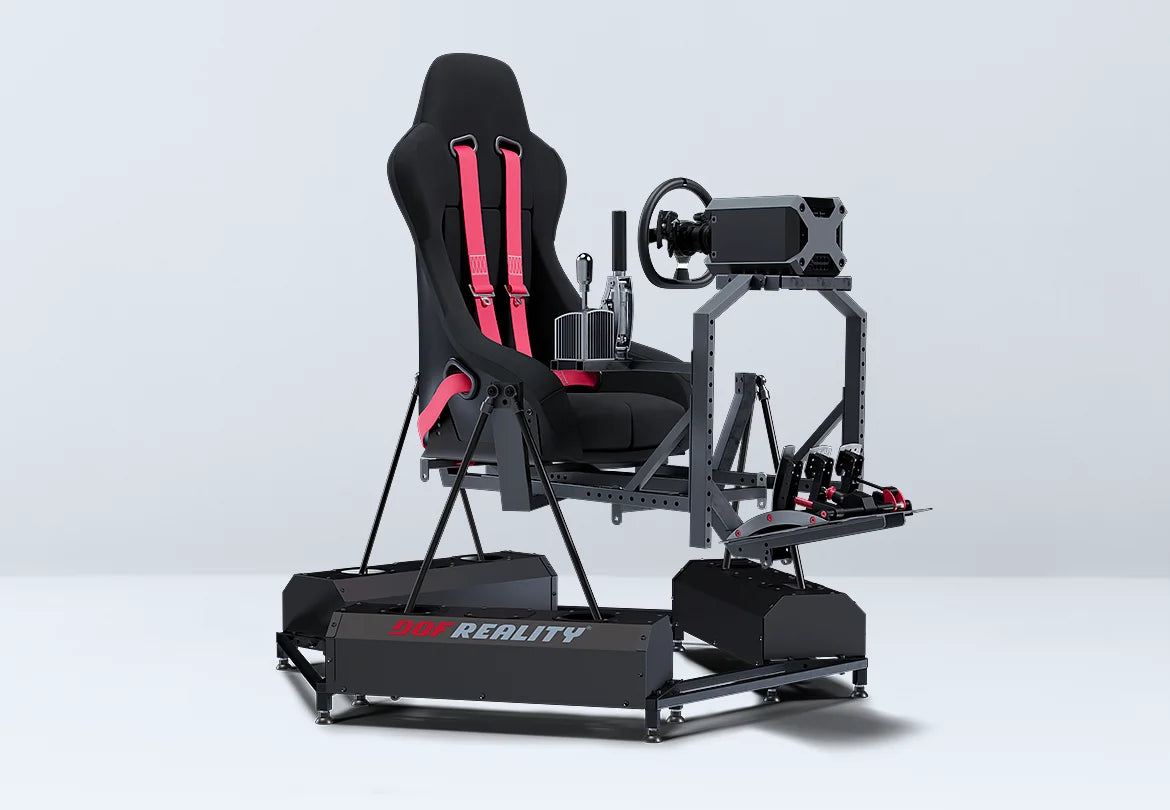

DOF Reality H6 Hero 6-Axis Racing Motion Simulator Platform
Pairs well with
FREE Shipping!
DOF Reality H6 Hero 6-Axis Racing Motion Simulator Platform
Description

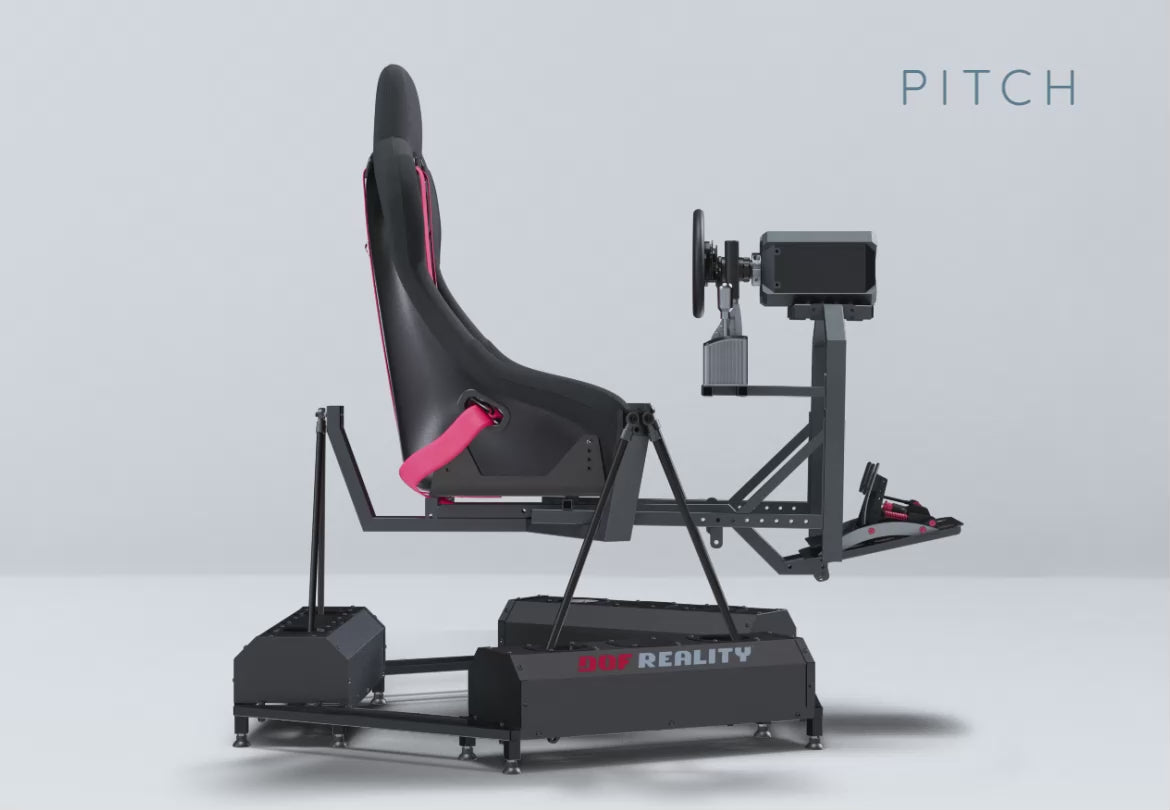

The DOF Reality H6 Hero is the ultimate six-axis motion simulator platform, engineered to deliver the most lifelike racing simulation experience available. Designed for serious sim racers who demand true immersion, the H6 reproduces all six degrees of freedom - pitch, roll, yaw, heave, sway, and surge - so every acceleration, brake, drift, and collision is felt through your entire body. Unlike platforms that merely tilt a seat, the H6 genuinely simulates g-forces through muscle pressure points, making understeer, oversteer, and traction loss all feel distinctly different.
Built from commercial-grade steel profiles and powered by integrated drive motors, the H6 is as durable as it is precise. The included SimRacingStudio software delivers real-time telemetry feedback from your favorite titles - road texture, bumps, gear changes, vibrations, and more - tuned to your exact preferences. Whether you're lapping in iRacing, chasing the perfect lap in Assetto Corsa, or racing in F1 25, the H6 puts you in the driver's seat like nothing else on the market.
Key Features
- 6 Degrees of Freedom: Full 6DOF motion - pitch, roll, yaw, surge, sway, and heave - simulates every real-world movement a driver experiences.
- True G-Force Simulation: Accelerations are genuinely simulated, not just replicated by tilting; understeer, oversteer, and drifts each feel distinct.
- Range of Motion - 17 degrees: Wide motion envelope captures the full dynamic range of racing inputs for maximum immersion.
- Speed - 50 cm/s (86 degrees/s): Fast actuator response ensures motion cues are delivered in real time with your driving inputs.
- Torque - 28 Nm: High-torque motors handle demanding maneuvers and support a maximum pilot weight of 375 lbs (170 kg).
- Commercial-Grade Steel Construction: Built from heavy-duty metal profiles for long-lasting durability in home and commercial sim environments.
- SimRacingStudio Software Included: Precision in-game telemetry feedback simulates road texture, bumps, vibrations, gear changes, collisions, and more.
- Broad Game Compatibility: Works with iRacing, Assetto Corsa, Automobilista, F1 22-25, Forza Horizon, Gran Turismo 7, BeamNG.drive, rFactor 2, and many more.
- PlayStation & Xbox Compatible: Console Link accessory (sold separately) enables motion for supported console titles.
- 1-Year Full Warranty + 24/7 Support: Backed by a full one-year manufacturer warranty and around-the-clock customer support.
- Highly Customizable: Over 15 accessories and options available including seats, harnesses, wheel/pedal bundles, monitor mounts, and more.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
Important shipping note: The H6 ships in two heavy-duty boxes (approximately 133 lbs and 144 lbs each). This is a large, freight-class shipment - not a standard parcel. Delivery is handled via FedEx or DHL Express door-to-door with full tracking and insurance. Typical delivery time is 3-4 weeks. Assembly is required upon arrival; the process is straightforward and tools are included.
What's Included
- H6 Hero 6-Axis Motion Platform (ships in 2 boxes)
- Rigid metal motors covers
- Metal rig for normal and F1 pose
- Mounts for seat or sliding rails
- Integrated power drive motors
- 100-240V control unit with USB
- SimRacingStudio software license
- Quick assembly tools and all necessary cables
- 1-year full warranty
Note: Seat, VR headset, and controllers (wheel, pedals, shifter) are not included and must be purchased separately. Games are not included.
Why You'll Love It
The DOF Reality H6 Hero has earned its reputation as the gold standard in consumer motion simulation since the company's founding in 2014. Trusted by flight instructors, professional racing enthusiasts, and hardcore sim racers worldwide, this platform delivers an experience that genuinely rivals a real cockpit. The commercial-grade steel construction means it's engineered to handle years of daily use without losing precision or rigidity. Every component - from the high-torque motors to the telemetry-driven software - is purpose-built to make your lap times feel earned and your crashes feel real. With 24/7 support, a full manufacturer's warranty, and a thriving community of H6 owners behind it, you're not just buying a sim rig - you're investing in an experience that will keep you coming back to the seat again and again.
Product Specifications
View Product Specs
| Degrees of Freedom | 6DOF (Pitch, Roll, Yaw, Surge, Sway, Heave) |
|---|---|
| Full Platform Motion | Yes |
| Range of Motion | 17 degrees |
| Speed | 50 cm/s (86 degrees/s) |
| Torque | 28 Nm |
| Acceleration | 0.5G all directions |
| Power Consumption | 1500 Watt (peak) |
| Shipping Box 1 Weight | 133 lbs / 60 kg (32 x 28 x 12 in / 80 x 70 x 30 cm) |
| Shipping Box 2 Weight | 144 lbs / 65 kg (32 x 28 x 12 in / 80 x 70 x 30 cm) |
| Floor Footprint | 4 x 5 ft, 2 ft H (120 x 150 cm, 60 cm H) |
| Material | Commercial grade metal profiles |
| Max Supported Pilot Weight | 375 lbs / 170 kg |
| Warranty | Full 1 year |
| Assembly Required | Yes - tools included, ships in 2 boxes |
| Control Unit | 100-240V with USB |
Manuals & Guides
FAQ
Does the H6 require assembly?
Yes, the H6 requires assembly upon delivery. It ships in two boxes to make door-to-door delivery manageable. The assembly process is straightforward and all necessary tools are included in the package. DOF Reality also provides instructions and video guides to walk you through setup. Most customers report the build takes a few hours and is a rewarding part of the experience.
What do I need to buy separately to use the H6?
The H6 platform includes the motion rig, motors, control unit, software license, and cables - but you will need to source your own seat, VR headset (optional), and controllers such as a steering wheel, pedals, and shifter. Racing games are also not included. DOF Reality's team is available via email or phone to help you select the best components for your setup, and a wide range of optional accessories are available at checkout.
Will the H6 work with PlayStation or Xbox?
Yes, with the optional Console Link accessory (available separately for $199), the H6 can be used with select PlayStation and Xbox titles that transmit motion data via UDP over the network. Compatible console games include Gran Turismo 7, Project CARS 1 and 2, Assetto Corsa, F1 series, and Forza Horizon 4 and 5. For the widest game compatibility, PC is recommended.
Can I use a VR headset with the H6?
Absolutely. The H6 is compatible with any VR headset. When combining VR with a motion platform, motion cancellation/compensation software is recommended to prevent the platform's movement from conflicting with the VR image. DOF Reality provides guides for HTC and OpenVR motion cancellation setups, and SimRacingStudio (included) supports motion compensation as well.
What games are compatible with the H6?
The H6 is compatible with a wide range of racing and simulation titles including iRacing, Assetto Corsa and Competizione, Automobilista 1 and 2, Le Mans Ultimate, F1 22-25, Forza Horizon 4 and 5, Gran Turismo 7, Project CARS 1-3, Wreckfest, BeamNG.drive, rFactor 2, GRID 2019, and many more. The SimRacingStudio software handles telemetry integration for all supported titles.
How long does delivery take and how is it shipped?
The H6 is shipped in two heavy-duty boxes via FedEx or DHL Express door-to-door with full tracking and insurance. Typical delivery time is 3-4 weeks from order. This is a large, commercial-weight shipment - each box weighs approximately 133-144 lbs - so plan accordingly for receiving the delivery. One person can manage the boxes, but having a helper on hand for moving them is recommended.
