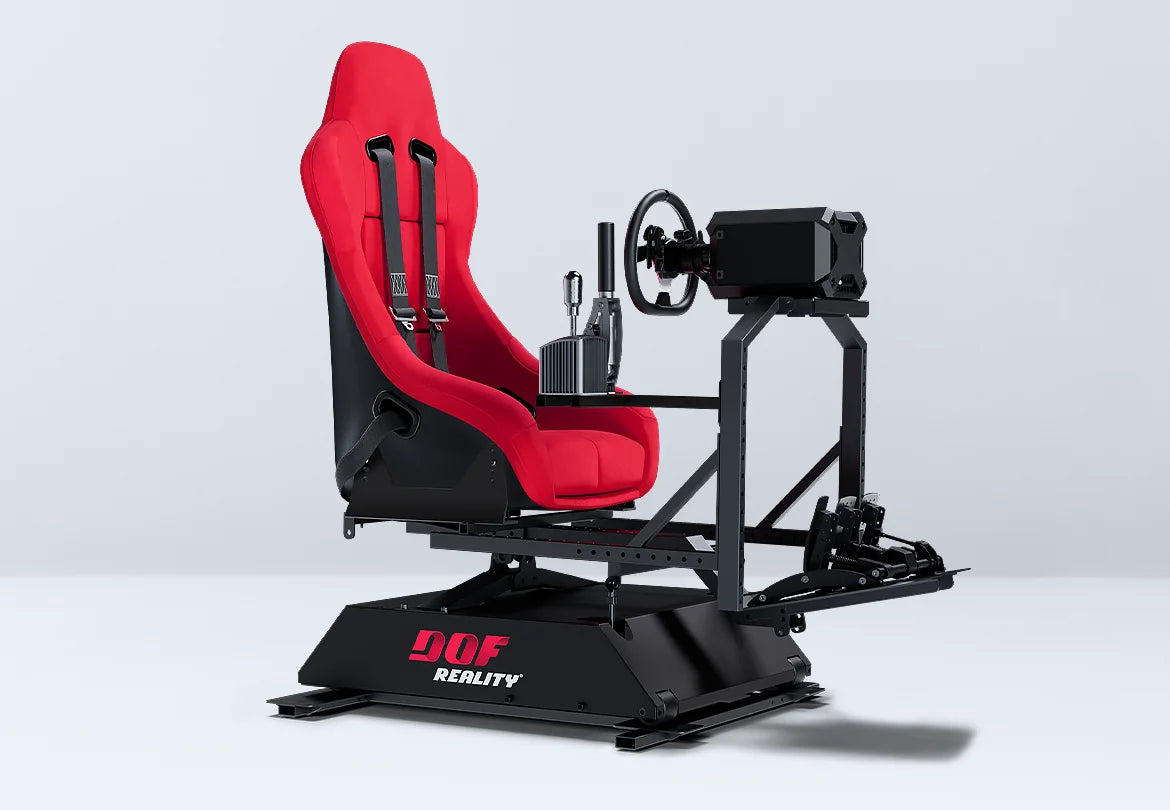

DOF Reality H3 Hero Racing Motion Simulator Platform - 3-Axis
Pairs well with
FREE Shipping!
DOF Reality H3 Hero Racing Motion Simulator Platform - 3-Axis
Description
The DOF Reality H3 Hero is a true 3-axis motion simulator platform engineered to deliver the most realistic racing experience available in its class. Purpose-built for serious sim racers, it delivers pitch, roll, and yaw with a dedicated rear traction loss system that accurately replicates understeer, oversteer, and drifting - sensations no ordinary rig can match. Constructed from commercial-grade steel profiles, the H3 is built to withstand years of intense use whether in a home cockpit setup or a commercial entertainment venue. Compatible with the full SimRacingStudio software suite, it translates live telemetry data from your game into precise physical movement, including road bumps, gear changes, vibrations, and collisions. Whether you race in iRacing, Assetto Corsa, Gran Turismo 7, F1, Forza, or BeamNG.drive, the H3 transforms every session into a visceral, full-body experience.
DOF Reality has been a pioneer in affordable motion simulation since 2014, trusted by gamers and commercial simulation businesses worldwide. The H3 ships ready to assemble with all cables, a SimRacingStudio license, and integrated power drive motors - so you can be moving in your first session. All controllers, including wheels, pedals, and monitors, move with the seat for authentic g-force simulation through muscle pressure points, just like in a real racing car.
Key Features
- 3 Degrees of Freedom (Pitch + Roll + Yaw/Rear Traction): Full platform motion across all three axes delivers true simulation of acceleration, braking, cornering, understeer, oversteer, and drifting.
- Rear Traction Loss System: A unique yaw actuator simulates the independent rear-end movement of a real car - faithfully replicating drifts and traction loss scenarios distinct from any competitor.
- 20-Degree Range of Motion: Wide articulation range captures the full dynamic envelope of racing inputs for a deeply immersive feel.
- 50 cm/s (86 deg/s) Speed & 25 N/m Torque: Fast, precise actuator response ensures real-time tracking of in-game telemetry without lag or overshoot.
- Commercial-Grade Steel Frame: Built from heavy-duty metal profiles rated to support up to 330 lbs (150 kg) pilot weight for long-term durability.
- SimRacingStudio Software License Included: Translates live game telemetry - road texture, gear changes, vibrations, collisions - into precise platform motion across iRacing, AC, GT7, F1, Forza, BeamNG.drive, and many more.
- Full Cockpit Motion: Wheel, pedals, shifter, and monitor all move with the seat - simulating real g-forces through muscle pressure points for authentic immersion.
- Universal Seat & Controller Compatibility: Mounts support standard bottom-mount car seats, sliding rails, and all major wheels, pedals, joysticks, and VR headsets.
- 110/240V Plug-and-Play Control Unit: Auto-switching power supply with USB connectivity makes setup straightforward in any country.
- 1-Year Full Warranty: Comprehensive manufacturer warranty with 24/7 support included for complete peace of mind.
- Upgradeable to H6: The H3 platform is designed to be upgraded to the 6-axis H6 configuration as your sim racing ambitions grow.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
Shipping Note: The H3 ships in two boxes via FedEx or DHL Express door-to-door with full tracking and insurance. Box 1: 78 lbs (37 x 15 x 11 in). Box 2: 97 lbs (32 x 24 x 10 in). Delivery typically takes 3-4 weeks. Assembly is required upon arrival - tools are included.
What's Included
- H3 Hero 3-Axis Motion Platform (rigid metal rig, normal and F1 pose compatible)
- Mounts for seat or sliding rails
- Mounts for wheel, pedals, and shifter
- Integrated power drive motors
- 100-240V control unit with USB
- SimRacingStudio software license
- All necessary cables
- Quick assembly tools
- 1-year full warranty
Note: Seat, VR headset, wheel, pedals, and games are NOT included and must be purchased separately.
Why You'll Love It
The DOF Reality H3 Hero stands apart from passive cockpits and vibration-only rigs by delivering true full-body motion that puts you in the race, not just in front of it. Its rear traction loss system is a genuine engineering differentiator - no other platform at this price point so accurately distinguishes between a controlled drift and a snap oversteer. Trusted by sim racing enthusiasts and commercial venue operators around the world, the H3 is engineered for years of dependable, high-intensity use without compromise. DOF Reality's decade-long track record in the motion simulation industry means you're backed by a company that stands behind its products with real support and a solid warranty. The platform's upgradeable architecture means your investment grows with you - start with the H3 and expand to 6-axis H6 performance when you're ready. For sim racers who want to feel every apex, every kerb, and every slide, the H3 Hero is the platform that delivers.
Product Specifications
View Product Specs
| Degrees of Freedom | 3 DOF (Pitch + Roll + Yaw/Rear Traction) |
|---|---|
| Full Platform Motion | Yes |
| Range of Motion | 20 degrees |
| Speed | 50 cm/s (86 deg/s) |
| Torque | 25 N/m |
| Acceleration | 0.7G Transverse / 0.5G Longitudinal |
| Power Consumption | 750 Watt (peak) |
| Control Unit | 100-240V with USB |
| Floor Footprint | 3x5 ft, 2 ft H (100x150 cm, 60 cm H) |
| Frame Material | Commercial grade metal profiles |
| Max Supported Pilot Weight | 330 lbs / 150 kg |
| Box 1 Weight (Dims) | 78 lbs - 37 x 15 x 11 in (35 kg - 94 x 38 x 28 cm) |
| Box 2 Weight (Dims) | 97 lbs - 32 x 24 x 10 in (44 kg - 80 x 60 x 25 cm) |
| Assembly Required | Yes - tools included, ships in 2 boxes |
| Shipping Method | FedEx or DHL Express, door-to-door, fully tracked and insured |
| Warranty | 1-year full warranty |
| Upgradeable To | H6 (6-Axis) |
Manuals & Guides
FAQ
Does the H3 work with PlayStation and Xbox?
Yes, the H3 is compatible with select PlayStation and Xbox titles that output motion data via UDP over the network. Supported games include Gran Turismo 7, GT Sport, Project CARS 1 & 2, Assetto Corsa, F1 series, Forza Motorsport 7, and Forza Horizon 4 & 5. A Console Link add-on is available for $199 to enable console motion output. For PC gaming, compatibility extends to a much wider library through SimRacingStudio.
Do I need to buy a seat separately?
Yes, the H3 platform does not include a seat. Almost any standard bottom-mount car seat or racing bucket seat works. DOF Reality recommends a bucket racing seat with a 4- to 6-point harness for safety during high-G motion. Lighter seats improve platform responsiveness. Optional DOF Reality and Sparco seats are available as add-ons. Seat mounts accept widths of 345 mm, 375 mm, or 405 mm.
Does it come pre-assembled?
The H3 ships in two boxes and requires assembly, but it is designed to be straightforward and enjoyable to put together. All quick assembly tools are included in the box. Assembly allows you to customize the rig to your personal preferences and position. Most customers complete assembly without any special mechanical skills.
Will the H3 work with my VR headset?
Yes, the H3 is compatible with all VR headsets. For most users, the platform motion has minimal impact on the VR image. If you find the motion too intense in VR, you can reduce the platform intensity in SimRacingStudio, or use OpenVR Motion Compensation software to remove platform movement from the VR image for a smoother experience. Both inside-out and base station tracking headsets are supported.
Can I upgrade the H3 to a higher axis count later?
Yes. The H3 is specifically designed to be upgradeable to the H6 6-axis platform. This means your initial investment is protected - you can start with 3 axes and expand your motion simulation capabilities as your budget and goals evolve. Contact DOF Reality or our team for details on the upgrade path.
Which racing games are compatible with the H3?
The H3 works with a wide range of popular racing titles including iRacing, Assetto Corsa, Assetto Corsa Competizione, Assetto Corsa EVO, Automobilista 1 & 2, Le Mans Ultimate, F1 22-25, Forza Horizon 4 & 5, Forza Motorsport (2023 & 7), Gran Turismo 7 & Sport, Project CARS 1-3 PRO, Wreckfest, Wreckfest 2, BeamNG.drive, rFactor 2, GRID 2, GRID 2019, and many more via SimRacingStudio software.
What optional accessories are available for the H3?
Over 20 options and accessories are available, including extended warranty, DOF Reality and Sparco racing seats, 4-point harnesses, monitor mounts, MOZA direct drive wheel bundles, Console Link for PS/Xbox, eBreak stop button, SRS UShake 6 haptics, SRS Hurricane Wind Package, HOTAS mounts for flight, transportation wheels, cable extension sets, and more. Accessories can be added at the time of purchase or ordered separately afterward.
