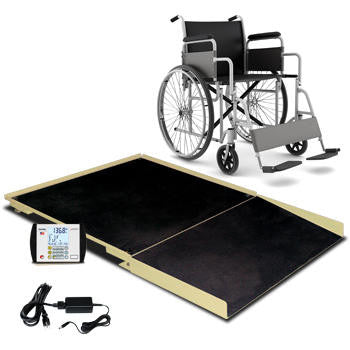

Detecto FHD Floor Scale 3' x 3', 1,000 lb Capacity with Ramp and MV1 Indicator
Pairs well with
FREE Shipping!
Questions? Ask our Experts
Our product specialists are here for you, just leave us a message!
Detecto FHD Floor Scale 3' x 3', 1,000 lb Capacity with Ramp and MV1 Indicator
Description
The Detecto FHD Series Floor Scale is a heavy-duty, clinical-grade weighing solution built for healthcare facilities, rehabilitation centers, and medical offices that need reliable, high-capacity patient weighing every day. Its large, slip-resistant, low-profile platform comfortably accommodates walk-on patients, wheelchair users, straight-legged chair patients, and walker users - making it a versatile choice for any clinical environment. The 3' x 3' (36" x 36") platform delivers a robust 1,000 lb / 450 kg capacity, handling even the most demanding bariatric weighing needs.
The included MV1 MedVue weight indicator features a large LCD display, a user-friendly numeric keypad for entering wheelchair tare weights, and EMR/EHR ready output through serial, USB, or optional Ethernet ports - making it easy to connect directly to printers or electronic health record systems. A 28.5-inch access ramp and a 15-foot indicator cable are included, and an AC adapter is also provided with this configuration. This scale is designed for top-of-floor installations, delivering accurate, repeatable results in busy clinical settings.
Key Features
- 1,000 lb / 450 kg Capacity: Handles a wide range of patient weights, including bariatric use cases.
- 3' x 3' (36" x 36") Low-Profile Platform: Slip-resistant surface accommodates walk-on patients, wheelchairs, walkers, and straight-legged chairs.
- MV1 MedVue Indicator Included: Large LCD display with 5-digit, 7-segment readout for clear, easy-to-read weight values.
- Wheelchair Tare Entry: Numeric keypad allows staff to enter wheelchair or equipment tare weights for net patient weight readings.
- EMR/EHR Ready: Serial and USB output ports standard; optional Ethernet and Wi-Fi connectivity available for seamless integration with electronic health records.
- 28.5" Access Ramp Included: Integrated ramp provides smooth, safe patient access for mobility-limited individuals and wheelchair users.
- 15 ft Indicator Cable Included: Extended cable allows flexible placement of the indicator away from the platform.
- AC Adapter Included: Convenient AC power operation for permanent installation settings.
- Top-of-Floor Installation: Designed for surface-level placement - no pit installation required.
- Ships via Freight: Heavy-duty construction weighing 315 lbs, delivered by freight carrier.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- Detecto FHD Series Floor Scale platform (3' x 3' / 36" x 36")
- MV1 MedVue weight indicator
- 28.5-inch access ramp
- 15-foot indicator cable
- AC adapter
Why You'll Love It
The Detecto FHD Floor Scale is trusted by healthcare and rehabilitation professionals nationwide for its rugged build quality and clinical-grade accuracy. Built by Cardinal Detecto - one of the most recognized names in professional medical weighing - this scale is engineered to hold up under the rigors of daily clinical use without sacrificing accuracy or ease of use. The EMR/EHR connectivity means your team can document patient weights directly into your records system, reducing manual data entry errors and saving valuable staff time. The wide, slip-resistant platform and included ramp make every weigh-in safer and more accessible for patients of all mobility levels. Whether you are outfitting a bariatric clinic, a physical therapy center, or a busy hospital ward, the FHD delivers the dependability and capacity that facilities managers and clinical staff demand. Invest with confidence knowing you are getting a professional-grade scale built to last for years of heavy daily use.
Product Specifications
View Product Specs
| Platform Size | 36" x 36" (3' x 3') |
|---|---|
| Weight Capacity | 1,000 lb / 450 kg |
| Ramp Length | 28.5" (72 cm) |
| Indicator Cable Length | 15 ft (4.5 m) |
| Display | 5-digit, 7-segment large LCD |
| Connectivity | Serial, USB (standard); Ethernet, Wi-Fi (optional) |
| Power | AC adapter (included) or battery (6 "C" cell Alkaline, Ni-Cad, or NiMH - not included) |
| Product Weight | 315 lbs |
| Installation Type | Top-of-floor only (not for pit installation) |
| Shipping Method | Ships via freight on a pallet |
FAQ
Can this scale be used for wheelchair patients?
Yes. The Detecto FHD is specifically designed to accommodate wheelchair users. The included 28.5-inch ramp allows easy roll-on access, and the MV1 indicator's numeric keypad lets staff enter the wheelchair tare weight so the reading reflects only the patient's weight.
Does this scale connect to our EMR or EHR system?
Yes - the MV1 MedVue indicator includes serial and USB output ports standard, making it EMR/EHR ready for direct connection to printers or computers. Optional Ethernet and Wi-Fi connectivity are also available if wireless or network integration is needed.
Can this scale be installed in a pit (recessed into the floor)?
No - this model is designed for top-of-floor installation only. If you require a pit-type installation, you will need to consult the manufacturer directly for an appropriate configuration.
What power options does this scale support?
This configuration includes an AC adapter for standard wall outlet operation. The scale can also be powered by 6 "C" cell Alkaline, Ni-Cad, or NiMH batteries (not included), making it flexible for locations where a wall outlet may not be immediately available.
How is this scale delivered, and will it require assembly?
Due to its weight of 315 lbs, this scale ships via freight carrier on a pallet. Assembly requirements are not specified by the manufacturer - please contact us at service@omahasportsandgames.com for more details on delivery and setup.
Is this scale accurate enough for clinical or medical use?
Yes. The Detecto FHD Series is a professional-grade clinical scale from Cardinal Detecto, a leading name in medical and healthcare weighing. It is built to deliver accurate, repeatable results suitable for patient care documentation in clinical environments.
