DEEP Robotics Lite3 Venture Quadruped Robot Dog with Controller
Description

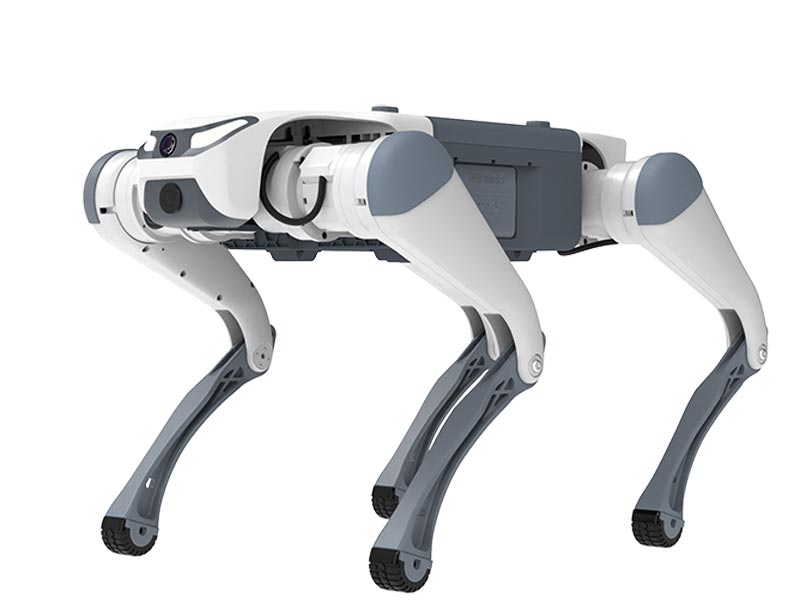

The DEEP Robotics Lite3 Venture is an advanced bionic quadruped robot dog engineered for researchers, developers, and technology enthusiasts who demand serious performance in a compact, agile platform. Built with a 50% increase in joint torque over previous generations, the Lite3 delivers remarkable locomotion capabilities - climbing 40-degree slopes, navigating 18cm stairs, and carrying up to 4.5kg of payload with ease. Its enhanced algorithm makes it more responsive and maneuverable than ever, while front and rear obstacle stop and visual following perception functions give it genuine environmental awareness out of the box.
Designed for both real-world deployment and secondary development, the Venture configuration includes dual Ethernet ports and external power input options (24V/12V/5V), giving developers the connectivity they need to expand and customize. Whether you're building autonomous inspection routines, integrating sensors, or exploring cutting-edge robotics research, the Lite3 Venture is a platform built to grow with your vision.
Key Features
- 50% Increased Joint Torque: Higher driving force with extremely high torque density, response bandwidth, and reversed transmission efficiency for powerful, precise movement.
- Advanced Locomotion Algorithm: More agile and responsive motion control with stronger sumo ability and greater maneuverability across varied terrain.
- Standing Size (610mm x 370mm x 445mm): Compact, well-proportioned frame suited for both indoor and outdoor operation.
- Weight - 12.2kg (Incl. Battery): Lightweight build that doesn't sacrifice payload or durability.
- 4.5kg Walking Load Capacity: Carry sensors, cameras, or custom equipment payloads during real-world deployments.
- 40-Degree Slope Climbing: Tackles steep inclines with confidence, making it effective in complex industrial or outdoor environments.
- 18cm Stair Navigation: Steps over obstacles and staircases encountered in real-world inspection or research scenarios.
- 1.5-2 Hour Battery Endurance / 4km Range: Extended operational runtime keeps the robot in the field longer between charges.
- Front/Rear Obstacle Stop and Visual Following: Built-in perception functions for environmental awareness and safe autonomous operation.
- Dual Ethernet + External Power Interfaces: Ethernet x2 and external power input (24V/12V/5V) enable flexible sensor and payload integration.
- Secondary Development Ready: Includes models, motion control SDK, APIs, and perception development interfaces with sample code for full customization.
Lite3 Models & Which to Choose
- Basic: The entry-level Lite3 configuration with a 5kg walking load capacity, no hardware expansion interfaces, and a 5km range. Ideal for users focused purely on locomotion research or education without needing external hardware connectivity.
- Venture (This Model): Adds dual Ethernet ports and external power input (24V/12V/5V), with a 4.5kg load capacity and 4km range. The go-to choice for developers who need to connect external sensors or power expansion modules while maintaining a lightweight platform.
- Pro: Steps up with USB 3.0, HDMI, Ethernet, and full power connector interfaces, plus forward obstacle avoidance perception. Suited for more advanced sensor fusion, video output, and complex autonomous development workflows with a 4kg load and 3.4km range.
- LIDAR: The top-tier configuration featuring auto navigation in addition to all Pro-level perception functions. Built for fully autonomous navigation missions. Carries up to 2.5kg at a 2.7km range and includes the full hardware interface suite.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- DEEP Robotics Lite3 Venture Quadruped Robot
- Controller
- Battery (included in listed weight)
Why You'll Love It
DEEP Robotics has earned the trust of organizations and research institutions around the world, and the Lite3 Venture represents the latest evolution in their industry-proven quadruped platform. The combination of a significantly upgraded joint drive system and a refined motion control algorithm means this robot handles unpredictable real-world terrain with a level of fluidity that impresses even seasoned roboticists. The Venture's dual Ethernet connectivity and multi-voltage power interface make it genuinely extensible - you're not boxed into a fixed sensor suite. With a robust SDK, full API access, and sample code provided, developers can get meaningful work done from day one. The Lite3 Venture is built for those who take their robotics work seriously and want a platform that can keep up with their ambitions for years to come.
Product Specifications
View Product Specs
| Standing Size | 610mm x 370mm x 445mm |
|---|---|
| Weight (Incl. Battery) | 12.2kg |
| Walking Load Capacity | 4.5kg |
| Max Slope | 40 degrees |
| Stair Height | 18cm |
| Battery Endurance | 1.5h - 2h |
| Mileage Range | 4km |
| Perception Functions | Front/Rear Obstacle Stop, Visual Following |
| Hardware Interfaces | Ethernet x2; External Power Input (24V/12V/5V) |
| Secondary Development | Models, motion control SDK, APIs, and perception development interfaces with sample code |
| Configuration | Venture |
FAQ
What is the difference between the Lite3 Venture and the other Lite3 models?
The Venture sits between the Basic and Pro configurations. It adds dual Ethernet ports and external power input (24V/12V/5V) over the Basic, allowing you to connect external sensors and power expansion modules. Compared to the Pro and LIDAR models, the Venture maintains a slightly lighter weight and simpler interface set, making it a great balance between connectivity and portability for most developer and research use cases.
Does the Lite3 Venture include a controller?
Yes - this listing includes the robot and controller together as a retail package, so you have everything you need to begin operating the Lite3 Venture right out of the box.
Can I develop my own applications for the Lite3 Venture?
Absolutely. DEEP Robotics provides a full secondary development package including robot models, motion control SDK, APIs, and perception development interfaces with sample code. This makes the Lite3 Venture a strong platform for university research, robotics labs, and commercial development teams building custom autonomous solutions.
How long does the battery last and how far can it travel?
Under laboratory test conditions, the Lite3 Venture achieves 1.5 to 2 hours of runtime and a range of approximately 4km. Actual performance in real-world environments may vary depending on terrain, payload, and operating conditions.
What surfaces and obstacles can the Lite3 Venture handle?
The Lite3 Venture is designed for challenging real-world environments. It can climb slopes up to 40 degrees, navigate stairs with steps up to 18cm tall, and uses front and rear obstacle stop along with visual following to safely interact with its surroundings. It performs in both indoor and outdoor settings.
How is the Lite3 Venture shipped?
Due to the nature of this product as a precision robotics platform, it is shipped carefully packaged to protect all components. Please contact us at service@omahasportsandgames.com for specific shipping and delivery details before your order is placed.
