Class C EQ Smart-Level Hydraulic Leveling System (Chevy Chassis)
Description
The EQ Smart-Level Hydraulic Leveling System is a complete, automatic hydraulic leveling solution purpose-built for Class C motorhomes on a Chevy chassis. Engineered with the same technology trusted by leading RV manufacturers, this kit arrives ready for installation with all the hardware, hoses, brackets, and controls you need to get level anywhere you park. The system uses a single pump to operate all jack legs simultaneously, with sequential leveling that keeps your coach as low to the ground as possible while achieving a precise, stable level.
Bluetooth connectivity lets you level your coach directly from your smartphone - compatible with both iPhone and Android via the EQ Systems app. Whether you're a full-time RVer, a weekend traveler, or a fleet manager, this system delivers one-touch convenience, audible and visual feedback, and automatic drive-off warnings that protect your investment every time you pull out.
Key Features
- Complete Kit: Includes everything needed for a full hydraulic leveling installation - jacks, pump, controls, harnesses, hoses, and weld-on brackets.
- 13-Inch Stroke Jacks: Front and rear jacks with a 13-inch stroke provide ample lift and stability for Class C chassis applications.
- Bluetooth Smart Control: Level your motorhome remotely from an iPhone or Android device using the EQ Systems app - no need to be inside the coach.
- One-Touch Auto-Level: Single push-button operation automatically levels the vehicle with minimal user input.
- Level Accuracy to 1/2 Degree: Field-adjustable null point lets you define your ideal level position, with the system maintaining accuracy within 1/2 degree of that setting.
- Chevy-Specific Bracket System: Includes three bracket designs - full C-shape front brackets, L-shape rear brackets, and a Chevy front adaptor bracket for proper jack fitment on Chevy frames.
- Single Pump Architecture: One pump operates all legs and can be mounted virtually anywhere on the chassis for flexible installation.
- Auto All Retract: Quickly stows all jack legs with a single command so you can get back on the road fast.
- Audible & Visual Prompts: Real-time leveling status indicators and drive-off warnings prevent accidental departure with jacks deployed.
- 12-Volt System with Manual Override: Operates on a standard 12V RV electrical system and includes multiple manual override options for backup operation.

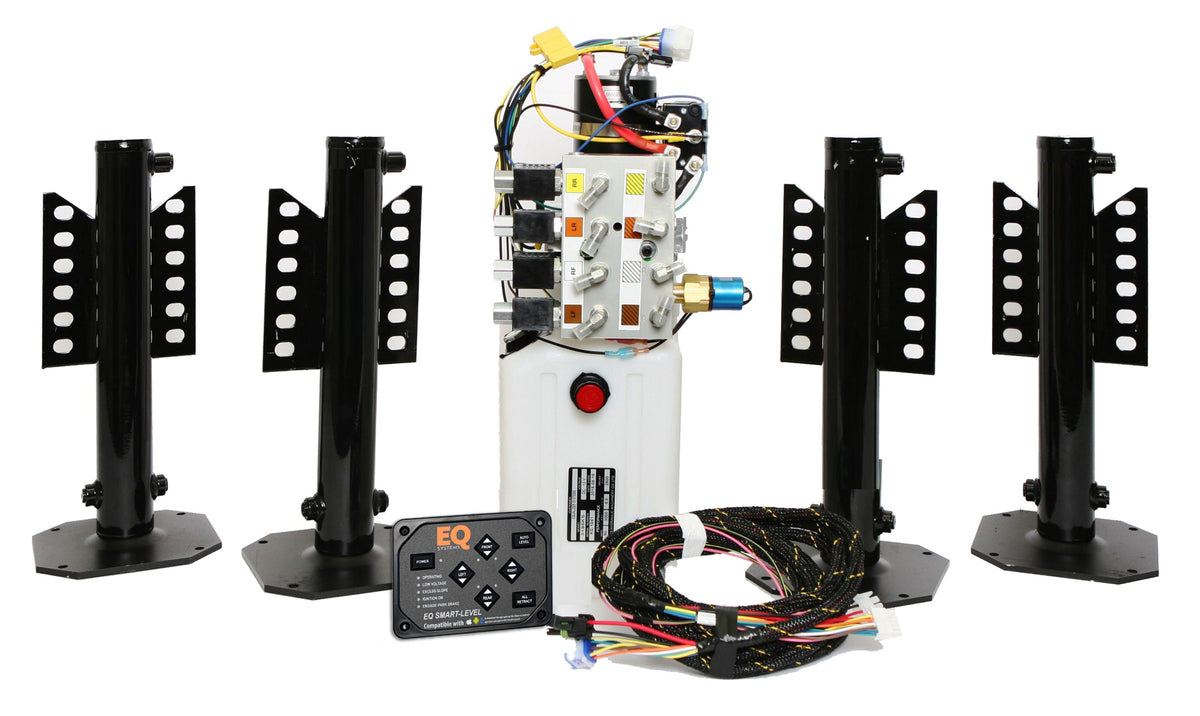

What's Included
- 13-inch stroke front jacks
- 13-inch stroke rear jacks
- Complete hydraulic pump with manual override
- EQ Smart-Level control panel
- All required wiring harnesses
- Two 10 ft hoses
- Two 12 ft hoses
- Two 16 ft hoses
- Two 20 ft hoses
- Full C-shape front weld-on mounting brackets
- L-shape rear weld-on mounting brackets
- Chevy front adaptor brackets
Why You'll Love It
This is the same leveling system installed by top RV manufacturers at the factory - now available as an installation-friendly kit for your Class C Chevy chassis build or upgrade. EQ Systems has built a reputation for rugged, reliable hydraulic leveling technology that holds up through years of heavy use on the road. The Smart-Level system's sequential leveling process is smarter than traditional simultaneous systems, delivering a more precise level while keeping the coach closer to the ground for added stability.
From the Bluetooth app control to the automatic drive-off protection, every feature is designed to make your camping experience easier and safer. Trusted by professional RV builders and relied on by experienced travelers, the EQ Smart-Level is built to handle the demands of daily and seasonal RV use without missing a beat. If you're upgrading an older coach or outfitting a new build, this system is a proven, long-term investment in comfort and convenience.
Product Specifications
View Product Specs
| SKU | 8112UPS |
|---|---|
| Compatible Chassis | Class C Chevy Chassis |
| Jack Stroke | 13 inches (front and rear) |
| System Voltage | 12V DC |
| Minimum Battery Requirement | 150 amperes at 10.5 VDC minimum for 30 seconds |
| Minimum Operating Voltage | 11V DC at control panel; Auto-Level stops at 10.5V |
| Leveling Accuracy | Within 1/2 degree of set null point |
| Bluetooth Compatibility | iPhone and Android (EQ Systems app) |
| Hose Lengths Included | Two 10 ft, two 12 ft, two 16 ft, two 20 ft |
| Hydraulic Fluid | Dexron III ATF |
| Bracket Type | Weld-on (C-shape front, L-shape rear, Chevy front adaptor) |
| Category | Motorhomes - Hydraulic Leveling |
| Assembly Required | Yes - professional installation recommended; weld-on bracket mounting required |
| Shipping Method | Contact EQ Systems for freight details; large kit with jacks, pump, and hardware |
FAQ
Is this system compatible with my Chevy-chassied Class C motorhome?
This system is specifically configured for Class C motorhomes built on a Chevy chassis. It includes the Chevy-specific front adaptor bracket along with C-shape front and L-shape rear weld-on mounting brackets designed to fit Chevy frame rails. If you're unsure about fitment, EQ Systems provides a fitment guide and their team can be reached at 800-846-9659 to confirm compatibility before ordering.
Can I customize the hose lengths if my pump and jack placement differs from the standard guide?
Yes. The hoses included in this kit are based on EQ Systems' standard fitment guide. If your installation requires different lengths, you can add a note to your order specifying the hoses you need, or call EQ Systems directly at 800-846-9659 before placing your order. Hoses are available in lengths from 4 to 40 feet in two-foot increments.
Will my lithium battery work with this system?
Not all lithium batteries are compatible. This system requires a battery capable of delivering a minimum of 150 amperes at 10.5 VDC for at least 30 seconds. Some lithium batteries cannot deliver the sustained running amperage that the hydraulic pump demands. EQ Systems recommends load-testing your battery before installation. Standard AGM and lead-acid batteries that meet the amperage requirement are generally reliable choices.
Does this system require professional installation?
Professional installation is strongly recommended. The mounting brackets are weld-on designs, meaning they must be welded to the Chevy chassis frame - this requires proper welding equipment and experience. Electrical connections, hydraulic line routing, and null-point calibration also need to be performed correctly for safe and reliable operation. EQ Systems provides detailed installation manuals and a quick-start guide to assist qualified installers.
What hydraulic fluid does this system use?
This system uses Dexron III ATF (Automatic Transmission Fluid). After installation, fill the reservoir to approximately one inch below the top with the jacks fully retracted, keeping in mind the fluid level will rise as the jacks retract. Before operating the system, replace the shipping plug with the included vented breather cap.
How do I operate the system after installation?
Once installed and filled with fluid, you'll need to set the null point - this tells the system what "level" means for your specific coach and setup. From there, operation is simple: use the one-touch push-button control panel or the EQ Systems Bluetooth app on your smartphone to initiate auto-leveling. The system provides audible and visual prompts throughout the process and will alert you if you attempt to drive away with the jacks still deployed.
