Class A Gas Motorhomes & Travel Trailers EQ Smart-Level Hydraulic Leveling System
Description
The EQ Smart-Level Hydraulic Leveling System is a complete, automatic four-point hydraulic leveling solution (SL 4/15) engineered specifically for light-duty Class A gas motorhomes and travel trailers. Designed to deliver the same precision used by leading RV manufacturers, this system brings professional-grade leveling technology to an installation-friendly kit format. From the Bluetooth-enabled app control to one-touch push-button operation, every feature is built to make getting level fast, accurate, and effortless.
Whether you're a full-time RVer or a weekend traveler, the EQ Smart-Level gives you confidence that your rig is perfectly positioned every time you park. The sequential leveling process keeps the vehicle as low to the ground as possible while achieving level accuracy within 1/2 degree - so you can focus on enjoying your trip, not adjusting your setup.
Key Features
- Four-Point Hydraulic System (SL 4/15): Designed for light-duty Class A gas motorhomes and travel trailers with 15-inch stroke front and rear jacks.
- Bluetooth Connectivity: Level your coach from your phone using the EQ Systems app - compatible with both iPhone and Android.
- One-Touch Push Button Operation: Automated leveling at the press of a button - no manual adjustments needed.
- Level Accuracy to Within 1/2 Degree: Field-adjustable null point lets you set the exact level position you want, with precision every time.
- Single Pump Design: One pump operates all legs and can be mounted virtually anywhere on the chassis for flexible installation.
- Auto All Retract: Quickly stows all legs at once for fast, convenient departure.
- Audible & Visual Prompts: Alerts notify you when leveling is in progress, when it's complete, and drive-off warnings on motorized vehicles.
- 12-Volt System: Runs on your RV's existing 12V electrical system - requires a minimum of 150A at 10.5 VDC for at least 30 seconds.
- Eight 20-Foot Hoses Included: Hoses are available from 4 to 40 feet in two-foot increments if custom lengths are needed.
- Weld-On Mounting Brackets: Kit includes weld-on brackets for secure chassis mounting of the jacks.
- Manual Override Options: Multiple manual override options ensure you're never stranded even if electronics fail.

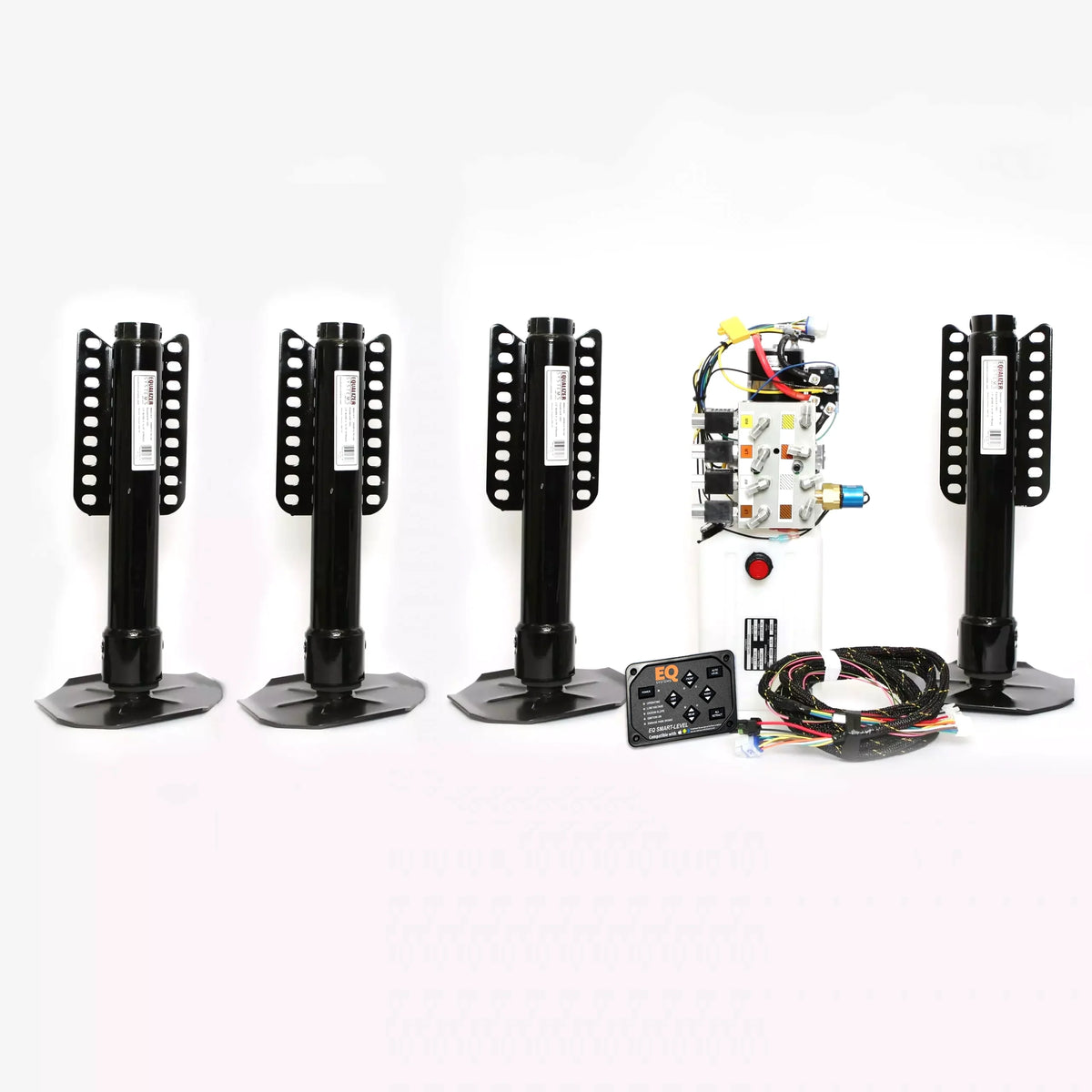

What's Included
- 15-inch stroke front and rear hydraulic jacks
- Complete hydraulic pump with manual override
- EQ Smart-Level control unit
- All wiring harnesses
- Eight 20-foot hydraulic hoses
- Weld-on chassis mounting brackets
Why You'll Love It
The EQ Smart-Level is the same hydraulic leveling system trusted by leading RV manufacturers - now available as an installer-friendly kit so you can bring that factory-grade technology to your own rig. EQ Systems has built a reputation for reliability and precision in the RV industry, and this system lives up to that standard with every deploy. The Bluetooth app control means you can level from outside the coach, watching in real time as the system does the work for you.
Built with sequential leveling logic, the system keeps your vehicle sitting as low and stable as possible, reducing stress on your chassis and slides. With audible and visual drive-off warnings, you'll never accidentally pull away with the jacks down. For RVers who demand dependable, precise, and easy-to-use leveling - the EQ Smart-Level delivers every single time.
Product Specifications
View Product Specs
| SKU | 8651UPS |
|---|---|
| System Type | Four-point hydraulic leveling (SL 4/15) |
| Compatible Vehicles | Class A gas motorhomes and travel trailers |
| Jack Stroke | 15 inches (front and rear) |
| Voltage | 12-volt DC system |
| Minimum Battery Requirement | 150A at minimum 10.5 VDC for at least 30 seconds |
| Minimum Operating Voltage | 11V at control panel; Auto-Level stops at 10.5V |
| Level Accuracy | Within 1/2 degree of set null point |
| Hose Length Included | Eight 20-foot hoses |
| Hose Length Options | 4 to 40 feet, in 2-foot increments |
| Connectivity | Bluetooth (iPhone and Android compatible) |
| Hydraulic Fluid | Dexron III ATF |
| Mounting | Weld-on chassis brackets included |
| Assembly Required | Yes - professional installation recommended |
| Shipping Method | Ships via standard freight; contact EQ Systems for freight details |
FAQ
Is this system compatible with my Class A gas motorhome or travel trailer?
This EQ Smart-Level system (SL 4/15) is specifically designed for light-duty Class A gas motorhomes and travel trailers. If you have a Class C motorhome or fifth wheel, EQ Systems offers other configurations suited to those vehicles. Refer to the EQ Systems Class A and Class C system guide or contact EQ Systems at 1-800-846-9659 to confirm fitment.
Do I need a professional to install this system?
Professional installation is strongly recommended. The kit requires welding the mounting brackets to the chassis, routing hydraulic hoses, running wiring harnesses, and properly setting the null point. EQ Systems provides detailed installation and operation manuals for both motorized and trailer versions to assist qualified installers.
Will my lithium battery work with this system?
Not all lithium batteries are compatible. The EQ Smart-Level pump requires a minimum of 150 amperes at 10.5 VDC for at least 30 seconds. Some lithium batteries cannot deliver the sustained running amperage these pumps need. EQ Systems recommends load-testing your battery before installation. If in doubt, contact EQ Systems for guidance.
What hydraulic fluid does this system use?
The EQ Smart-Level system uses Dexron III ATF (automatic transmission fluid). After installation, fill the reservoir to approximately one inch below the top with the jacks retracted, and install the vented breather cap before running the system for the first time.
Can I customize the hose lengths if my pump and jack placement differs from the standard fitment guide?
Yes. The kit ships with eight 20-foot hoses based on the standard fitment guide. If your installation requires different lengths, hoses are available in sizes from 4 to 40 feet in two-foot increments. Simply note the hose lengths you need in your order notes, or call EQ Systems at 1-800-846-9659 before ordering.
How does the Bluetooth leveling work?
The EQ Smart-Level system features Bluetooth connectivity that pairs with the EQ Systems app, available for both iPhone and Android. Once paired, you can initiate leveling, monitor progress, and retract jacks directly from your smartphone - without needing to be inside the coach. Note that the previous EQ Systems app is no longer supported; download the new EQ Systems app for full functionality.
