Class A 4 Point Hydraulic Leveling System
Description
The EQ Systems Smart-Level Class A 4 Point Hydraulic Leveling System is a complete, automatic hydraulic leveling solution engineered specifically for light duty Class A gas motorhomes. Designed to replace the guesswork and manual effort of traditional leveling, this four-point system brings precision, speed, and convenience to every campsite setup. Using a single pump that operates all four legs, the system delivers a level coach in under two minutes with just one touch - no guesswork, no hassle.
Built to the same standards trusted by leading RV manufacturers, this kit ships installation-ready with weld-on chassis brackets, all harnesses, hoses, and controls included. Whether you're a full-time RVer or a weekend adventurer, this system is built to handle the demands of real-world motorhome life with reliable, repeatable precision every time you set up camp.
Key Features
- Four-Point Leveling: Four independent jack legs provide stable, precise leveling across the full footprint of your Class A motorhome.
- 16-Inch Stroke Jacks: Four 16-inch stroke hydraulic jacks deliver ample travel to handle uneven terrain and sloped campsites.
- One-Touch Auto-Level: One push of a button levels the coach in less than two minutes, using a sequential leveling process for maximum precision.
- Bluetooth Connectivity: Level your coach remotely from your smartphone - fully compatible with both iPhone and Android via the EQ Systems app.
- Single Pump Operation: One pump drives all four legs and can be mounted virtually anywhere on the chassis for flexible installation.
- Level Accuracy to 1/2 Degree: Field-adjustable null point lets you define your preferred level position, with automatic accuracy maintained within 1/2 degree.
- Audible and Visual Prompts: Alerts notify you when leveling is in progress and when it's complete, plus drive-off warnings protect the system and vehicle.
- Auto All Retract: Quickly stows all four legs simultaneously so you can get rolling fast without worrying about manual retraction.
- 12-Volt System: Operates on your motorhome's 12V electrical system - requires a minimum of 150A at 10.5 VDC for proper operation.
- Customizable Hose Lengths: Ships with eight 20-foot hoses; custom hose lengths from 4 to 40 feet (in 2-foot increments) are available to match your specific pump and jack placement.
- Multiple Manual Override Options: A variety of manual override options ensure you're never stranded if you need to operate the system without the controller.

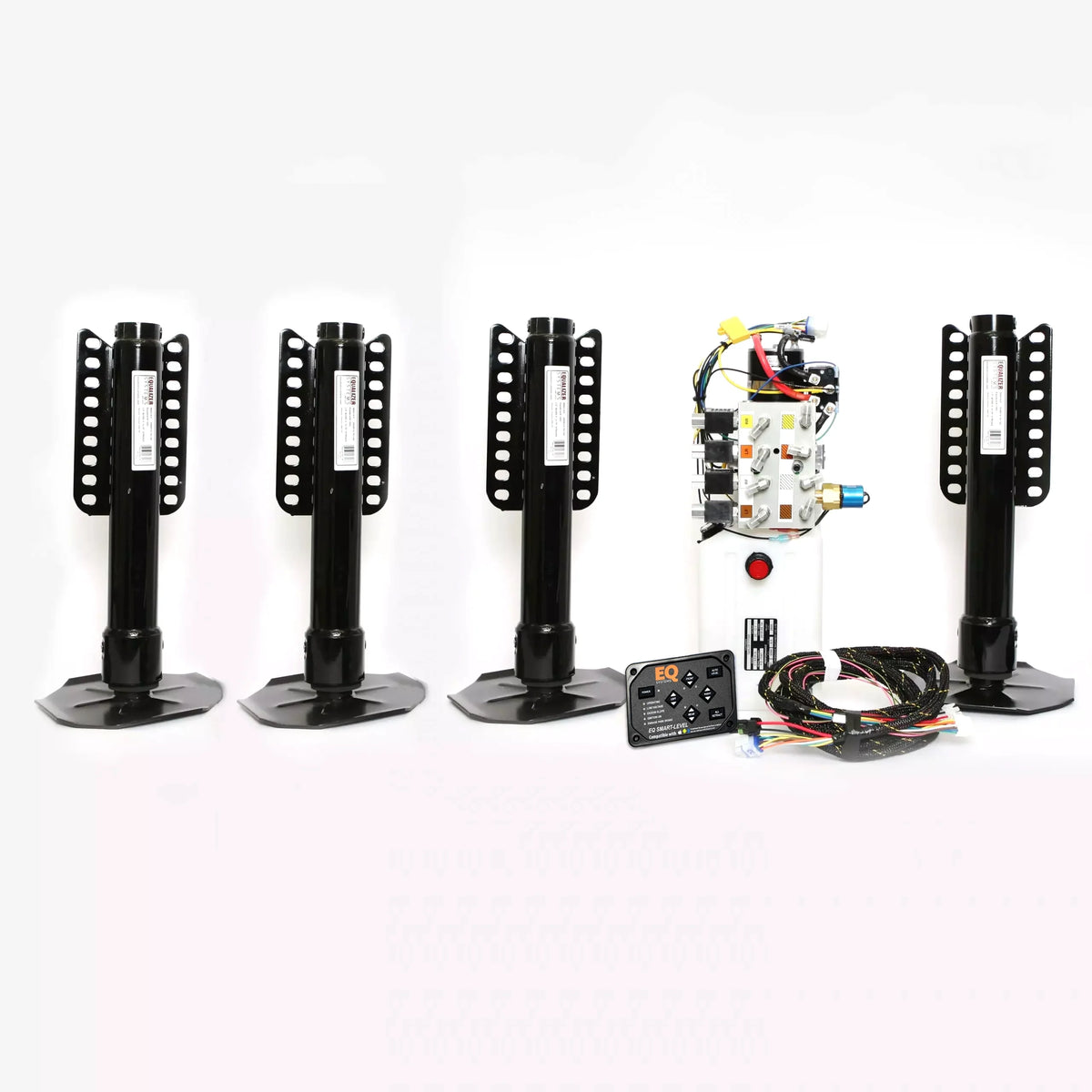

What's Included
- Four 16-inch stroke hydraulic jacks
- Complete hydraulic pump with manual override
- EQ Smart-Level control system
- All wire harnesses
- Eight 20-foot hydraulic hoses
- Weld-on mounting brackets for chassis installation
Why You'll Love It
The EQ Systems Smart-Level is the same leveling system installed by leading RV manufacturers at the factory - and now it's available as an installation-friendly kit for Class A motorhome owners who demand the best. Trusted by coaches built to endure thousands of miles and hundreds of campsites, this system is engineered for years of dependable, low-maintenance use. The Bluetooth-enabled controls mean you can level from outside the coach, checking your positioning in real time from your phone - a genuine convenience that seasoned RVers will immediately appreciate.
The sequential leveling process keeps your coach as low to the ground as possible while achieving a precise level, reducing stress on the chassis and improving interior comfort. EQ Systems is a well-established name in the RV leveling industry, based in Cassopolis, Michigan, and backed by a dedicated support team. Whether you're installing this system yourself or having it fitted professionally, the documentation, app support, and available EQ Systems technical team make it a purchase you can make with complete confidence.
Product Specifications
View Product Specs
| SKU | 8516UPS |
|---|---|
| Application | Light duty Class A gas motorhomes |
| Leveling Points | 4-point |
| Jack Stroke | 16 inches |
| Hoses Included | Eight 20-foot hydraulic hoses |
| Hose Length Options | 4 to 40 feet, in 2-foot increments (custom order) |
| System Voltage | 12 volt DC |
| Minimum Battery Output | 150 amperes at minimum 10.5 VDC for at least 30 seconds |
| Minimum Operating Voltage (Control Panel) | 11 volts DC |
| Auto-Level Shutoff Voltage | 10.5 volts DC |
| Level Accuracy | Within 1/2 degree of set null point |
| Connectivity | Bluetooth - compatible with iPhone and Android |
| Fluid Type | Dexron III ATF |
| Mounting | Weld-on brackets to chassis |
| Category | Motorhomes |
FAQ
Is this system compatible with my Class A motorhome?
This system is designed for light duty Class A gas motorhomes. EQ Systems provides a fitment guide to help confirm compatibility with your specific coach. If you have questions about whether this kit fits your vehicle, you can call EQ Systems directly at 1-800-846-9659 before ordering.
Can I install this system myself, or does it require a professional?
This kit is designed to be installation-friendly and ships with weld-on chassis mounting brackets, all harnesses, hoses, and detailed installation and operation manuals. However, the mounting brackets require welding to the chassis, so professional installation is recommended unless you have fabrication experience. EQ Systems also offers factory service and repair support if needed.
What fluid does the hydraulic system use?
The system uses Dexron III ATF (automatic transmission fluid). After installation, fill the reservoir to about one inch below the top with the jacks fully retracted, keeping in mind the fluid level rises as the jacks retract. Replace the shipping plug with the included vented breather cap before operating the system.
Will this work with lithium batteries?
Not necessarily. The system requires a minimum of 150 amperes at 10.5 VDC for at least 30 seconds. Some lithium batteries cannot deliver the sustained running amperage these hydraulic pumps require. EQ Systems recommends load-testing your battery before installation. If you have a lithium battery setup, consult EQ Systems to confirm compatibility.
How does the Bluetooth control work?
The EQ Smart-Level system features Bluetooth connectivity that pairs with the EQ Systems app, available for both iPhone and Android. Once paired, you can operate and monitor the leveling system from your smartphone - allowing you to stand outside the coach and visually confirm positioning while leveling. Note that the previous version of the EQ Systems app is no longer supported; download the current app before use.
What happens if the electronic controls fail? Can I still operate the jacks?
Yes. This system includes a variety of manual override options so you can still retract or operate the jacks in the event of a controller or power issue. This ensures you're never stranded at a campsite due to an electrical or control system problem.
Can I customize the hose lengths if my pump and jack placement differs from the standard layout?
Absolutely. The kit ships with eight 20-foot hoses based on EQ Systems' standard fitment guide, but custom hose lengths are available from 4 to 40 feet in 2-foot increments. Simply include your required hose lengths in the order notes, or call EQ Systems at 1-800-846-9659 before placing your order to ensure you get exactly what you need.
