C-1080 Full Color Night Vision Boat Camera, Digital HDMI 1080p + Analog
Pairs well with
FREE Shipping!
C-1080 Full Color Night Vision Boat Camera Digital HDMI 1080p + Analog - Stainless Steel 316L
Description

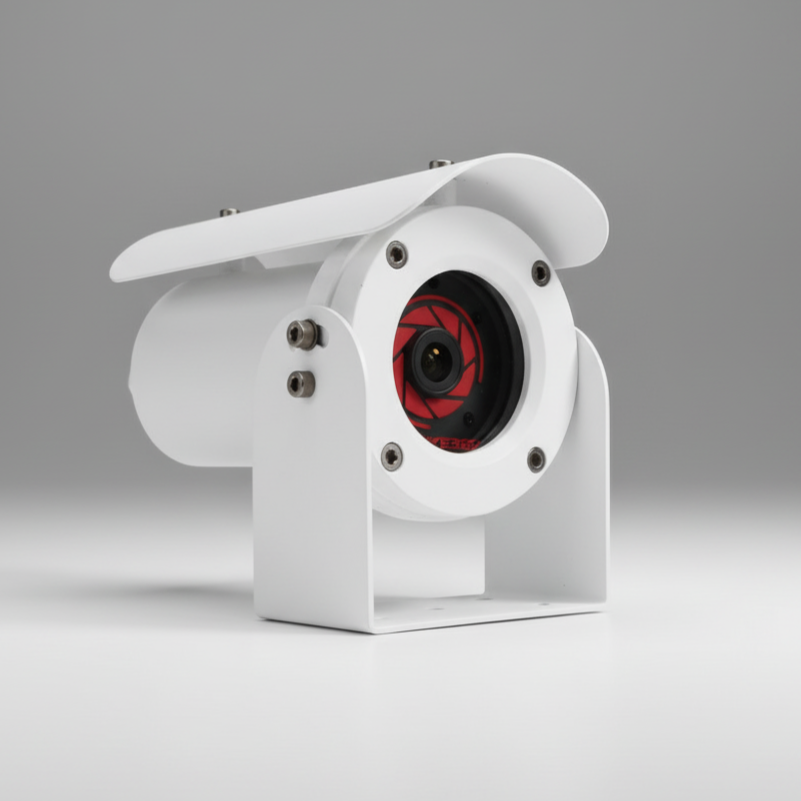

The BoatEye360 C-1080 is a full-color night vision marine camera built for boaters who refuse to compromise on safety after dark. Powered by an advanced CMOS sensor rated at 0.0001 lux (0.1 mlux), it delivers vivid, day-like color images even under starlight or moonlight - letting you spot crab traps, buoys, kayakers, and other vessels long before they become a hazard. It's the first marine night vision camera in the industry to offer true 1080p HDMI output, setting a new benchmark for resolution and clarity on modern chartplotters and multi-function displays.
Built in Florida from marine-grade 316L stainless steel with titanium screws, the C-1080 is engineered to outlast years of saltwater exposure and harsh offshore conditions. Every unit ships with both HDMI (1080p) and analog RCA (720p) outputs included at no extra cost, making it compatible with a wide range of chartplotters and displays right out of the box. Whether you're night fishing, offshore cruising, or navigating busy waterways after sunset, this camera gives you the confidence and visibility to do it safely.
Key Features
- Full-Color Night Vision (0.0001 Lux / 0.1 mlux): Advanced CMOS sensor captures vivid, full-color images in near-total darkness - moonlight and starlight conditions included.
- True 1080p HDMI Output: Industry-first digital HDMI output delivers sharp, high-definition video to modern MFDs and external monitors - default 1080p at 30fps, with options up to 4K at 60fps.
- Dual Output - HDMI + Analog RCA: Both HDMI (1080p) and analog RCA/BNC (720p) outputs are included standard - no upselling required, just pick the connection that fits your setup.
- 316L Marine-Grade Stainless Steel Housing: Corrosion-resistant stainless steel body with titanium screws built for long-term saltwater and harsh weather exposure.
- IP68-IP69 Waterproof Rating: Highly resistant to water ingress - built to handle spray, rain, and wash-down without issue.
- Flexible Mounting - Top or Inverted: Flip the U-shaped bracket to mount on top or upside down on T-tops, dashes, or bow mounts - no software or hardware changes needed.
- 12V / 2A Power: Runs on standard 12-volt boat power at 2 amps - wire directly to navigation lights or existing switches.
- Garmin & Simrad Compatible: Works with Garmin 1243 (RCA) and 8600 Series (HDMI), Simrad Evo3 (RCA) and Evo3S 16"+ (HDMI), plus many other RCA and HDMI-equipped systems.
- 1-Year Warranty + 60-Day Money-Back Guarantee: Backed by a U.S.-based support team and a risk-free return window.
- Built in Florida, USA: Designed and assembled domestically for quality you can count on.
What's Included
- BoatEye360 C-1080 Camera
- Waterproof Pelican-Style Case
- Power/RCA Cord with Inline 2A Fuse (33 ft / 10 m)
- HDMI Cord (16.4 ft / 5 m)
- Push-Button On/Off Switch
- Heatshrinks for clean, waterproof installation
Why You'll Love It
The BoatEye360 C-1080 is trusted by offshore anglers, cruisers, and coastal boaters who need reliable night visibility without spending a fortune on commercial-grade systems. It's engineered to handle the demands of daily marine use - from saltwater corrosion to offshore spray - and its full-color low-light performance genuinely changes how you navigate after dark. Real boaters from Switzerland to the Gulf Coast have praised its image quality, ease of installation, and outstanding customer support. The dual-output design means you don't have to guess which version to buy - it works with what you already have onboard. Built in Florida and backed by a U.S.-based team that actually answers the phone, this camera delivers professional-grade night vision at a price point that makes it the best value in the marine camera market today.
| Weight | 1.3 kg (3.0 lbs) |
|---|---|
| Dimensions | 160mm (6") L x 100mm (4") W x 150mm (6") H |
| Material | 316L Stainless Steel with Titanium Screws |
| Housing Color | White or Black (Raw stainless available - contact seller) |
| Output Options | HDMI (1080p) and CVBS/RCA/BNC (720p) - both included |
| Default Resolution | 1080p @ 30fps (HDMI) / 720p @ 30fps (Analog RCA) |
| Max Resolution | Up to 4K @ 60fps (optional) |
| Default Frame Rate | 30fps (60fps option available) |
| Low-Light Rating | 0.0001 lux / 0.1 mlux |
| Waterproof Rating | IP68 to IP69 |
| Power Requirements | 12V DC, 2A |
| Cable Length (Power/RCA) | 33 ft (10 m) |
| Cable Length (HDMI) | 16.4 ft (5 m) |
| Mounting Hole Size | M5 |
| Origin | Built in Florida, USA |
| Warranty | 1-Year Warranty + 60-Day Money-Back Guarantee |
FAQ
Should I use HDMI or RCA/analog for my setup?
It depends on what inputs your display supports. HDMI delivers the best image quality at 1080p and is recommended if your chartplotter or external monitor has an HDMI input - Garmin 8600 Series and Simrad Evo3S 16"+ are examples of compatible HDMI displays. RCA (analog) works with a wider range of older chartplotters and marine displays at 720p resolution - Garmin 1243 and Simrad Evo3 are common examples. Both cables are included with every camera, so you're covered either way. If using RCA, set your chartplotter to PAL format for the best picture quality.
Can this camera spot crab traps, buoys, and channel markers at night?
Yes - the C-1080's full-color low-light sensor is specifically well-suited for identifying crab traps, buoys, channel markers, kayakers, and other boats in near-total darkness. The color output is a major advantage here, as it lets you distinguish green and red cans and other color-coded markers that a monochrome camera would not differentiate. That said, we always recommend reducing speed at night to give yourself adequate reaction time regardless of camera quality.
Is this camera truly waterproof? What is the IP rating?
The C-1080 is rated IP68 to IP69, meaning it is highly resistant to water ingress from both sustained immersion and high-pressure jets. It is designed for full marine exposure - spray, rain, and wash-downs are not a concern. However, it is not designed for underwater operation and should not be intentionally submerged.
What cables are included, and are longer cables available?
Every camera includes a 33 ft (10 m) power/RCA cord with an inline 2A fuse and a 16.4 ft (5 m) HDMI cord. These lengths cover the majority of installation needs. If your boat requires longer runs, extended cables are available for purchase separately - contact BoatEye360 directly for options.
What mounting hardware do I need, and is it included?
The camera uses M5 mounting holes. Marine-grade stainless steel M5 screws or thru-bolts are required for installation but are not included, as mounting configurations vary by boat. Pick up M5 hardware at any marine or hardware store. The bracket supports top-mount and inverted (upside down) installation with no tools or software changes - just flip the U-shaped bracket.
Does the camera work with my Garmin or Simrad chartplotter?
The C-1080 is confirmed compatible with Garmin 1243 (via RCA) and the Garmin 8600 Series (via HDMI), as well as Simrad Evo3 (via RCA) and Simrad Evo3S 16"+ (via HDMI). It is also compatible with many other chartplotters and MFDs that accept RCA or HDMI video input. If you're unsure about your specific display, contact BoatEye360 before purchasing to confirm compatibility.
What is the return and warranty policy?
Every C-1080 purchase is backed by a 60-day money-back guarantee and a 1-year manufacturer's warranty. If you're not satisfied within the first 60 days, you can return the camera for a full refund. The U.S.-based support team is reachable by phone or text for any installation or operation questions.
