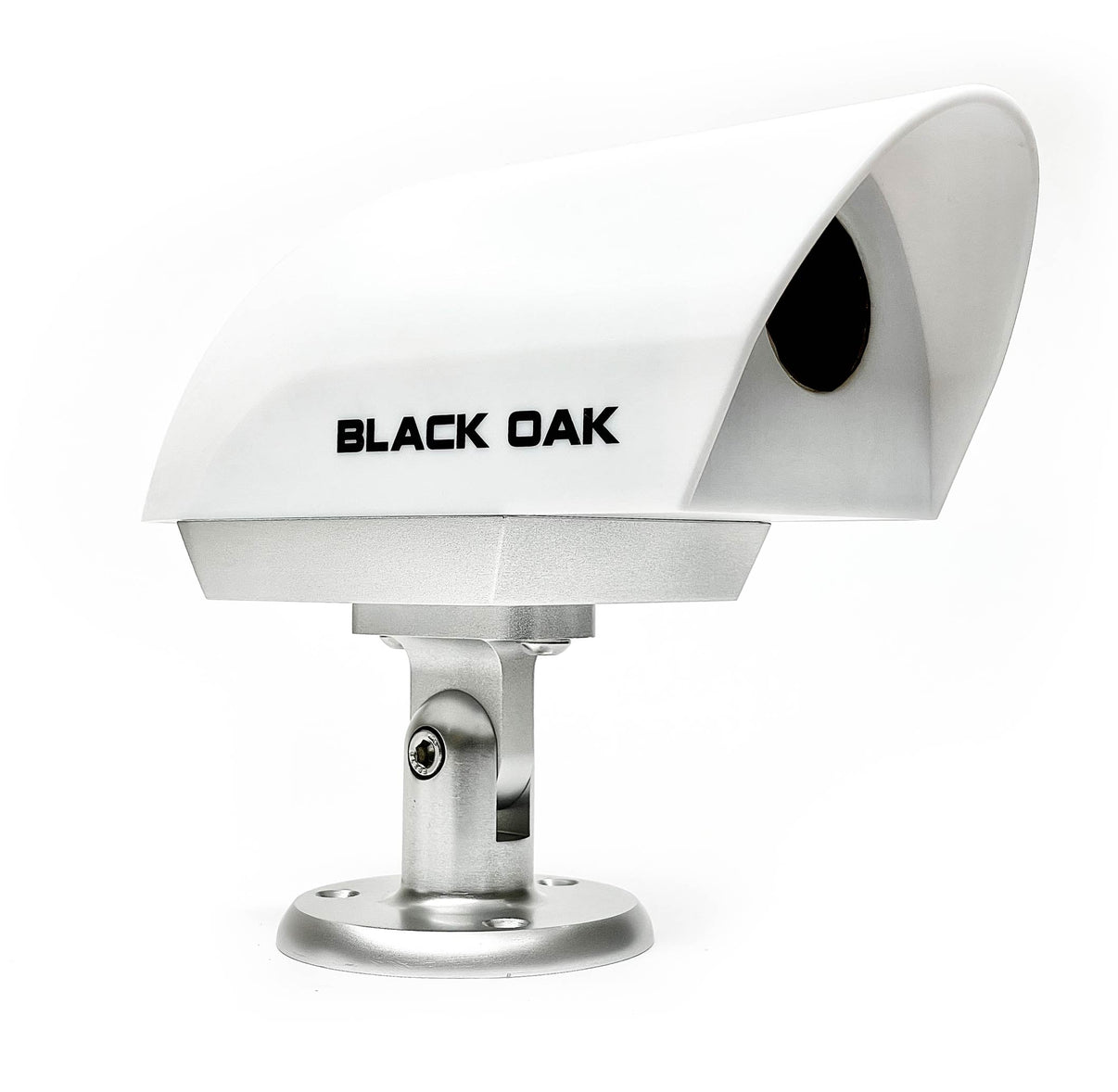

Black Oak LED Nitron XD Pro Full Color Marine Night Vision Camera
Description
The Nitron XD Pro is Black Oak LED's flagship marine night vision camera, engineered for boaters who demand true visibility in complete darkness. Unlike thermal imaging systems, it uses advanced low-light sensor technology to amplify ambient light and deliver high-resolution, full-color video in near-total darkness - so you can see channel markers, buoys, docks, and other vessels exactly as they appear. With up to 4K resolution, 60 frames per second, and sensitivity down to 0.0000025 lux, this camera sets a new standard for marine night navigation.
Built with an IP69K-rated marine-grade housing and military-grade materials, the Nitron XD Pro is designed to handle the harshest saltwater environments season after season. It connects directly to Garmin, Simrad, Raymarine, Lowrance, Furuno, and Humminbird MFDs via analog, HDMI, or POE - and setup is plug-and-play with included brand-specific cables and a 25-foot wiring harness.
Key Features
- Ultra-Sensitive Sensor (0.0000025 Lux): Detects extremely low light levels for true night vision clarity in near-total darkness.
- Up to 4K Resolution: Captures full-color, ultra-high-definition imagery for maximum detail recognition at night.
- 60 Frames Per Second: Smooth, real-time video with zero lag for confident nighttime navigation.
- Full Color Night Vision (Non-Thermal): Delivers natural, true-to-life color imagery - not grayscale or heat-signature overlays like thermal cameras.
- IP69K Marine-Grade Housing: Fully sealed against salt spray, moisture, UV, and corrosion for long-term reliability at sea.
- Direct MFD Connection: Compatible with Garmin, Simrad, Raymarine, Lowrance, Furuno, and Humminbird via Analog, HDMI, or POE output.
- 50° Horizontal Field of View: Balanced wide-area perspective for spotting hazards, markers, and other vessels.
- Auto Day/Night Filter: Automatically transitions between daytime and nighttime imaging modes.
- Manual Vertical Tilt: Easily adjust the camera angle to match your boat and mounting position.
- 12V DC Power: Simple, universal power input compatible with any vessel's electrical system.
- 25' Quick-Connect Wiring Harness Included: Plug-and-play installation with no complex wiring required.
Video Output & Mounting Options - Which to Choose
- Analog - 720: Outputs a 720-line analog video signal via a 4-pin quick-connect harness. Best for boaters connecting to older or analog-input MFDs from Garmin, Simrad, Raymarine, Lowrance, or Furuno. This is the most universally compatible output and works with the widest range of legacy chartplotter displays.
- HDMI - 1080: Outputs 1080p digital HD video via HDMI. Best for newer MFDs and external displays with HDMI inputs, including select Garmin, Simrad, and Raymarine units. Delivers a sharper, higher-resolution signal than analog for chartplotters that support it.
- Standard (2") Upright Mount: A compact 2-inch upright base for mounting on top of a surface such as a hardtop or T-top. Ideal for most standard above-deck installations where a low-profile mount is preferred.
- Tall (4") Upright Mount: A 4-inch upright base that raises the camera higher for improved sightlines over obstructions. Best when the mounting surface has hardware, trim, or other elements that would block the camera's view at a shorter height.
- Undermount: Designed for mounting on the underside of a hardtop, T-top, or overhead structure. Ideal when you want a clean, flush look or need to protect the camera from direct sun and spray exposure from above.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- Nitron XD Pro Marine Night Vision Camera
- 25' Quick-Connect Wiring Harness
- 5 Amp Inline Fuse
- Anodized Aluminum Mount
- Stainless Steel Mounting Screws (#8 1-1/4")
- Dielectric Grease Packet
Why You'll Love It
The Nitron XD Pro is trusted by boaters, anglers, and coastal cruisers who refuse to let darkness slow them down. Whether you're running the Homosassa River at first light, navigating into a harbor after sunset, or making a long offshore passage, this camera turns night into day with stunning full-color clarity that thermal cameras simply can't match. It's engineered with marine-grade materials built to take on salt, spray, and years of hard use without skipping a beat. The plug-and-play design means you spend less time on installation and more time on the water - and with direct compatibility across Garmin, Simrad, Raymarine, Lowrance, Furuno, and Humminbird, it works seamlessly with the MFD you already own. Backed by a 2-year warranty and a 30-day money-back guarantee, the Nitron XD Pro is a confident, long-term investment in your safety and peace of mind on the water.
Product Specifications
View Product Specs
| Operating Voltage | 12V DC |
|---|---|
| Frame Rate | 60 FPS |
| Resolution | Up to 4K |
| Image Type | Full Color |
| Field of View | 50° Horizontal |
| Minimum Lux | 0.0000025 lux |
| Day/Night Filter | Auto Day to Night |
| Waterproof Rating | IP69K |
| Weight | 1.8 lbs |
| Wire Harness Included | Yes - 25 ft Quick-Connect |
| Fuse Size | 5 Amp Inline |
| Connector Type | 4 Pin Quick Connect |
| Mounting Screw Size | #8 1-1/4" Stainless Steel |
| Warranty | 2 Years |
| Guarantee | 30 Day Money Back |
| Assembly Required | Minimal - plug-and-play wiring harness, mount hardware included |
MFD Compatibility
Note: This is not an exhaustive list. The camera is compatible with any MFD or external display that supports analog video input or HDMI input.
| Brand | HDMI Compatible Models | Analog Compatible Models |
|---|---|---|
| Garmin | 8400, 8600, 8700, 9000, 9200 Series | 741, 742, 752 / 942, 943, 952 / 1022, 1042, 1052 / 1222, 1242, 1243, 1252 / 7410-7416 / 7607-7616 / 8212, 8215 / 8400-9200 Series |
| Simrad | NSO evo3 16", NSO evo3S 16"/19"/24", NSS 4 10"/12"/16" | NSO evo3S, NSS evo2, NSS evo3, NSS evo3 S, NSE 8/12 (most require Simrad video cable) |
| Raymarine | Axiom 2 XL, Axiom 2 Pro RVM/S | Axiom Pro, Axiom XL, C/E/ES/GS Series |
| Lowrance | HDS Live 12"/16", HDS Pro 12"/16" | HDS Carbon, HDS Gen3, HDS Pro (most require Lowrance video cable) |
| Furuno | TZ Touch 2/3, NavNet 3D | TZ Touch 2/3, TZT10X-TZT24XL Series |
| Humminbird | APEX 13, APEX 16, APEX 19 | N/A |
FAQ
How is the Nitron XD Pro different from a thermal camera?
The Nitron XD Pro is a non-thermal night vision camera that amplifies available ambient light to produce high-resolution, full-color imagery. Thermal cameras detect heat signatures and produce grayscale or false-color images based on temperature differences. The Nitron XD Pro delivers true-to-life color visuals, making it easier to read signage, identify specific objects, and recognize subtle obstacles during nighttime navigation - things thermal cameras often struggle with.
Which video output should I choose - Analog or HDMI?
Choose Analog (720) if your MFD has analog video inputs, which is common on a wide range of Garmin, Simrad, Raymarine, Lowrance, and Furuno chartplotters. Choose HDMI (1080) if your MFD supports HDMI input for a higher-resolution digital signal. If you're unsure, check your MFD's manual or call Black Oak LED at 1-800-348-1287 for help selecting the right output for your specific display.
Which mounting option is right for my boat?
The Standard (2") Upright is ideal for most above-deck installations on hardtops or T-tops where a low-profile mount works well. The Tall (4") Upright adds height to clear hardware or trim obstructions. The Undermount is designed for flush installation on the underside of a hardtop or overhead structure, offering a clean look and added protection from direct sun and spray.
Does this camera work in fog or rain?
No camera - including the Nitron XD Pro - performs optimally in heavy fog, as fog scatters light and limits visibility for all optical systems. In rain and spray, the IP69K-rated housing fully protects the camera, and it will continue to function. In foggy conditions, the best practice is to reduce speed and use the camera in combination with radar for safe navigation.
Can the Nitron XD Pro be used on a vehicle or outside of a marine application?
Yes - the camera can be used in other applications as long as you have a compatible 12V power source and a display screen to connect it to. However, it is specifically engineered and optimized for marine environments, with IP69K waterproofing, corrosion-resistant hardware, and salt-spray durability built in.
What is the warranty and return policy?
The Nitron XD Pro is backed by a 2-year manufacturer warranty and a 30-day money-back guarantee. For warranty claims or questions, contact Black Oak LED directly at 1-800-348-1287.
