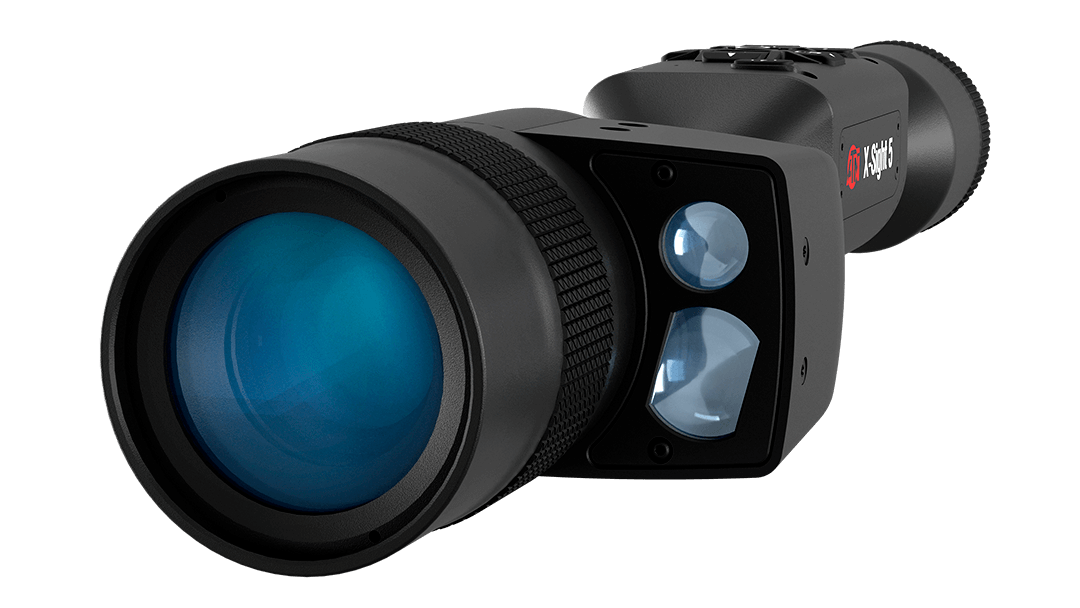

ATN X-Sight 5 LRF Night Vision Riflescope 3-15x with Laser Rangefinder
FREE Shipping!
Pairs well with
ATN X-Sight 5 LRF Night Vision Riflescope 3-15x with Laser Rangefinder
Description
The ATN X-Sight 5 LRF is a 5th-generation day/night smart riflescope engineered for hunters, long-range shooters, and tactical users who demand crystal-clear imagery from dusk to dawn. Powered by ATN's Gen V Quad Core processor and a brand-new 4K+ sensor (4056x3040), it delivers a 45% improvement in resolution, double the processing speed, and 30% greater sensitivity over previous generations. The built-in Laser Rangefinder feeds distance data directly into the onboard Ballistic Calculator, removing guesswork from every shot.
Whether you're hunting hogs in total darkness or zeroing in on a long-range target at first light, the X-Sight 5 LRF adapts with smooth 3-15x magnification, a high-resolution 1280x960 micro display, and a wide 9-degree field of view. Smart features like Recoil Activated Video (RAV), dual-stream recording, slow-motion 120/240 FPS capture, and full iOS/Android app integration make this one of the most feature-complete smart optics available today.
Key Features
- 4K+ Sensor (4056x3040): All-new 5th generation sensor with 45% higher resolution and 30% better low-light sensitivity than previous ATN generations.
- Built-In Laser Rangefinder (LRF): Instantly measures distance and feeds data directly to the Ballistic Calculator for precise, compensated shots.
- ATN Gen V Quad Core Processor: Doubles processing speed and doubles efficiency - handles 4K video, smart features, and real-time ballistics simultaneously.
- 3-15x Smooth Zoom: Stepless magnification with a 9-degree (240 ft) field of view for fast target acquisition and long-range precision.
- 4K UHD Video Recording (up to 240 FPS): Record in Ultra HD at 30/60/120/240 FPS, with slow-motion capture and Dual Stream Video (stream HD while recording to SD card).
- Recoil Activated Video (RAV): Automatically triggers recording on recoil so you never miss the moment - no button-pressing required.
- Custom Reticle Editor: Design, save, and share custom reticles at reticle.atncorp.com. Includes Smart Mil Dot reticle that dynamically adjusts with zoom.
- WiFi, Bluetooth & App Integration: Connect to iOS or Android for live streaming, gallery access, and full scope control via the ATN app.
- Up to 14-Hour Battery Life: Built-in Li-ion battery keeps you in the field through all-day and overnight hunts.
- 3D Gyroscope, Accelerometer & Electronic Compass: Onboard motion sensors support advanced ballistics, cant detection, and radar functionality.
- Operating Temperature -20 degrees F to +120 degrees F: Weather-resistant build rated for use in harsh field conditions year-round.
- 3-Year Warranty: Backed by ATN's comprehensive 3-year manufacturer warranty.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- ATN X-Sight 5 LRF 3-15x Riflescope
- IR850 IR Illuminator
- 30mm Standard Rings
- Flip Open Cap
- Scope Cover
- Eyecup
- Sunshade
- USB-C Cable
- Lens Tissue
Why You'll Love It
ATN has built the X-Sight 5 LRF for serious hunters and shooters who refuse to compromise - and it shows in every detail. The combination of a built-in rangefinder and ballistic calculator means you can make precise, first-round hits at extended distances without carrying additional gear. The 4K+ sensor paired with enhanced night vision mode delivers vivid, detailed imagery even in complete darkness, giving you a meaningful edge during early-morning and late-night hunts.
Lightweight enough for extended carry, rugged enough for rain, fog, and extreme temperatures, the X-Sight 5 LRF is engineered for real-world field use. The RAV system ensures your most memorable shots are automatically captured in stunning 4K, while the ATN app keeps your settings and footage organized. Trusted by hunters, security professionals, and tactical shooters nationwide, the X-Sight 5 LRF is the smart optic that keeps delivering season after season.
Product Specifications
View Spec Chart
| SKU | DGWSXS3155LRF |
|---|---|
| Magnification | 3-15x |
| Field of View | 9 degrees (15.7 m / 100 m) / 240 ft |
| Sensor | ATN 4K+ 4056x3040, 30/60/120 FPS |
| Core | ATN Gen V Quad Core |
| Micro Display | 1280x960 |
| Eye Relief | 90 mm |
| Video Record Resolution | Up to 4K UHD (30/60/120/240 FPS) |
| Laser Rangefinder | Yes |
| Ballistic Calculator | Yes |
| WiFi (Streaming, Gallery & Controls) | iOS, Android |
| Bluetooth | Yes |
| 3D Gyroscope | Yes |
| 3D Accelerometer | Yes |
| Electronic Compass | Yes |
| RAV (Recoil Activated Video) | Yes |
| Smooth Zoom | Yes |
| Radar | Yes |
| Reticles | Multiple Patterns & Color Options, User Custom Reticles |
| Reticle Editor | Yes |
| Microphone | Yes |
| MicroSD Card | 4 to 64 GB (V30 class) |
| USB | Type-C |
| Mount | 30 mm Standard Rings (included) |
| Battery Life (Li-ion) | Up to 14 hours |
| Waterproof / IP Rating | Weather Resistant |
| Operating Temperature | -20 degrees F to +120 degrees F / -28 degrees C to 48 degrees C |
| Dimensions | 14.3" x 3" x 2.2" / 362 x 76 x 56 mm |
| Weight | 2.1 lb / 0.95 kg |
| Warranty | 3 Years |
| Assembly Required | Minimal - mount rings included, standard scope mounting applies |
| Shipping Method | Ships in a box via standard parcel carrier (no freight required) |
Manuals & Guides
FAQ
What is the difference between the X-Sight 5 LRF and the standard X-Sight 5?
The X-Sight 5 LRF includes a built-in Laser Rangefinder that the standard X-Sight 5 does not. The LRF automatically measures distance to your target and feeds that data directly into the onboard Ballistic Calculator, enabling precise, compensated holdover without any manual input. For hunters and long-range shooters, this is a significant advantage over the base model.
Can this scope be used during the day as well as at night?
Yes - the ATN X-Sight 5 LRF is a full day/night smart riflescope. It transitions seamlessly between daylight and enhanced night vision modes, delivering clear, detailed imagery in both conditions. The 4K+ sensor and Gen V Quad Core processor are optimized to perform in a wide range of lighting environments, from bright daylight to complete darkness.
Does the scope record video, and how is it stored?
Yes, the X-Sight 5 LRF records Ultra HD 4K video at up to 240 FPS and supports slow-motion capture at 120/240 FPS. Video is stored on a MicroSD card (4-64 GB, V30 class) that slots directly into the scope. The Dual Stream Video feature lets you simultaneously stream HD video via WiFi to the ATN app while recording to the SD card. The Recoil Activated Video (RAV) feature auto-records when the rifle fires.
What phones and devices are compatible with the ATN app?
The X-Sight 5 LRF connects via WiFi and Bluetooth to both iOS (iPhone/iPad) and Android devices. The ATN app allows you to control scope settings, view live video, access your photo and video gallery, and adjust ballistic profiles from your phone. This is especially useful for adjusting settings without disturbing your position in the field.
How long does the battery last, and can I extend it?
The built-in Li-ion battery provides up to 14 hours of use on a single charge, which is sufficient for most full-day hunts. For extended multi-day use, ATN offers compatible external power accessories such as the ATN Power Weapon Kit. Charging is done via the included USB-C cable.
What size mount does this scope use?
The ATN X-Sight 5 LRF uses a 30 mm tube and comes with 30 mm standard rings included in the box. A Quick Detach (QD) scope mount is also available separately as an optional accessory if you prefer a tool-free mounting solution.
